WOOF SHADOW

Tachra Design

ARCHITECTS
Tachra Design

LOCATION
Tehran Province, Tehran, N Bahar, Iran

CATEGORY
Apartments

ARCHITECT IN CHARGE
Faezeh Hadian

YEAR
2016

AREA
1340 m²

PHOTOGRAPHS
Parham Taghioff, Monireh Tafreshi

DESIGN TEAM
Faezeh Hadian, Iman Derakhshan

MANUFACTURERS
Wintech, Agor, Bartarsazan

PRESENTATION
Shabnam Rezaie

CONSTRUCTION
Tachra Design

DETAIL DESIGN
Shabnam Rezaie

MECANICAL AND ELECTRICAL CONSULTANT
Mahar Sazeh Pouyesh

STRUCTURAL DESIGN
Amir Sherafatmand, Siavash Karimi

Text description provided by architect.

DESIGNING PROCESS

“Woof Shadow” building is a 5-storey building with 10 apartments, located in a middle class block in Tehran.

Our main challenge to start designing was restrictions on implmenting the effective ideas in project, and designing some details after developing the structure.

Woof Shadow
© Parham Taghioff
Woof Shadow
© Parham Taghioff
Woof Shadow
© Parham Taghioff

However, in the process of project design, a balance was made between employers’ demands, main ideas in design and participation in construction which led to changes in plan and other elements.

Ultimately the building was developed.

The project tried to provide continuity in the whole project through alignment of design lines and corners.

Woof Shadow
© Parham Taghioff
Woof Shadow
© Monireh Tafreshi

The current importance of land value reduced the terraces number and novel shades in urban views.

To fill this vacuum we introduced a third dimension on façade to create a deep surface in external figure.

Woof Shadow
© Monireh Tafreshi
Woof Shadow
© Parham Taghioff

In designing the form, the surface had to be one piece with no cuts and using origami, a tri-dimension feature was formed by folding the two-dimension surface.

The tri-dimension volume was achieved by creating new texture, creative layout and a body consisting of small pixels with no external addition to volume.

The elements created “light and shade” to change façade into a structure in which, overlapped shades form the texture.

Woof Shadow
© Parham Taghioff
Woof Shadow
© Parham Taghioff
Woof Shadow
© Parham Taghioff

We chose bricks, inexpensive material, as main element of façade formation as pixel materials that fit the design and more configuration with block texture.

VIEW

Regarding view from floors, the highest visual pollution was in middle floors; thus, we took compactness of points and main nodes of plan and expanded the main plan through general geometry and its compatibility to each storey.

The ventricular shell links with internal space which in turn, filters light and visual pollution, and provides privacy.

Woof Shadow
© Parham Taghioff
Woof Shadow
© Parham Taghioff
Woof Shadow
© Parham Taghioff

To solve light reduction caused by bricks shell, we made changes in size of openings.

Window frames are unique characteristics of building as they provide various visual views of city to the viewer.

A green site was designed in the recessed southern wall as communication place with shades and beauty.

Woof Shadow
© Parham Taghioff
Woof Shadow
© Parham Taghioff
Woof Shadow
© Parham Taghioff

FAÇADE IMPLEMENTATION

Due to complexity of design, we taught bricklayers by simulated models and used trial geometric model before operations.

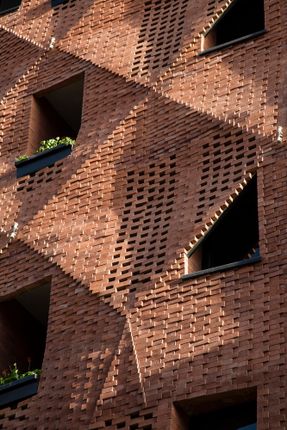

The bricks were laid by steel threads. This project is distinguished from similar projects by using dry bricks laying and in some cases, the bricks are sewed to main structure through gaps.

The additional load problem was solved by distributing it among building floors.

Woof Shadow
© Parham Taghioff


Woof Shadow
© Parham Taghioff
Woof Shadow
© Parham Taghioff
Woof Shadow
© Parham Taghioff
Woof Shadow
© Parham Taghioff
Woof Shadow
© Parham Taghioff
Woof Shadow
© Parham Taghioff
Woof Shadow
© Parham Taghioff
Woof Shadow
© Parham Taghioff


Woof Shadow
© Monireh Tafreshi
Woof Shadow
© Monireh Tafreshi
Woof Shadow
© Monireh Tafreshi
Woof Shadow
© Parham Taghioff
Woof Shadow
© Parham Taghioff
Woof Shadow
© Parham Taghioff


Woof Shadow
© Parham Taghioff
Woof Shadow
© Parham Taghioff
Woof Shadow
© Parham Taghioff
Woof Shadow
© Parham Taghioff
Woof Shadow
© Parham Taghioff


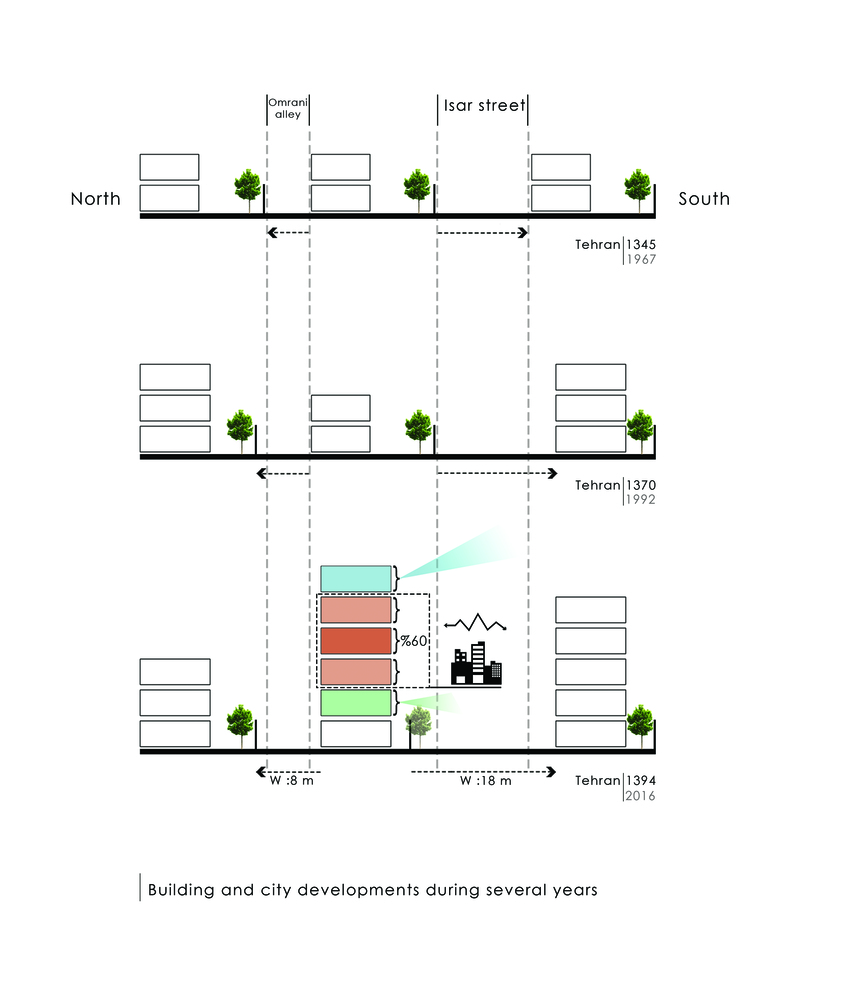

Woof Shadow
Diagram
Woof Shadow
Diagram
Woof Shadow
Diagram
Woof Shadow
Diagram
Woof Shadow
Diagram
Woof Shadow
Diagram
Woof Shadow
Diagram
Woof Shadow
Diagram
Woof Shadow
Diagram

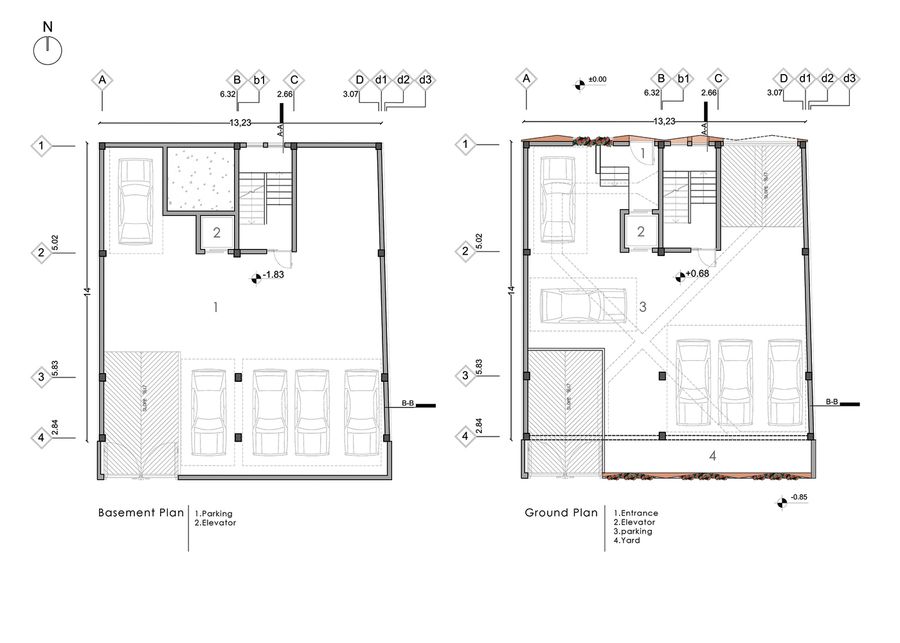

Woof Shadow
Floor Plan
Woof Shadow
Diagram
Woof Shadow
Diagram


Woof Shadow
Site plan
Woof Shadow
Diagram
Woof Shadow
Floor Plan


Woof Shadow
Section
