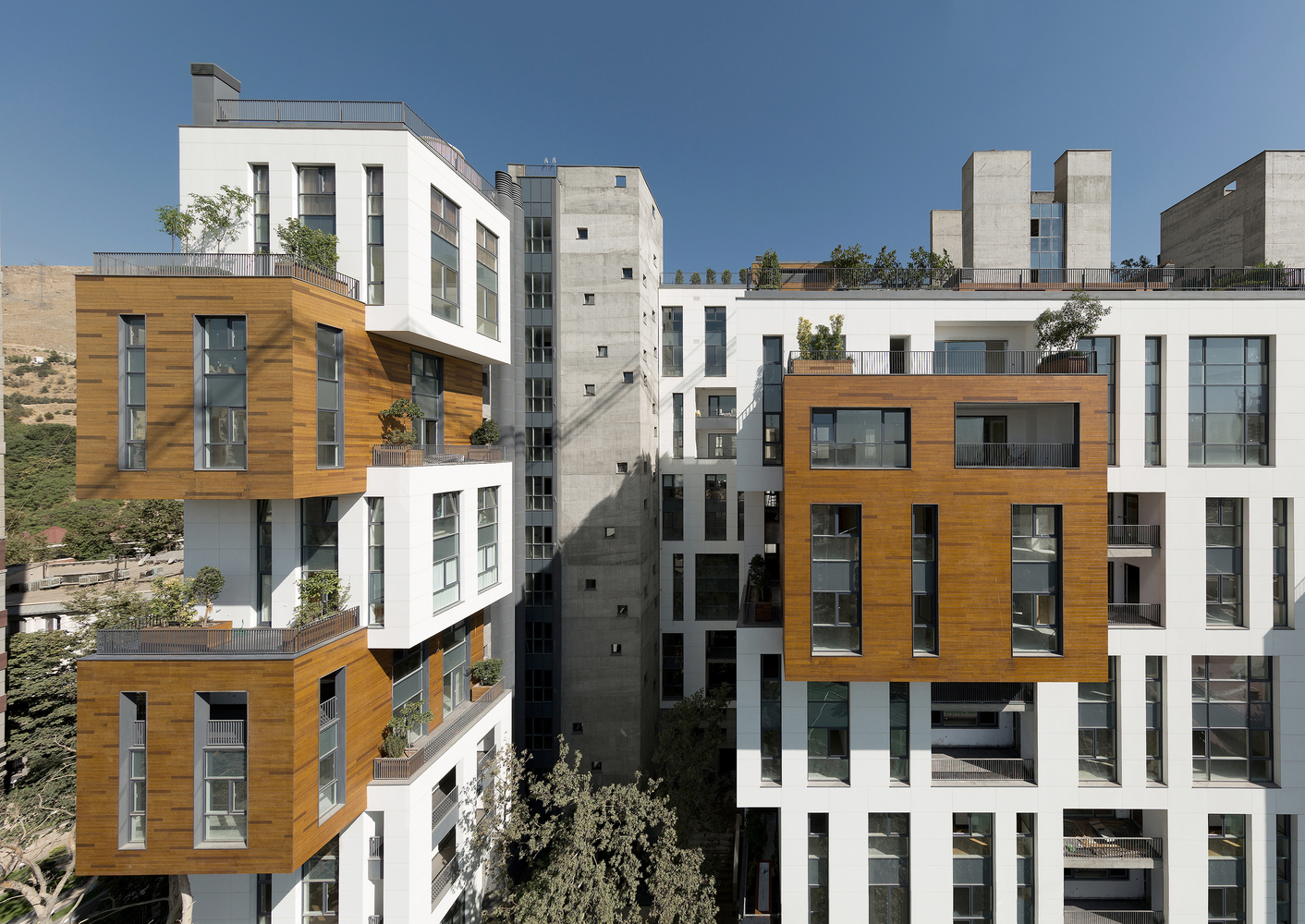

Zaferaniye Garden Complex
© Mohammad Hassan Ettefagh

ZAFERANIYE GARDEN COMPLEX

Olgooco

ARCHITECTS
Olgooco

PHOOTOGRAPHS
Mohammad Hassan Ettefagh

AREA
38000 m²

CATEGORY
Apartments

LEAD ARCHITECTS
Mehran Khoshroo

PROJECT YEAR
2016

LOCATION
Asad Abad, Zafaraniyeh, Tehran, Tehran Province, Iran

MANUFACTURERS
STENI, Gerflor, Asaş

COLLABORATORS
AlmaraMelkomian, Mehdi Atashbar, Amir masoud Nafisi, Adel Ataei, Soudabe Qorbani, Nastaran Namvar, Tannaz Khoshroo, Niloofar Esmaeili, Reyhane Miraftab, Sepide Ghabelzede, Amir Hossein Mohebi, Torang Asadi, HashemKarimi

Text description provided by architect.

Zaferaniye garden complex is a private housing project, ordered by client at 2007 with 64 residential units and a total area of 38000 square meters, in 12 floors above, and 3 floors under the ground.

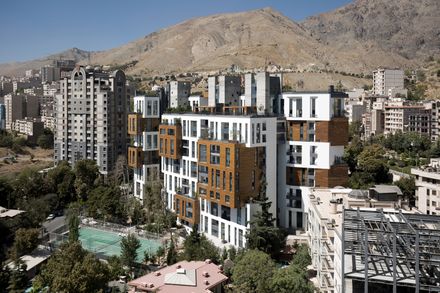

Zaferaniye Garden Complex
© Mohammad Hassan Ettefagh
Zaferaniye Garden Complex
© Mohammad Hassan Ettefagh

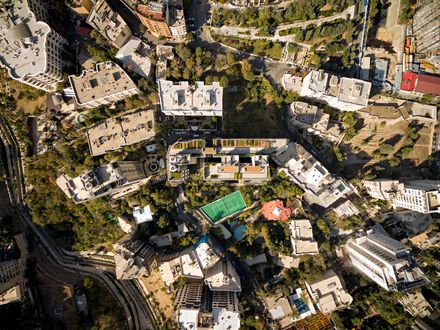

The building site is situated in a 6500 square meters old garden in northern parts of Tehran.

DESIGN PROCESS

Avoiding cutting the site trees was of utmost importance to arrange the building foot print according to local regulations; thus two individual masses were arranged on the ground, with some connections under the ground accordingly.

Zaferaniye Garden Complex
© Mohammad Hassan Ettefagh
Zaferaniye Garden Complex
© Mohammad Hassan Ettefagh

The concept of plant boxes as a representation of the interacting city life and nature was envisioned to sculpt the mass volume.

Recycling of rain water trough made us able to use it for Irrigation and flush tanks –using a gray piping system.

Zaferaniye Garden Complex
© Mohammad Hassan Ettefagh
Zaferaniye Garden Complex
© Mohammad Hassan Ettefagh

This way we developed a big number of trees on balconies with minimum height of 2floors and outdoor living surfaces.

After setting the trees, we got both privacy and a new micro-climate on the balconies and beyond.

Providing privacy using ever-green leaves and an automated Irrigation system ,assures lasting mutual view from both the apartments and the city with a response to Tehran’s polluted air.

Zaferaniye Garden Complex
© Mohammad Hassan Ettefagh
Zaferaniye Garden Complex
© Mohammad Hassan Ettefagh
Zaferaniye Garden Complex
© Mohammad Hassan Ettefagh

During the time needed for the growth of façade plants, the project creates new views for itself and it is not depended on environment’s view.

Having a tree beside the façade, makes a new vertical neighborhood; as caring for plants in the lower floors provides vertical privacy and a green view for upper floor.

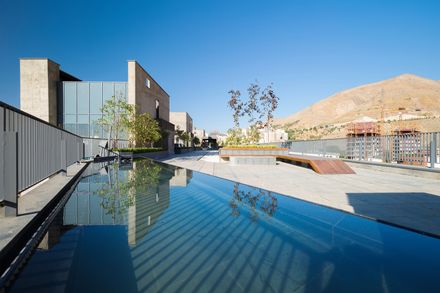

A roof garden with an area of 2000 square meters, including sky-bridge as gazebo,a vegetables garden, and a gathering place, is there for people to use as a landscape of the surroundings, with a great view and sufficient privacy(outdoor living).

Zaferaniye Garden Complex
© Mohammad Hassan Ettefagh
Zaferaniye Garden Complex
© Mohammad Hassan Ettefagh

There are over 25 types of houses, ranging inform 220 to750 square meters.

Each of these are different from the others, in terms of size, balcony and layout, including large family apartments and twin-level penthouses. At least 65% of their perimeter is faced outside, which makes pleasant opportunities for view.

Zaferaniye Garden Complex
© Mohammad Hassan Ettefagh


Zaferaniye Garden Complex
© Mohammad Hassan Ettefagh
Zaferaniye Garden Complex
© Mohammad Hassan Ettefagh
Zaferaniye Garden Complex
© Mohammad Hassan Ettefagh
Zaferaniye Garden Complex
© Mohammad Hassan Ettefagh
Zaferaniye Garden Complex
© Mohammad Hassan Ettefagh
Zaferaniye Garden Complex
© Mohammad Hassan Ettefagh
Zaferaniye Garden Complex
© Mohammad Hassan Ettefagh
Zaferaniye Garden Complex
© Mohammad Hassan Ettefagh


Zaferaniye Garden Complex
North elevation
Zaferaniye Garden Complex
South elevation
Zaferaniye Garden Complex
East elevation
Zaferaniye Garden Complex
West elevation
Zaferaniye Garden Complex
Section A-A
Zaferaniye Garden Complex
Section B-B


Zaferaniye Garden Complex
Materials
Zaferaniye Garden Complex
Rainwater recycling


Zaferaniye Garden Complex
Privacy and green layer
Zaferaniye Garden Complex
Program distribution


Zaferaniye Garden Complex
Diagram
Zaferaniye Garden Complex
Green Balconies diagram


Zaferaniye Garden Complex
Site plan
Zaferaniye Garden Complex
Ground floor plan
Zaferaniye Garden Complex
Third floor plan
Zaferaniye Garden Complex
Eigth floor plan
Zaferaniye Garden Complex
Eleventh floor plan
Zaferaniye Garden Complex
Tenth floor plan

Zaferaniye Garden Complex
Typology
