ZCB BAMBOO PAVILION

The Chinese University of Hong Kong School of Architecture

ARCHITECTS
The Chinese University of Hong Kong School of Architecture

CATEGORY
Other Structures

BAMBOO CONSTRUCTION
Sun Hip Scaffolding Eng. Co.Ltd

MAIN CONTRACTOR
W.M. Construction Ltd.

PRINCIPAL INVESTIGATOR
Kristof Crolla

EXECUTIVE DIRECTOR
Christopher To

PUBLICITY
Yan IP

TECHNICAL SERVICES
Margaret Kam

CO IVESTIGATOR
Adam Fingrut

AUTHORISED PERSON
Martin Tam

BAMBOO CONSULTANT
Vinc Math

PROJECT CLIENT
Zero Carbon Building of the Construction Industry Council

PROJECT CONSTRUCTION PERIOD
3.5 months

RESEARCH ASSISTANT
IP Tsz Man Vincent, LAU Kin Keung Jason

STRUCTURAL ENGINEER
George CHUNG, Goman HO, Alfred FONG

LOCATION
8 Sheung Yuet Rd, Kowloon Bay, Kowloon, Hong Kong

PHOTOGRAPHS
Michael LAW, Ramon Van Der Heijden, Kevin Ng

Text description provided by architect.

The ZCB Bamboo Pavilion is a public event space built for the Construction Industry Council’s Zero Carbon Building (ZCB) in the summer of 2015 in Kowloon Bay, Hong Kong.

ZCB Bamboo Pavilion
© Kevin NG
ZCB Bamboo Pavilion
© Ramon VAN DER HEIJDEN

It is a four-storey-high long-span bending-active bamboo gridshell structure with a footprint of approximately 350m2 and a seating capacity of 200 people.

It is built from 475 large bamboo poles that are bent onsite to shape the structure and that are hand-tied together with metal wire using techniques based on Cantonese bamboo scaffolding craftsmanship.

ZCB Bamboo Pavilion
© Kevin NG
ZCB Bamboo Pavilion
© Ramon VAN DER HEIJDEN

The shape is a large diagrid shell structure that is folded down into three hollow columns. These columns rest on three circular concrete footings.

A tailor-made white tensile fabric is stretched over the structure and is brightly lit from inside the three legs.

ZCB Bamboo Pavilion
© Kevin NG
ZCB Bamboo Pavilion
© Kevin NG

The project is the outcome of the concerted efforts of the Construction Industry Council (CIC), the Chinese University of Hong Kong (CUHK) and different contractors.

It was designed by a research team led by Prof. Kristof Crolla at CUHK’s School of Architecture.

ZCB Bamboo Pavilion
© Kevin NG
ZCB Bamboo Pavilion
© Kevin NG

The research investigates how computational design tools can be strategically inserted into existing construction methods to allow for a more engaging and innovative architectural outcome.

The ZCB Bamboo Pavilion showcases this and illustrates how the endangered craftsmanship of Bamboo Scaffolding Construction in Hong Kong can be expanded through the introduction of digital form-finding and real-time physics simulation tools.

ZCB Bamboo Pavilion
© Kevin NG
ZCB Bamboo Pavilion
© Michael LAW

The project’s design is based on an architecture student design internship held at the CUHK School of Architecture.

The design was developed further by the research team in collaboration with structural engineers and bamboo consultants, using digital physics simulation engines, physical model making, and large-scale prototyping to derive its final form.

ZCB Bamboo Pavilion
© Michael LAW
ZCB Bamboo Pavilion
© Michael LAW

Bamboo is a widely available, environmentally friendly material that grows abundantly and at remarkably high speeds in the Asia-Pacific region, Africa and the Americas.

It is an excellent renewable natural resource which captures CO2 and converts it into oxygen.

It is strong, light and easy to process and transport. In Hong Kong bamboo mostly appears in temporary theatres, scaffolding, or structures for religious festivals.

ZCB Bamboo Pavilion
© Michael LAW

Globally it is usually applied as a surrogate for wood or steel, rather than in ways that utilise the material’s unique bending properties and strength.

In contrast, the ZCB Bamboo Pavilion presents an alternative architectural application that maximise these latent material properties.

ZCB Bamboo Pavilion
© Michael LAW

The pavilion is geometrically complex, bamboo has widely varying geometric, dimensional, and performative properties, and the scaffolding industry does not use conventional architectural drawings for its intuitive constructions.

Building the project therefore challenged the boundaries of the architect’s design control. In response, new methods were developed that merged precise digital design systems with inconsistent natural resources in order to deal with these unpredictabilities.

ZCB Bamboo Pavilion
© Michael LAW

The ZCB Bamboo Pavilion promotes innovative and ecological architectural design to the broader public and design community. It will be used to host exhibitions, performances and events that advocate low carbon living, construction, and development.

By promoting sustainable, light-weight building methods for large span architecture the project seeks ways for traditional Cantonese craftsmanship to evolve for the 21st century.


ZCB Bamboo Pavilion

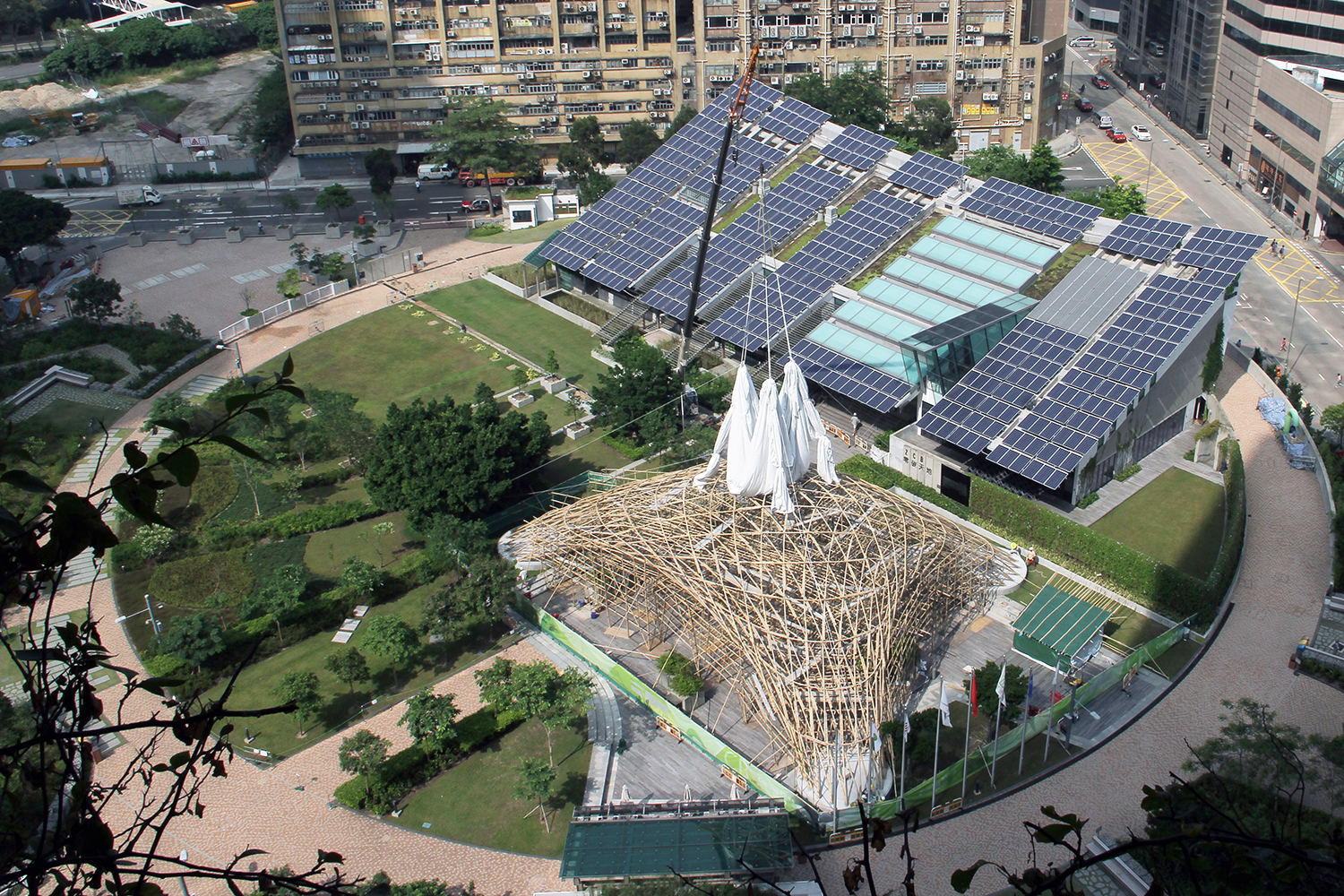

Top view-bamboo skeleton
ZCB Bamboo Pavilion

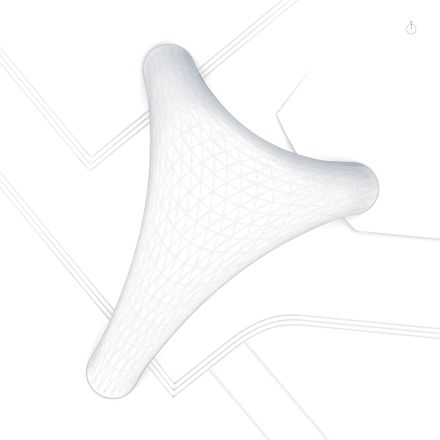

Top view by day
ZCB Bamboo Pavilion
Top view by night
ZCB Bamboo Pavilion
Section


ZCB Bamboo Pavilion

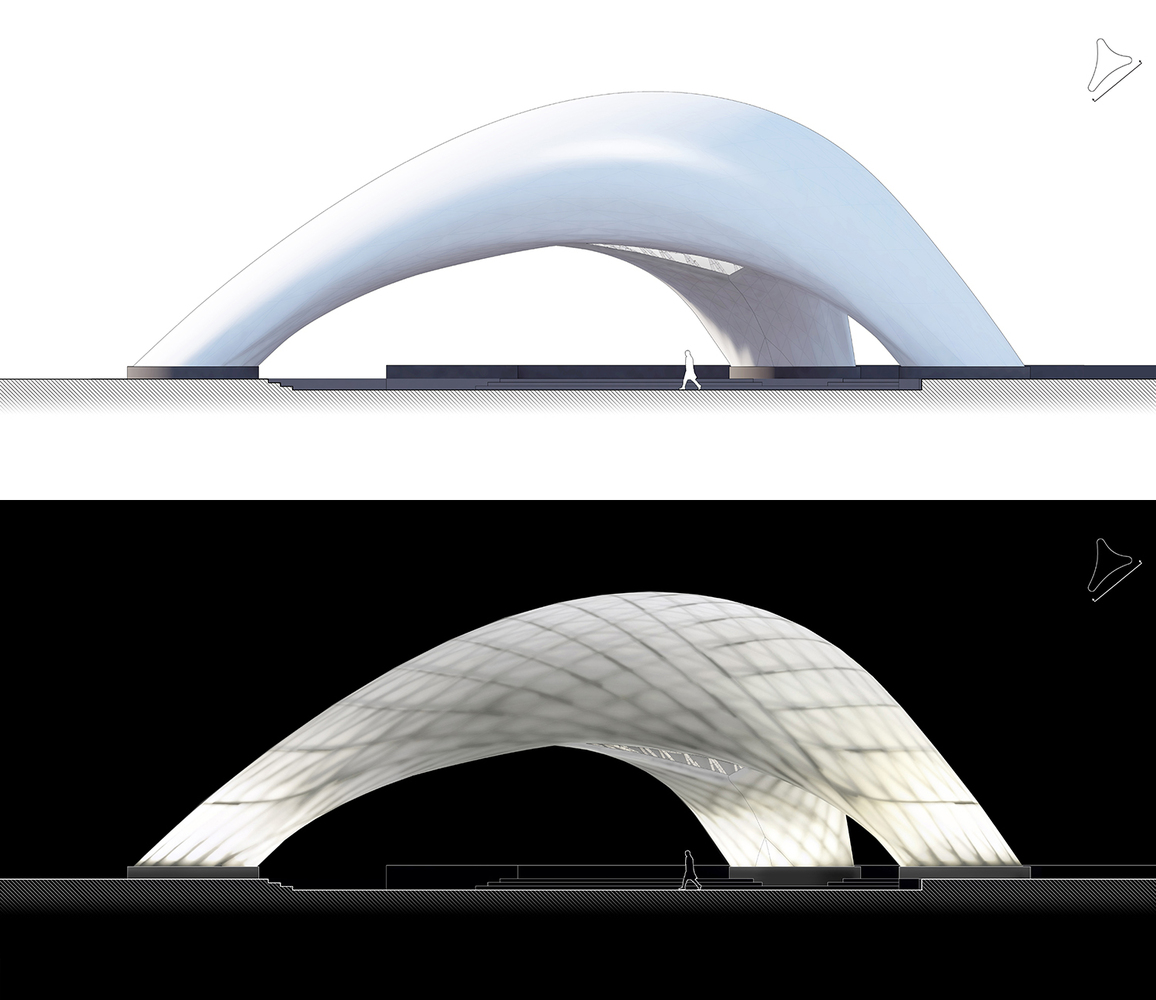

Elevation 1
ZCB Bamboo Pavilion
Elevation 2
