Aau Anastas

Stone Matters

STONE MATTERS

AAU Anastas

Stone Matters
© Mikaela Burstow

ARCHITECTS
AAU Anastas

RESEARCH LAB
Scales, Gsa Lab Ensa Paris-Malaquais

PHOTOGRAPHS
Mikaela Burstow

AREA
62.0 m2

 YEAR
2017

LOCATION
Jericho, Palestine

CATEGORY
Small Scale

Stone Matters
© Mikaela Burstow

Text description provided by architect.

Palestine suffers of a misuse of stone as a structural material: while it was an abundant material used for structural purposes in the past, it is now used as a cladding material only and the know-how of stone building is disappearing.

The research aims at including stone stereotomy – the processes of cutting stones – construction processes in contemporary architecture.

Stone Matters
© Mikaela Burstow
Stone Matters
© Mikaela Burstow

It relies on novel computational simulation and fabrication techniques in order to present a modern stone construction technique as part of a local and global architectural language.

Our research department – SCALES – and GSA (Geometrie Structure Architecture) lab are leading this research on stone construction techniques.

Stone Matters
© Mikaela Burstow
Stone Matters
© Mikaela Burstow

The results of the research will be used to build the el-Atlal artists and writers residency in Jericho. As such, Stonematters is the first module of the residency and the first built vault of our research.

Stone matters is built on an innovative construction principle allowing for unprecedented forms for such structures. The architectural innovation is born from structural morphology and stereotomy.

Stone Matters
© Mikaela Burstow
Stone Matters
© Mikaela Burstow

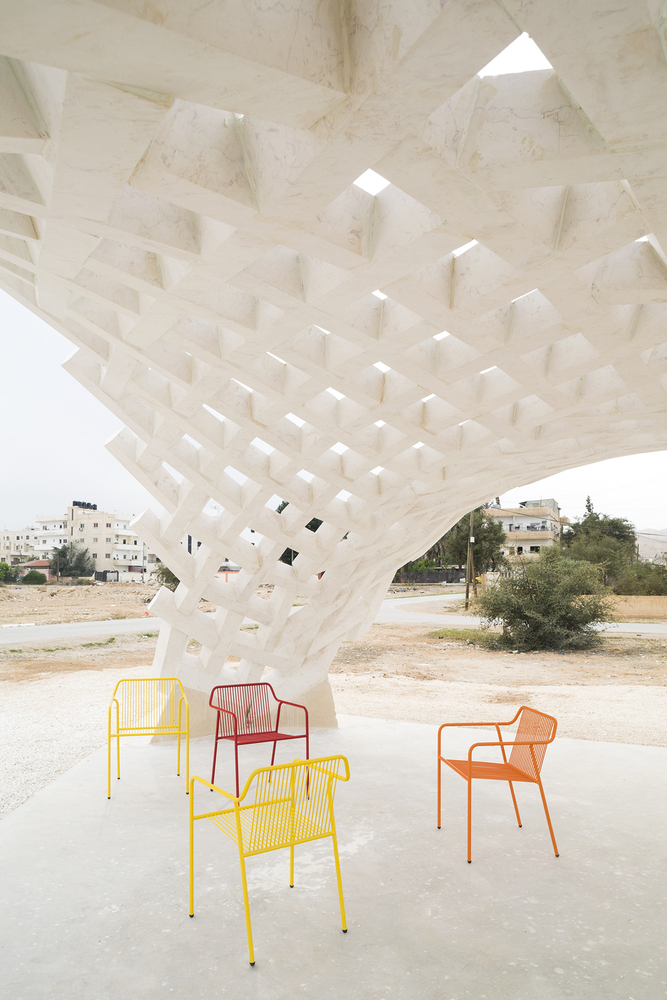

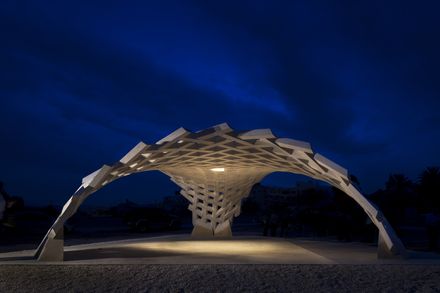

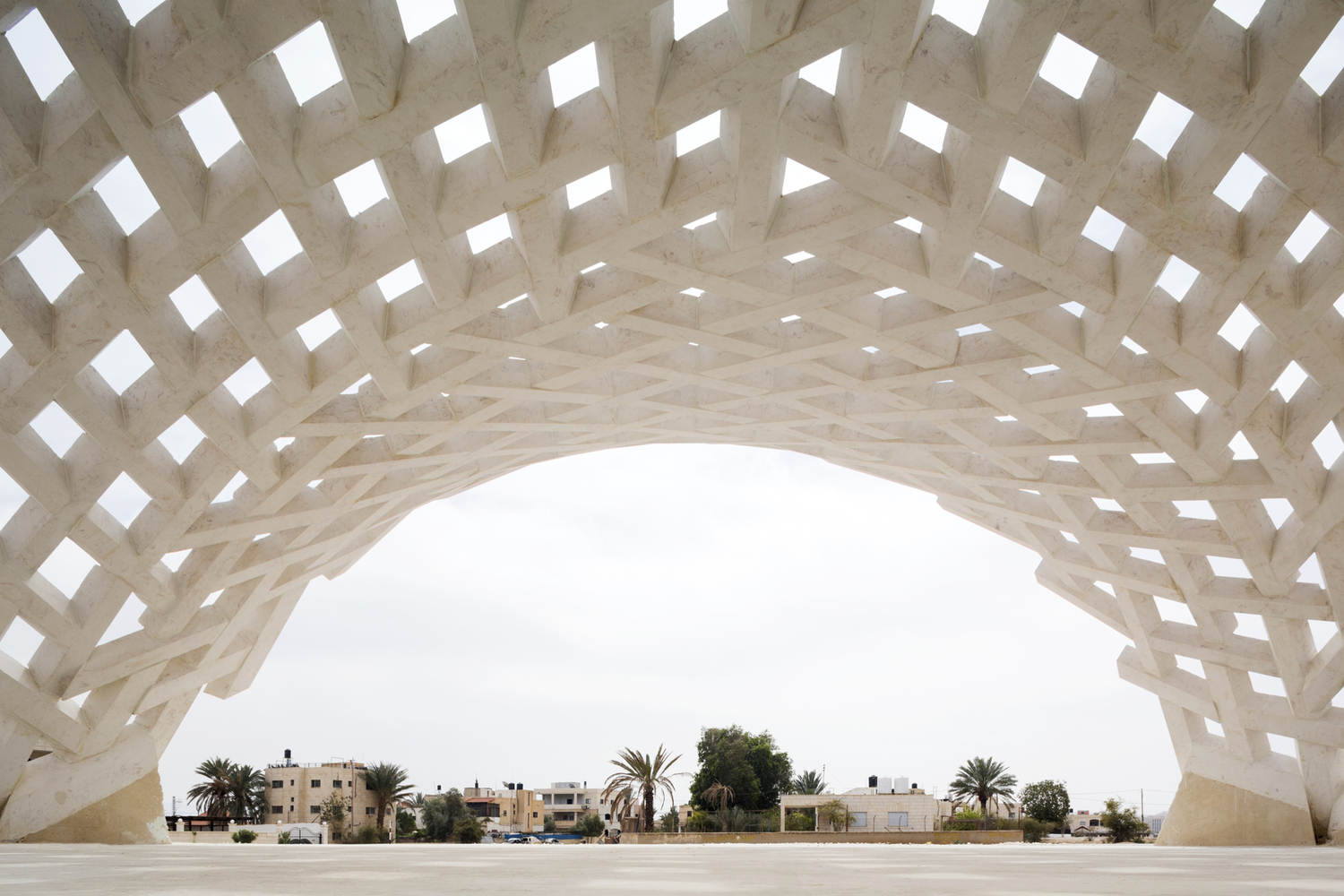

The vault covers a surface of 60 m2 and spans 7 meters with a constant depth of 12 cm. The geometry follows the shape of a minimal surface on which geodesic lines are drawn and set the pattern of the interlocking stones. The whole structure is made of 300 mutually supported unique stone pieces.

Beyond the scientific and technical issues that make Stonematters a unique object, the project represents as well a cultural challenge: it has been entirely built with available know-hows in a peripheral zone of the culturally marginal city of Jericho.

Stone Matters
© Mikaela Burstow
Stone Matters
© Mikaela Burstow

Processes of several factories have been combined in order to use existing known techniques for new uses. The polystyrene blocks, for example, have been roughly cut in a factory and transported to another for a robotic carving process.

Right after its completion Stonematters attracted curious inhabitants of Jericho and elsewhere in Palestine, putting together the seeds of the future el-atlal artists’ and writers’ residency.

Stone Matters
© Mikaela Burstow
Stone Matters
© Mikaela Burstow
Stone Matters
© Mikaela Burstow

Through the understanding of our historical cities the research tries to link techniques of constructions to urban morphologies.

It puts a non-hierarchical hypothetical link between the scale of stereotomy and the scale of urban fabric. In that context, the idea is to suggest new urban morphologies linked to the scientific use of a largely available material in Palestine.

STONE IN PALESTINE

In Palestine, the most common construction material is stone. Stone is abundant, widely available and – foremost – an urban law imposed by the Ottomans requires stone construction in order to unify the built landscapes.

Stone Matters
© Mikaela Burstow
Stone Matters
© Mikaela Burstow
Stone Matters
© Mikaela Burstow

This law underlines the shift from a self- managed urbanism to an authority urbanism.

Not only is the stone a marker of the transition in the urban and social structures, but it shows the evolution of the Palestinian city’s morphology.

The construction techniques’ evolution, from fabrication to implementation, has an effect on the entirety of the Palestinian city.

Stone Matters
© Mikaela Burstow
Stone Matters
© Mikaela Burstow
Stone Matters
© Mikaela Burstow

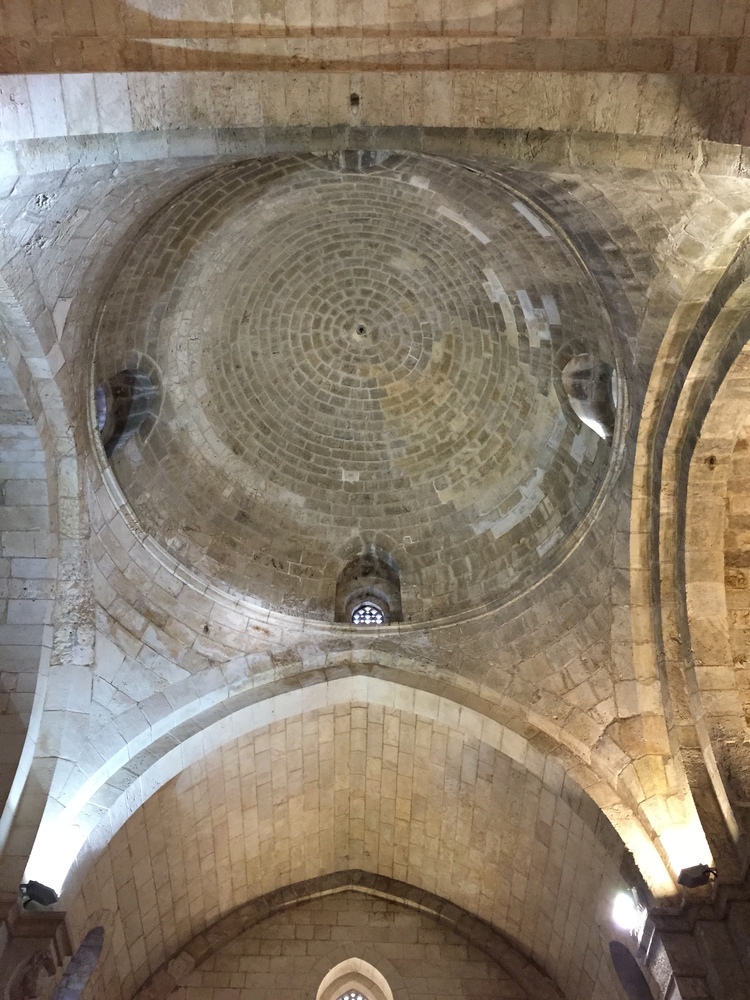

The church of Sainte Anne is one of Jerusalem old city’s most valuable witness of crusaders’ architecture. The church has been built in the 12th century by the Crusaders.

The church of Saint Anne offers a complete example of what was the architecture of the Crusaders in Palestine; a combination of different architectural elements that they brought from abroad and indigenous elements that they found in situ.

Stone Matters
© Mikaela Burstow
Stone Matters
© Mikaela Burstow

STONE MATTERS

The vault covers a surface of 60 m2 and spans 7 meters with a constant depth of 12 cm. The geometry follows the shape of a minimal surface on which geodesic lines are drawn and set the pattern of the interlocking stones. The whole structure is made of 300 mutually supported unique stone pieces.

STONE CUTTING

The geometry of the vault follows the shape of a minimal surface on which geodesic lines are drawn and set the pattern of the interlocking stones. The whole structure is made of 300 mutually supported unique stone pieces. Each stone has 4 incliced interfaces, that allow the assembly of the different stone voussoirs.

Stone Matters
© Mikaela Burstow
Stone Matters
© Mikaela Burstow

Based on geometrical parameters as the overall shape, the density of the paving, the inclination of contact surfaces, the size of the voussoirs, and number of voussoirs types, a specific structural criteria can be improved.

FORMWORK CARVING

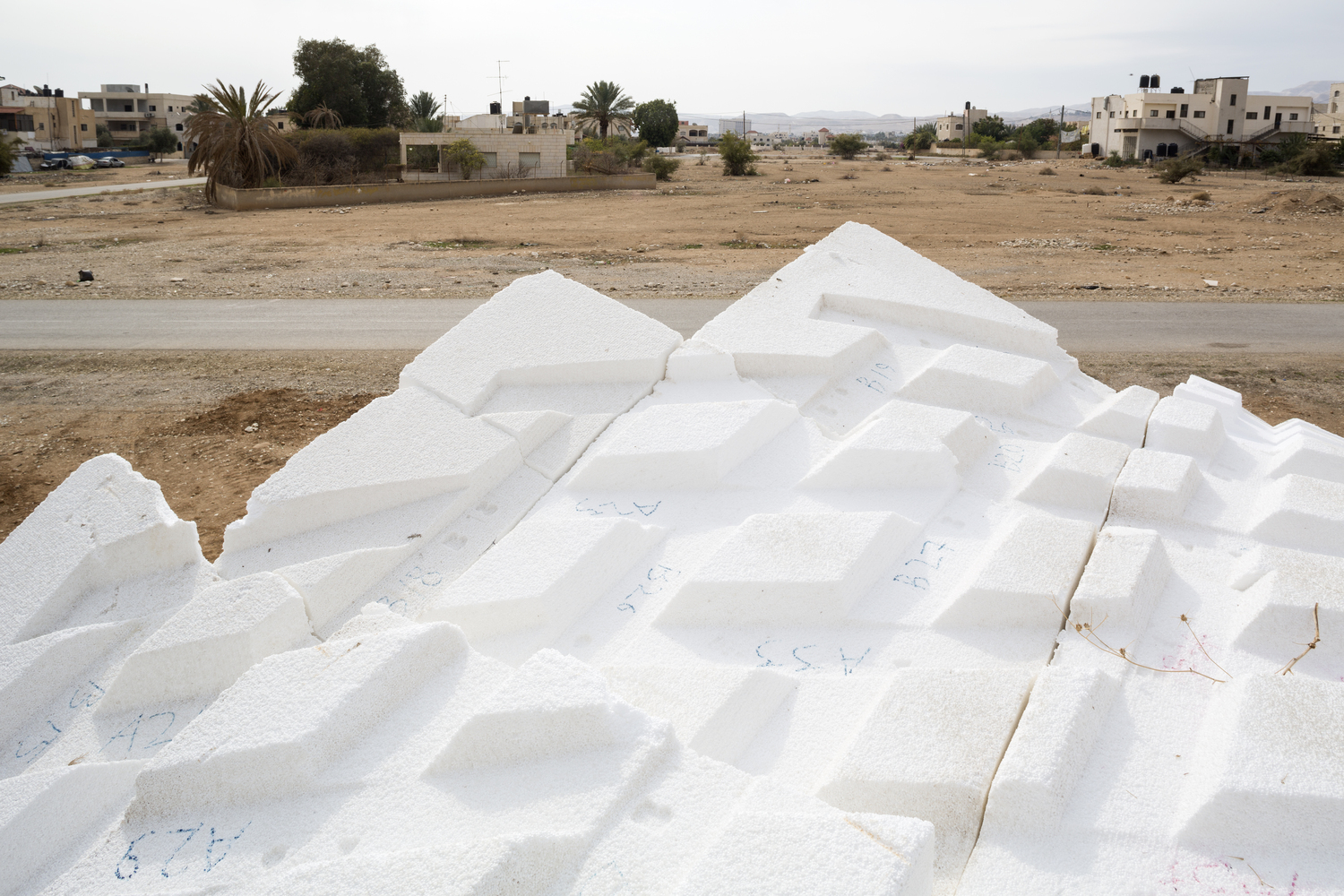

The formwork of the vault is made out of blocks of polystyrene of variable heights, carved with the shape of each stone. When arranged together they form a continuous counter-form of the entire structure. On each block, stones are referenced and placed at their exact position.

Stone Matters
© Mikaela Burstow
Stone Matters
© Mikaela Burstow

FORMWORK

While the polystyrene blocks were digitally cut using robots, the main formwork was created by the local artisans using usual wooden formworks. Different altimetries were defined, generating a stepped formwork that receives the carved polystyrene blocks.

STONE MOUNTING

Stone voussoirs are assembled on the mounted polystyrene blocks. Each stone’s location is defined on the formwork.

Stone Matters
© Mikaela Burstow
Stone Matters
© Mikaela Burstow

The mounting started from the upper center of the vault progressively advanced towards the edges in a concentric process. The inclined interfaces between the stone voussoirs generate the interlocking system of the structure.

DISPLACEMENT

Spanning 7m, the vertical displacement of the vault has been delicately controlled. The initial shape has been adjusted several times, adding a counter jib in the center of the gyroid form, increasing the curvature thus reducing the displacement.

Stone Matters
© Mikaela Burstow
Stone Matters
© Mikaela Burstow

DISMANTLING OF THE SCAFFOLDING

The dismantling of the scaffolding was sequenced by different steps. Laboratory glass plates were first installed at few locations of the structure, allowing the measuring of the movements of the structure during the un-mounting of scaffolding.

The formwork jacks were then taken down of a few centimeters, letting the whole structure hold by itself. After a few hours, the glass plates were inspected, and no brakes were visible. The scaffolding was gradually taken off.

Stone Matters
© Mikaela Burstow
Stone Matters
© Mikaela Burstow

OPENING

The el-Atlal project is meant to be a model of construction techniques. It allows to envision new possible cities’ morphologies, new construction techniques and a sophisticated use of stone.

The project has the ambition of creating a mode of urbanism, and as the harat succeeded in building a city that fits their needs through stone construction techniques, el-Atlal expects to be a breeding ground of inclusive approaches to Palestinian urbanism.

Stone Matters
© Mikaela Burstow
Stone Matters
© Mikaela Burstow

An urbanism whose scales are profoundly associated. A technical and durable urbanism leaving a trace on the city’s evolution and on the Palestinian landscape.

STEREOTOMY

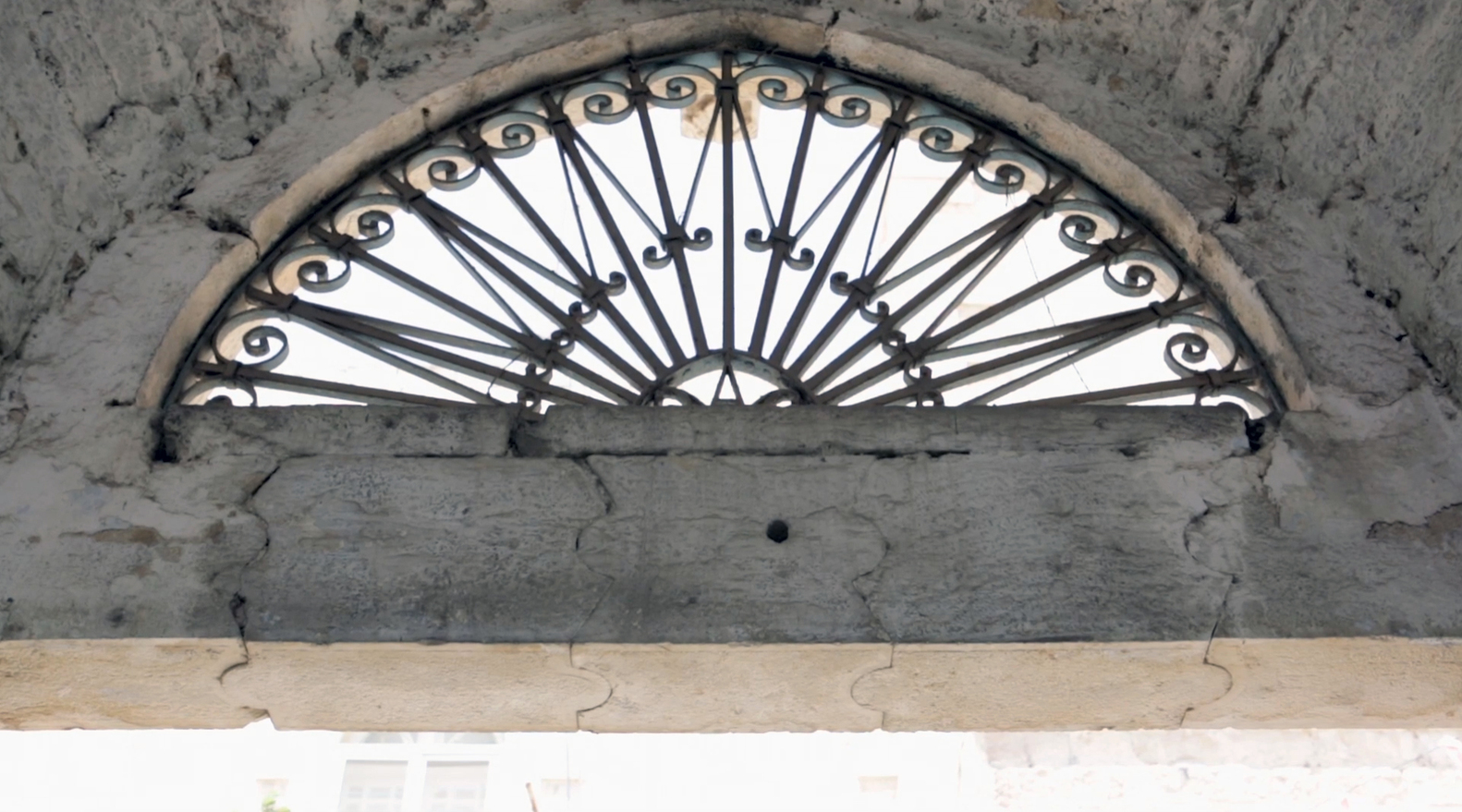

Until the beginning of the previous century stereotomy, or the art of cutting and assembling stones, played an important role in the esthetics as well as in the structural construction principles. Today’s stone factories only produce standardized blocks of few cm, used as cladding of a reinforced concrete structure.

Stone Matters
Facade
Stone Matters
Stone Assembly

The techniques used for building with stone have an effect on the speed of construction, the urban spread of territorial boundaries, and the morphology of all buildings. In other words, stereotomy and the construction methods leave a trace on the palestinian landscape.

Reinvigorating stereotomy as a way of optimizing structural performance using advanced design simulations is the founding principle of stone matters.

Stone Matters
Poly Blocks
Stone Matters
Stone Geometry

Based on geometrical parameters as the overall shape, the density of the paving, the inclination of contact surfaces, the size of the voussoirs, and number of voussoirs types, a specific structural criteria can be improved.

The whole process is an in-progress workflow which will aim at using computational design and advanced fabrication techniques in order to present a modern stone construction technique as part of a local and global architectural language.

Stone Matters
Plan


Stone Matters
Reparage
Stone Matters

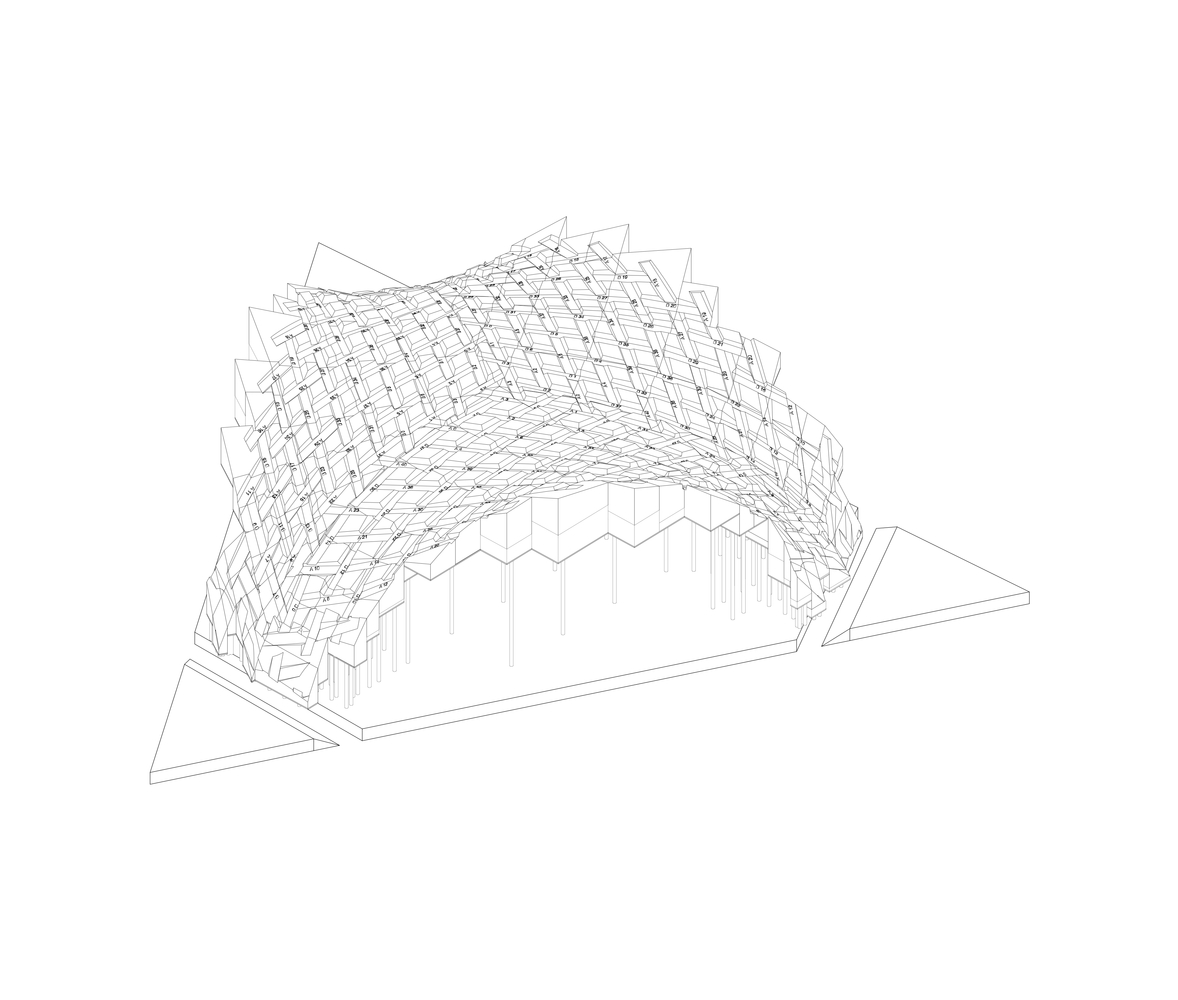

Formwork Isometric
