Boozhgan Architecture Studio

Concrete Restaurant

Concrete Restaurant
© Ali Daghigh

CONCRETE RESTAURANT

Boozhgan Studio

ARCHITECTS
Boozhgan Studio

CLIENT
Mohammad Zooei

LEAD ARCHITECTS
Hamed Badri Ahmadi

DESIGN TEAM
Neda Vaziri, Fatemeh Shariati, Parastu piray, Hanieh Safari, Kaveh Dadgar

ELECTRICAL AND MECHANICAL CONSULTANT
Arash Mojabi

STRUCTURAL CONSULTANT
Siavash Sedighi

MANUFACTURERS
Farzaneh Art Studio, Tabriz Tile, Venus glass

PHOTOGRAPHS
Deed Studio, Ali Daghigh

AREA
540.0 m2

YEAR
2017

LOCATION
Lavasan, Tehran Province, Iran

CATEGORY
Restaurant

Text description provided by architect.

In this project, we faced a challenge to get released from the past conceptual frameworks and experiences.

We not only tried to make the building memorable, but also struggled to persuade the users to explore the whole project.

Concrete Restaurant
© Deed Studio
Concrete Restaurant
© Deed Studio
Concrete Restaurant
© Deed Studio

We had a clear purpose: Designing a restaurant beside the main boulevard with a limited budget.

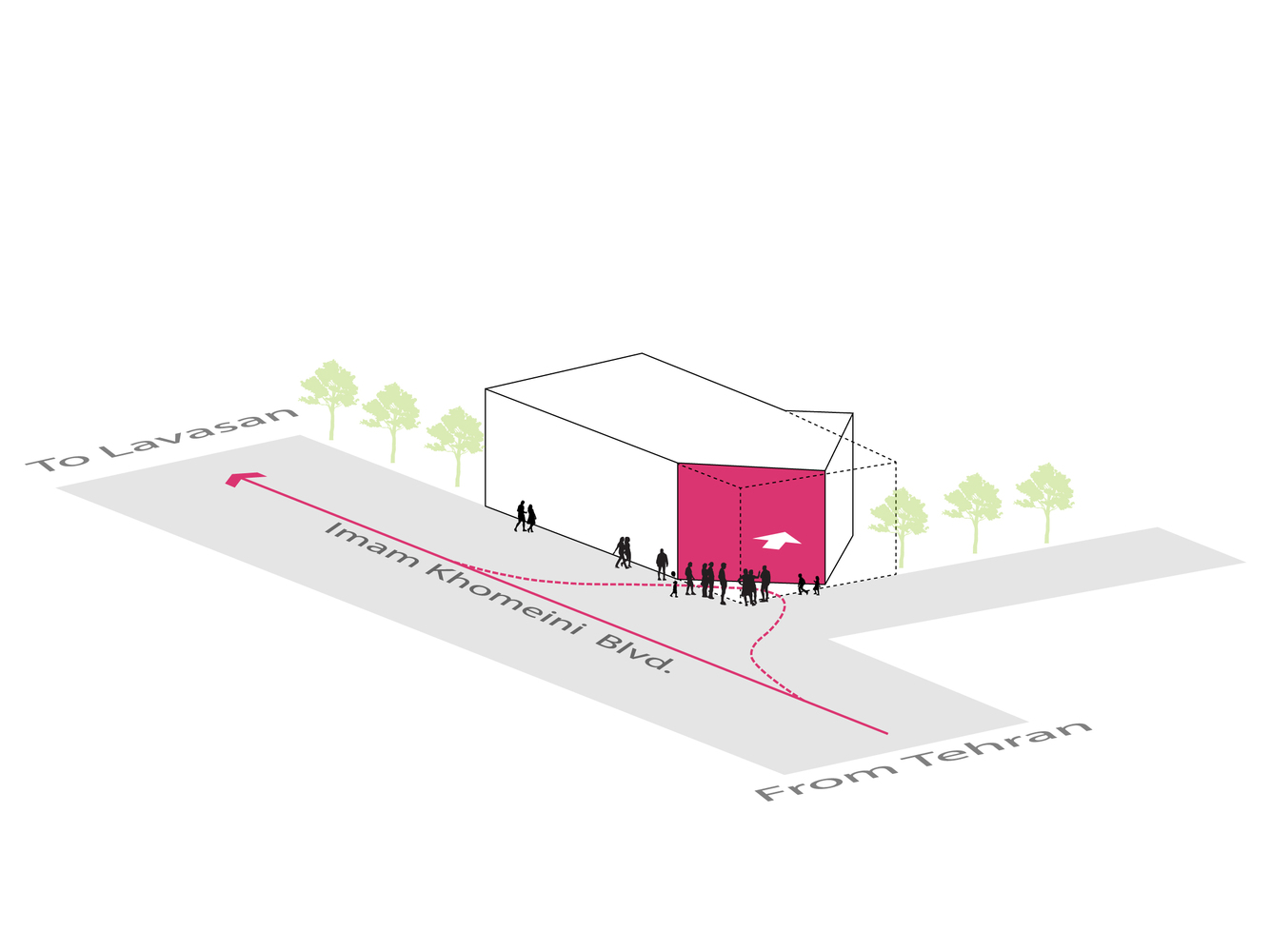

The initial site analysis resulted in the rotation idea in the north east corner, as a reaction to the traffic in the Main Boulevard and consequently creating the main entrance for the building.

Concrete Restaurant
© Deed Studio
Concrete Restaurant
© Deed Studio

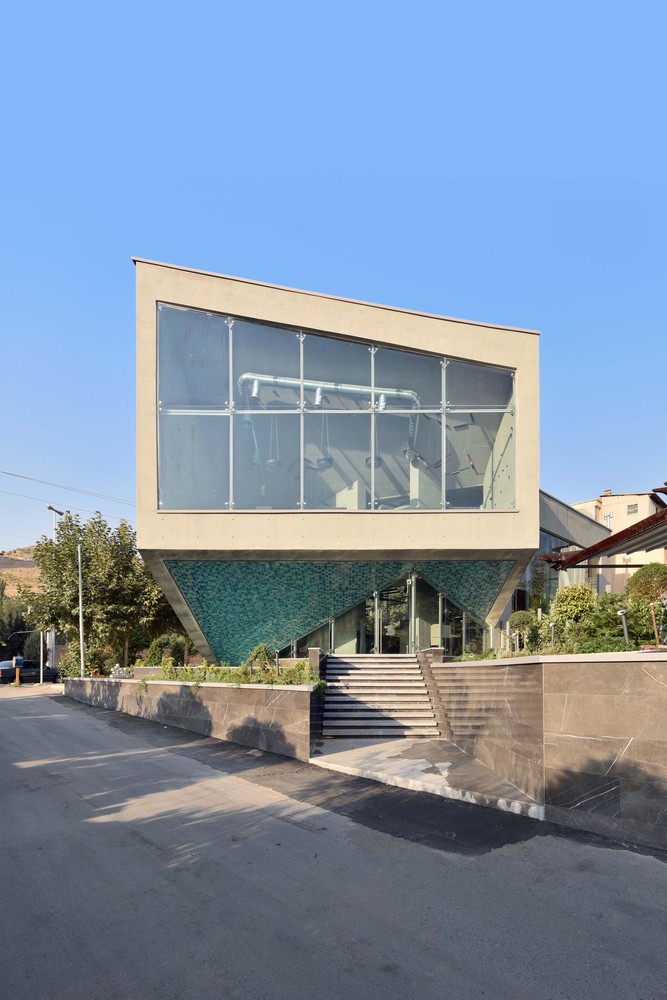

We consciously guide the users from Main Boulevard to the alley and lead them towards the project’s entrance. In fact, we force them to move around the project and explore it. In other words, the entrance was formed under the cantilever.

In order to emphasize the entrance and creating a different and influential meaning for it, this part was separated from the ground and cantilevered.

Concrete Restaurant
© Deed Studio
Concrete Restaurant
© Deed Studio
Concrete Restaurant
© Deed Studio

During the design process, we tried to embed architecture in structure.

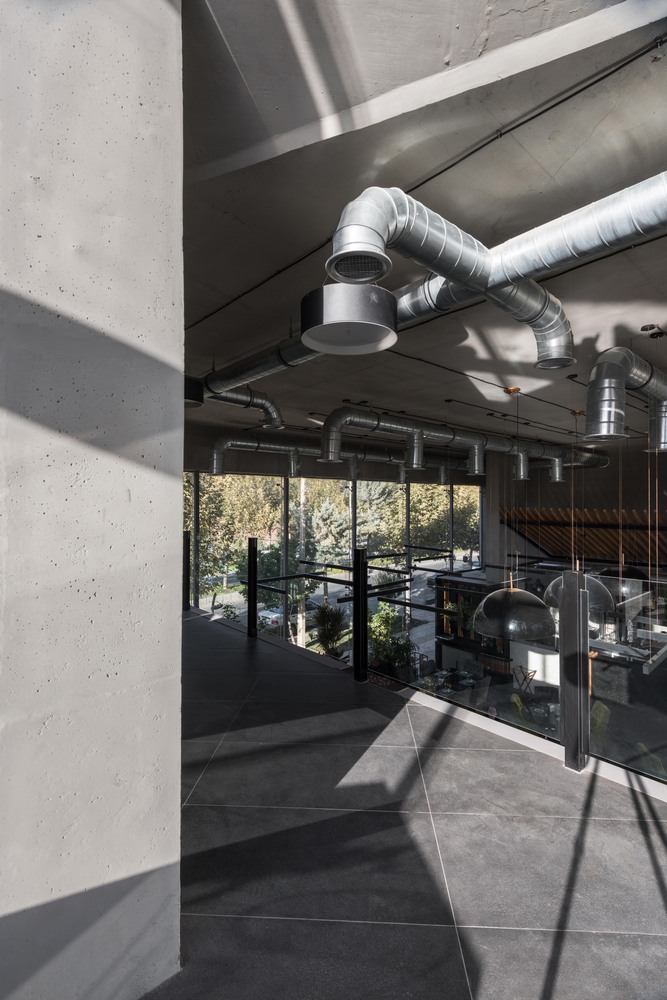

Exposed structural and mechanical elements was used to form the whole building.

One of the objectives in this project was to highlight the key role of the structure. Regarding the limited budget, expensive and redundant materials were excluded in the design process.

Concrete Restaurant
© Deed Studio
Concrete Restaurant
© Ali Daghigh

Making such decisions is complicated. Some issues such as limited budget and lack of technological experiences, made the process more difficult for us.

Although the project is not completely flawless in the construction, but the conclusion illustrated our idea well enough.

Concrete Restaurant
© Deed Studio
Concrete Restaurant
© Deed Studio
Concrete Restaurant
© Deed Studio

This project is designed in three levels. First basement is assigned to servicing activities such as kitchen, staff room and rest room.

Ground floor and the mezzanine are the main salons. We have tried to design the circulation path as a unique space which not only plays a key role in connecting the main parts together, but also creates a unique experience for the users.


Concrete Restaurant
© Ali Daghigh
Concrete Restaurant
© Deed Studio


Concrete Restaurant
© Ali Daghigh
Concrete Restaurant
© Deed Studio
Concrete Restaurant
© Deed Studio
Concrete Restaurant
© Deed Studio
Concrete Restaurant
© Deed Studio
Concrete Restaurant
© Ali Daghigh


Concrete Restaurant
Section 01
Concrete Restaurant
Section 02


Concrete Restaurant

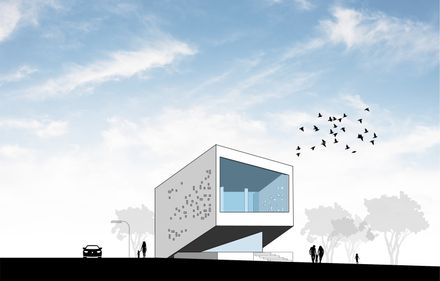

Elevation 01
Concrete Restaurant
Elevation 02
Concrete Restaurant
Elevation 03


Concrete Restaurant
Section AA
Concrete Restaurant
Section BB


Concrete Restaurant
Diagram 01
Concrete Restaurant
Diagram 02
Concrete Restaurant
Diagram 03
Concrete Restaurant
Diagram 04 / access
Concrete Restaurant

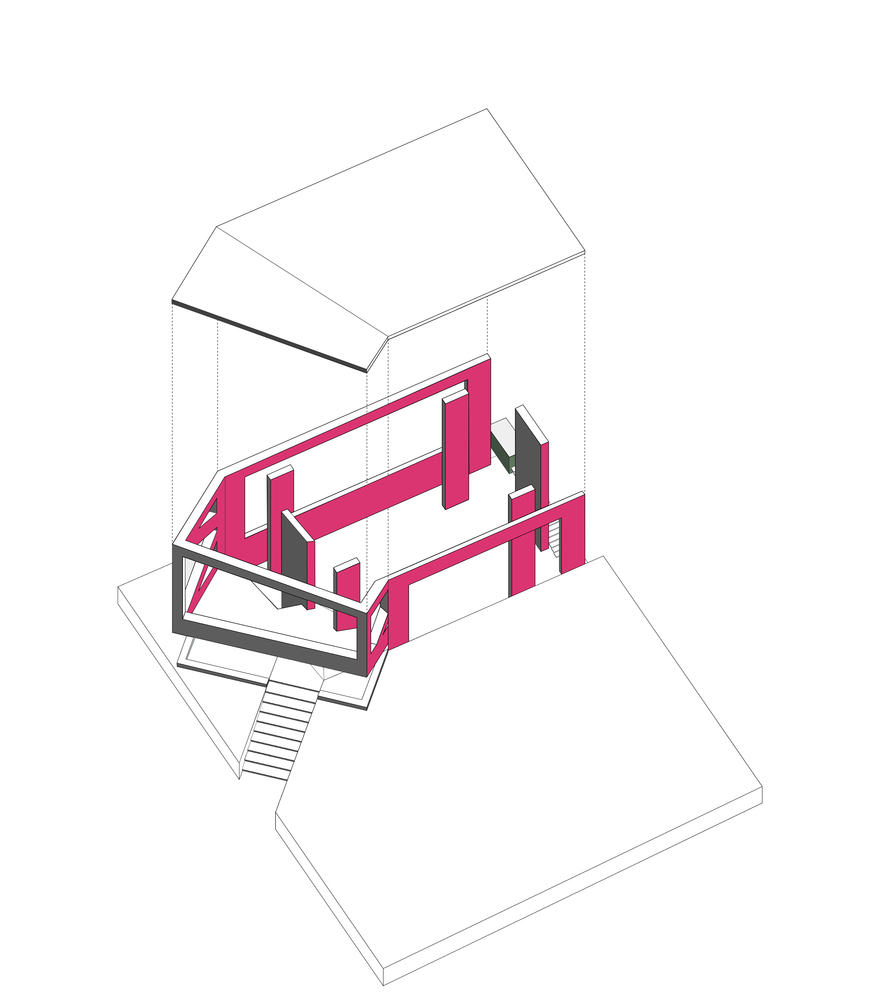

Diagram 05 / structure
Concrete Restaurant
Diagram 06 / structure


Concrete Restaurant
Basement Floor Plan
Concrete Restaurant
Ground Floor Plan
Concrete Restaurant
Mezzanine Floor Plan
