HYLA Architects

Cascading Courts

CASCADING COURTS

HYLA Architects

Cascading Courts
© Derek Swalwell

ARCHITECTS
HYLA Architects

PROJECT YEAR
2017

LEAD ARCHITECTS
Han Loke Kwang

COUNTRY
Singapore

LANDSCAPE CONTRACTOR
Green Forest Landscape Pte Ltd

AREA
568.0 m2

PROJECT TEAM
Navin Rungsmai, Amanda Goh, Thomas Ong

PHOTOGRAPHS
Derek Swalwell

STRUCTURAL ENGINEER
GNG Consultants Pte Ltd

MAIN CONTRACTOR
Praxis Contractors Pte Ltd

MANUFACTURERS
Geberit, Hansgrohe, Duravit, Hafary, KStone, OLIVARI, Earth Arts, GF+A, Mosaico, Wevre & Ducre, homogenous tiles from Hafary

Cascading Courts
© Derek Swalwell

Text description provided by architect.

A series of cascading courts between the house and the party wall forms the basis by which this semi- detached house is organized.

From the outside one is scarcely able to see these courtyards due to the screeining and deep shadows.

Cascading Courts
© Derek Swalwell
Cascading Courts
© Derek Swalwell

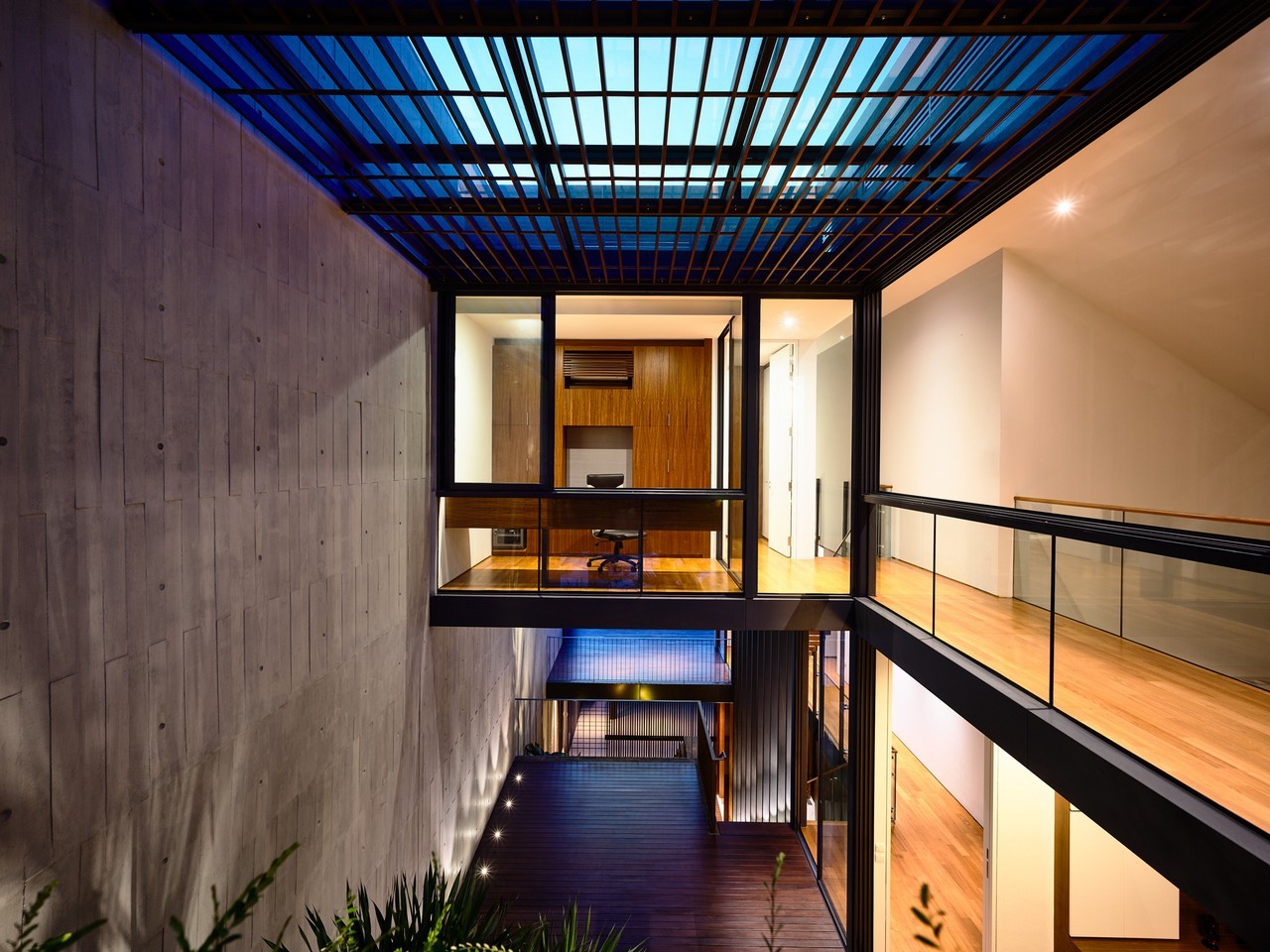

The courtyards are covered with a glass roof and timber pergola, which makes them pretty much all weather spaces.

Indeed they are open at the ends and that makes it a very breezy space and house which is ideal for our hot tropical climate.

Cascading Courts
© Derek Swalwell
Cascading Courts
© Derek Swalwell
Cascading Courts
© Derek Swalwell

The exterior elevations have an almost Japanese simplicity with the vertical timber screens and off form concrete walls.

The timber screens gives the upper level bedrooms privacy from the road.

At the entrance, one is greeted by a cascading water feature with an upper level planter.

Cascading Courts
© Derek Swalwell
Cascading Courts
© Derek Swalwell

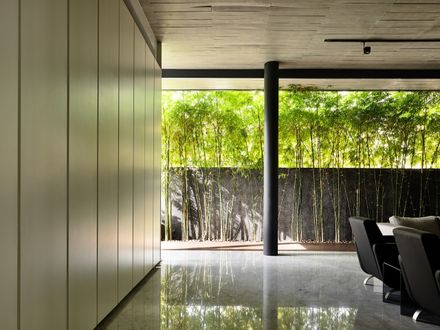

The main living areas on the ground level open to a bamboo garden on the side.

The family room on the second level is a double volume space which fronts the main courtyard with a feature tree set in a middle of a water feature.

Cascading Courts
© Derek Swalwell


Cascading Courts
© Derek Swalwell
Cascading Courts
© Derek Swalwell
Cascading Courts
© Derek Swalwell
Cascading Courts
© Derek Swalwell
Cascading Courts
© Derek Swalwell
Cascading Courts
© Derek Swalwell
Cascading Courts
© Derek Swalwell
Cascading Courts
© Derek Swalwell
Cascading Courts
© Derek Swalwell


Cascading Courts
1st Floor Plan
Cascading Courts
2nd Floor Plan


Cascading Courts
Side Elevation
Cascading Courts
Front and Rear Elevation
Cascading Courts
Cross and Longitudinal Section
