FILTERED WALL HOUSE

Duc Vien LE

ARCHITECTS
Duc Vien LE

MANUFACTURERS
Dong Tam, HAGL, Hoa Phat Viglacera

AREA
125 m2

YEAR
2017

LOCATION
Vietnam

CATEGORY
Houses

Filtered Wall House
Filtered Wall House

Text description provided by architect.

The house is situated in central Vietnam, where the area is exposed to extreme solar radiation during the summer months.

Not only that, but the house also faces the west that led to the front face of the house is directly exposed to the sun in the afternoon.

Under such objective conditions, how to reduce the external influence and the heat generated by solar radiation is the major challenge of this design.

Filtered Wall House
Filtered Wall House
Filtered Wall House

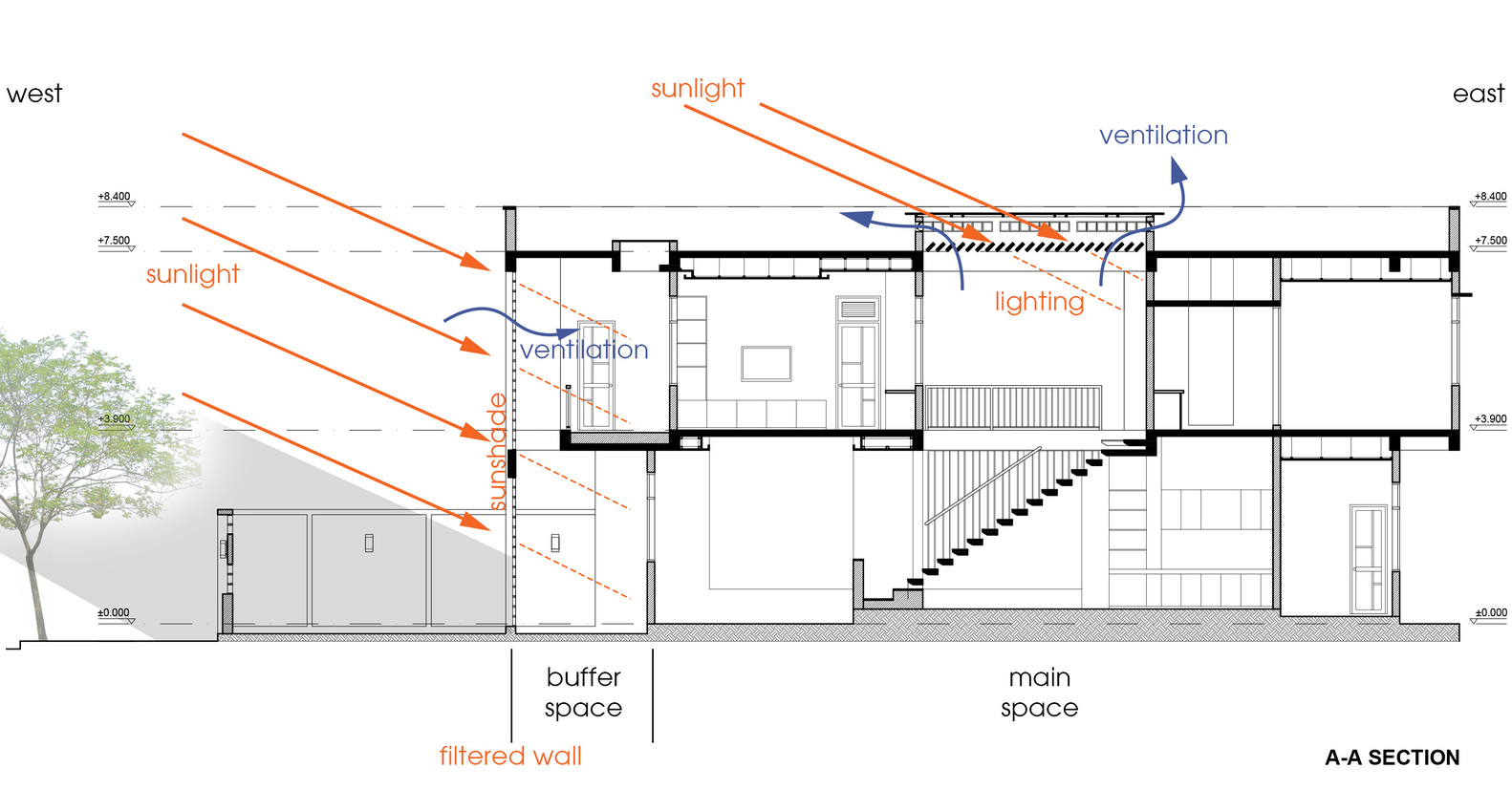

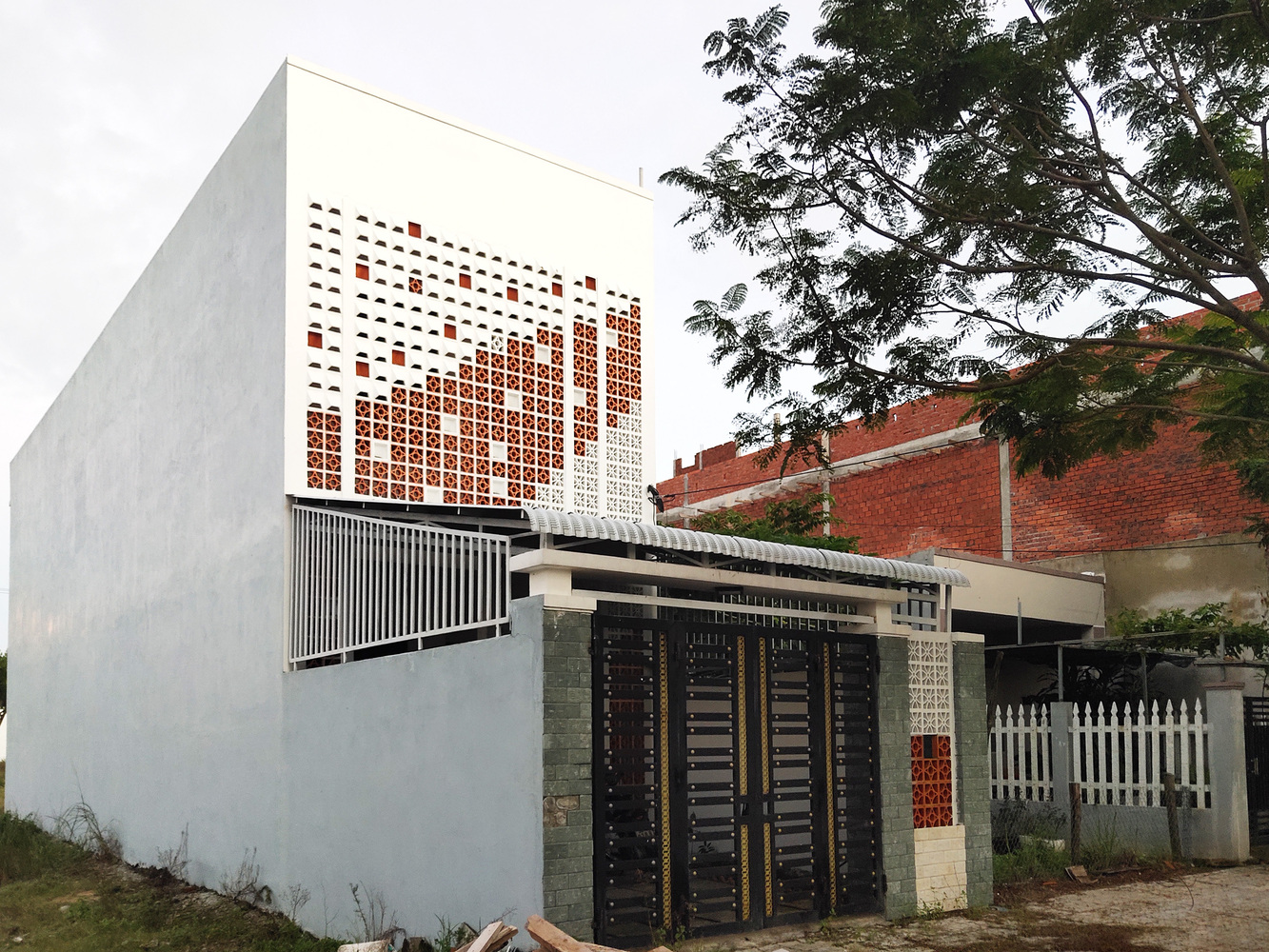

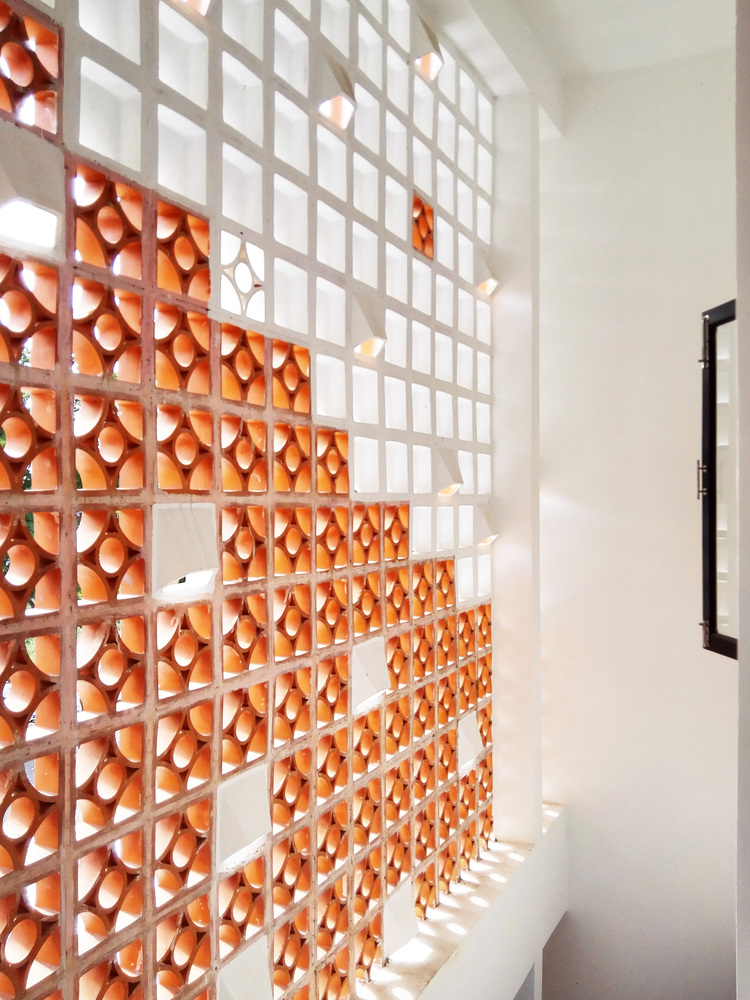

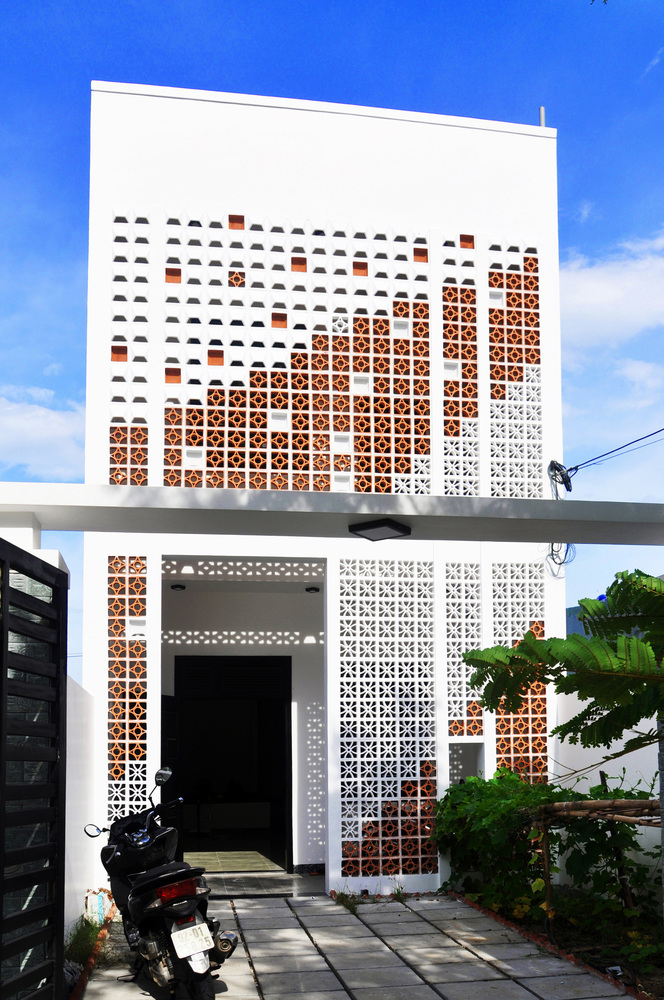

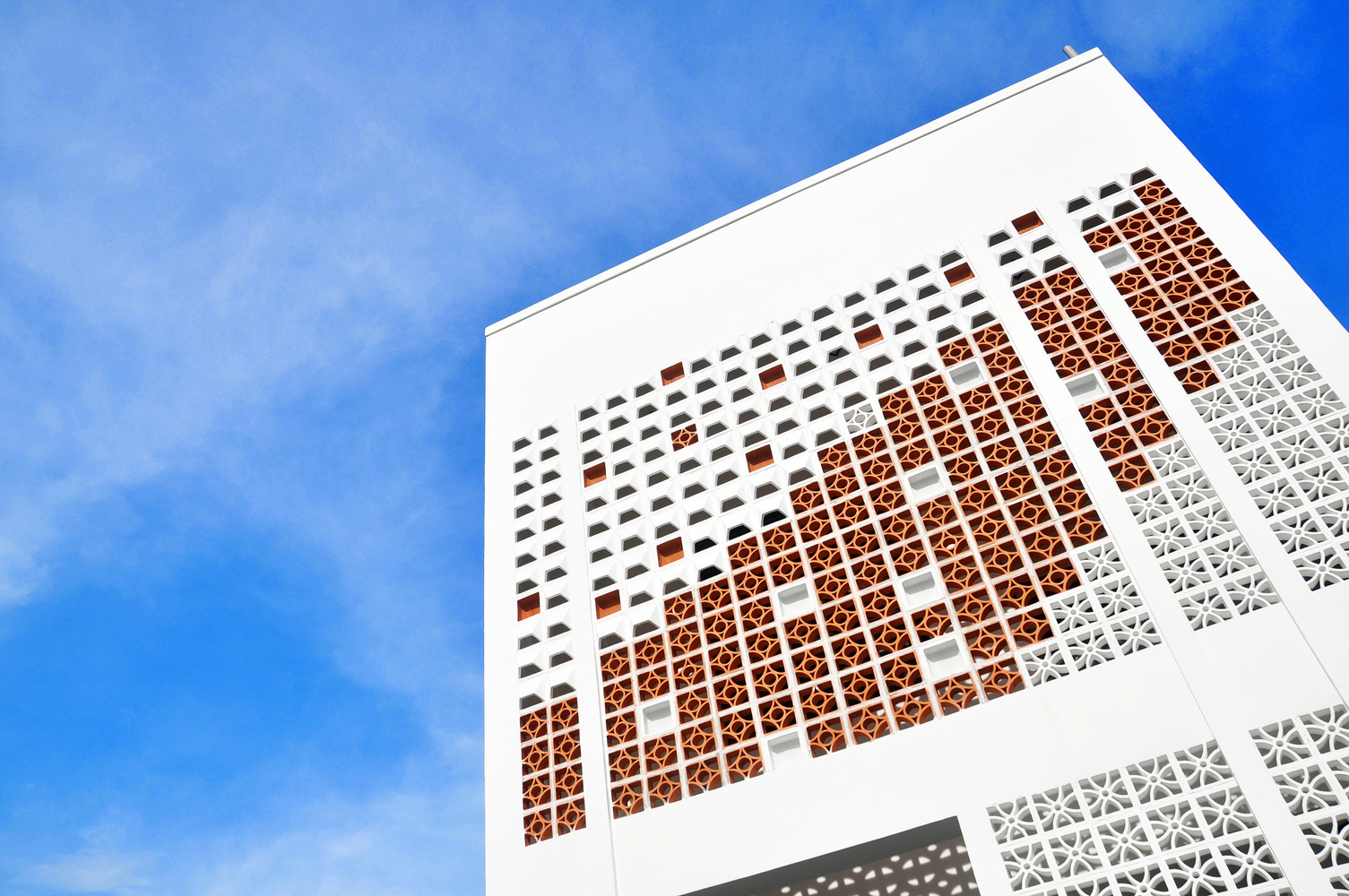

Creating a buffer space on the west side of the house is the main means of the design. The west facade of the building is a wall with filtering function.

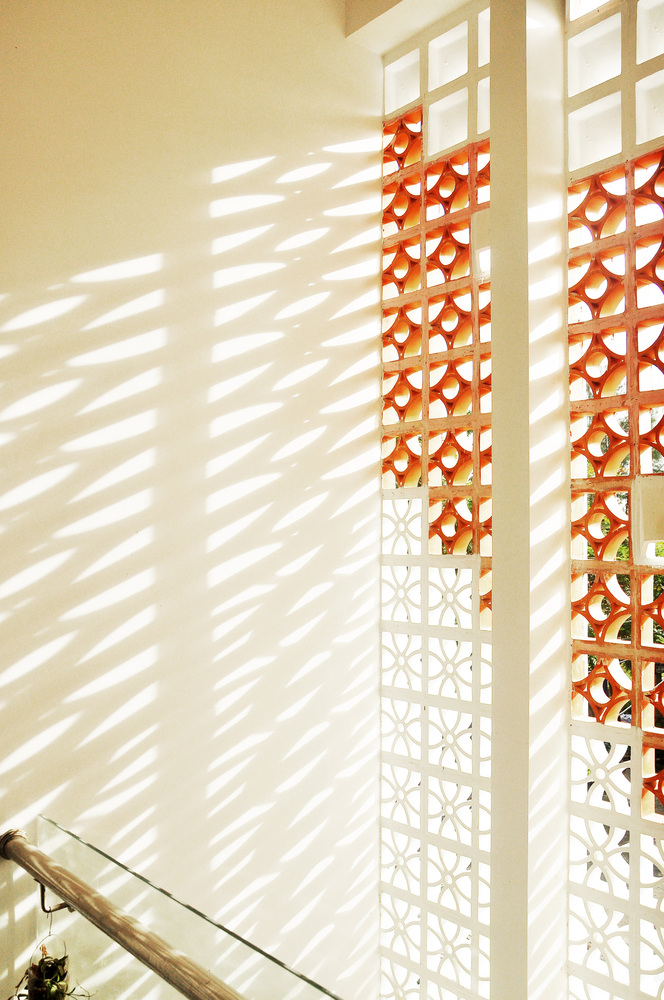

It can block most of the sunlight while allowing cool wind to enter the inner space. The existence of the filtered wall and the buffer space greatly reduces the influence of solar radiation on the main space.

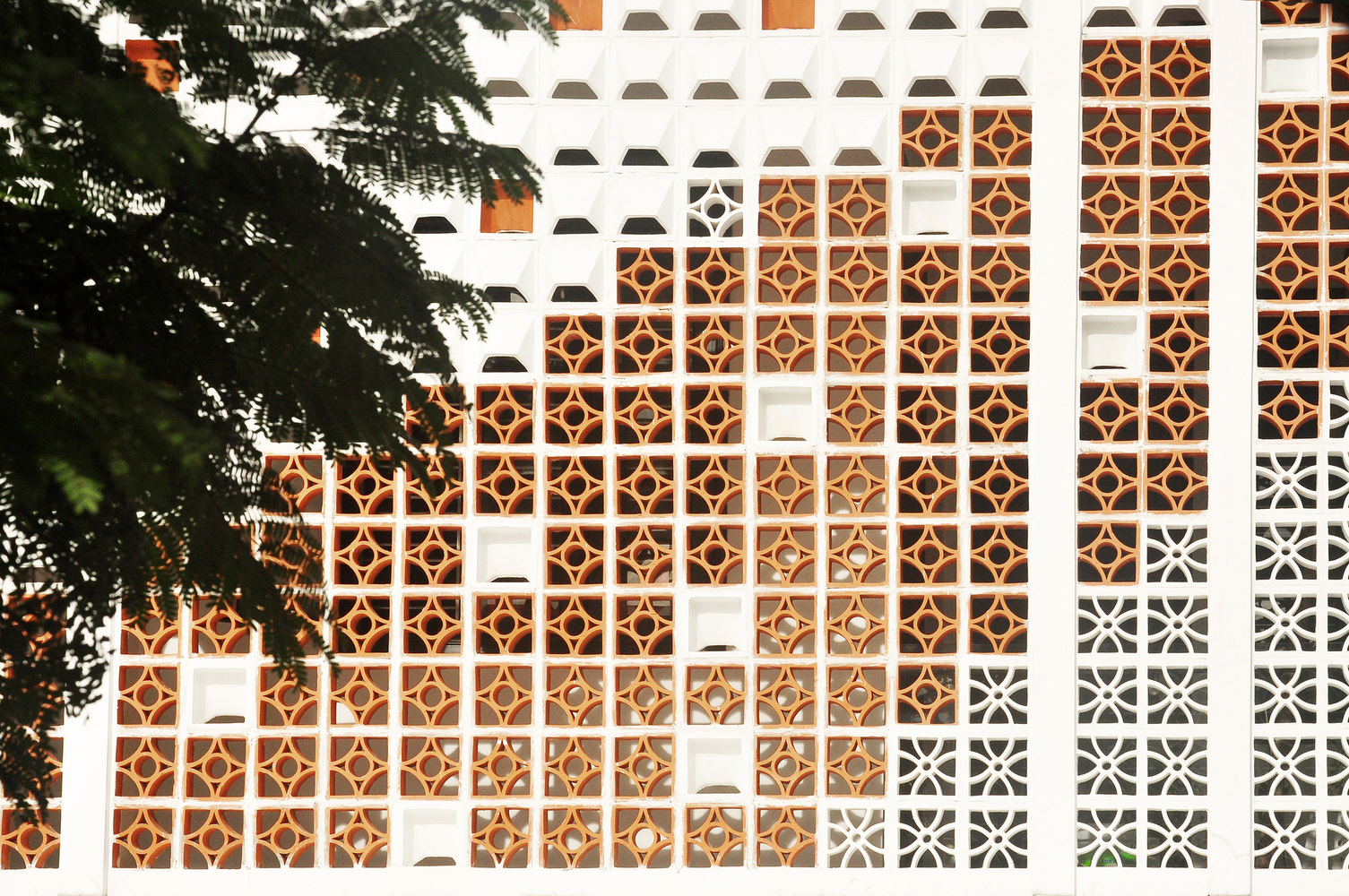

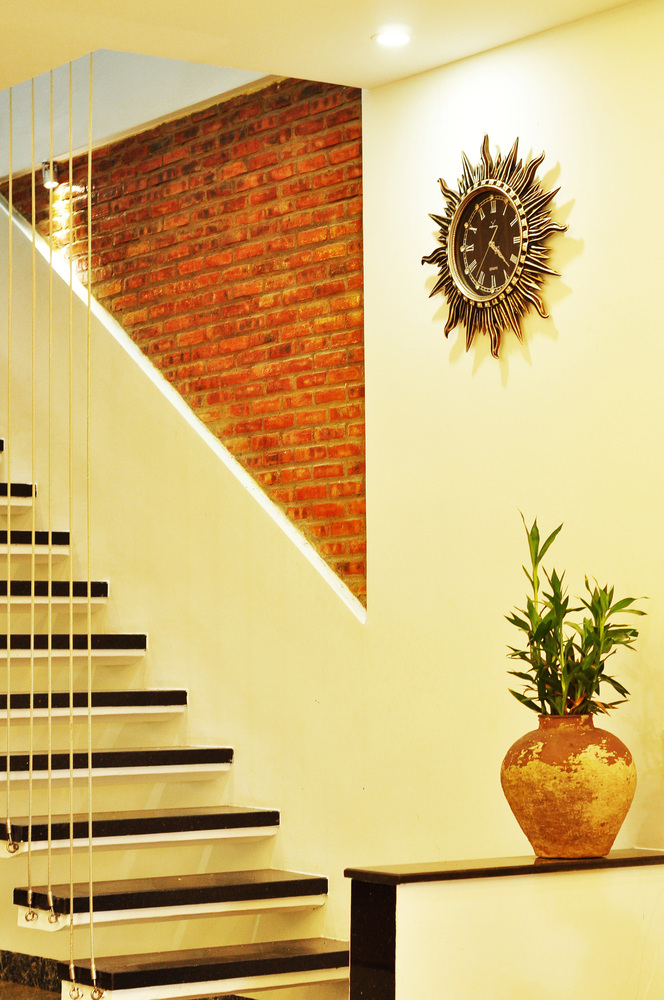

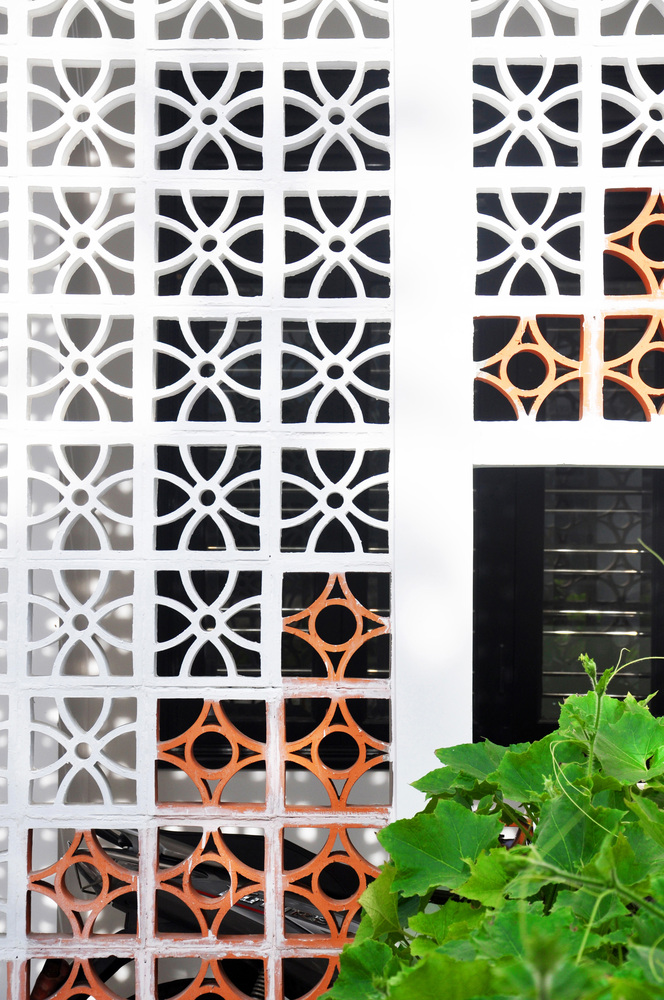

Different brick types, colors and compound mode are integrated to create a transitional and presentable architectural appearance.

Filtered Wall House
Filtered Wall House

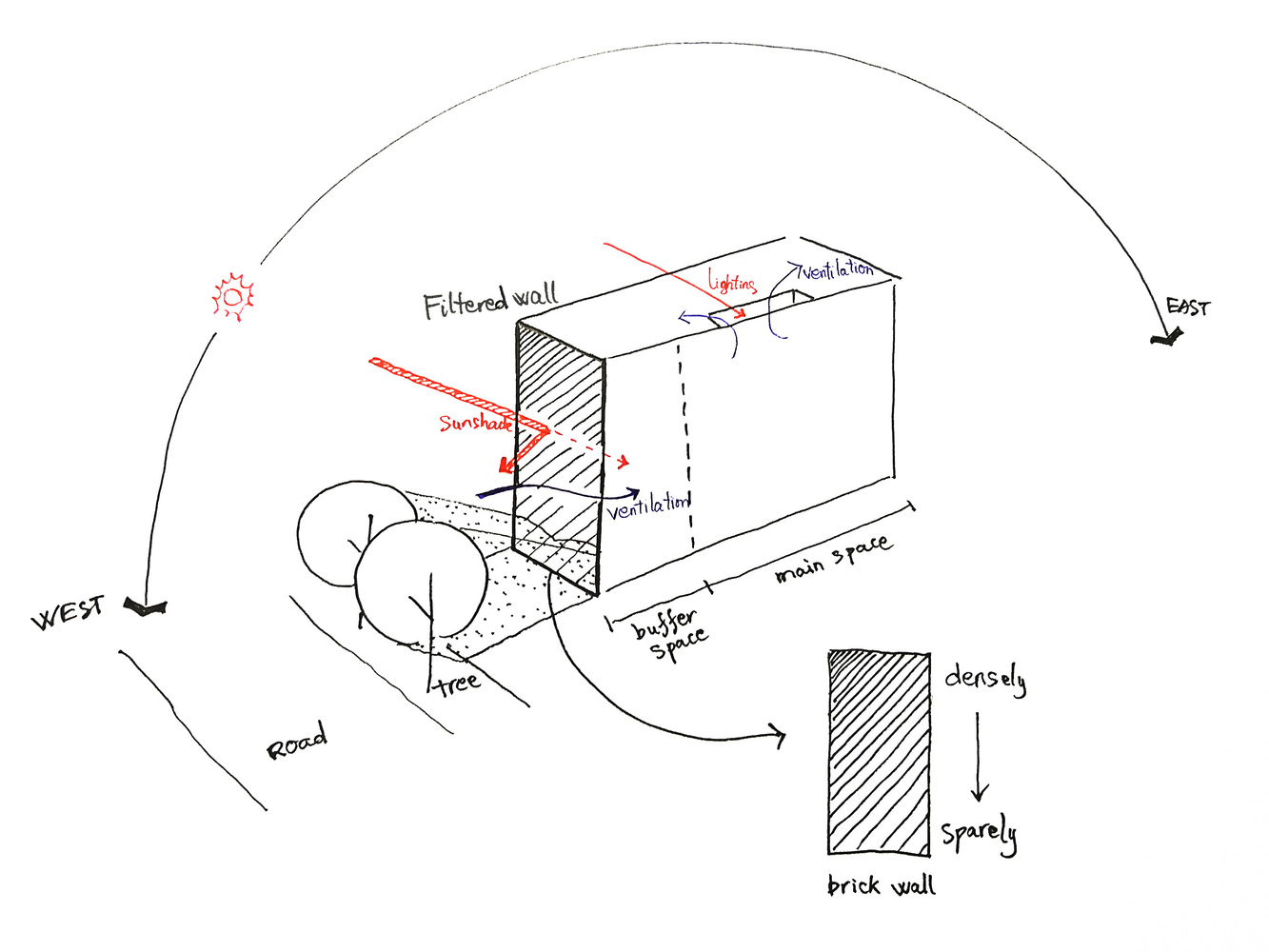

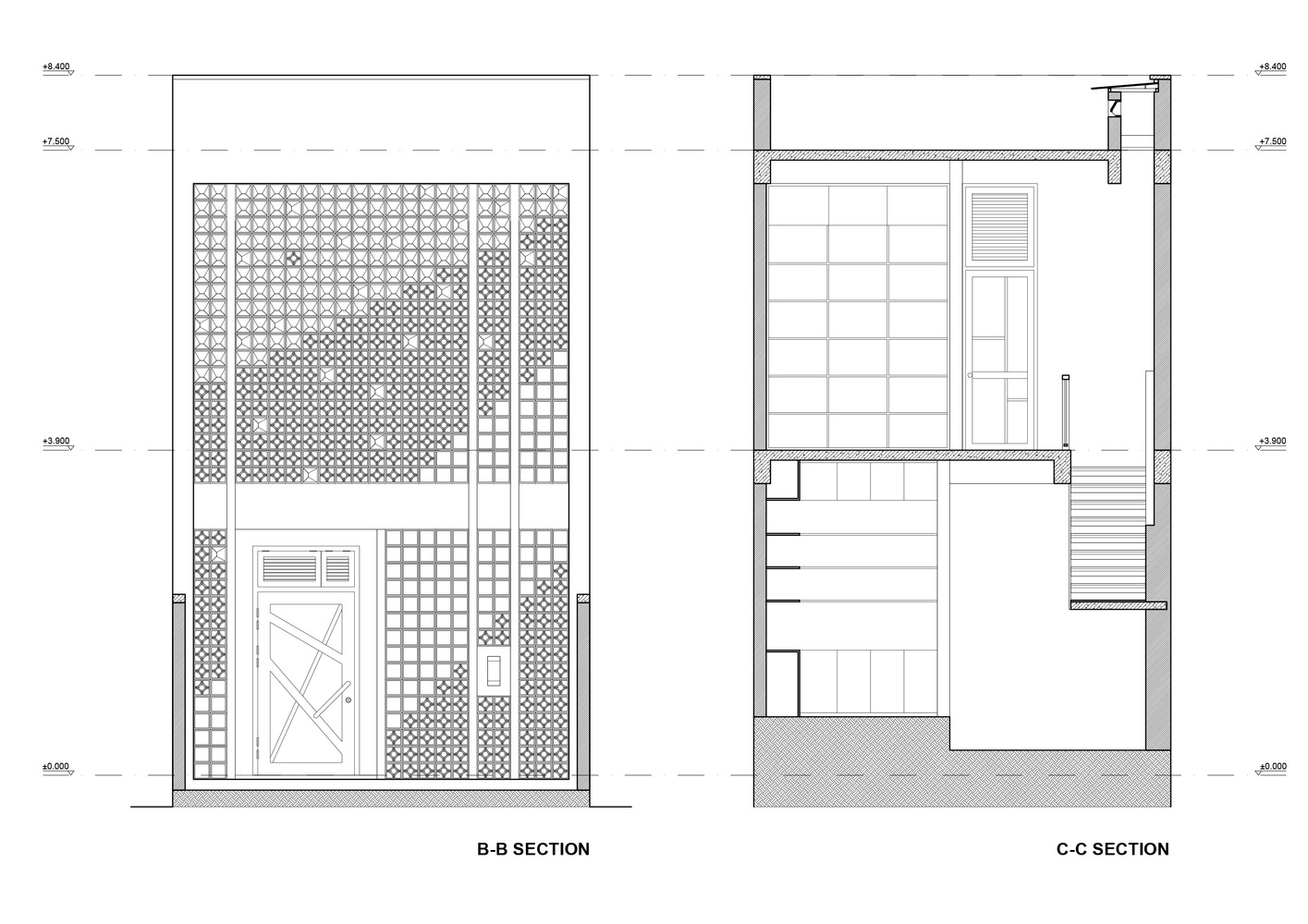

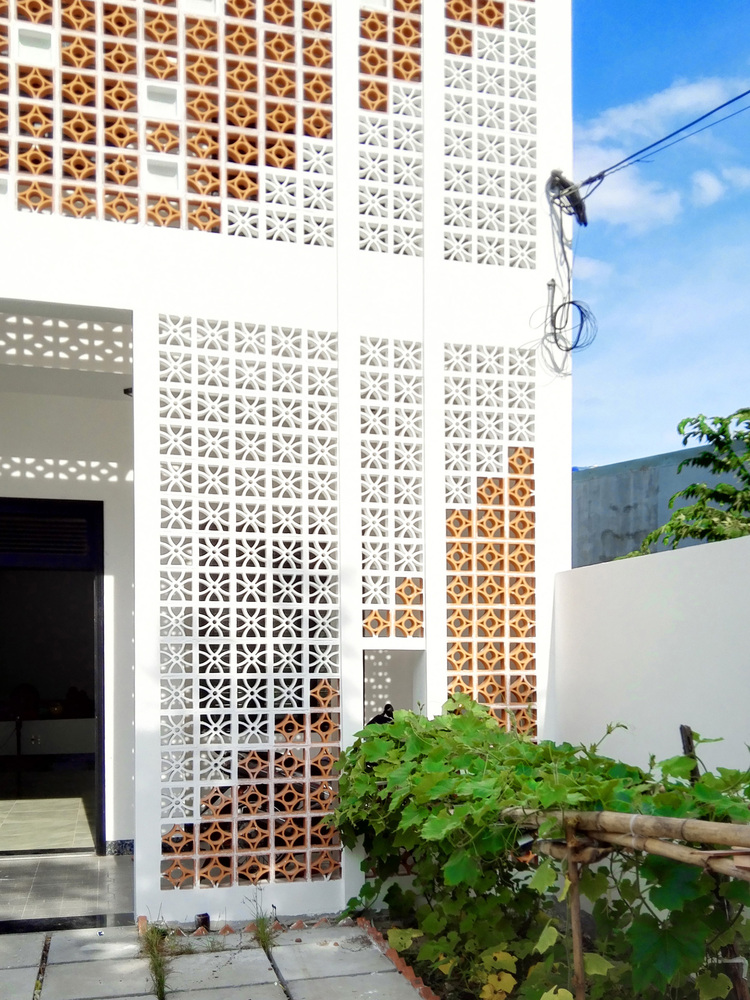

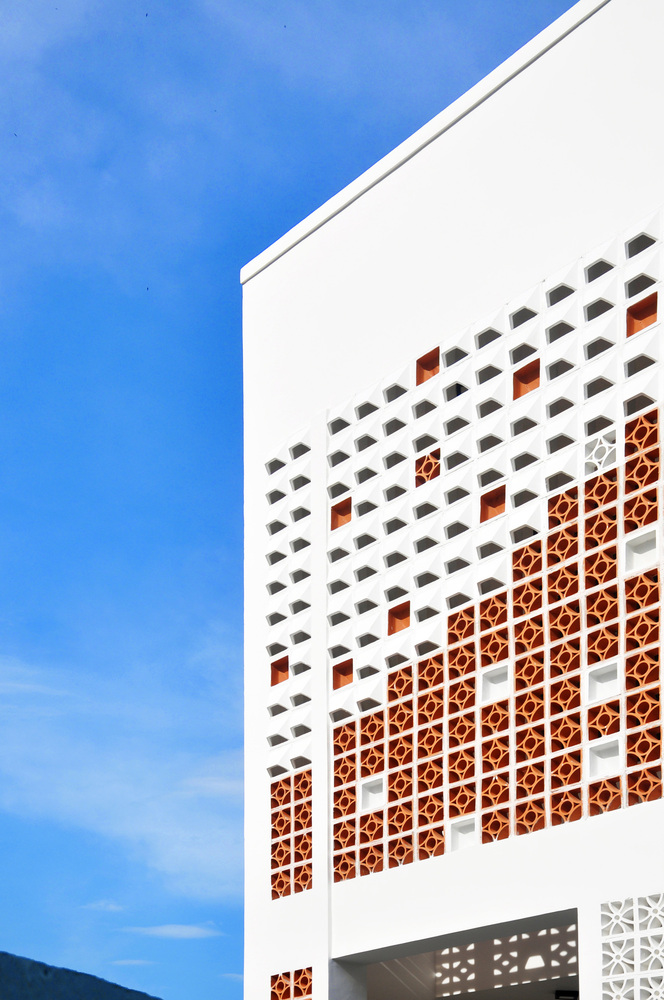

In the facade design, the change from densely to sparely was designed according to different shading requirements.

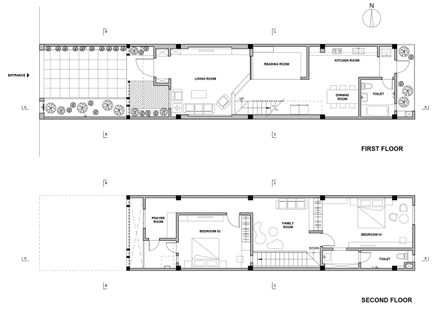

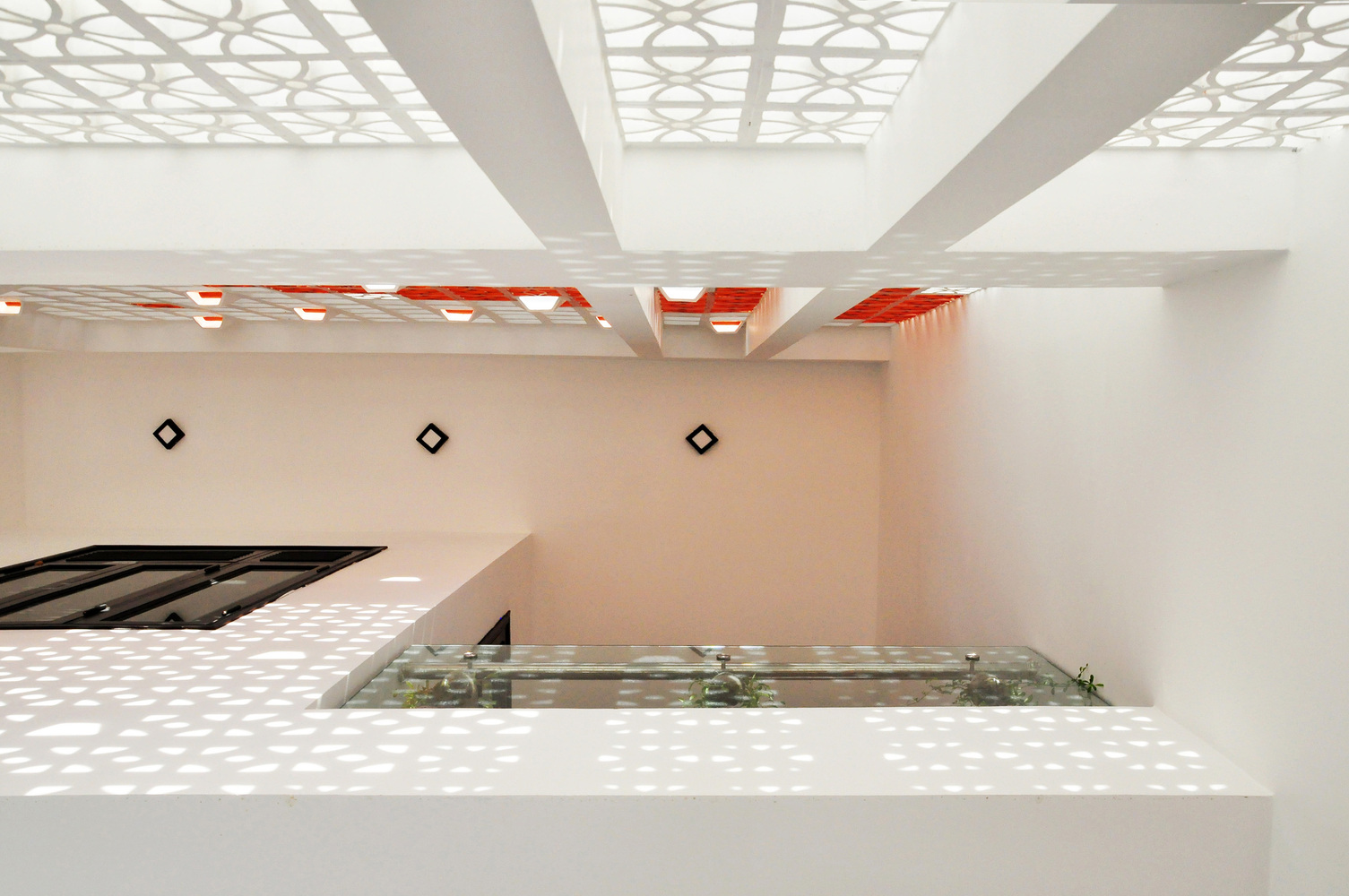

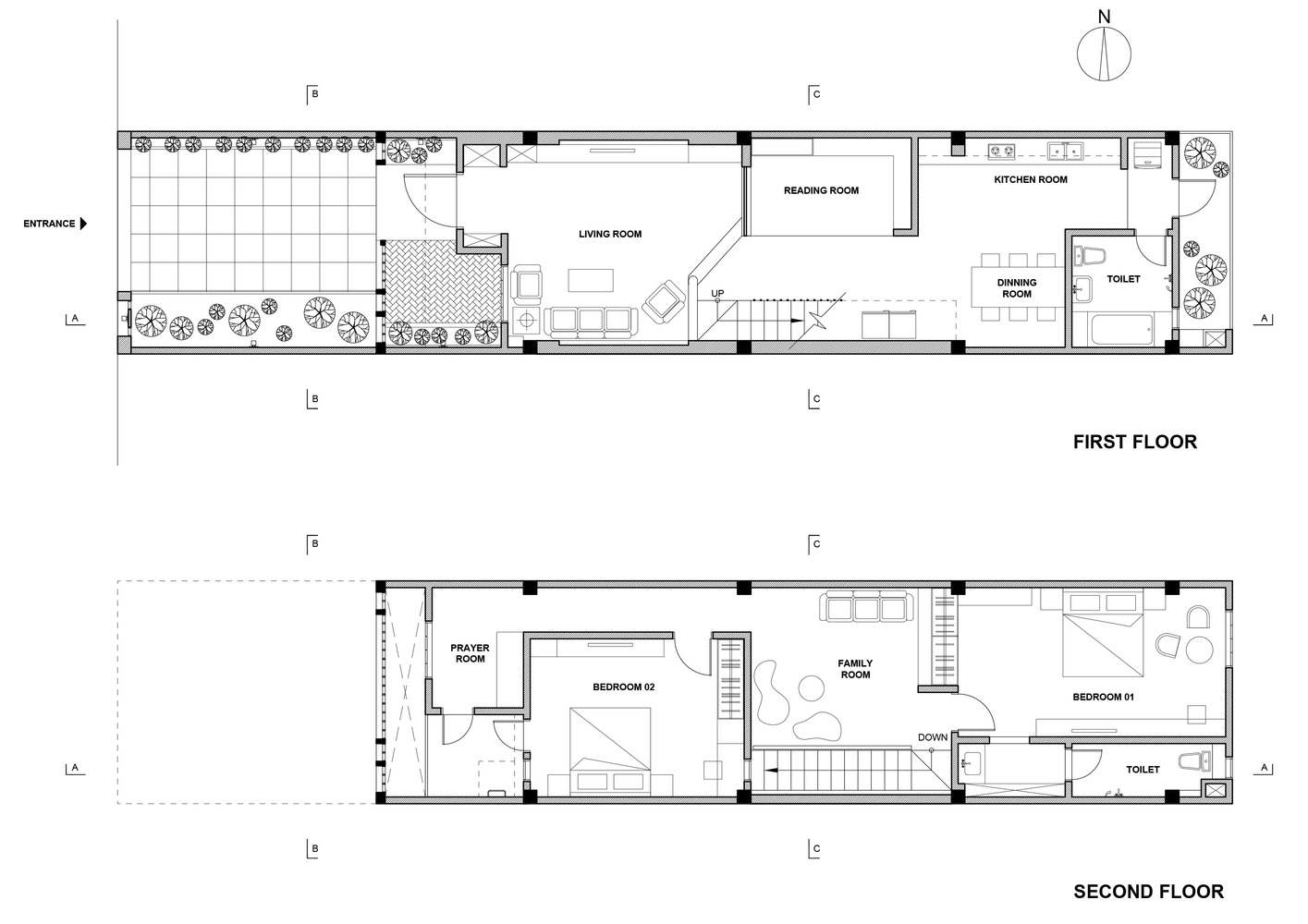

In addition, due to the limitation of the shape of the site, the house must be a tubular building, resulting in less ventilation and lighting in the middle of the building. A small atrium was created to ensure lighting and ventilation requirements.

After the actual design and use, it can be seen that the walls and atriums with filtering function are in line with the local climatic conditions, and more research and application should be obtained.

Filtered Wall House


Filtered Wall House
Filtered Wall House
Filtered Wall House
Filtered Wall House
Filtered Wall House


Filtered Wall House
Filtered Wall House


Filtered Wall House
Filtered Wall House
