Constructora Sestral, S.A.

80-ONCE Business & Living

80-ONCE Business & Living
© Jairo Llano
80-ONCE Business & Living
© Jairo Llano

80-ONCE BUSINESS & LIVING

Sestral S.A

ARCHITECTS
Sestral S.A

ARCHITECTS IN CHARGE
Antonio Aldea

HVAC DESIGN
HVAC Consulting

MANUFACTURERS
Cortizo, Daikin, HID Global, Johnson Controls, Mitsubishi Electric, Saint-Gobain, Viracon, Accesorios y Acabados, Corona, Corona Colombia, GLASSTECH, Groncol, Vidrio Andino

BIOCLIMATIC DESIGN
Arquitectura y Bioclimática

PHOTOGRAPHS
Jairo Llano

CONSTRUCTION
Sestral S.A.

STRUCTURAL CALCULATION
Proyectos y Diseños

SOIL STUDY
Alfonso Uribe y Cia

DESIGN TEAM
Antonio Aldea y VyV Arquitectos

INTERIOR DESIGN
Sokoloff Sewerin Ark

LEED CERTIFICATION
Green Factory

AREA
19800.0 m2

YEAR
2018

COUNTRY
Bogotá,Colombia

CATEGORY
Mixed Use Architecture

Text description provided by architect.

80-ONCE Business & Living is a mixed project (residential, office, and commercial spaces) located in the traditional El Nogal neighborhood in the City of Bogotá, with an innovative design made up of 3 volumes with an elegant and contemporary style with special focus on the quality and detail in the finishes.

80-ONCE Business & Living
Render
80-ONCE Business & Living
© Jairo Llano

The office buildings exterior is fully coated in glass, aluminum and alucobond, on the other hand, the apartment building, as well as glass and aluminum, includes copper color bricks in most of its facades.

In the interior design, the use of natural woods such as oak and walnut, and stones, such as marble and granite, can be seen all over the project.

80-ONCE Business & Living
© Jairo Llano
80-ONCE Business & Living
© Jairo Llano

Of the 3 buildings that make up the Project, 2 of them are office spaces with a total of 6.000 m2 of net area, and a residential building with 4.500 m2 of net area, which sums up to a total of 20.000 m2 including common areas.

The Project was conceived to be environmental and ecologically sustainable, so we implemented techniques like recirculation of gray and rain waters, Green roof tops and vertical gardens, bathrooms with showers and lockers to stimulate bicycle commute, use of local, recycled, and low VOC (Volatile Organic Compounds) products, and therefore the Project obtained the Gold Category LEED certification, issued by USGBC.

80-ONCE Business & Living
© Jairo Llano
80-ONCE Business & Living
© Jairo Llano

The glass and aluminum facade of the office buildings was one of the biggest challenges of the Project, given that we wanted squared frames with profiling that stand out 30 or 40 cms from the facade, which did not exist in the market at the moment, thus, they were especially designed and developed between Cortizo in Spain, Sestral S.A. and AMP in Colombia for the 80-ONCE Project.

This design allowed the aluminum profiles to be adapted with lintels, droppers or lids, depending on its location within the frame.

80-ONCE Business & Living
© Jairo Llano
80-ONCE Business & Living
© Jairo Llano
80-ONCE Business & Living
© Jairo Llano


80-ONCE Business & Living
© Jairo Llano
80-ONCE Business & Living
© Jairo Llano
80-ONCE Business & Living
© Jairo Llano
80-ONCE Business & Living
© Jairo Llano


80-ONCE Business & Living
Detail 1
80-ONCE Business & Living
Detail 2


80-ONCE Business & Living

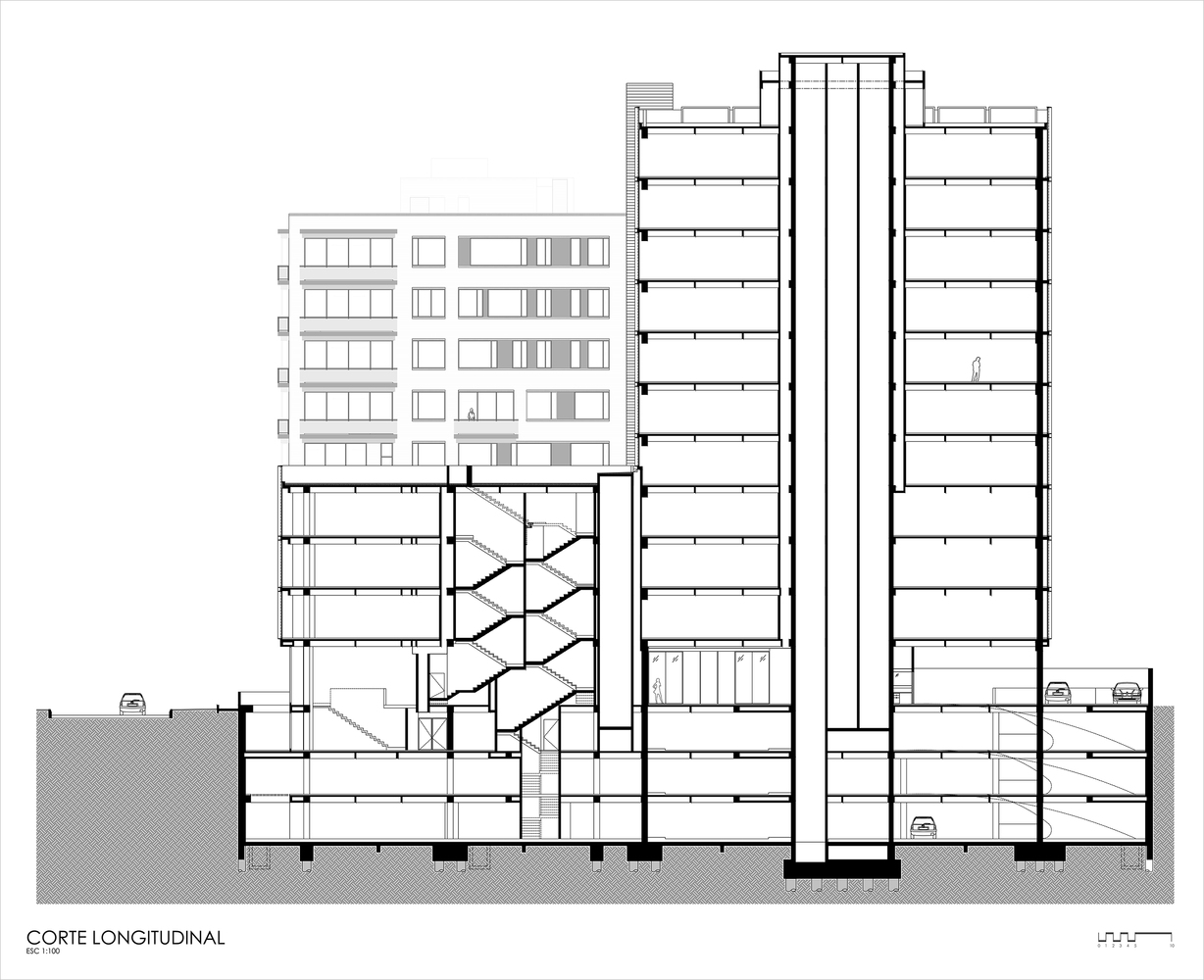

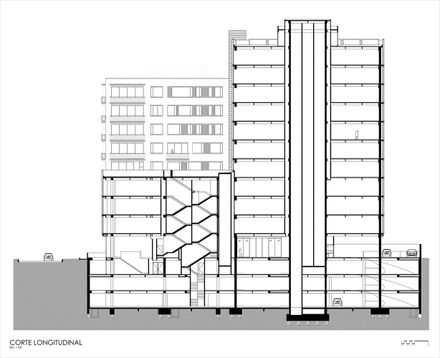

Section C-C
80-ONCE Business & Living
Section F-F


80-ONCE Business & Living

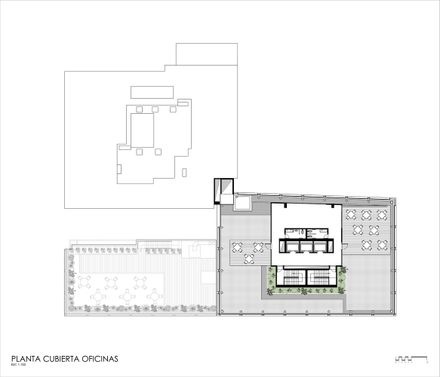

Roof Plan
80-ONCE Business & Living
First Floor Plan
80-ONCE Business & Living
4th Floor Plan
80-ONCE Business & Living
5th Floor Plan
