BLACK ROCK

Mus Architects

ARCHITECTS
Mus Architects

MANUFACTURERS
Geberit, Cembrit, Duravit, Wienerberger, iGuzzini, Amkel, Guardian Glass

PHOTOGRAPHS
Tomasz Zakrzewski

AREA
260.0 m2

YEAR
2018

LOCATION
Bielsko-Biała, Poland

CATEGORY
Houses

Text description provided by architect.

The main idea was to create something different and original. Not just a single-family house, but an abstract form. We wanted to create a building that refers to the mountainous area, a house that seems to be a result of tectonics and not design processes.

Black Rock
© Tomasz Zakrzewski
Black Rock
© Tomasz Zakrzewski

This thought was the starting point of the project and the frame that kept the space composition in check. Therefore, we tried to design and implement the concept of a space by escaping the standards associated with single-family houses. We wanted this house to emeryt like an erratic boulder embedded in a mountain slope, not an architectural form with walls, windows and a roof.

FORM

"Black Rock" originates from the topography of mountainous terrains. "The Rock" is not a cuboid, a cube or a classic house with a gable roof. It is an abstract multifaceted solid without obvious division into walls and a roof

Black Rock
© Tomasz Zakrzewski
Black Rock
© Tomasz Zakrzewski

In the south, the house opens up to the garden, the sun and the view of the Beskids (mountains). The southern wall is high and includes openings such as glazing, terrace and loggia, which provide the panoramic view. The northern facade mostly consists of a roof slope falling to the plot border - the house’s wall is low and closed here.

STRUCTURE, FORM, MATERIAL

The plot is situated on the slope of the mountain. It has a clear decline both in the south and east. The initial plan of the house was adjusted to the slope so that the entire ground floor sits on the ground surface.

Black Rock
© Tomasz Zakrzewski
Black Rock
© Tomasz Zakrzewski

Based on the natural terrain, the horizontal floor plan was broken half way through. As a result, the entrance zone with a garage and supplementary rooms is on a different level from the living room, kitchen and dining room. A half-floor has been created so the entire living area is directly connected with the terrace and garden.

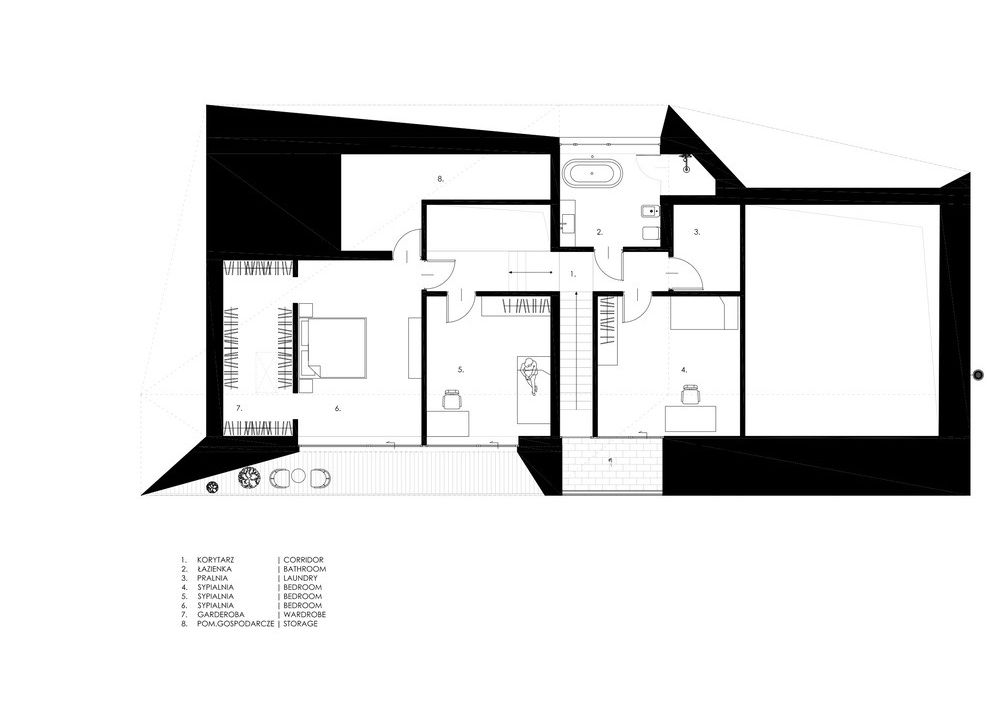

This design process led to the division of floors in the night part of the house (first floor) and as a consequence we created the multi-pitched roof, whose refractions follow the faults resulting from the house’s functional layout in the actual area. Thus, the form of the roof and the body result from the functional design objectives being adapted to the landscape.

Black Rock
© Tomasz Zakrzewski
Black Rock
© Tomasz Zakrzewski

The building's geometry was built into the topography of the mountain, highly impacting the house’s structure and its final dynamic form. There is a strong relationship between the building and the surrounding landscape. The external character of the house is formed by its multi-layered form as well as by the material which was used as a packaging of the function. The homogeneous and raw black shell conceals internal spaces and levels.

Sharp, jagged boulder, black slate or basalt lump sticking out of the mountain slope, instead of a classic suburban house. The entire creative process was based on the original idea. It became the genesis of the project and was brought through the entire design and construction process, until the end - the implementation of the "Black Rock".

Black Rock
© Tomasz Zakrzewski


Black Rock
© Tomasz Zakrzewski
Black Rock
© Tomasz Zakrzewski


Black Rock
Diagram 01
Black Rock
Diagram 02
Black Rock
Diagram 3
Black Rock
Diagram 04


Black Rock

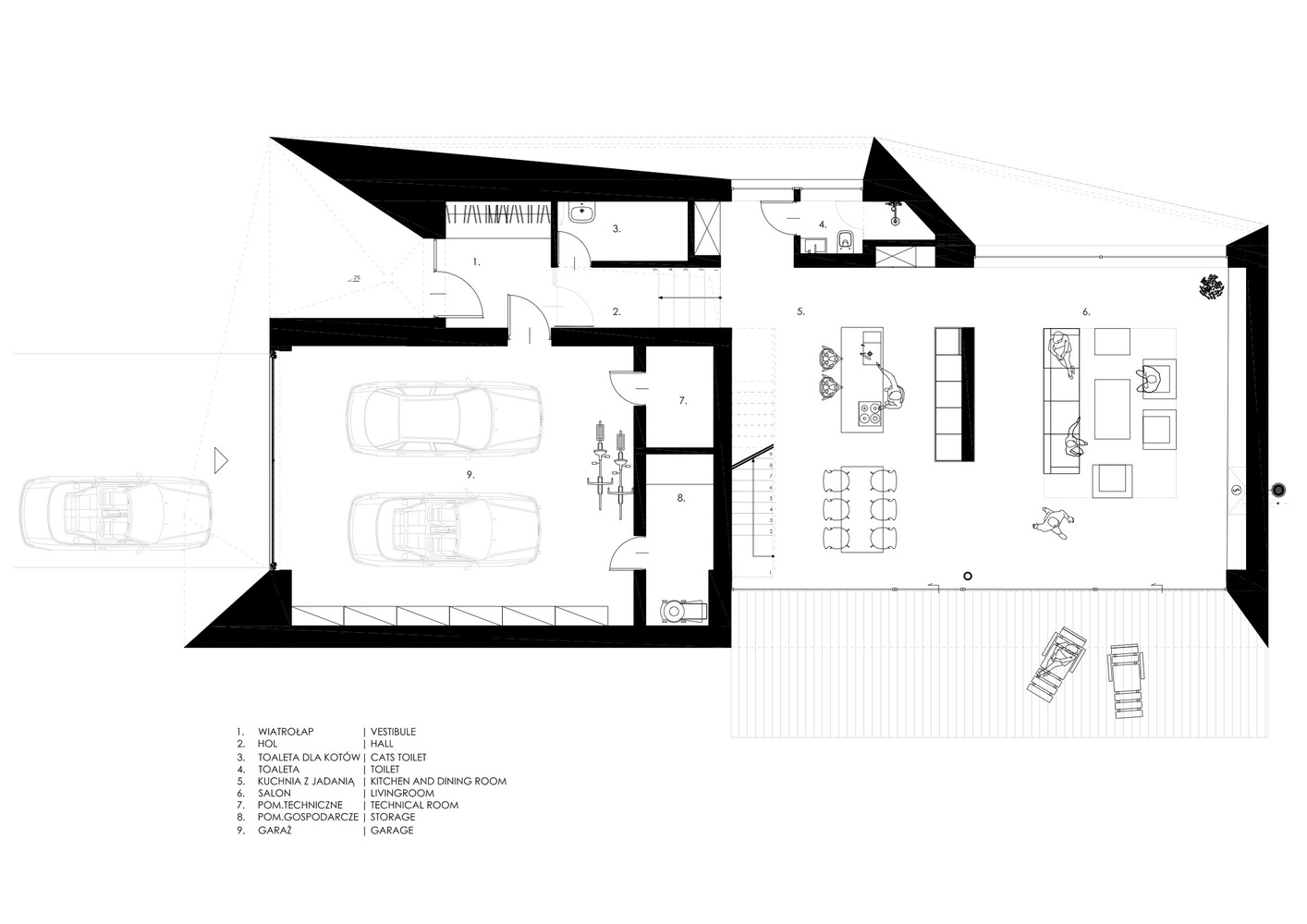

Ground floor plan
Black Rock
Black Rock
Roof top
Black Rock
Site plan


Black Rock
Elevation
Black Rock
Elevation
Black Rock
Elevation
Black Rock
Elevation


Black Rock
Section
