Nina Maritz Architects

Shipwreck Lodge

Shipwreck Lodge
© Denzel Bezuidenhoudt

SHIPWRECK LODGE

Nina Maritz Architects

ARCHITECTS
Nina Maritz Architects

LOCATION
Hoarusib River, Namibia

AREA
875.0 m2

PROJECT YEAR
2018

PHOTOGRAPHS
Shawn van Eeden, Denzel Bezuidenhoudt, Michael Turek

Shipwreck Lodge
© Denzel Bezuidenhoudt

Text description provided by architect.

Inspired by the deprivations endured by survivors from the foundered Dunedin Star and the desolate and harsh Skeleton Coast landscape, the architects tried to capture the contrast between shelter and exposure in their Shipwreck Lodge design (named after the architectural concept).

Conceived of as abstracted wreckage fragments put together by survivors as shelter against the relentless wind and searing sun.

Shipwreck Lodge
© Denzel Bezuidenhoudt
Shipwreck Lodge
© Denzel Bezuidenhoudt

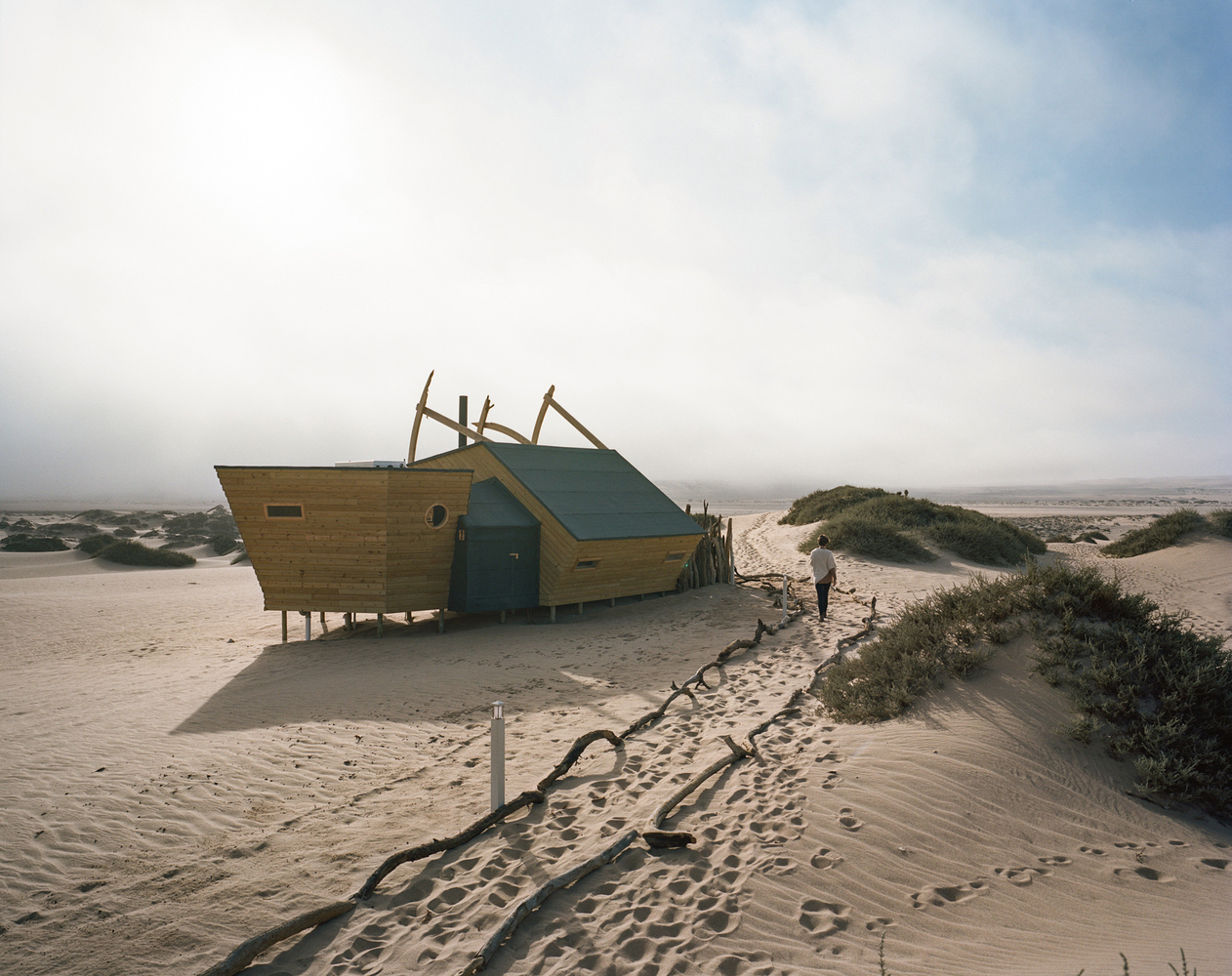

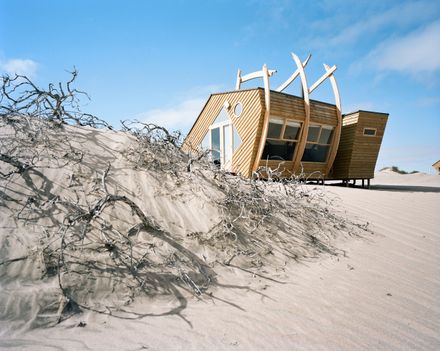

The cabins are spread out along the dune edge like a listing flotilla against the skyline.Sleeping spaces are separated from the bathrooms with a small link, to create privacy.

The sharp bow of the bathroom diverts the prevailing south-west wind around the cabin to reduce the noise and battering the structure has to take.Large windows look out onto the distant sea view, with a minimum of external elements.

Shipwreck Lodge
© Denzel Bezuidenhoudt
Shipwreck Lodge
© Denzel Bezuidenhoudt

The main lounge and dining area is a much larger version of the cabin,with built-in benches and seats recalling vessel bunks and bulkheads.

Much of the furniture is built-in, similar to the interiors of sailing ships of old.

Shipwreck Lodge
© Denzel Bezuidenhoudt
Shipwreck Lodge
© Denzel Bezuidenhoudt

Guests return from activities such as game drives to see desert-adapted wildlife to a warm and solid haven.

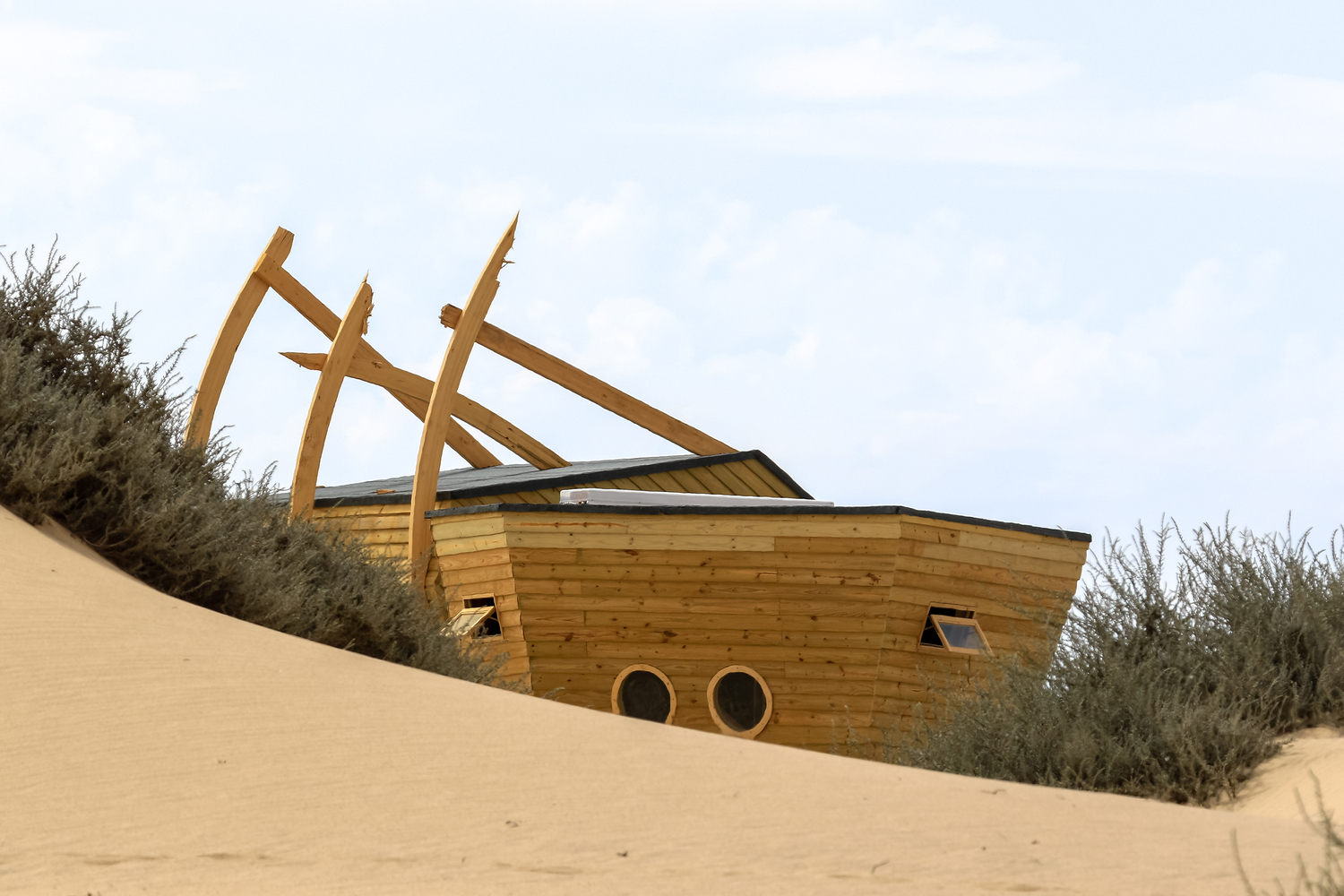

The design is a fine balance between being evocative, but not too derivative, with here and there around porthole window and a broken spar sticking out for some fun.

Shipwreck Lodge
© Denzel Bezuidenhoudt
Shipwreck Lodge
© Denzel Bezuidenhoudt

To meet the challenging brief of a 20-bed luxury lodge with almost zero environmental impact, structures were pre-manufactured in panels off-site and went through 3 changes of transport to be assembled on site.

This minimized the number of construction workers and the amount of waste on site.

Shipwreck Lodge
© Denzel Bezuidenhoudt
Shipwreck Lodge
© Denzel Bezuidenhoudt

Solar power, solar water heating, gas cooking and bio-digesters for sewer are only some of the green strategies applied to minimize impact.

For the guest facilities, timber was selected as the most durable material in these harsh coastal conditions, as well as the most easily removable at the end of the 25 year concession period, and is plantation grown.

Shipwreck Lodge
© Denzel Bezuidenhoudt
Shipwreck Lodge
© Denzel Bezuidenhoudt

The double-skin envelope is insulated with a recycled water-bottle fiber blanket.

The exterior cladding is fixed with a revolutionary new timber nailing system to minimize the use of metal screws (which would rust easily and create problematic waste).

Shipwreck Lodge
© Denzel Bezuidenhoudt
Shipwreck Lodge
© Denzel Bezuidenhoudt

Interior cladding varies from oriented strand board (OSB) and pine planking to saligna planks in wet areas.

For the back-of-house and staff facilities, shipping containers from the harbor of Walvis Bay were adapted off-site and installed on pre-cast concrete piles in courtyard formations to create wind-sheltered areas.

Shipwreck Lodge
© Denzel Bezuidenhoudt
Shipwreck Lodge
© Denzel Bezuidenhoudt

Unlike inland lodges, all activities have to take place indoors, as the wind is too harsh to be outside for very long.

Despite the architects’ longstanding experience on several tourism-related projects such as lodges, the Shipwreck Lodge was particularly challenging due to its remoteness.

Shipwreck Lodge
© Denzel Bezuidenhoudt
Shipwreck Lodge
© Denzel Bezuidenhoudt

The harsh environmental conditions and the use of full timber structures, which is not at all common in Namibia. It needed the skills of a great team to pull off the entire project successfully.


Shipwreck Lodge
Main Building Plan
Shipwreck Lodge
Cabin Plan
Shipwreck Lodge
Main Building Section
Shipwreck Lodge
Cabin Section
