Apartment no.135

Apartment no.135
© Farshad Kazerooni, Azin Soltani

APARTMENT NO.135

BNS Studio

ARCHITECTS
BNS Studio

PHOTOGRAPHS
Farshad Kazerooni, Azin Soltani

MANUFACTURERS
Modern Ideal, Nemachin Royal, Avangard, Roya

ARCHITECTURAL DETAIL DESIGNER
Meisam Ebrahimi Moghadam

LEAD ARCHITECTS
Azin Soltani, Farshad Kazerooni, Farnaz Bakhshi

3D VISUALIZER
Ali Zeinalzadeh

YEAR
2018

AREA
2300.0 m2

LOCATION
Tehran, Iran

CATEGORY
Residential

Text description provided by architect.

Apartment no.135 is a five-story residential building located in Saadat Abad, northwest of Tehran. Each floor contains a single three-bedroom unit.

Apartment no.135
© Farshad Kazerooni, Azin Soltani
Apartment no.135
© Farshad Kazerooni, Azin Soltani
Apartment no.135
© Farshad Kazerooni, Azin Soltani

The ground floor houses the main entrance, lobby, and a multi-purpose room. Other amenities such as pool, sauna, Jacuzzi, and parking are located in the basement.

Historically a house bears special values in Iranian architecture and culture, values such as hierarchy, legibility, introversion, balance, and unity and especially respect to the privacy of families.

During the past century, according to the changes in lifestyle and a large demand for new constructions, most of these precious values have been changed.

Apartment no.135
© Farshad Kazerooni, Azin Soltani
Apartment no.135
© Farshad Kazerooni, Azin Soltani

The main design idea behind Apartment no.135 was to revitalize the lost heritage and to give a modern interpretation of the old concepts. Thus, brick – a traditional building material – was used in this project.

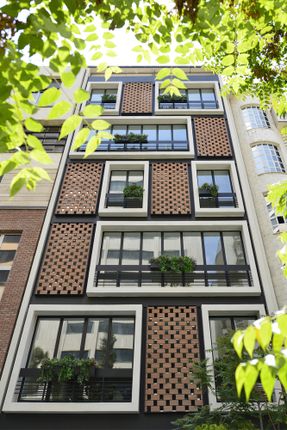

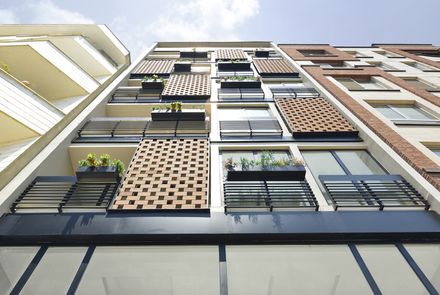

A combination of fixed brick panels and protruded modular frames are used to create a modern and dynamic facade.

Apartment no.135
© Farshad Kazerooni, Azin Soltani
Apartment no.135
© Farshad Kazerooni, Azin Soltani

The brick panels in front of the windows act as a temperature buffer by filtering natural light.

During a different time of a day, the brick patterns create a beautiful effect of light and shadow inside each unit.

This phenomenon creates variety, increases space quality and provides visual and heat comfort for residents while it plays an effective role in energy saving. Rooftop garden and modular flower boxes in front of the windows are designed to improve environmental quality while accentuating the aesthetic values.

Apartment no.135
© Farshad Kazerooni, Azin Soltani


Apartment no.135
© Farshad Kazerooni, Azin Soltani
Apartment no.135
© Farshad Kazerooni, Azin Soltani


Apartment no.135
Shadows Diagrams

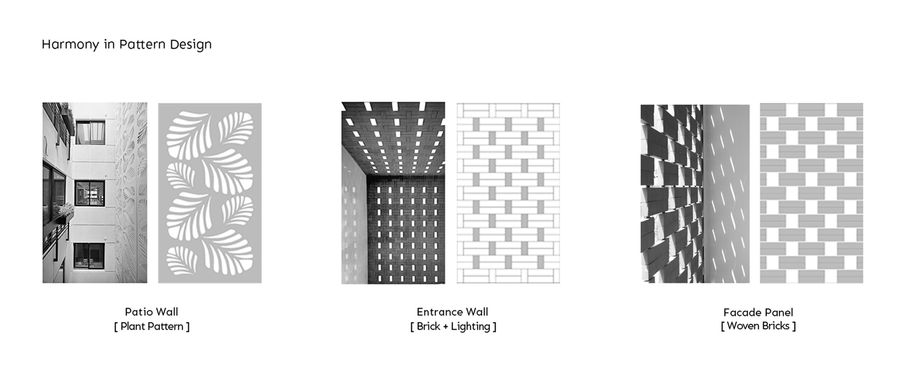

Apartment no.135
Pattern Design Diagrams
Apartment no.135
Facade Diagram

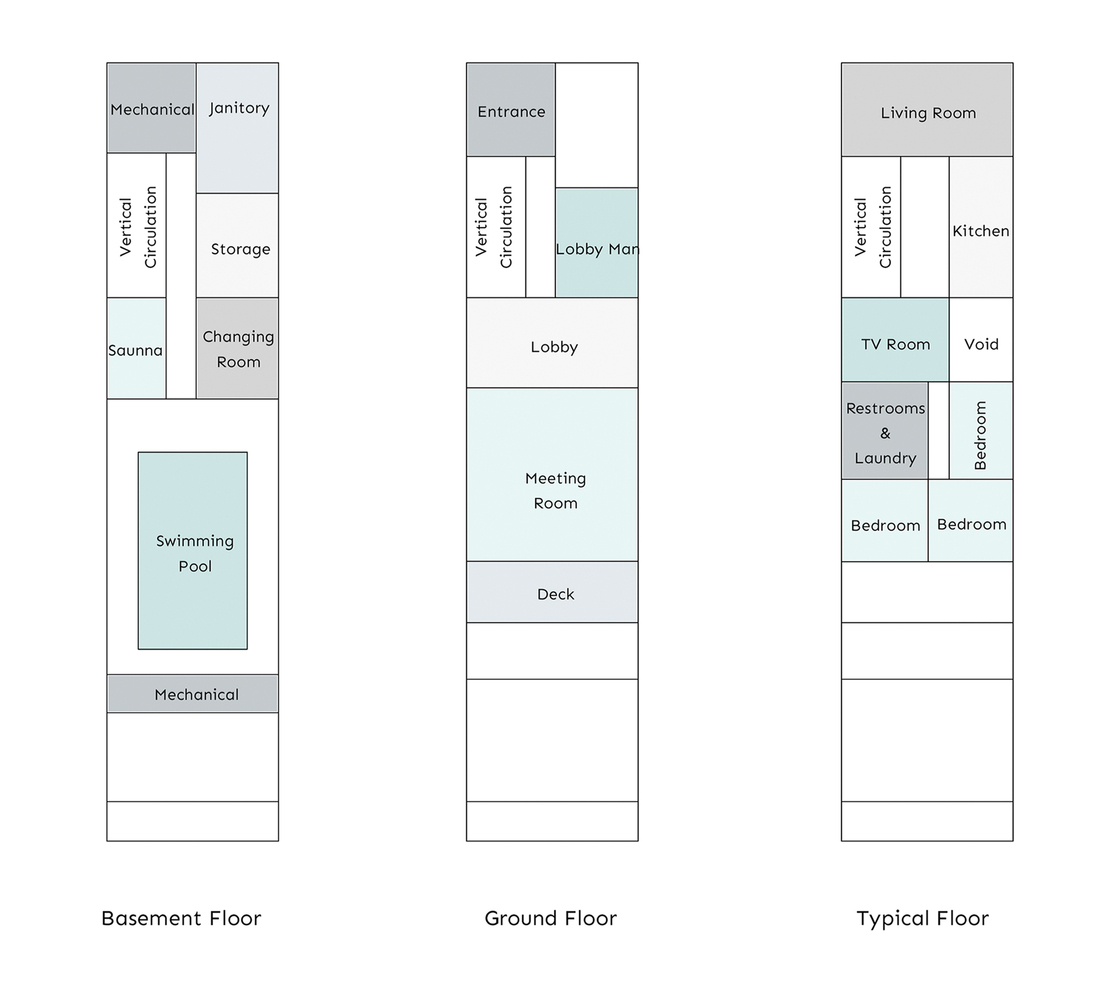

Apartment no.135
Distribution Floors Diagram
Apartment no.135
Details


Apartment no.135
Kitchen Images
Apartment no.135
Sauna and Pool Images

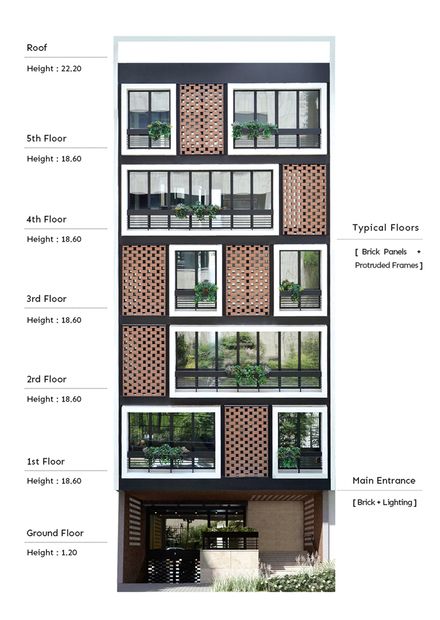

Apartment no.135
Elevation

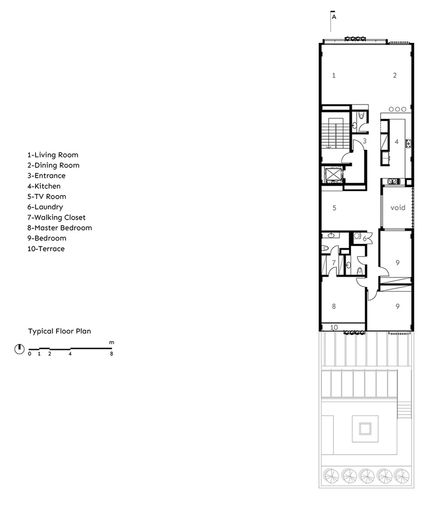

Apartment no.135
Typical Floor Plan
