AGo Architects

3500 Millimetre House

3500 Millimetre House
© Kafin Noe’man
3500 Millimetre House
© Kafin Noe’man

3500 MILLIMETRE HOUSE

Ago Architects

ARCHITECTS
Ago Architects

LEAD ARCHITECTS
Abimantra Pradhana

DESIGN TEAM
Gabi Osri, Leo Pratama

PHOTOGRAPHS
Kafin Noe’man

AREA
100.0 m2

YEAR
2018

LOCATION
South Jakarta, Indonesia

CATEGORY
Houses

3500 Millimetre House
3500 Millimetre House

Text description provided by architect.

3500 Millimetre house is 3,5 meter (3500 millimeters) wide by 17-meter long housing a young family of an architect, his wife, and his son.

3500 Millimetre House
© Kafin Noe’man
3500 Millimetre House
© Kafin Noe’man
3500 Millimetre House
© Kafin Noe’man

The programs contained is a result from discussions between the architect and his wife, questioning the things they really need instead of what they want.

Thus resulting in a 100-meter square house that provides basic programs for the user, with 35 m2 master bedroom occupying the ground floor, Living-Dining-Kitchen (LDK) + laundry at the second floor, a bed-play-study space for the son, and a rooftop with a city view.

The House is an unexpected and exciting spatial experience that survives the limits of our ordinary living spaces. The three stories narrow house in a dense area reevaluates functional arrangements within a narrow site while creating bright and airy spaces.

3500 Millimetre House
© Kafin Noe’man
3500 Millimetre House
© Kafin Noe’man
3500 Millimetre House
© Kafin Noe’man

Affordability and Compactness is a value that the building successfully owns by integrating well-thought space experience, storage systems, and low-cost strategies in the design process; from selecting a narrow lot of about 3500 Millimetre wide to choosing sustainable and cost-efficient materials and construction system, as well as storage-activities-climate response integration.

3500 Millimetre House
© Kafin Noe’man
3500 Millimetre House
© Kafin Noe’man
3500 Millimetre House
© Kafin Noe’man

One of the main focus is to create compact living space with rich experiences by generating a space without walls, providing various floor levels and ceiling height, and connecting each floor with different types of stair-furniture-facade integration.

3500 Millimetre House
3500 Millimetre House

Integration between furniture modules and functions such as stairs and activities create a compact house experience leaving this house free from clutters, creates innovative plug-in systems.

The narrow house site leaves this house west facing orientation, we chose perforated steel and polycarbonate facade act as the outer skin filtering the direct sunlight to the interior, skylight located in each floor to create dramatic natural sunlight experience from upper to the ground floor.

3500 Millimetre House
3500 Millimetre House

A structurally insulated super foam panel used for the wall to reduce heat, noise, reducing the cost and increase construction speed.

3500 Millimetre house is a search of an aspiration towards giving a solution to the way of compact way of living, offers freedom and adaptability of space as answers to its users need in the present and future.

3500 Millimetre House
3500 Millimetre House

Many new interpretations of space and architecture come as a counter to the challenges and effort to give an example of how to live in a city.

3500 Millimetre House
3500 Millimetre House


3500 Millimetre House
Climate Diagram
3500 Millimetre House
Stairs Diagram
3500 Millimetre House
Plug and Play Diagram


3500 Millimetre House
Section
3500 Millimetre House
Perspective Section


3500 Millimetre House
Floor Plans
3500 Millimetre House
Ground Floor
3500 Millimetre House

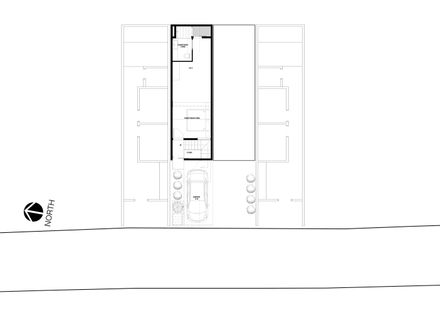

Context Plan
