KREKKE REST STOP AREA

Pushak + Lala Tøyen

ARCHITECTS
Lala Tøyen, Pushak

PHOTOGRAPHS
Ivan Brodey

SERVICE FACILITIES AREA
105 m2

PARKING AREA
530 m2

YEAR
2018

LOCATION
Gudbrandsdalvegen 2016, 2630 Ringebu, Norway

CATEGORY
Rest Area

Text description provided by architect.

Krekke is a place to stop for a rest along the main road through Gudbrandsdalen, but it’s also a park area for the local community of Fåvang, Ringebu.

Krekke Rest Stop Area
© Ivan Brodey
Krekke Rest Stop Area

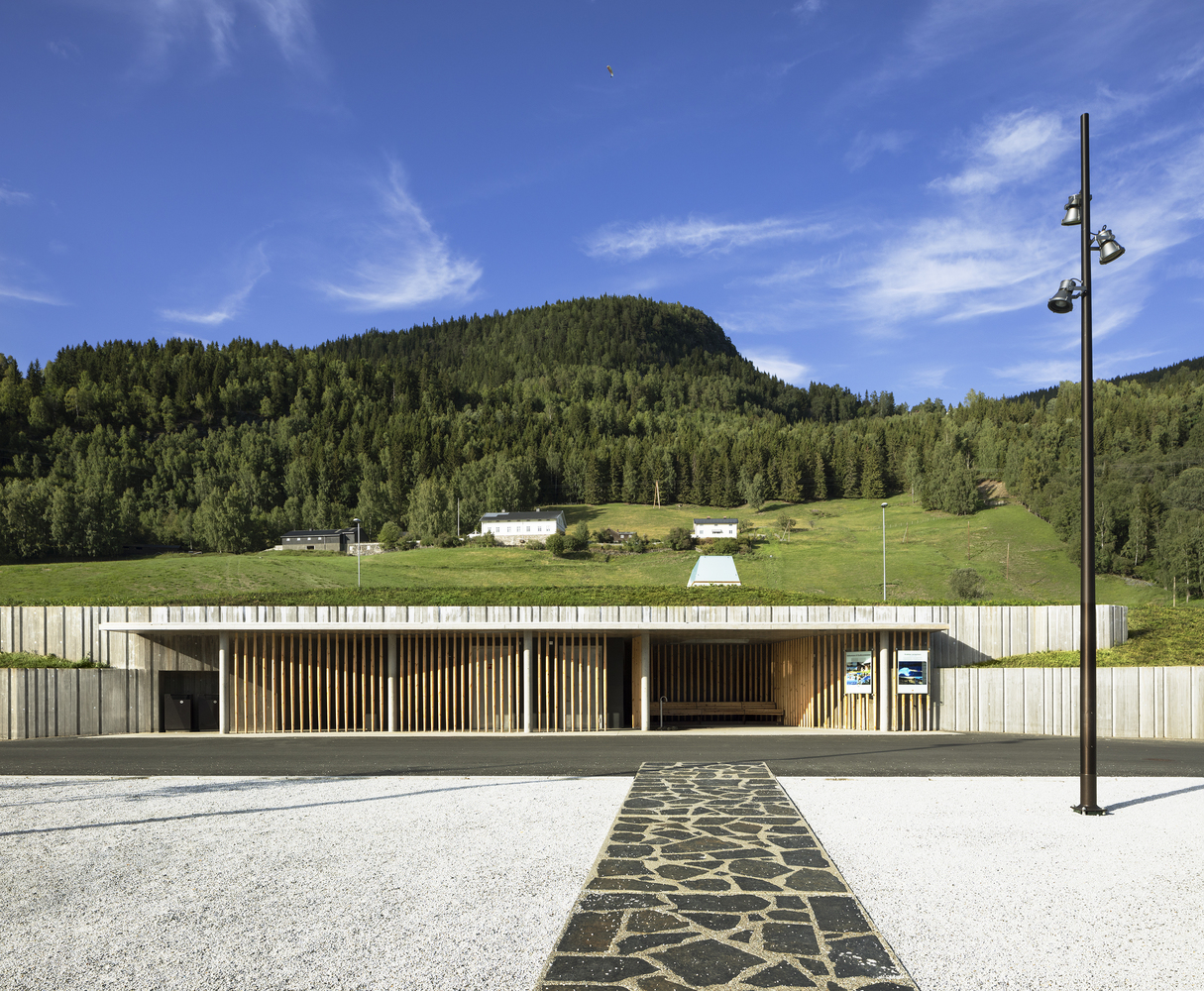

The service functions are placed inside an embankment that works as a noise barrier between the park and the highway.

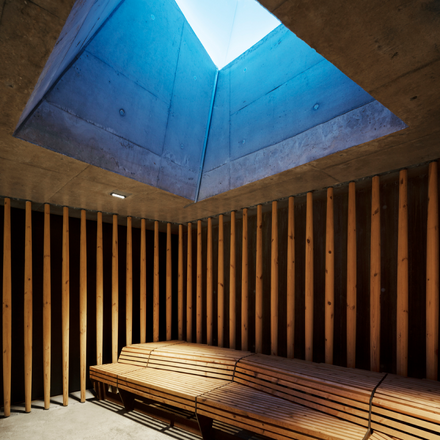

Daylight is admitted down to a protected sitting area inside the embankment through a prism-shaped skylight, which protrudes from the top of the barrier as a signal to passers-by.

Krekke Rest Stop Area
© Ivan Brodey
Krekke Rest Stop Area
© Ivan Brodey
Krekke Rest Stop Area
© Ivan Brodey

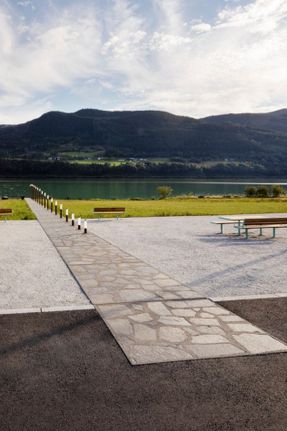

The park and recreational areas slope from the embankment down toward the river Gudbrandsdalslågen, and a path – a ‘desire line’ - lined with light poles leads directly from the service area down to the river bank.

Gudbrandsdalslågen floods the park area on a yearly basis, but the light at the top of the poles are always above safe water level.

In the event of a flood, the row of lights will continue in a straight line out into the streaming river, indicating the flood level.

Krekke Rest Stop Area
© Ivan Brodey
Krekke Rest Stop Area
© Ivan Brodey
Krekke Rest Stop Area
© Ivan Brodey

The noise barrier is supported by concrete walls, cast in the site using vertical wooden formwork with inlaid laths at varying intervals. The walls are folded inward into the embankment to make room for the small building with service functions.

Four toilets and a small storage space are placed behind a screen wall of coned pine poles, next to a sitting area with a drinking fountain and a small sitting amfi.

Krekke Rest Stop Area
© Ivan Brodey
Krekke Rest Stop Area
© Ivan Brodey

The path to the river bank consist of precast concrete slabs embedded with local slat stone, and the light poles are corten steel.


Krekke Rest Stop Area
© Ivan Brodey
Krekke Rest Stop Area
© Ivan Brodey
Krekke Rest Stop Area
© Ivan Brodey
Krekke Rest Stop Area
© Ivan Brodey
Krekke Rest Stop Area
© Ivan Brodey


Krekke Rest Stop Area
Section A
Krekke Rest Stop Area
Section B


Krekke Rest Stop Area
Floor Plan
Krekke Rest Stop Area
Situation Plan


Krekke Rest Stop Area
Details 1

Krekke Rest Stop Area
Details 2
