HOUSE OF LIGHT & WIND

Ray Architecture Viet Nam

PHOTOGRAPHS
Hoang Le

AREA
650.0 m2

YEAR
2018

LOCATION
Việt Trì, Vietnam

CATEGORY
Houses

Text description provided by architect.

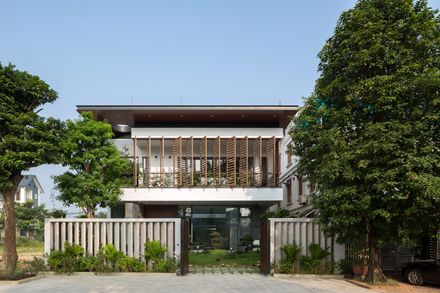

Located in a new urban area on the Hoa Phong extended road, Viet tri City, Phu Tho province, the building with front side to the Southeast, adjacent to the 45 meters width road and the back side is North West, closed with internal road 12.5meters.

House Of Light & Wind
© Hoang Le
House Of Light & Wind
© Hoang Le

Therefore, three sides of the house would be subjected to thermal effects from early morning to late afternoon and solutions for heat insulation, natural ventilation, energy savings need to be answered perfectly in concept design.

Based on the land shape which length up to nearly 40meters, the master plan has designated with allocated function volumes, connecting by vertical and horizontal routes which running along the land depth.

House Of Light & Wind
© Hoang Le
House Of Light & Wind
© Hoang Le

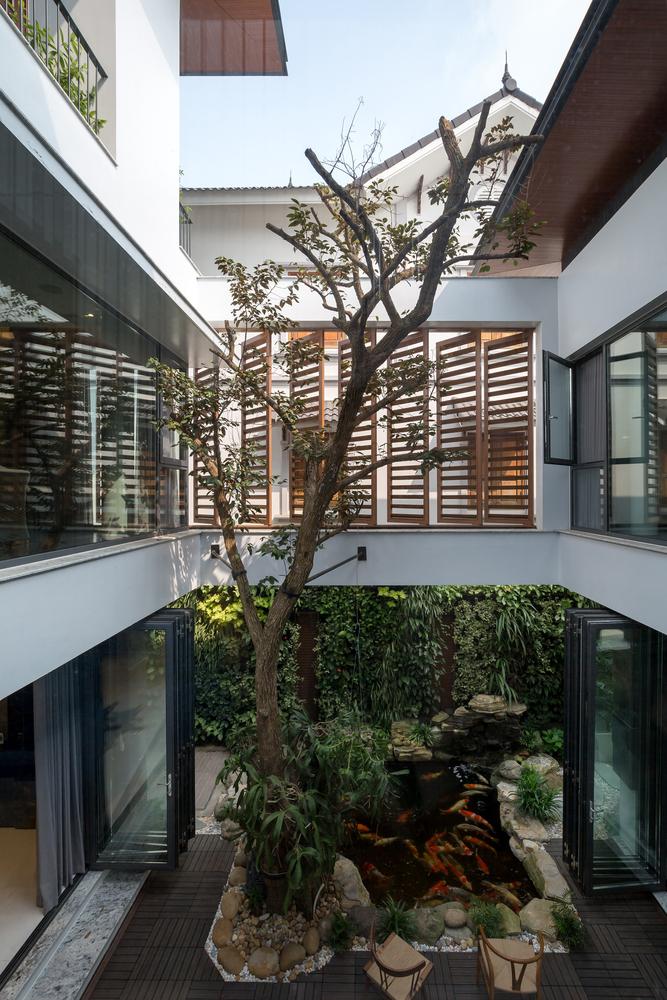

Thus, these volumes will be randomly enjoyed the void space filled with light, natural ventilation and green trees.

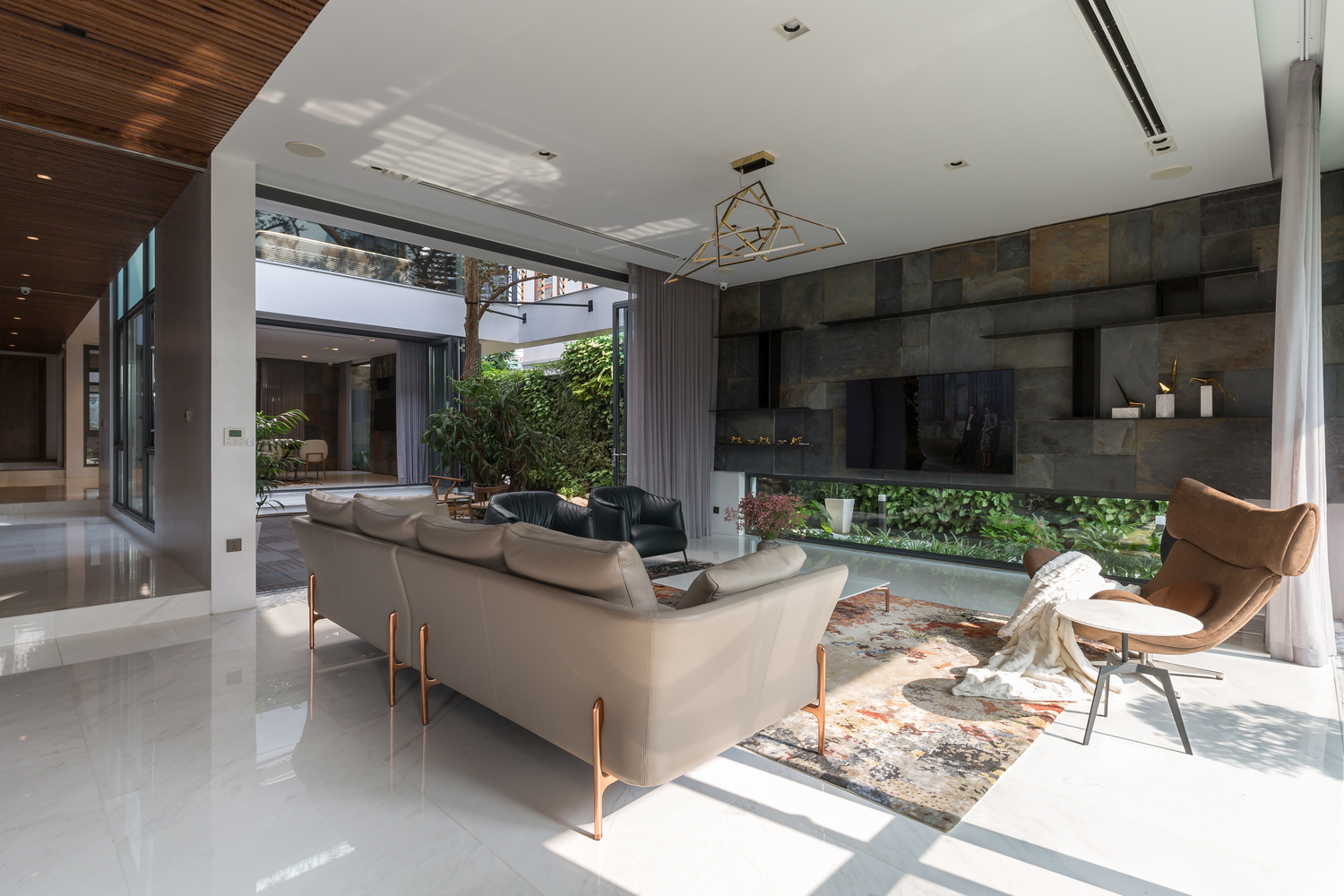

For ground floor, material used for inner and outer is the combination of natural slate stone wall, 450mm thickness.

House Of Light & Wind
© Hoang Le
House Of Light & Wind
© Hoang Le

This wall not only creates a solidify image for the building but also an effective insulation wall and the glass folding door is maximum opened for the owner when needed, connecting functional volumes into a large space.

As the height of the house increased, the wider of console is made. This solution creates shelter to prevent glass doors system from direct sunlight.

Wooden louver performs as a shield from the sunlight and block the direct view from outside (large widen road, adjacent house etc) into private living space.

House Of Light & Wind
© Hoang Le
House Of Light & Wind
© Hoang Le
House Of Light & Wind
© Hoang Le

The house will fully opens but achieve necessary close.

The entire roof of the house is flat roof, there is a small area above the vertical grid for technical system and most of the roof area is designed as garden roof and fresh vegetable planted area.

House Of Light & Wind
© Hoang Le
House Of Light & Wind
© Hoang Le

This layers perform as a heat insulation panel to the lower rooms. Gutter roof will collect all water to the tank below and combine with grey water of Koi pond then reuse to watering the house garden.


House Of Light & Wind
© Hoang Le
House Of Light & Wind
© Hoang Le
House Of Light & Wind
© Hoang Le
House Of Light & Wind
© Hoang Le
House Of Light & Wind
© Hoang Le
House Of Light & Wind
© Hoang Le
House Of Light & Wind
© Hoang Le


House Of Light & Wind
Diagram 01
House Of Light & Wind
Diagram 02

House Of Light & Wind
Diagram 03
