e. Re Studio

AT 3/56 House

AT 3/56 House
© Yudi D Hertanto

AT 3/56 HOUSE

E.re Studio

ARCHITECTS
E.re Studio

MANUFACTURERS
Kohler, Autodesk, Google

LEAD ARCHITECT
Erwin Kusuma

PHOTOGRAPHS
Yudi D Hertanto

AREA
220.0 m2

YEAR
2019

LOCATION
Kecamatan Regol, Indonesia

CATEGORY
Houses Interiors

Text description provided by architect.

It is a medium size house project designed for a small young family. Located in a dense neighborhood of Bandung city, Indonesia.

AT 3/56 House
© Yudi D Hertanto
AT 3/56 House
© Yudi D Hertanto
AT 3/56 House
© Yudi D Hertanto

The design approach was to create a simple popular looking house with triangular shape facade.

And also to accommodate the client need for space.

Every interior element offers the complexity of designs and details, contrast with a relatively plain and minimalistic front facade.

AT 3/56 House
© Yudi D Hertanto
AT 3/56 House
© Yudi D Hertanto
AT 3/56 House
© Yudi D Hertanto

The layout also highlighted the maximum infusion of natural light through windows and featured skylights.

Clients were delighted with its spacious feel, especially on the main living-dining area.


AT 3/56 House
© Yudi D Hertanto
AT 3/56 House
© Yudi D Hertanto
AT 3/56 House
© Yudi D Hertanto
AT 3/56 House


AT 3/56 House

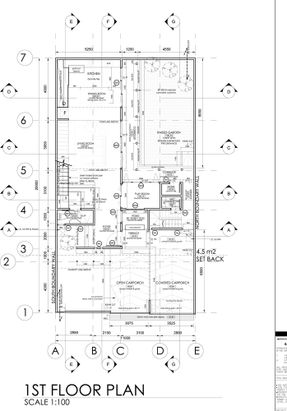

First Floor Plan
AT 3/56 House

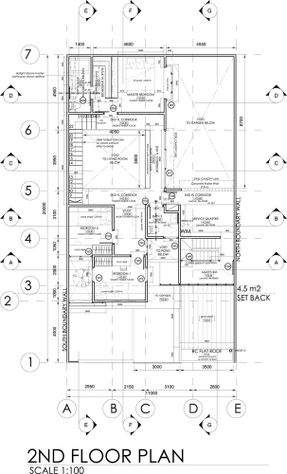

Second Floor Plan
AT 3/56 House
Roof Plan


AT 3/56 House

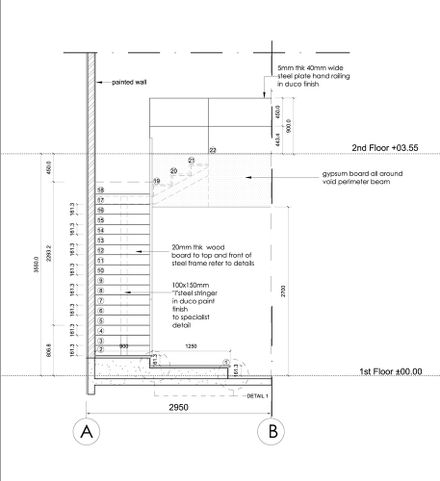

Staircase details 1
AT 3/56 House
Stair case details 2


AT 3/56 House

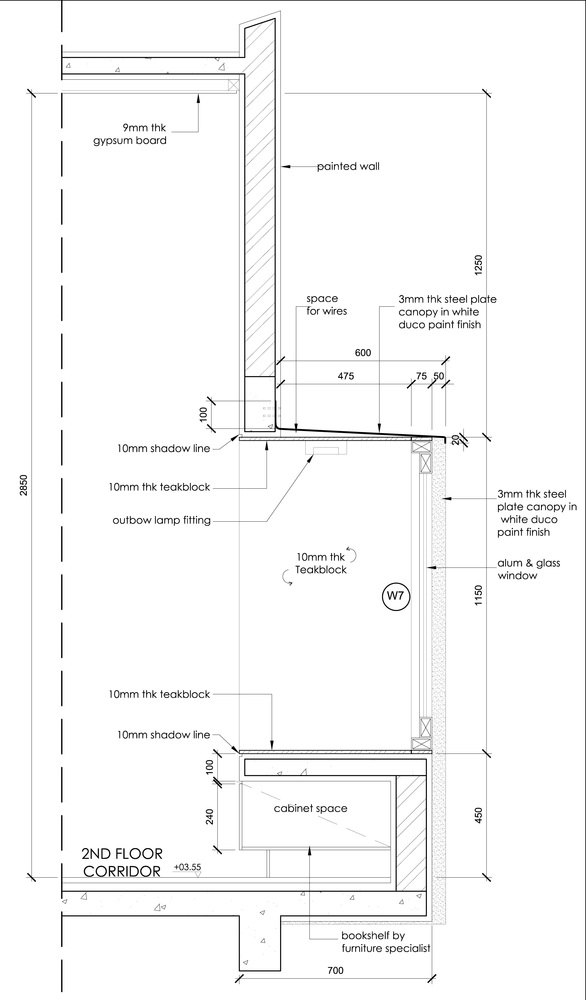

Bay Window Details
AT 3/56 House
Bay Window Details


AT 3/56 House

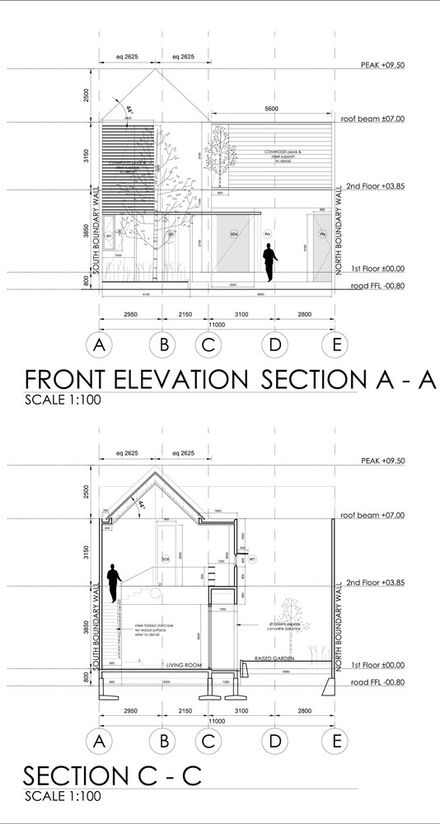

Front Elevation Section A and Section C
AT 3/56 House
Section B and D
AT 3/56 House
Section E
AT 3/56 House
Section F
AT 3/56 House
Section G
