CASA MS

ODA - Oficina de Arquitectura

ARCHITECTS
ODA - Oficina de Arquitectura

ARCHITECT IN CHARGE
Juan A. Machado, Eric C. Brewer

PHOTOGRAPHS
Tomas Opitz

AREA
764.0 sqm

LOCATION
Caracas, Venezuela, Bolivarian Republic of

CATEGORY
Houses

Casa MS
© Tomas Opitz

Text description provided by architect.

The area of ​​764.00 m² plot is with R3 zoning (40% and 80% location construction).

Casa MS
Casa MS
© Tomas Opitz

The house has three floors with a total area of ​​304.11 m2 of location and construction of 610.70 m2.

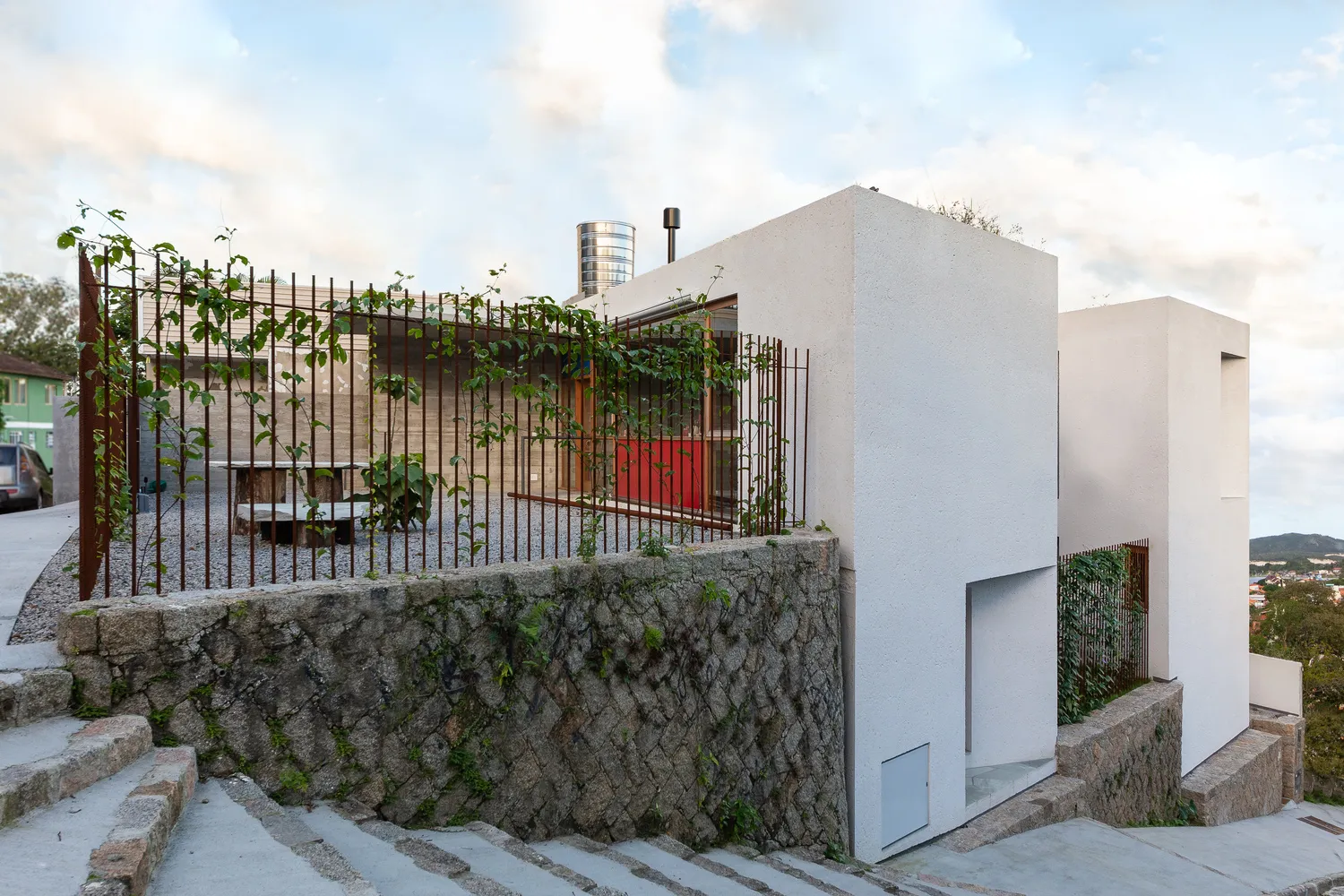

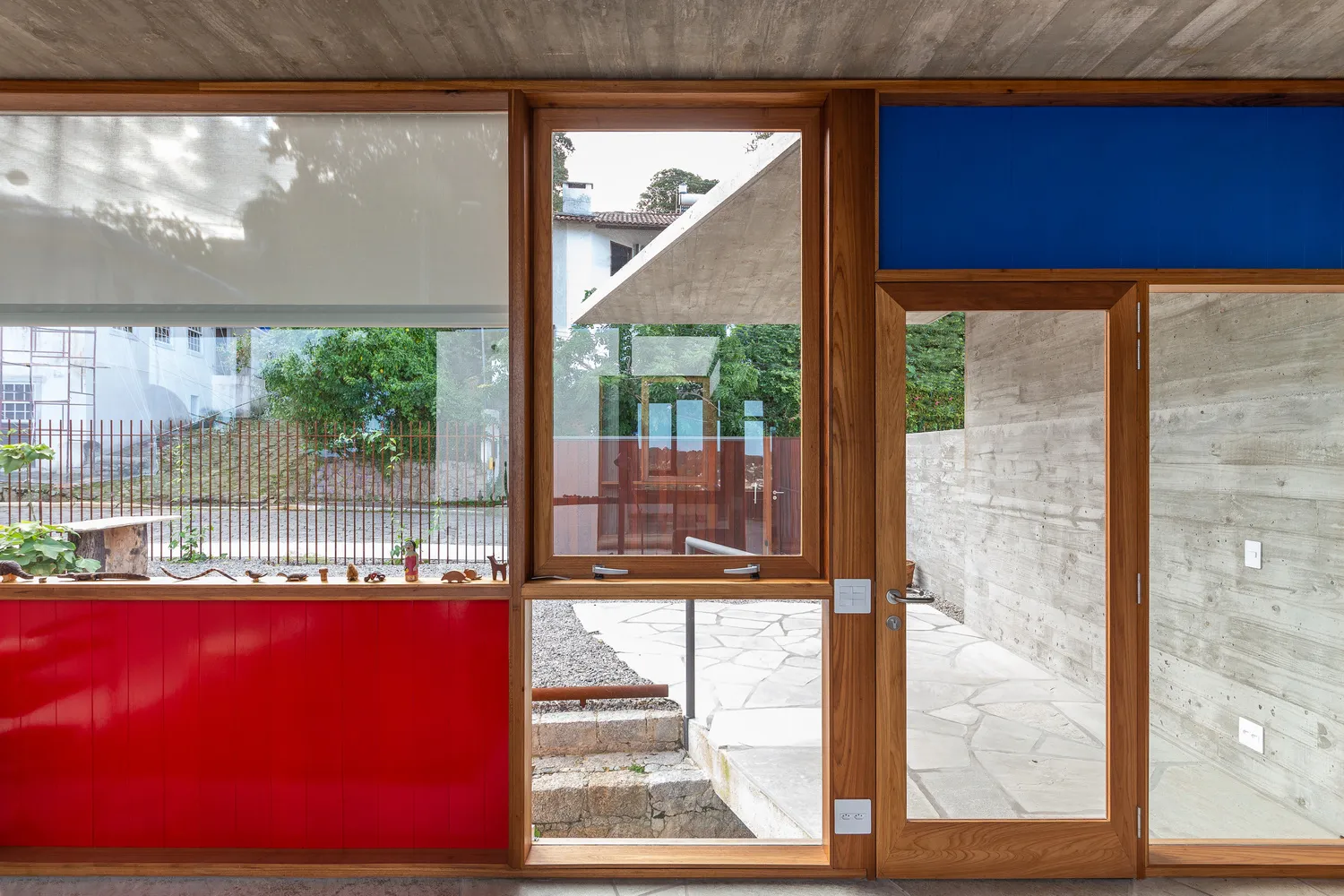

Built on concrete slab and direct foundation, the walls are made of clay blocks gasketed and painted. The house has a maximum height of approximately 9.30 m from the level of the street, and their enclosures are of aluminum and clear glass combined with blacksmithing.

Casa MS
Casa MS

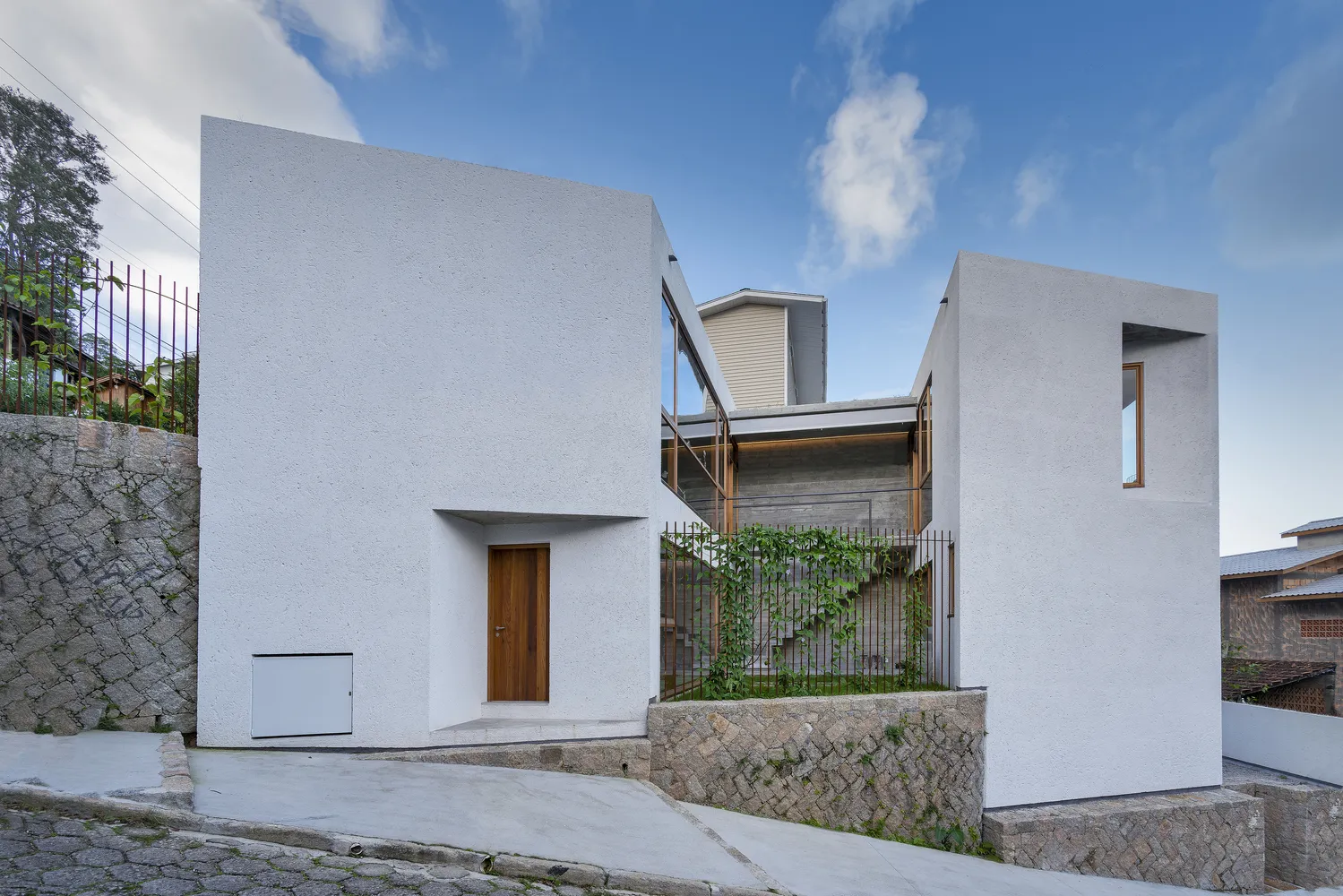

The entrance to the house is on the east side of the ground floor, which occupies an area of ​​273.50 m².

This plant has: a hall in unevenness, half guest bathroom, kitchen, service area (pantries, be of service, laundry, utility room, bathroom and a service yard) the dining room and the main hall.

Casa MS
Casa MS

These last two are adjacent to the pool and the garden surrounding the house.

It has two parking spaces, one of which is covered, located on the west side boundary of the plot and the house is communicated through the service entrance leading to the kitchen.

Casa MS
Casa MS

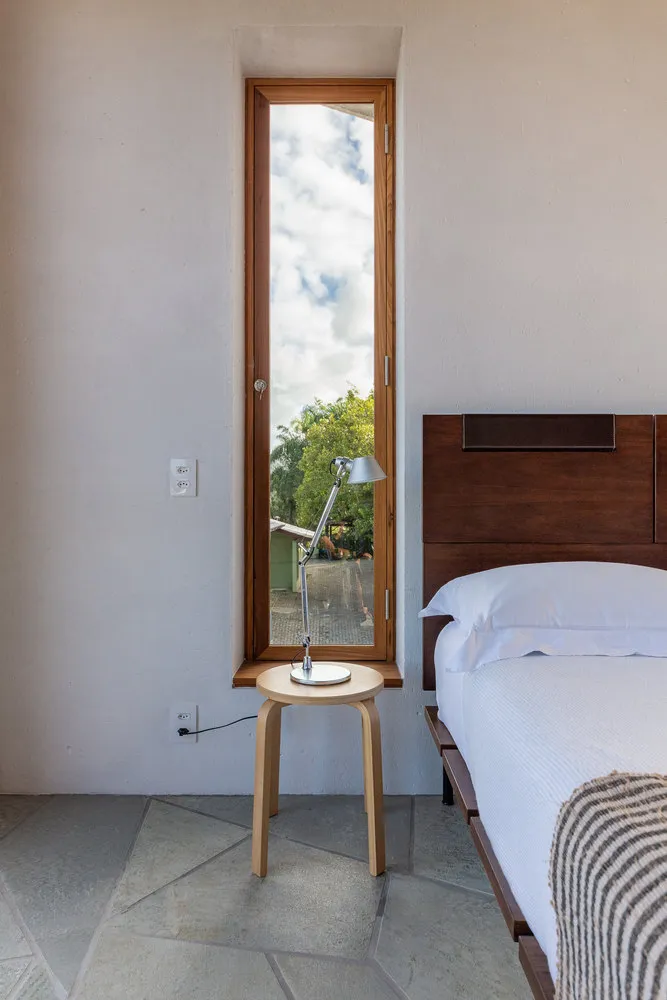

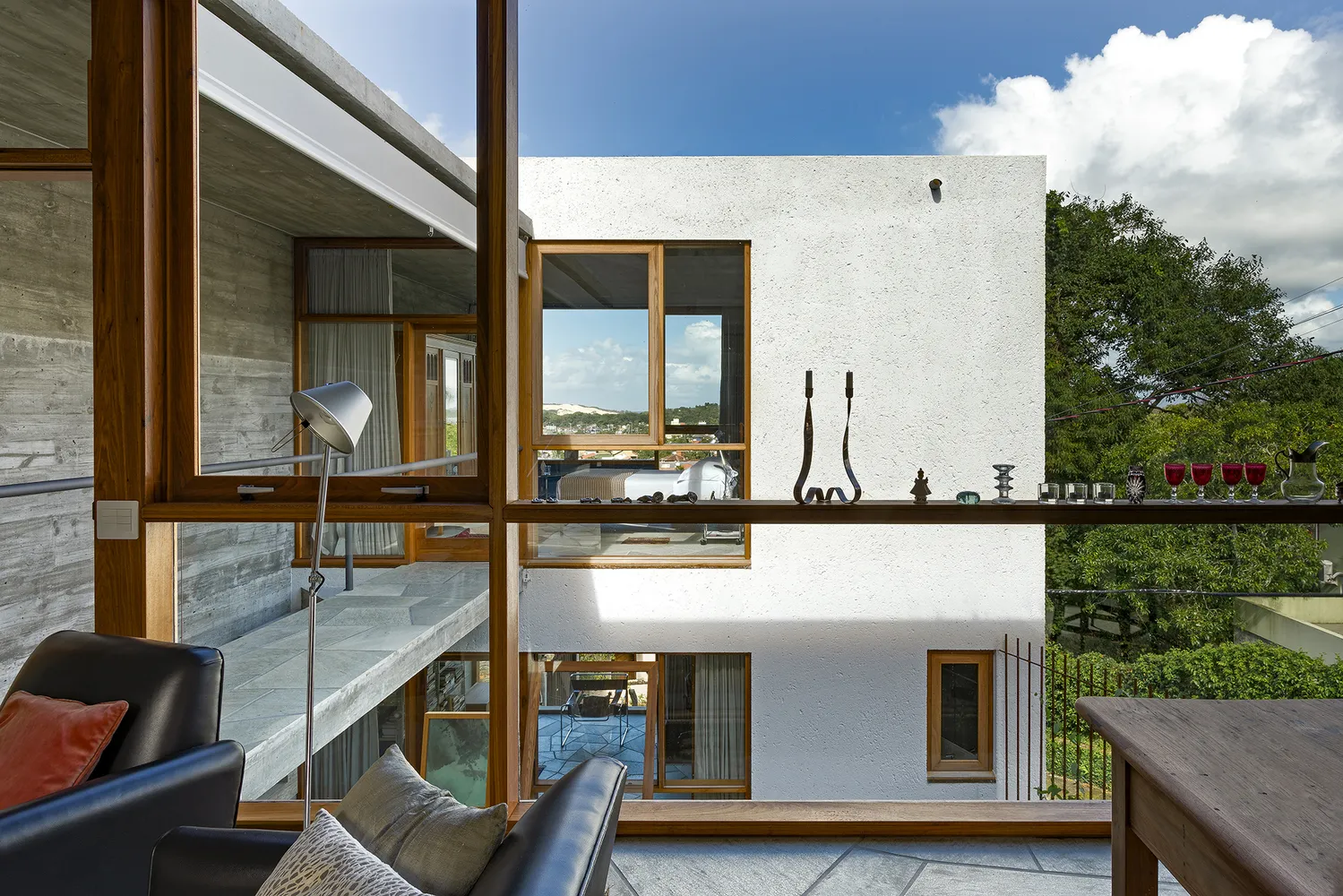

Upstairs, on Floor Level 1, with an area of ​​265.66 m², there are three bedrooms with a small balcony, a bathroom and walk-in closet, a private living room and master bedroom, dressing room and terrace balcony overlooking the back of the plot.

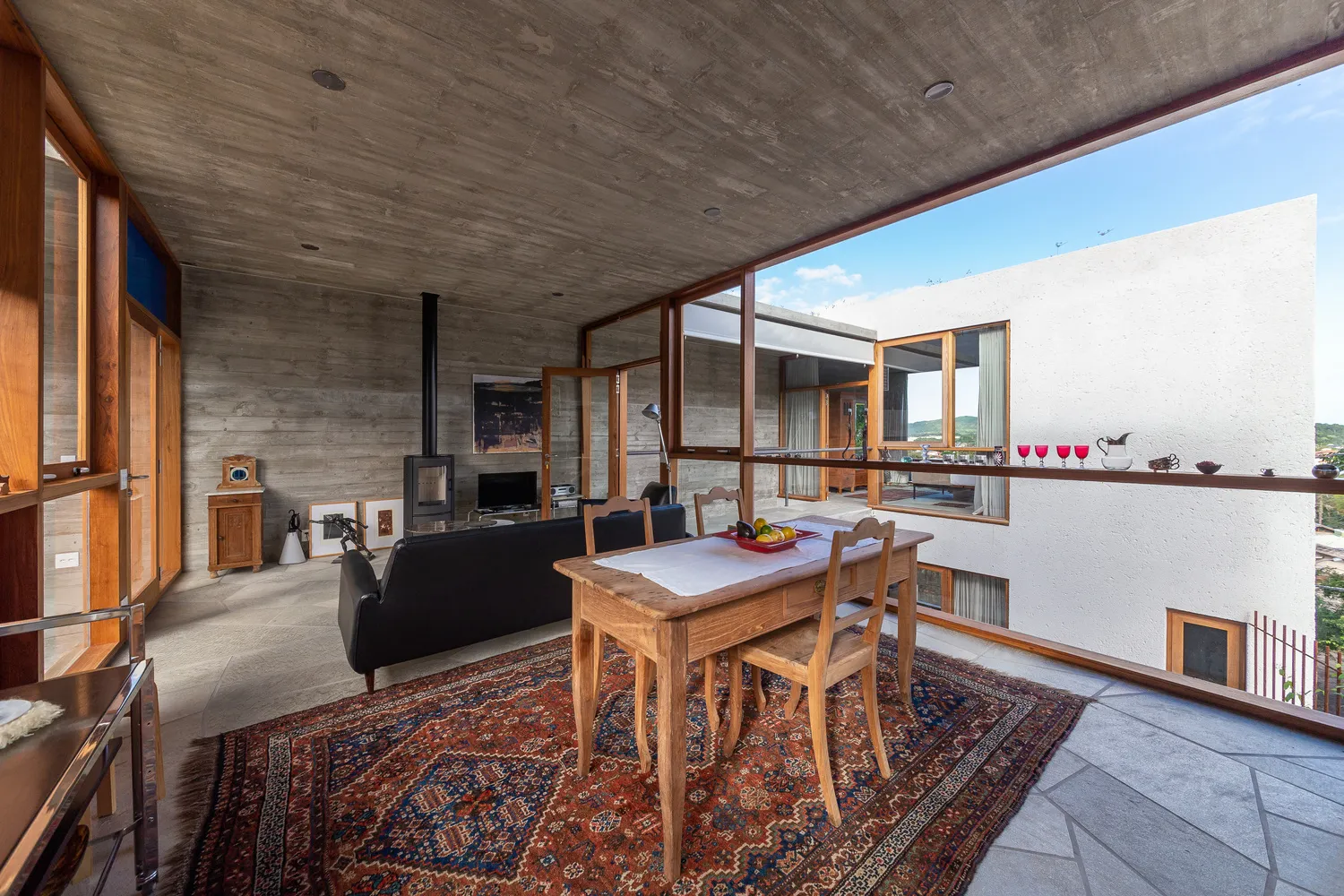

Up the second staircase we find the Level Studio or Stage 2, with an area of ​​71.54 m², where they are: an open space where the library is developed, studio and living room with access to the roof, a bathroom and an area for equipment air conditioning.

Casa MS
© Tomas Opitz
Casa MS
© Tomas Opitz

The underground water tank by a pump room and engine room that is located below the level of the ground floor located in the north east corner of the plot.

Casa MS
© Tomas Opitz


Casa MS
Casa MS
© Tomas Opitz
Casa MS
© Tomas Opitz
Casa MS


Casa MS
Casa MS
Casa MS
Casa MS
Casa MS


Casa MS
© Tomas Opitz
Casa MS
© Tomas Opitz


Casa MS
© Tomas Opitz
Casa MS
© Tomas Opitz
Casa MS
© Tomas Opitz


Casa MS

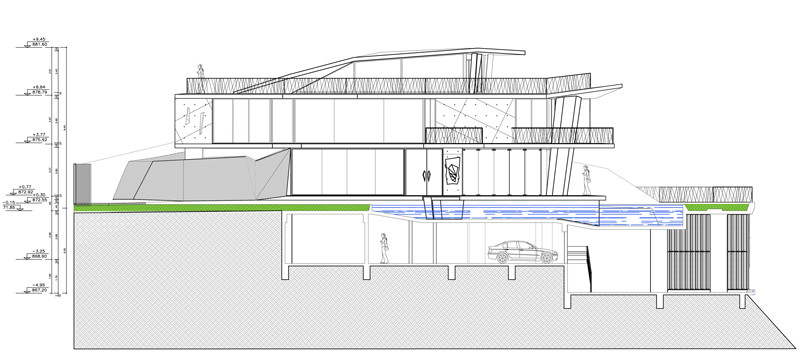

Elevation
Casa MS
Section
Casa MS
Section
Casa MS
Section
Casa MS
Section
Casa MS
Section


Casa MS
Floor Plan
Casa MS
High Floor Plan
Casa MS
Tarrece Floor Plan
Casa MS
Basement Plan
Casa MS
Ground Floor Plan
