Ector Hoogstad Architecten

Bicycle Parking

BICYCLE PARKING

Ector Hoogstad Architecten

Bicycle Parking
©Petra Appelhof

ARCHITECTS
Ector Hoogstad Architecten

ENGINEERING
Royal Haskoning DHV

LANDSCAPE
Buro Sant & Co

MANUFACTURERS
AutoDesk, Geelen Beton, Mohringer Liften, Boldit, Glasdesign, N&S, OBI, Van Ginkel

BUILDER
BAM Bouw en Techniek

CLIENTS
Gemeente Utrecht

PHOTOGRAPHS
Petra Appelhof

AREA
21373.0 m2

YEAR
2019

LOCATION
Utrecht,The Netherlands

CATEGORY
Parking

Bicycle Parking
©Petra Appelhof

Text description provided by architect.

The world’s biggest bicycle parking is the centerpiece of an urban redevelopment that reconnects the enlarged railway station to the historic city center of Utrecht.

Underneath an iconic canopy, an elevated and revitalized public space welcomes visitors. By rigidly reorganizing logistics and banning most car accesses on the ground level, a spacious green pedestrian boulevard could be created -lined by new mixed-use buildings- that allows for direct routes toward the city’s cathedral and its’ cultural center.

Bicycle Parking
©Petra Appelhof
Bicycle Parking
©Petra Appelhof

In the middle of the boulevard, underneath the elevated square, a three-story bike park for over 12,500 bicycles announces a future of sustainable mobility.

The bike-through possibility may be the world’s first …the concept is about speed and safety. The layout allows separating pedestrians and cyclists intuitively while approaching the station’s entrance.

Bicycle Parking
©Petra Appelhof
Bicycle Parking
©Petra Appelhof

A digital system guides cyclists rapidly to free places. The parking can be used with a public transport chip card, convenient and quick.

Stairwells and tunnels create direct connections to the elevated square, main terminal building and platforms. Ensuring good orientation and plenty of daylight, the stairwells are surrounded by glassed atria.

Bicycle Parking
©Petra Appelhof
Bicycle Parking
©Petra Appelhof

Durable materials such as concrete, steel, and wood are used and the parking already won the “Betonprijs 2017”, a prestigious price granted by the concrete - association.

Three concrete columns supporting the giant canopy extend all the way down into the parking. These trumpet-shaped elements have a diameter of 5 meters at floor level, falling to 1.2 m at the top, and each one is cast as a single element.

Bicycle Parking
©Petra Appelhof
Bicycle Parking
©Petra Appelhof
Bicycle Parking
©Petra Appelhof

The environment is one of the development’s starting points: the bike-park is built to seduce more inhabitants and commuters to use bicycles and public transport instead of cars. This behavioral change reduces CO2 emissions by up to 95%.

The available space was used highly effective and sustainable: the three-story bicycle parking is situated underneath the elevated square.

Utrecht profits in many ways: a better public space with a spectacular bike-parking and moreover space for commercial development.

Bicycle Parking
©Petra Appelhof
Bicycle Parking
©Petra Appelhof

All this on top of the station without adding much polluting transport. Daylight in the parking has been maximized by atria covered by glass rooftops and large windows in the outer walls, supplemented by LED lighting.

The cycle parking area is constructed using durable materials such as concrete, steel, and wood. With these raw materials, an atmosphere has been created that is best described as warm and intimate, creating a feeling of social safety.

Bicycle Parking
©Petra Appelhof
Bicycle Parking
©Petra Appelhof

To achieve a vibrant and friendly city-center Utrecht takes action: highways are being replaced by more modest streets, also allowing for a new public street and square to be inserted at Utrecht Central Station, together with a bicycle parking garage with a world record capacity of 13.500 bicycles.

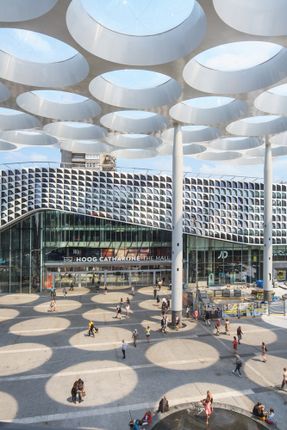

The new pedestrian boulevard has a slight bend in it to focus attention on the new railway terminal. It rises to a level of 6 meters to widen into a square where the entrances of both the station and the shopping mall are situated.

Bicycle Parking
©Petra Appelhof
Bicycle Parking
©Petra Appelhof

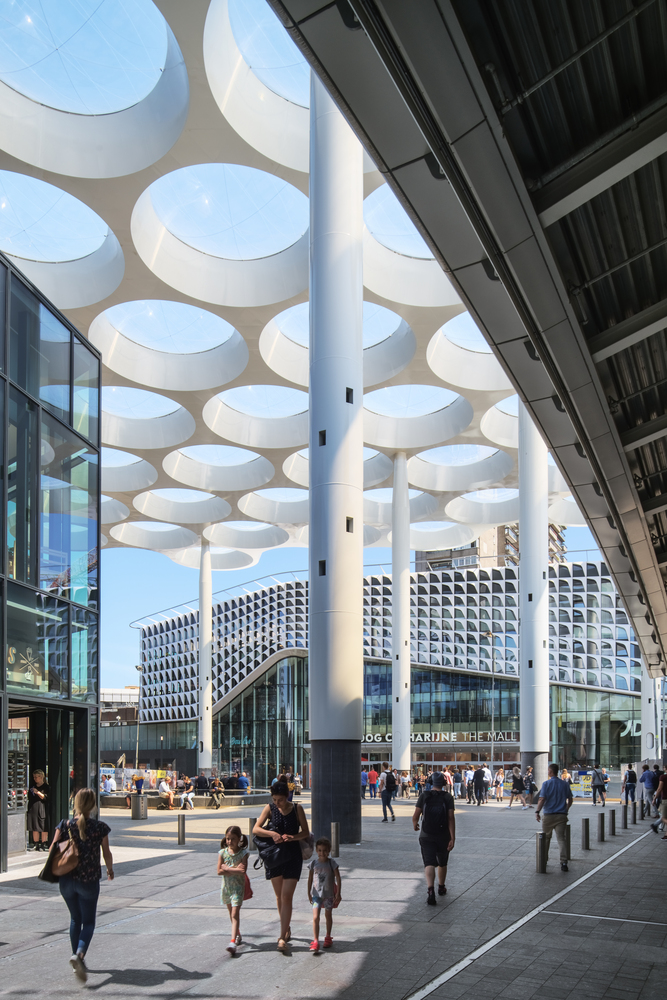

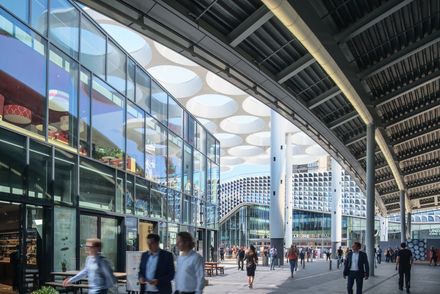

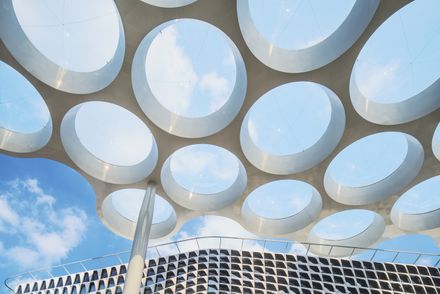

An enormous iconic canopy marks the square and enables a dry crossing. The development is equally appealing to all users and guarantees quick, safe and convenient access whether you are heading for the train or inner city.

The building adds an exciting and surprising architectural dimension to the city. Cycling through the garage has become a unique experience.

Bicycle Parking
©Petra Appelhof
Bicycle Parking
©Petra Appelhof
Bicycle Parking
©Petra Appelhof


Bicycle Parking
©Petra Appelhof
Bicycle Parking
©Petra Appelhof


Bicycle Parking
Mezzanine Axonometry
Bicycle Parking
Ground Floor Axonometry
Bicycle Parking
Basement Axonometry
Bicycle Parking
Circulation Diagram


Bicycle Parking

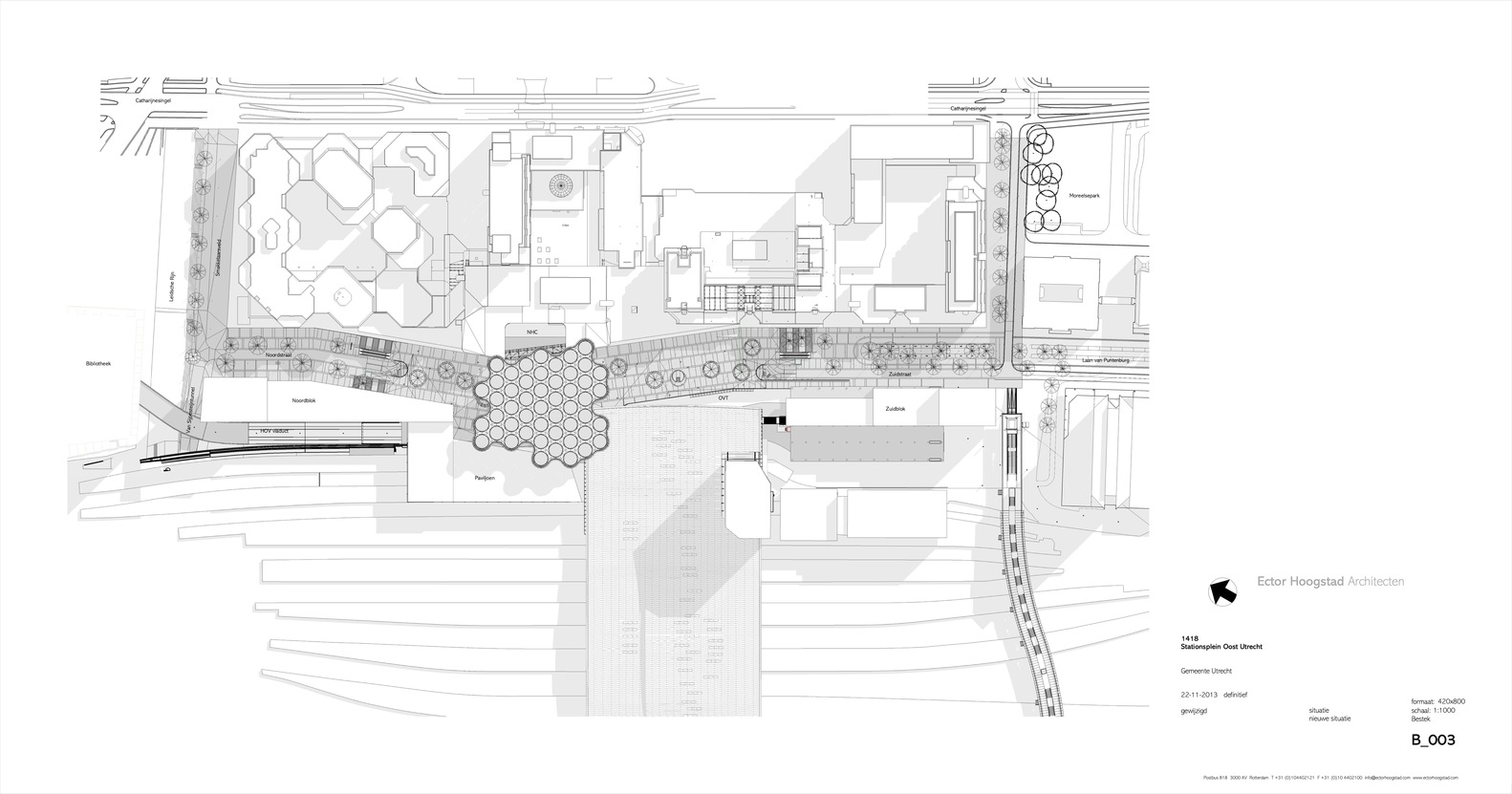

Situation Plan
Bicycle Parking
Perspectived Section
