Carnon Nautic Base

Carnon Nautic Base
© Marie-Caroline Lucat

CARNON NAUTIC BASE

Stephane COULAUD Architect

ARCHITECTS
Stephane COULAUD Architect

LOCATION
Carnon, Mauguio, France

CATEGORY
Boathouse

AREA
720.0 m2

PROJECT YEAR
2019

PHOTOGRAPHS
Marie-Caroline Lucat

ENGINEERING
Plus De Vert / Bet Base / Sitetudes / Cusy

CLIENTS
Mauguio / Carnon City

MANUFACTURERS
Knauf, SORIBA, Sika, Wood

LANDSCAPE
Sempervirens

Text description provided by architect.

Some projects seem badly started from their genesis. This is the case of the new Nautical Base of Carnon City.

Carnon Nautic Base
© Marie-Caroline Lucat
Carnon Nautic Base
© Marie-Caroline Lucat

On one hand, you have a sailing club with a building similar to old dilapidated colanders and on the other, local inhabitants hostile to all construction, and in the middle, as an arbitrator, the town hall torn between the two parties.

It must be said that the issue is important. Located on the beach, at the exit of the marina, the sailing school enjoys an exceptional panorama on the Mediterranean Sea.

Carnon Nautic Base
© Marie-Caroline Lucat
Carnon Nautic Base
© Marie-Caroline Lucat

In order not to aggravate things, the project must take into account all the wishes of all parties, in addition to respecting the drastic rules of the program and its budget.

The school is located on the beach, in front of the residents' windows and hides their view towards the maritime skyline. It must, therefore, be as low as possible.

Carnon Nautic Base
© Marie-Caroline Lucat
Carnon Nautic Base
© Marie-Caroline Lucat

But it must also overcome the rising waters and must be raised by 80 cm compared to the existing constructions.

As though that weren't enough, the building must present an urban style facade to the East, towards the harbor, and must be invisible to the West from the beach!Here is the paradoxical context of this project.

Its concept arose from all these constraints to give it this so particular contextual architecture. First of all, the project is extremely flat, just above the sand, with minimal dimensions, to meet the constraints of height.

Carnon Nautic Base
© Marie-Caroline Lucat
Carnon Nautic Base
© Marie-Caroline Lucat

Ceiling heights are minimized to graze 2.30 m so as not to push around the neighbors. Views have been made from all their terraces to explain the project. The main architectural act was finally to hide the building by slipping it under the beach. A plant-covered sand dune has been created to hide the sailing school and offer natural scenery.

The landscape planning of the site comes from this premise. Typical fences called "ganivelles" and endemic plants strengthen the soil structure while replacing the building's facades. Divided into two entities, the program also adapts to constraints. The locker rooms are vertically illuminated by skydomes through the sand.

Carnon Nautic Base
© Marie-Caroline Lucat
Carnon Nautic Base
© Marie-Caroline Lucat

To the south, the clubhouse and classrooms lean against the dune. Sheltered in a streamlined volume of concrete, the sailing school sometimes shows stanted edges to take the weight of the sand, sometimes large cantilevers serving as solar protection.

The wide openings towards the sea compensate for the low height of the building. To the South, a large opening in exposed concrete protects from the sun without any need to hide behind a filter.

Carnon Nautic Base
© Marie-Caroline Lucat
Carnon Nautic Base
© Marie-Caroline Lucat

This keeps the view wide open in all circumstances. Entirely made out of concrete, the structure is left untouched to withstand the salty spray of the sea and the gales loaded with sand.

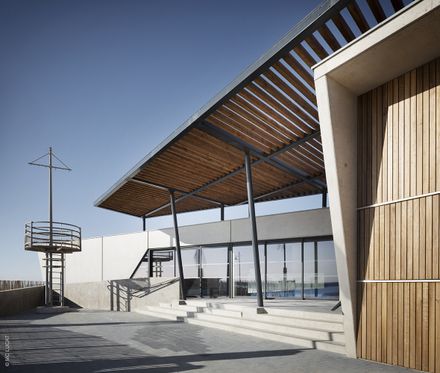

Preformed thermal walls have been studied to keep a smooth and uniform appearance. A large crossing fault separates these entities and allows to reach the beach. At the entrance, the forecourt is sheltered under a large oblique pergola that seems to play with the forces of nature as if it had been twisted by the winds.

Carnon Nautic Base
© Marie-Caroline Lucat
Carnon Nautic Base
© Marie-Caroline Lucat

Each element of the project perfectly meets its function, which explains the diversity of the facades. This principle is also preserved inside, where the raw blue painted slabs interact with the reflections of the sea, and the omnipresent concrete offers protection against the invading sand.

Each space takes advantage of its exposure. The result is an atypical, hyper-contextual building that has, against all odds, ended up reconciling sailors with local residents.

Carnon Nautic Base
© Marie-Caroline Lucat


Carnon Nautic Base
East and West Facades
Carnon Nautic Base
South and North Facades


Carnon Nautic Base

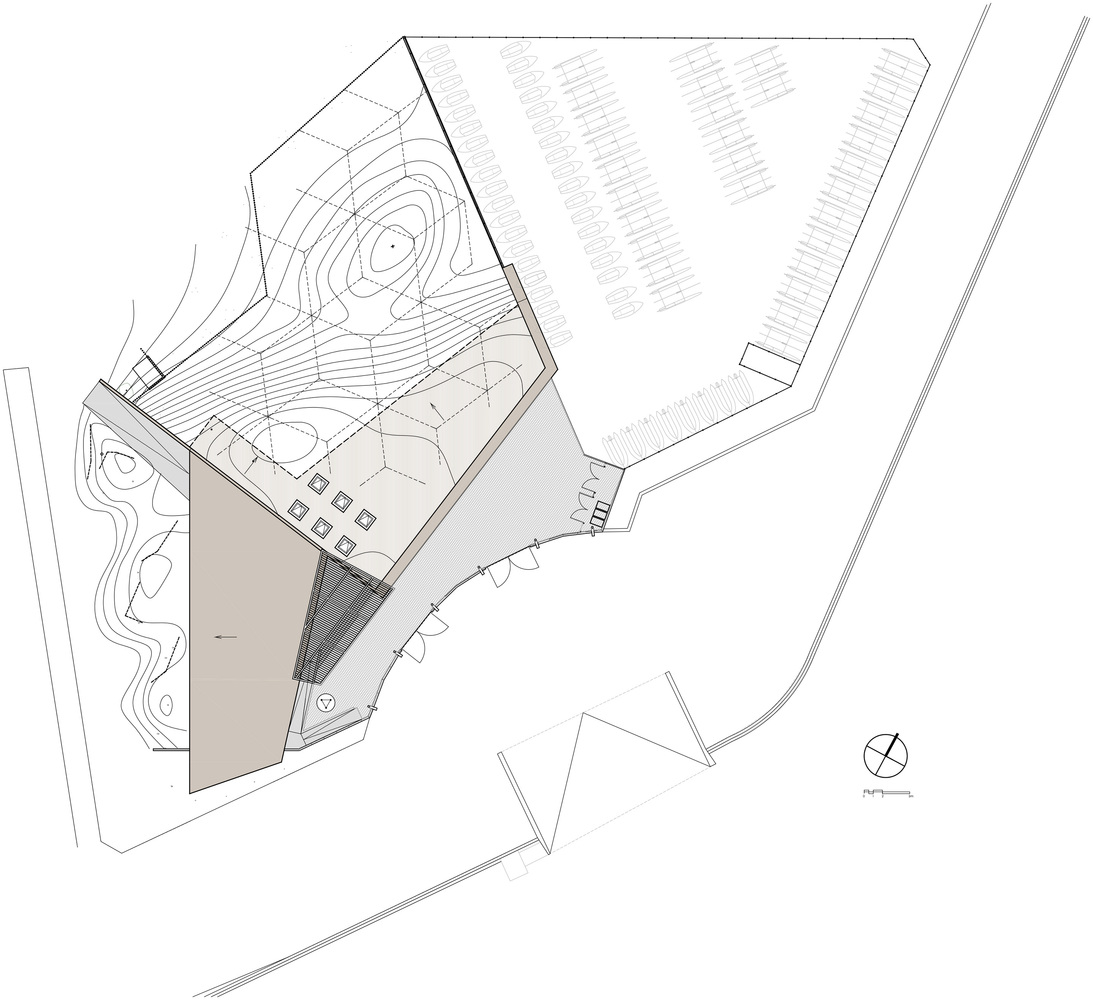

Master Plan
Carnon Nautic Base
Ground Floor Plan
Carnon Nautic Base
Upper Floor Plan
