MA 4519 Residential Building
MA 4519 RESIDENTIAL BUILDING
Arqtipo
PROJECT YEAR
2019
ARCHITECTS
Arqtipo
AREA
279.0 m2
STRUCTURES
Pablo Lulkin
PHOTOGRAPHS
Federico Kulekdjian
CATEGORY
Residential
COLLABORATORS
Germán Cappiello, Martín Giani, Catarina Staric, Leonardo Pulzoni
PROJECT ADVISORE
Lucas Gorroño
LEAD ARCHITECTS
Diego Aceto, Darío Litvinoff
WORK RESPONSIBLE
María Cecilia Giménez
LOCATION
Mariano Acha 4519, C1430DWM CABA, Argentina
Text description provided by architect.
The MA 4519 project located in the neighborhood of Saavedra, is presented as the opportunity to operate in interstitial, on a residual lot for the traditional real estate market, it investigates the habitat density without resigning quality of life.
On a small plot of 8.66 x 12.50 m, in the R2B1 district, without an internal front line, it is allowed to build the entire land of this typical apple, generating a proposal from morphological operations that articulate it in relation to the heterogeneous context of this urban fabric in continuous transformation.
The project takes advantage of the maximum height of the zoning of the district, from a series of staggered spaces with expansions at different heights that are related to both boundaries.

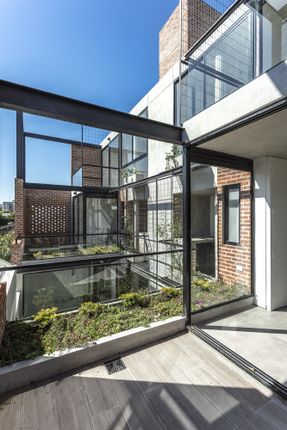

Its virtual volumetry is completed with a metallic structure that redefines the limits, qualifying the spatial conditions of the project.
CONFIGURATION-TECTONIC
In a complex context, we understand that project decisions are crossed by economic conditions, which require us to search for pertinent material experimentation.
Projecting the interface between the maximum envelope and the constructive capacity challenges us about the possibilities of generating a virtual volume that opens onto one of the sides.
The project takes advantage of the orientation of the land proposing a series of terraced expansions that allow light to filter down to the ground floor.
This is achieved by proposing typological variability:
locating the units of simple level and greater development of a plant in the lower floors and those of double level (duplex) in the upper ones, dematerializing the volume as it attains height.
On a residual lot for the traditional real estate market, it investigates the habitat density without resigning quality of life.
DISPOSITION
On the ground floor, there is the entrance hall, the garages and a multipurpose professional apt unit with its own patio.
In the first level, 2 small-scale habitat units were projected, which allow us to configure various provisions based on their programmatic indetermination.
In the upper level, two duplex units are located, with double expansion generated from retunques and retreats.
At the same time, the levels of the same ones were rotated to favor the crossed ventilation and the smaller use of the plant.
New public / private gradients are proposed in the accesses to each unit, projecting semi-covered areas integrated into the courtyard of the building, configuring an intermediate space between the common and the unit.
