BUILDING LL 2474

Arqtipo

ARCHITECTS
Arqtipo

PROJECT MANAGER
Paola Castelnuovo

LEAD ARCHITECT
Diego Aceto, Darío Litvinoff, Paola Castelnuovo

STRUCTURALIST
Pablo Lulkin

COLLABORATORS
Germán Cappiello, Catarina Staric, Leonardo Pulzoni.

PROJECT ADVISOR
Lucas Gorroño

MANUFACTURERS
Aserradero Vagol, Calderas Triangular, Carpinterías Construser Alvear, Corralón Tramontana Ast, Hormigón Elaborado Ing. Casas, Pisos Patagonia Flooring, Pisos Y Revestimientos Noi, Sanitarios San Martín

PHOTOGRAPHS
Federico Kulekdjian

AREA
17114.62 ft2

YEAR
2019

LOCATION
Llerena 2474, Autonomous City of Buenos Aires, Argentina

CATEGORY
Residential

CONTEXT

The LL 2474 building assumes an interstitial condition proposing morphological operations that articulate it in a context that is in continuous transformation.

Building LL 2474
© Federico Kulekdjian
Building LL 2474
© Federico Kulekdjian

The building is an architectural piece that develops in a typical and heterogeneous block in the urban fabric, located in the neighborhood of Agronomy. It is located on a plot of 8.66 x 36 m, whose internal front line is located at 32 m deep in the E3 district, which allows building an envelope greater than the building capacity.

The project takes advantage of the maximum height of the zoning of the district, flushing the left boundary and proposes a series of "open" spaces of different heights that are related to the right boundary.

Building LL 2474
© Federico Kulekdjian
Building LL 2474
© Federico Kulekdjian

Its volumetry allows the pooling of yards in relation to both boundaries, as a completion, respecting the pre-conditions and qualifying the conditions of the project.

CONFIGURATION

The proposal assumes gray brick as the project material, and a relationship between the maximum envelope and the constructive capacity, based on the spatial possibilities generated by the interface between these envelopes.

Building LL 2474
© Federico Kulekdjian
Building LL 2474
© Federico Kulekdjian

It is experimented with the articulation generated between the outer skin, monomaterial of the gray brick sensitive to the context and orientation, and the inner envelope typical of the habitative units.

It proposes a series of expansions that "move" at different levels, and that allows light to filter to the lower levels.

Building LL 2474
© Federico Kulekdjian
Building LL 2474
© Federico Kulekdjian
Building LL 2474
© Federico Kulekdjian

LAYOUT

The building has a free ground floor, where the entrance hall, the parking spaces and the park are located.

In the lower levels, small-scale habitat units, monoambient-type, are projected for their use (four units per level) that have the greatest use of plants. These can house homes and professional studios.

In the upper levels, the larger units are available, which generate the recesses and withdrawals, and the desired variability in their expansions, to filter the light and allow cross-ventilation of the units. In the last level, the communal activities are organized, proposing a space for bonding and recreation.

Building LL 2474
© Federico Kulekdjian
Building LL 2474
© Federico Kulekdjian


Building LL 2474
© Federico Kulekdjian
Building LL 2474
© Federico Kulekdjian
Building LL 2474
© Federico Kulekdjian
Building LL 2474
© Federico Kulekdjian
Building LL 2474
© Federico Kulekdjian
Building LL 2474
© Federico Kulekdjian


Building LL 2474
Axo 01
Building LL 2474
Axo 02


Building LL 2474
Elevation 01
Building LL 2474
Elevation 02


Building LL 2474

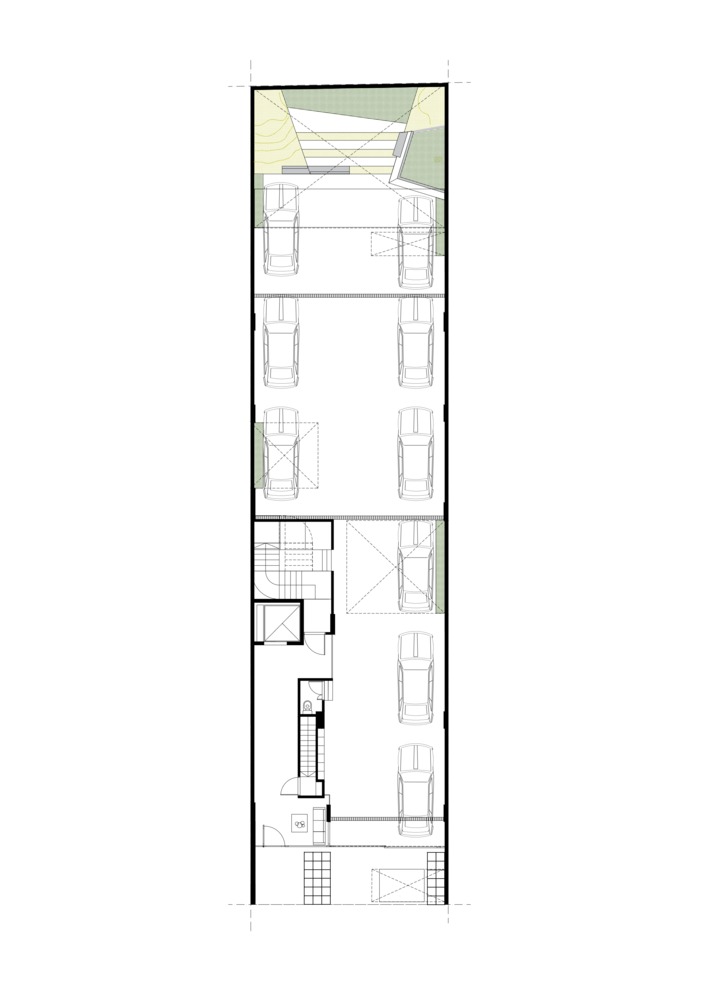

Plan 01
Building LL 2474
Plan 02
Building LL 2474
Plan 03
Building LL 2474
Plan 04
Building LL 2474
Plan 05
Building LL 2474
Plan 06
Building LL 2474
Plan 07
Building LL 2474
Plan 08


Building LL 2474
Section
Building LL 2474
Section
