Ethnos

Escalier Gobancho

ESCALIER GOBANCHO

Ethnos

Escalier Gobancho
© Keishin Horikoshi

ARCHITECTS
Ethnos

LEAD ARCHITECTS
Tatehito Sakruai

CLIENTS
Real Partners Co.,Ltd.

MANUFACTURERS
Lixil Corporation, Fujisash Co.,Ltd, NOZAWA, sanshiba

PHOTOGRAPHS
Keishin Horikoshi, Hata Taku

AREA
638.84 m2

YEAR
2019

LOCATION
Gobancho, Tokyo, Japan

CATEGORY
Office Buildings, Commercial Architecture

Escalier Gobancho
© Keishin Horikoshi
Escalier Gobancho
© Keishin Horikoshi

Text description provided by architect.

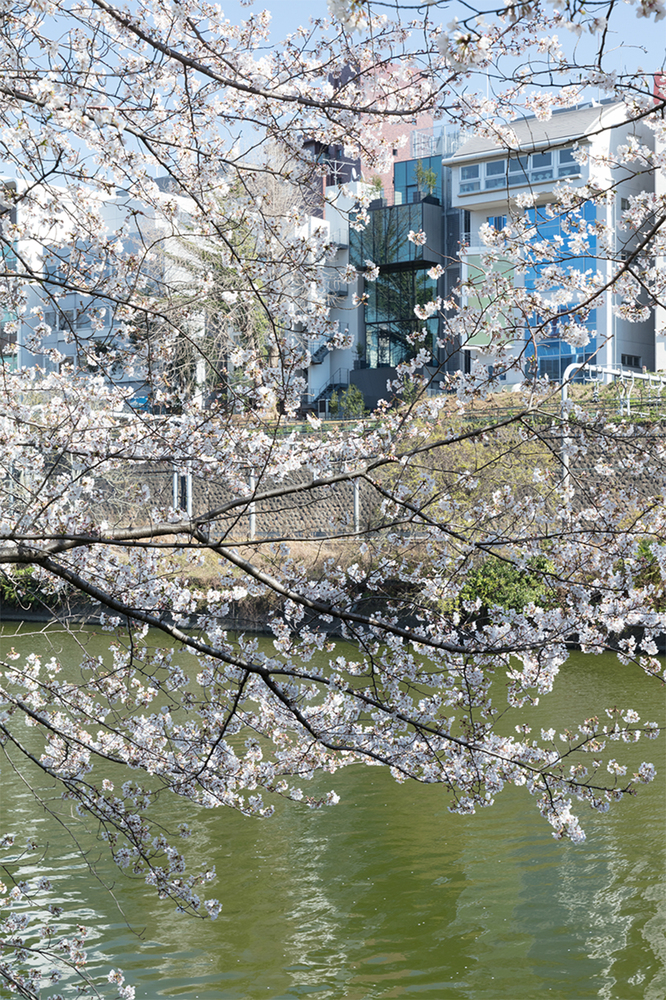

This is a project of a building for rental office spaces and commercial spaces, facing the moat of the Imperial Palace and located close to Ichigaya station.

The south side of the site is on a street and the north side of the site faces the moat.

To take advantage of this location, we laid out the elevator core aside from the main access from north to south.

Escalier Gobancho
© Keishin Horikoshi
Escalier Gobancho
© Keishin Horikoshi
Escalier Gobancho
© Keishin Horikoshi

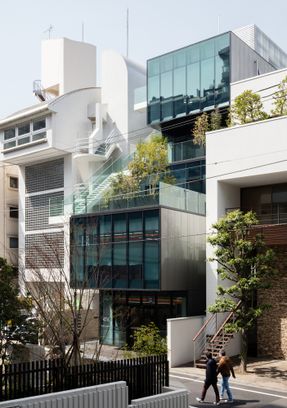

By commanding the sky factor, the volume of each level is offset from back to front, so that the pedestrians recognize each rental space as an individual component.

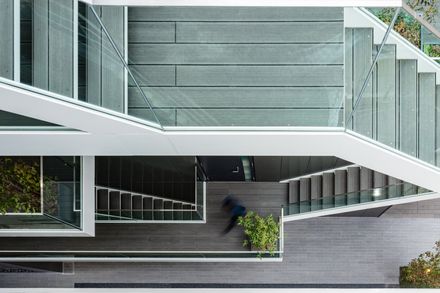

Our proposal is to connect the balcony by the stairs with the ground level to encourage communication between the upper and lower levels, thus a relationship and connection will be generated to the entire city.

Then the gap between each volume turns a balcony with greenery as a space that intermediates each office and the entire city.

Escalier Gobancho
© Hata Taku
Escalier Gobancho
© Hata Taku

Common areas, such as installation shafts, corridors, staircases, balconies are part of the exterior constituted to allow maximal rental spaces, and realize a 100% rentable ratio to bring up profitability.

The façade of the building is made of a sash-less, insulated glazing, fire preventing steel curtain wall to mimic as a section of a volume looking like a simple box.

Escalier Gobancho
© Keishin Horikoshi
Escalier Gobancho
© Keishin Horikoshi

In an insulated glazing system, where a steel panel strip is inserted and the glass at the interior side of the window is wired, meets the regulation of fire prevention. The windows can be more than 3 meters high.

The name of the project is "Escalier" meaning staircase in French, that reflects the wish of the client to have an office building become an hatchery, in which startups and venture companies step up and grow.

Escalier Gobancho
© Hata Taku
Escalier Gobancho
© Hata Taku

Inspired by the wish, this building is designed to honor the historical development of the cityscape and to let it pass on to future generations.


Escalier Gobancho
© Keishin Horikoshi
Escalier Gobancho
© Keishin Horikoshi
Escalier Gobancho
© Hata Taku
Escalier Gobancho
© Keishin Horikoshi
Escalier Gobancho
© Keishin Horikoshi
Escalier Gobancho
© Keishin Horikoshi
Escalier Gobancho
© Keishin Horikoshi


Escalier Gobancho
Sections
Escalier Gobancho
Plans


Escalier Gobancho
Elevation
Escalier Gobancho

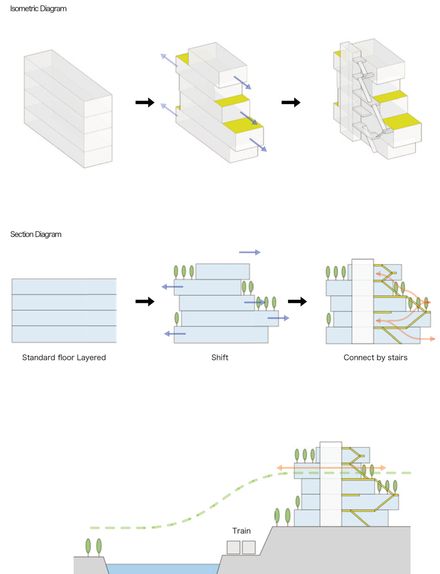

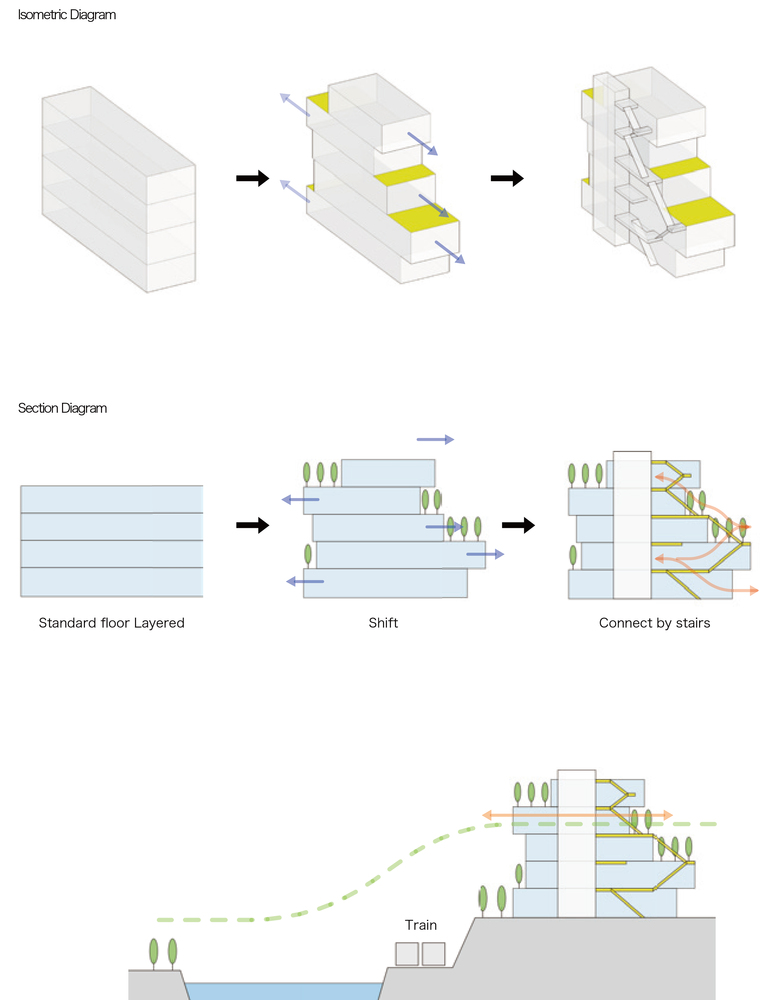

Diagram


Escalier Gobancho
Stair Detail
Escalier Gobancho
Balcony Detail


Escalier Gobancho
Site Plan
