Archimontage Design Fields Sophisticated

Muangthongthani Carcare

MUANGTHONGTHANI CARCARE

Archimontage Design Fields Sophisticated

Muangthongthani Carcare
© Chaovarith Poonphol Photography

MANUFACTURERS
American Standard, Dulux, Guardion, Lamptitude, MT aluminium, Steel Metal

LEAD ARCHITECTS
Cherngchai Riawruangsangkul, Thanakit Wiriyasathit

PHOTOGRAPHS
Chaovarith Poonphol Photography

AREA
330.0 m2

YEAR
2019

LOCATION
Nonthaburi, Thailand

CATEGORY
Mixed Use Architecture, Workshop, Office Buildings

Muangthongthani Carcare
© Chaovarith Poonphol Photography

Text description provided by architect.

The building is located on a 300 square-meter plot of land. This long and narrow plot requires an in-depth organization of the building.

The façade of the building faces south while the other side faces east The neighboring building is a car care center which belongs to the same owner.

Muangthongthani Carcare
© Chaovarith Poonphol Photography
Muangthongthani Carcare
© Chaovarith Poonphol Photography

Since the space of the car care center is too limited, mainly because of the closed coating area where protection from dust is much needed, a new space is necessary for project expansion.

This project is in Muang Thong Thani, a large community in Nonthaburi, a suburb of Bangkok.

Muangthongthani Carcare
© Chaovarith Poonphol Photography
Muangthongthani Carcare
© Chaovarith Poonphol Photography

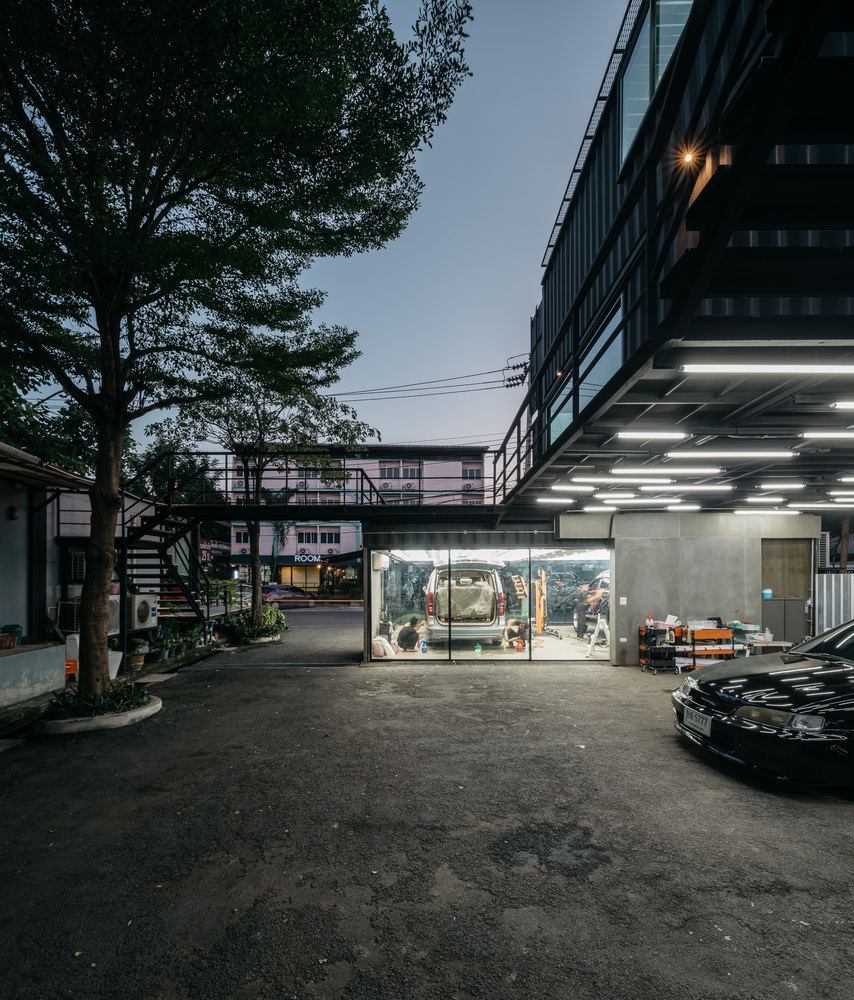

The building consists of 4 small containers (2.34x2.40x6.00) and 4 large containers (2.34x2.40x12.00). The ground floor provides space for a coating area, parking, and storage.

The second floor is planned for a restaurant with a separate multi-purpose area for a future bar.

Muangthongthani Carcare
© Chaovarith Poonphol Photography
Muangthongthani Carcare
© Chaovarith Poonphol Photography

There is a stairway outside the building for customers who may not wish to walk past the car care service inside the building.

The third floor is an office. The total utility space is 330 square meters.

Muangthongthani Carcare
© Chaovarith Poonphol Photography
Muangthongthani Carcare
© Chaovarith Poonphol Photography

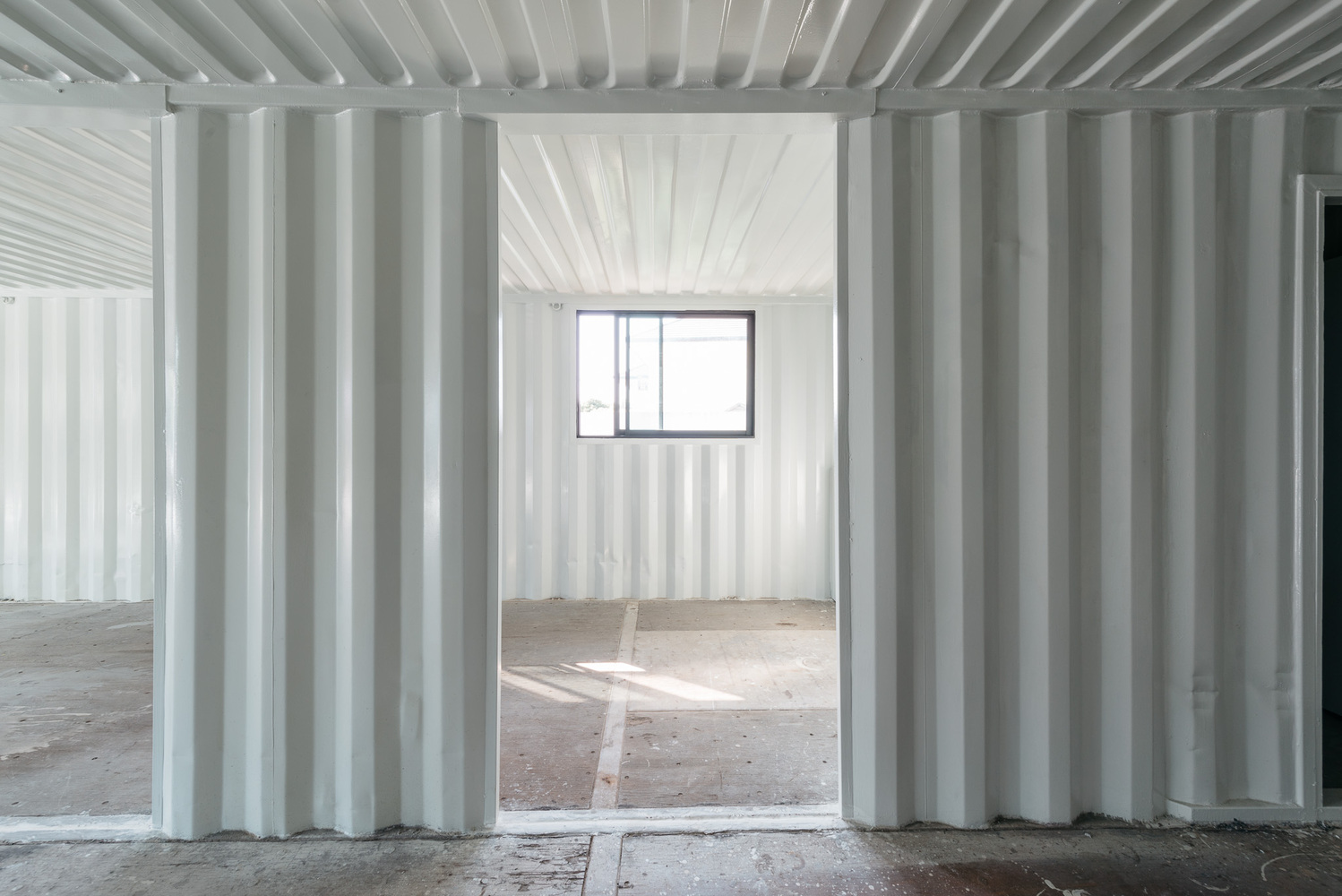

The building exterior is painted in matte black but the interior is white as the two colors create different perceptions. The innermost part is a residential area for staff.

The arrangement of these containers has harmony in design with different sizes of square holes that function as windows and doors.

The west façade and the roof have metal sunshades to reflect sunlight and protect the building from the heat.

Muangthongthani Carcare
© Chaovarith Poonphol Photography
Muangthongthani Carcare
© Chaovarith Poonphol Photography
Muangthongthani Carcare
© Chaovarith Poonphol Photography

Lighting design relies on 131 tubes of fluorescent lamps that spread throughout the building on the customized metal railings.

Today, using a container for construction is very popular because it is a cheap construction material: easy to find and can be adapted in various ways.

Muangthongthani Carcare
© Chaovarith Poonphol Photography
Muangthongthani Carcare
© Chaovarith Poonphol Photography

Without a need for any over-decoration, just some coloring, and adaptation, the most important is honesty with the material’s authenticity.


Muangthongthani Carcare
© Chaovarith Poonphol Photography
Muangthongthani Carcare
© Chaovarith Poonphol Photography
Muangthongthani Carcare
© Chaovarith Poonphol Photography
Muangthongthani Carcare
© Chaovarith Poonphol Photography
Muangthongthani Carcare
© Chaovarith Poonphol Photography
Muangthongthani Carcare
© Chaovarith Poonphol Photography
Muangthongthani Carcare
© Chaovarith Poonphol Photography
Muangthongthani Carcare
© Chaovarith Poonphol Photography
Muangthongthani Carcare
© Chaovarith Poonphol Photography
Muangthongthani Carcare
© Chaovarith Poonphol Photography
Muangthongthani Carcare
© Chaovarith Poonphol Photography


Muangthongthani Carcare
First Floor Plan
Muangthongthani Carcare
Second Floor Plan
Muangthongthani Carcare
Third Floor Plan
Muangthongthani Carcare
Roof Plan
