MORSE_D CURVE

Moon Hoon

ARCHITECTS
Moon Hoon

MANUFACTURERS
Eagon, HANGLAS, Hanhwa L&C, KCC, Luxteel

PHOTOGRAPHS
Namgoong Sun

AREA
471.44 m2

YEAR
2019

LOCATION
23, Tongil-ro 78 road, Eunpyeong-gu, Seoul, South Korea

CATEGORY
Residential Architecture, Commercial Architecture

Text description provided by architect.

A first, the client wanted a new kinder-garden on an irregular site with 5 converging roads.

Morse_D Curve
© Namgoong sun
Morse_D Curve
© Namgoong sun

It is a prominent site in the neighborhood with long curved edges touching the roads.

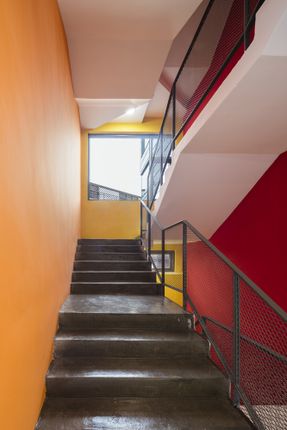

The maximum floor space was a prerequisite requirement from the beginning like most projects in Seoul, but the space program of 5 large classrooms for different age groups allowed for linear shaped, skipped rectangles with a central stairway that merged with children exhibition space.

At the top, there was a small house for the client’s family. The basement was designed as a communal kitchen and dinning room.

Morse_D Curve
© Namgoong sun
Morse_D Curve
© Namgoong sun

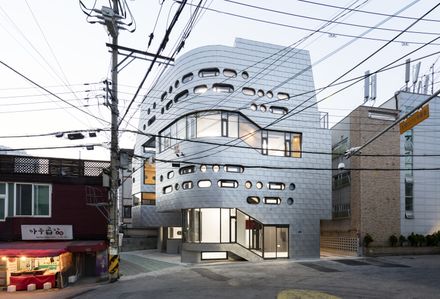

The façade was created with a signs, specifically referencing Morse codes, which provided internally windows for two types of inhabitants, lower ones for the children, and the higher ones for teachers and instructors.

The construction began but after the concrete structure was completed, there were quarrels between the client and general contractor. Soon, everything came to a complete halt.

Morse_D Curve
© Namgoong sun
Morse_D Curve
© Namgoong sun

A whole year went by, when everything was resolved. The delay caused the client to withdraw from the running of kinder-garden.

There was a need for a renewal in design, changing the program into commercial and residential use.

Morse_D Curve
© Namgoong sun
Morse_D Curve
© Namgoong sun

The basic spatial organizations were kept intact but new utility space were added with many more walls erected for privacy, which disrupted intended visual continuity of space by way of gaps between skipped floors.

Anyhow, It is fortunate that the renewed design has been transformed into a reality with a new general contractor.

Morse_D Curve
© Namgoong sun
Morse_D Curve
© Namgoong sun

Luckily the Morse_d curve façade holds the initial designs intact and keeps the energy which was inspired from the very beginning.

Morse_D Curve
© Namgoong sun
Morse_D Curve
© Namgoong sun


Morse_D Curve
© Namgoong sun
Morse_D Curve
© Namgoong sun
Morse_D Curve
© Namgoong sun
Morse_D Curve
© Namgoong sun
Morse_D Curve
© Namgoong sun


Morse_D Curve
Elevation 01
Morse_D Curve
Elevation 02
Morse_D Curve
Elevation 03
Morse_D Curve
Elevation 04


Morse_D Curve
1st basement floor plan
Morse_D Curve
1st floor plan
Morse_D Curve

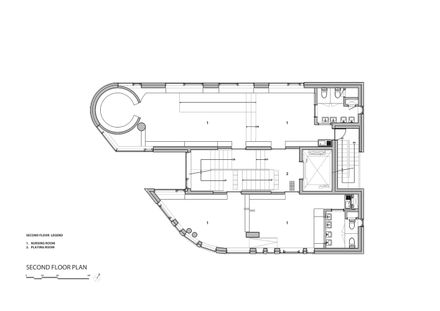

2nd floor plan
Morse_D Curve
3rd floor plan
Morse_D Curve
4th floor plan
Morse_D Curve
Roof plan


Morse_D Curve
Site Plan
Morse_D Curve
Section
