Vilalta Studio

BD House

BD House
© Mauricio Fuertes
BD House
© Mauricio Fuertes

BD HOUSE

Vilalta Studio

ARCHITECTS
Vilalta Studio

STRUCTURAL ENGINEERING
Albert Admetlla

DIRECTOR
Xavier Vilalta

WORKING TEAM
Michela Pironi, Laura Pompei, Silvia Vinci, Ophelie Lefort

MANUFACTURERS
Cosentino, Franke, Egoin, J. Salguero, Matimex, Mitsubishi Electric, Roca, Vives Ceramica

PROJECT CHIEF
Candela Juan

PHOTOGRAPHY
Mauricio Fuertes

AREA
190.0 m2

YEAR
2019

LOCATION
Spain

CATEGORY
Houses

Text description provided by architect.

The project is located on a semi-pedestrian street where new buildings coexist along with townhouses.

BD House
© Mauricio Fuertes
BD House
© Mauricio Fuertes

The site is defined by a long facade of 11 meters and a courtyard in the back.

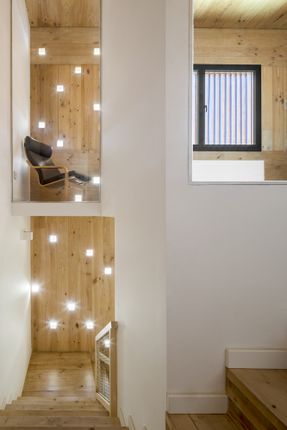

The day time area and the garage are on the ground floor. The hall hosts the U-shaped staircase and the entrance to the living room.

BD House
© Mauricio Fuertes
BD House
© Mauricio Fuertes

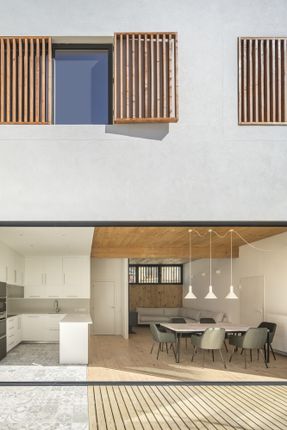

The kitchen-dining room-living room is illuminated and ventilated in both facades and forms a single space with the interior garden.

The night area with the bedrooms and a study are situated on the top floor.

BD House
© Mauricio Fuertes
BD House
© Mauricio Fuertes

The study is separated from the corridor and the staircase with a glass wall.

The rest of the rooms are organized around a central corridor.

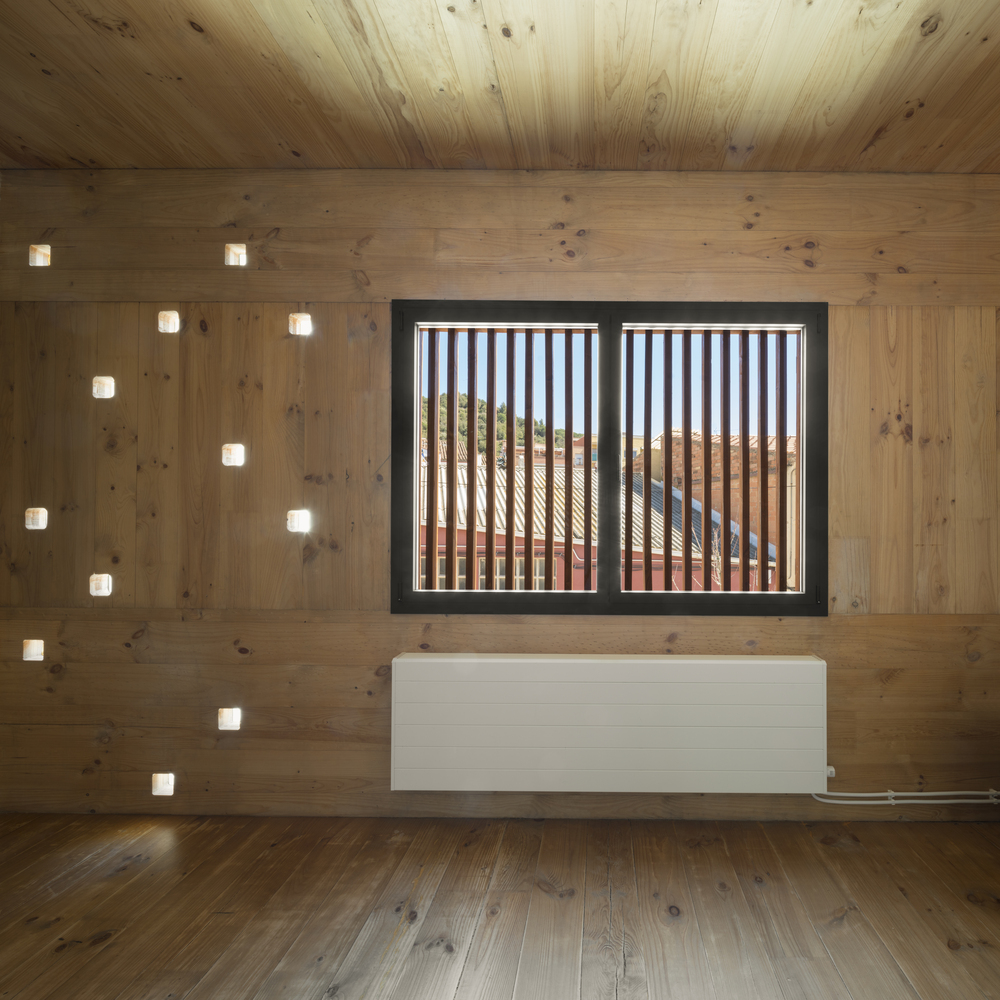

The structure and the enclosures of the house have been constructed entirely with cross-laminated timber, exposed in the interior, both in the walls as well as in the floors and ceilings.

BD House
© Mauricio Fuertes
BD House
© Mauricio Fuertes
BD House
© Mauricio Fuertes

The non-structural surfaces are light MDF and plasterboard walls. The interior of the house is protected from the outside with rockwool insulation and a mortar layer and aluminium work that does not require maintenance.

The air conditioning and hot water systems are produced with aerothermal heating that optimizes the use of the heat pump to cover the necessary demands.

These installations are hidden in false ceilings strategically placed to cover as little as possible of the wooden structure.

BD House
© Mauricio Fuertes
BD House
© Mauricio Fuertes

In this way, the constructive criteria, the structural needs and the installations generate a composition of wood, white and dark grey shades, both on the inside as well as the outside.


BD House
© Mauricio Fuertes
BD House
© Mauricio Fuertes
BD House
© Mauricio Fuertes
BD House
© Mauricio Fuertes
BD House
© Mauricio Fuertes


BD House
Floor Plan 01
BD House
Floor Plan 02


BD House
Elevation 1
BD House
Elevation 2


BD House
Section 01
BD House
Section 02


BD House
Floor Plan Diagram
BD House

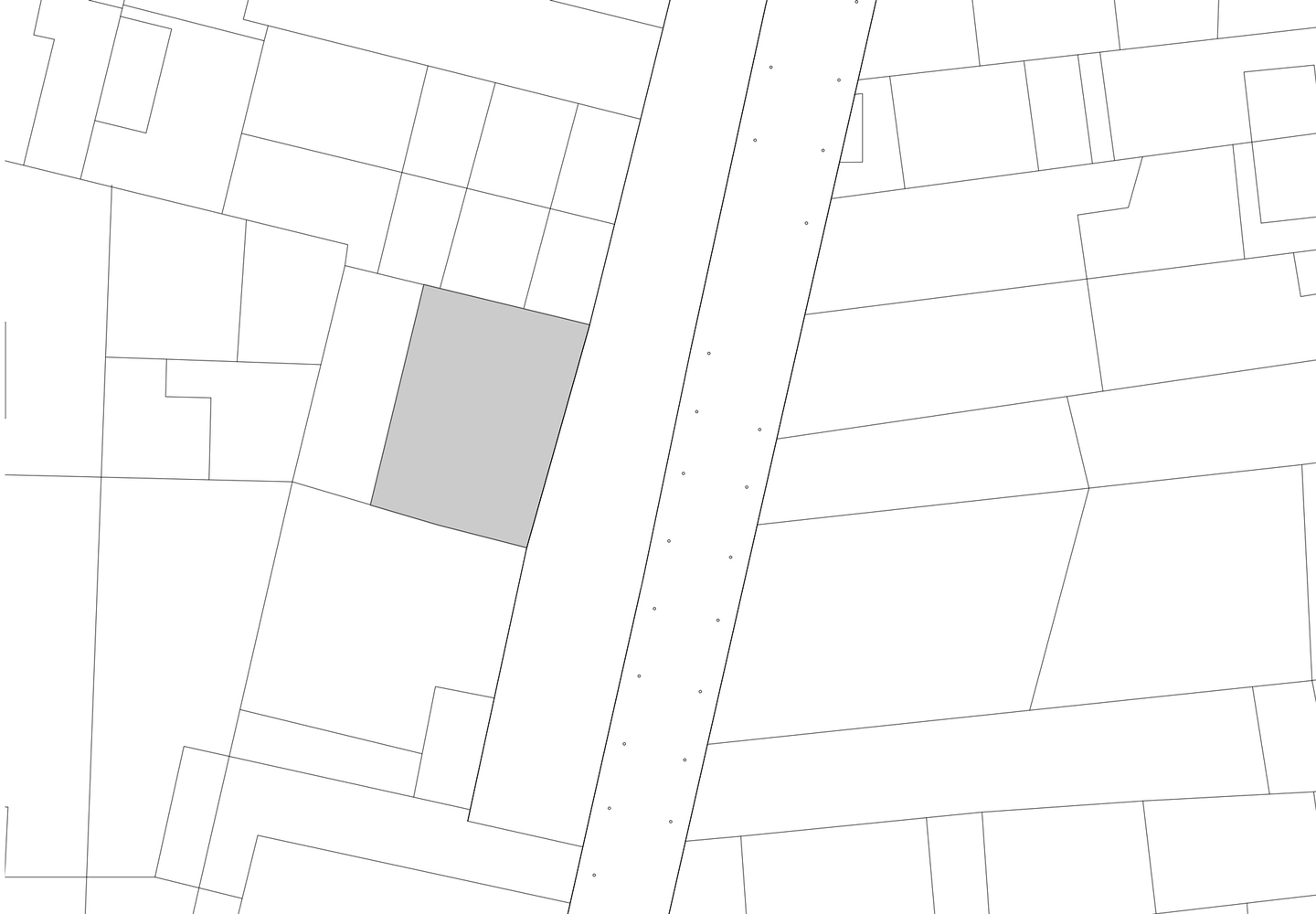

Environment
