Mima Housing

Cabins In Comporta

CABINS IN COMPORTA

Studio 3A

Cabins In Comporta
© Nelson Garrido

LANDSCAPING
Areias Verdes Limitada

ARCHITECT IN CHARGE
Therezia Sloet tot Everlo

PHOTOGRAPHS
Nelson Garrido

AREA
145.0 m2

YEAR
2019

LOCATION
7580 Comporta, Portugal

CATEGORY
Cabins & Lodges

I want this place to be my retreat, give me a bed and a bathtub and I’m happy”. This is the brief we had from our client from the project cabanas in Comporta, a small private residential project.

Cabins In Comporta
© Nelson Garrido
Cabins In Comporta
© Nelson Garrido

The initial project was just that, a 12 sqm bedroom hut with a bathtub, the “intimate module” as we like to call it.

Gradually, as the conversations with the client started to develop, a new hut appeared on the project.

Cabins In Comporta
© Nelson Garrido
Cabins In Comporta
© Nelson Garrido

The “social module”. Then another hut for safekeeping the clients’ car collection. The “service module”. With this organicity more huts started blossoming and at this point - why not a pool too?

As local connoisseurs, we based our construction method on the traditional fishermen huts/cabanas as an inspiration for our project.

Cabins In Comporta
© Nelson Garrido
Cabins In Comporta
© Nelson Garrido

These huts have been built in this area for years and are very functional and quick to build which was another important point of our brief.

With this construction type, we had a couple of challenges to face which was the hot-summer Mediterranean climate and the mosquitos which are well known to bug you in the area.

Cabins In Comporta
© Nelson Garrido
Cabins In Comporta
© Nelson Garrido

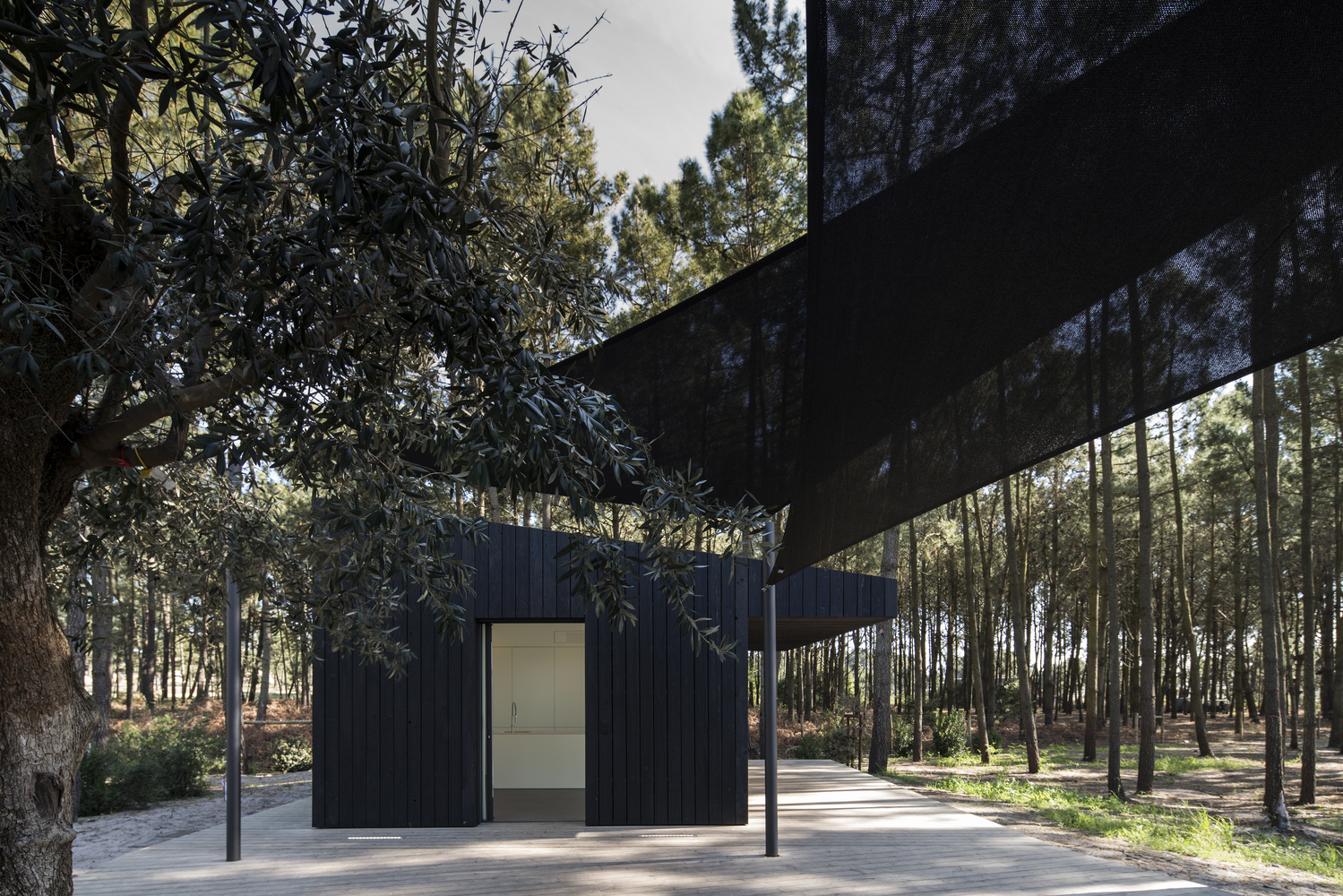

We implemented various sustainable strategies to reduce the heat sensation such as the calculated overhangs in front of the main windows, low emissivity window panes and a tensioned solar shading system in between the cabana modules.

Solar orientation was a key factor in the placement of the cabanas as well as the direction of the wind flow.

Cabins In Comporta
© Nelson Garrido
Cabins In Comporta
© Nelson Garrido

The cabana flooring is dark cement in order to take advantage of its thermal mass properties and a double-blind system (interior and exterior) to control heat gain during summer/winter and doubling up as a mosquito net since the external blind literally zips down when needed ensuring the mosquitos stay out.

We collaborated with Mima Housing which is a prefabricated expert studio which helped us with the process of the project.

Cabins In Comporta
© Nelson Garrido
Cabins In Comporta
© Nelson Garrido

We used prefabrication building methods such as OSB sandwich panels and prefabricated wooden joints all inserted in our bespoke cabana project.

When extreme temperatures arise we have photo-voltaic panels and heat pumps to be used as an alternative energy source to heat or cool the cabanas.

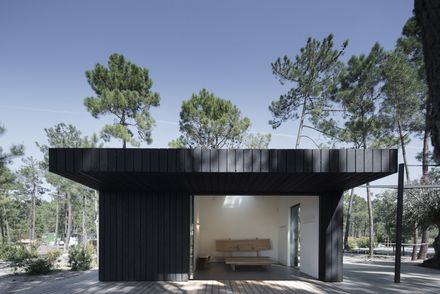

Our facade finish is charred douglas wood as a sustainable feature as well.

Cabins In Comporta
© Nelson Garrido
Cabins In Comporta
© Nelson Garrido
Cabins In Comporta
© Nelson Garrido

The Japanese technique shou sugi ban was a no brainer - no toxins or chemicals involved, maintenance free and showing the beauty of the veins of the wood itself.

The black cabanas sit perfectly amidst the wild pine trees inviting you to come in and share your thoughts.


Cabins In Comporta
© Nelson Garrido
Cabins In Comporta
© Nelson Garrido
Cabins In Comporta
© Nelson Garrido
Cabins In Comporta
© Nelson Garrido
Cabins In Comporta
© Nelson Garrido
Cabins In Comporta
© Nelson Garrido


Cabins In Comporta
© Nelson Garrido
Cabins In Comporta
© Nelson Garrido
Cabins In Comporta
© Nelson Garrido
Cabins In Comporta
© Nelson Garrido
Cabins In Comporta
© Nelson Garrido
Cabins In Comporta
© Nelson Garrido
Cabins In Comporta
© Nelson Garrido
Cabins In Comporta
© Nelson Garrido
Cabins In Comporta
© Nelson Garrido
Cabins In Comporta
© Nelson Garrido
Cabins In Comporta
Cabins In Comporta
© Nelson Garrido
Cabins In Comporta
© Nelson Garrido
Cabins In Comporta
© Nelson Garrido
Cabins In Comporta
© Nelson Garridoc
Cabins In Comporta
© Nelson Garrido
Cabins In Comporta
© Nelson Garrido
Cabins In Comporta
© Nelson Garrido


Cabins In Comporta
Floor Plan
Cabins In Comporta
Ground Floor Plan
Cabins In Comporta

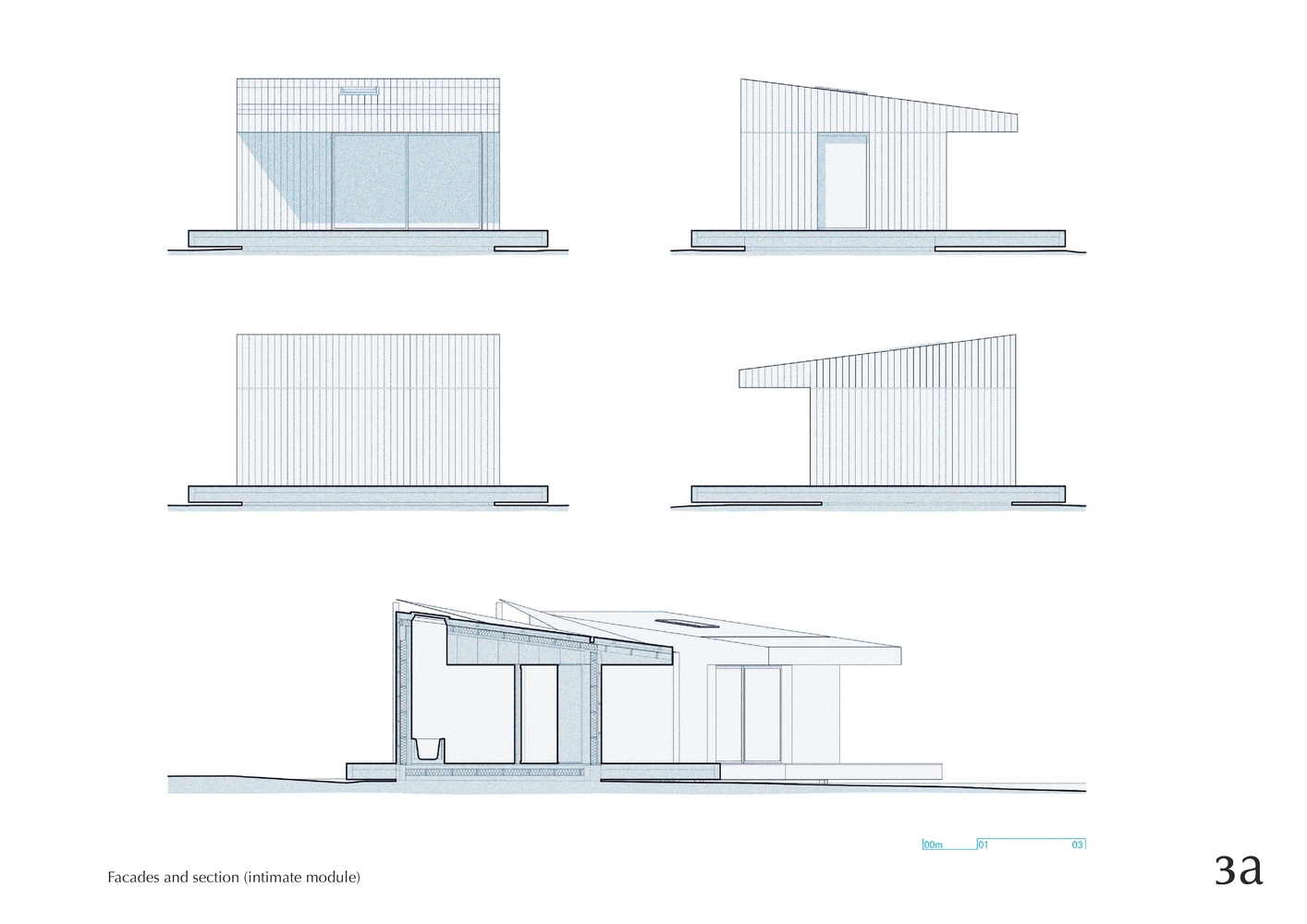

Elevations and Sections
Cabins In Comporta

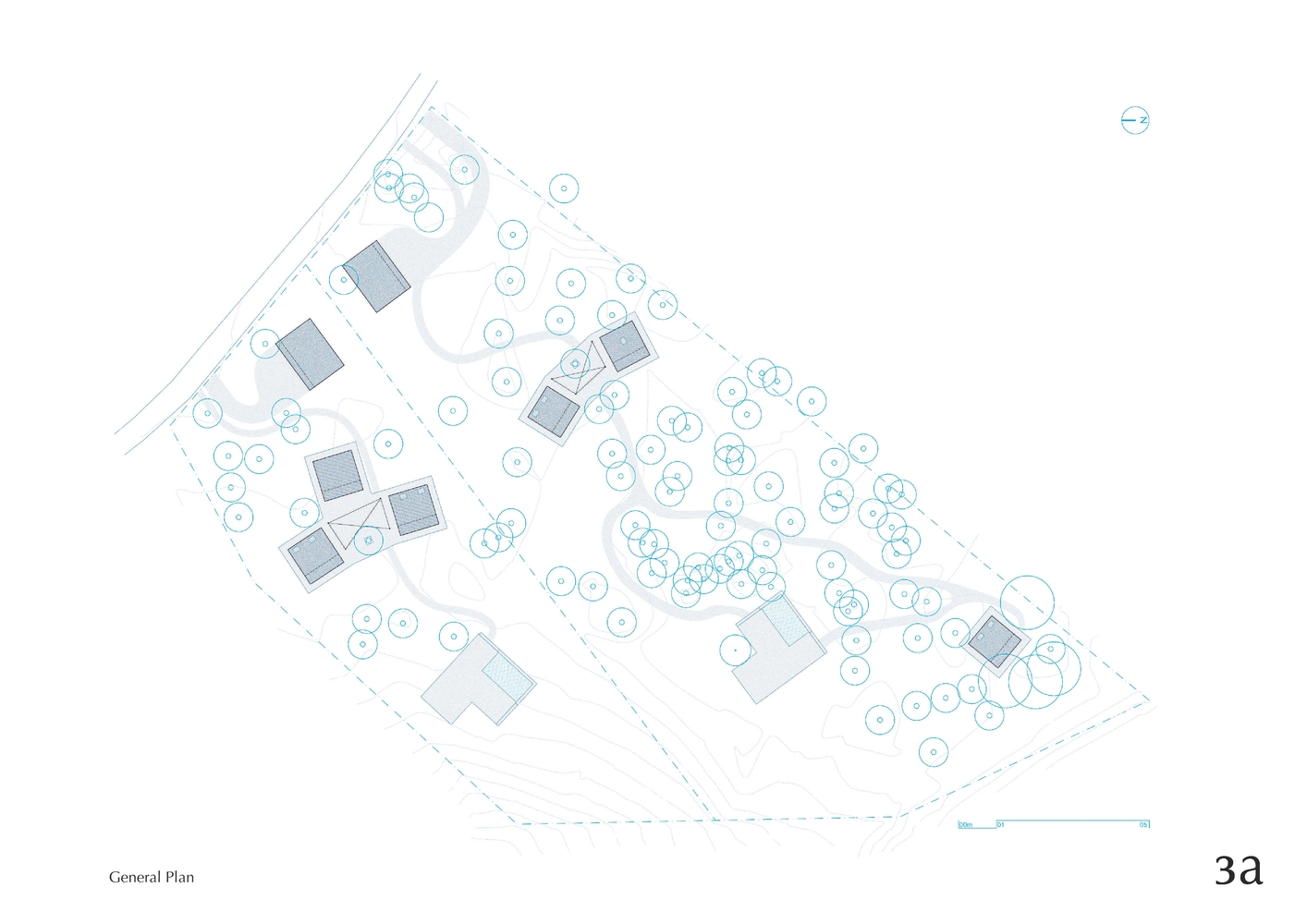

Site Plan
