THE ILAN AND ASAF RAMON INTERNATIONAL AIRPORT

Amir Mann-Ami Shinar Architects and Planners, Moshe Zur Architects

PROJECT AREA
2019

AREA
92000.0 m2

LOCATION
Timna, Israel

CONSTRUCTION MANAGEMENT
Gadish-Baran Partnership

ROADS AND RUNWAYS
Peter Leibovich Engineers LTD.

LANDSCAPE ARCHITECT
Tema

SECURITY
Sdema Group LTD.

BIDS AND ASSESMENT
Gimzu Nihulit LTD.

SEALING
Bitelman Architects LTD.

SIGNAGE
Misholy Lash Designers

ALUMINUM CONSTRUCTION
Landman Aluminum LTD.

SITE AREA
505.4 ha

LIGHTING
Lighting Design Collective

DESIGN MANAGER
Amir Mann

PHOTOGRAPHS
Hufton + Crow

ENVIRONMENTAL ENGINEERING
Assa Aharoni Consulting Engineers

ELEVATORS
Consulting Engineers LTD., S. Lustig

STRUCTURAL ENGINEERING
Ben Avraham S. Engineering LTD.

KITCHENS AND CATERING
Dror Food Service Consultant LTD.

ARCHITECTS / DESIGN AND PLANNING MANAGEMENT
Moshe Zur Architects, Amir Mann-Ami Shinar Architects and Planners

DESIGN LEADERS
Asaf Mann, Liran Benami, Shemaya Serfaty

PROJECT DIRECTOR
Noam Zevulun

FURNITURE DESIGN
Maya Mann, Ori Cohen

WATER, SEWAGE, HYDROLOGY & DRAINAGE ENGINEERING
Lavi - Natif Consulting Engineers LTD.

ARCHITECTS / DESIGN AND PLANNING MANAGEMENT
Moshe Zur Architects, Amir Mann-Ami Shinar Architects and Planners

CONSTRUCTION MANAGER
Ron Havatzelet

SANITARY PLANNING
Sanit Consulting Engineers Ltd

PLANNING MANAGEMENT
Groisman Engineering LTD. Construction Management

STRUCTURAL PROTECTION
K.A.M.N Structural Protection Company LTD.

CONNECTION AND NAVIGATION SYSTEMS
Peleg – Advanced Travel Solutions

BAGGAGE HANDLING
Case Technologies engineering and consulting

COMMUNICATION AND TELEPROCESSING
Dong Systems LTD.

ELECTRICITY
D. Bar-Akiva Consulting Engineers LTD

FIRE SAFETY
S. Netantel Engineers & Consultants LTD.

AIR CONDITIONING
HRVAC Consulting Engineering Co. Ltd

AVIATION CONSULTANT
Arup, Amir Mann-Ami Shinar Architects and Planners

ENVIRONMENTAL ENGINEERING
Assa Aharoni Consulting Engineers

PROJECT ARCHITECTS
Yacob Tirosh, Slavik Chokler, Kobi Ezra, Yair Shmueli

TRAFFIC ENGINEERING
Dagesh Engineering Traffic & Road Design LTD.

STRUCTURAL ENGINEERING
Ben Avraham S. Engineering LTD.

CLIENT
Israel Airports Authority (IAA), Deputy Director General of Engineering & Planning Division, Rafi Elbaz, Yaacov Ganot

PARTNER ARCHITECTS IN CHARGE
Amir Mann, Moshe Zur, Ami Shinar, Orna Zur, Noam Zevulun, Ori Gat, Shemaya Serfaty, Asaf Mann

MANUFACTURERS
Vitra, Aluminum Construction Group, Brand Ind. Group / Hagiva Y.H. LTD., GreenSky, Gualini S.p.A., Inovate, Luce Lighting, Wolfman Industries

DESIGN TEAM
Mann Shinar, Barak Levy, Ofir Zak, Eitan Aviram, Martin Neiman, Neta Sverdlov, Efrat Hakerem, Ohad Gilo, Michal Weinshtock, Oded Narkis, Hadar Rothschild Antman, Tomme Omer, Kfir Galatia Azulay (Moshe Zur) Tal Goldenberg, Uri Shakory, Jonathan Cohen, Keren Joseph, Daniel Kaszab, Rami Hod, Stas Yaakovsky, Avi Matyas, Erez Shani, Hilki Amrani, Dan Perry

The Ilan And Asaf Ramon International Airport
© Hufton + Crow

Text description provided by architect.

The Ilan and Asaf Ramon International Airport was designed by Amir Mann-Ami Shinar Architects and Planners in partnership with Moshe Zur Architects.

The Ilan And Asaf Ramon International Airport
© Hufton + Crow
The Ilan And Asaf Ramon International Airport
© Hufton + Crow

The Airport, servicing the Red Sea resort city of Eilat and surrounding region, was commissioned by the Israel Airport Authority (IAA) and was handled from A to Z by the architects in their role as Design Managers. Located in Timna, it is Israel's first civil airport built from scratch ("greenfield").

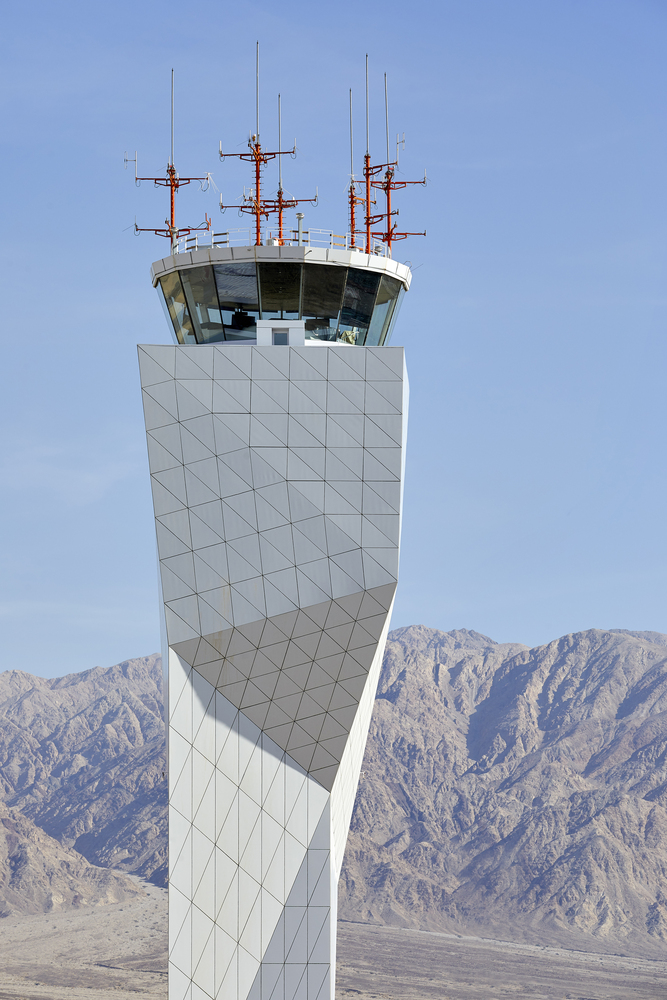

The Airport features a 45,000 sqm Passenger Terminal Building, a 3,600 m. long Runway and Taxiway, alongside 40 Aprons, allowing for domestic and international traffic. The two Support Structures to the north and south of the Terminal measure a combined 36,210 sqm with a 45 m. high Air Control Tower.

The Ilan And Asaf Ramon International Airport
© Hufton + Crow
The Ilan And Asaf Ramon International Airport
© Hufton + Crow

The architects developed a unique and minimal design language influenced by the futuristic world of aviation and its seemingly timeless natural desert surrounding.

The decision of the IAA to appoint the architects as design managers responsible for budget, program, and planning schedule, allowed for the architects to implement the design across the entire airport - from the various buildings to each individual check-in counter, unifying the airport under one unique holistic design.

The mushroom-like rock formations found in Israel's National Timna Park served as inspiration for the initial geometry of the Passenger Terminal Building as a self-shading volume. Just as the rocks are shaped by the "natural movements" of wind and water, the Terminal's opaque volume was carved by the "natural movements" of the passenger traffic.

The Ilan And Asaf Ramon International Airport
© Hufton + Crow
The Ilan And Asaf Ramon International Airport

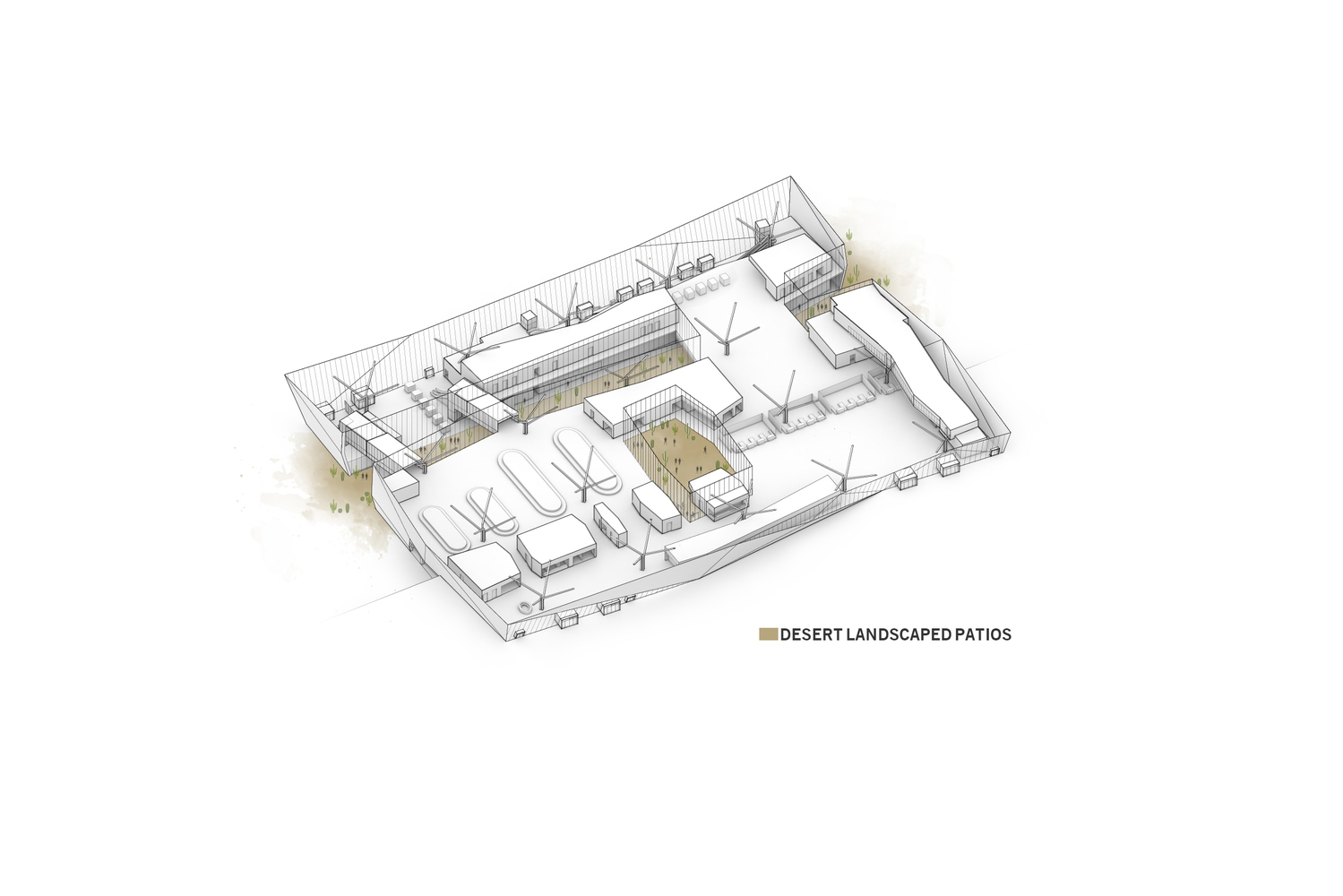

Glass curtain walls were inserted, surrounding patios that introduce the natural desert landscaping into the building.

These serve as light wells allowing natural light into the depths of the Terminal, instead of the commonly used skylights, impossible within such climate conditions.

The Ilan And Asaf Ramon International Airport
© Hufton + Crow
The Ilan And Asaf Ramon International Airport
© Hufton + Crow

The Terminal's envelope consists of a steel and concrete skeleton structure, cladded to the exterior with insulating aluminum triangular panels, continuous from wall to roof that create one single mass. Towards the interior, the building's volume is hollowed out and the envelope is cladded in a contrasting bamboo-wood, uniting the ceiling and walls over one continuous space.

The Terminal building's minimalist interior scheme is based on a tightly organized high-ceilinged hall with low-level furniture and pavilions acting as dividers. Its entire infrastructure is hidden on a lower level.

The Ilan And Asaf Ramon International Airport
© Hufton + Crow
The Ilan And Asaf Ramon International Airport
© Hufton + Crow

This allows for the roof to be free of any technical equipment as a fifth façade viewed from the airplane window, and for all passenger processes to be efficiently on one single level.

The landscape design development drew inspiration from the existing river delta fan created by the mountain flooding into the desert valley. Thus, the delicately winding paths of the parking lot and the landscape development follow the shape of the natural spill from the streams.

The Ilan And Asaf Ramon International Airport
© Hufton + Crow
The Ilan And Asaf Ramon International Airport
© Hufton + Crow

In addition, local plant seeds were harvested and preserved at the site, grown and incubated in greenhouses during the years of construction, and finally returned to their original location, to serve as the desert vegetation lining the airport's landscape.


The Ilan And Asaf Ramon International Airport


The Ilan And Asaf Ramon International Airport
Plan 0
The Ilan And Asaf Ramon International Airport
Plan 1


The Ilan And Asaf Ramon International Airport
Diagram 03
The Ilan And Asaf Ramon International Airport
Diagram 04
The Ilan And Asaf Ramon International Airport
Diagram 05
The Ilan And Asaf Ramon International Airport
Diagram 01
The Ilan And Asaf Ramon International Airport
Diagram 02


The Ilan And Asaf Ramon International Airport
Diagram 06
The Ilan And Asaf Ramon International Airport
Diagram 07
