THE WIND SHAPE

Yong Ju Lee Architecture

ARCHITECTS
Yong Ju Lee Architecture

LEAD ARCHITECTS
Yong Ju Lee

FABRICATIONS
Sunjin Plus

DESIGN TEAM
Minji Park

CLIENTS
Soda Museum

MANUFACTURERS
Robert McNeel & Associates

PHOTOGRAPHS
Yong Ju Lee Architecture, Studio Goo

AREA
74 m²

PROJECT YEAR
2019

LOCATION
South Korea

CATEGORY
Installation

Text description provided by architect.

The Wind Shape is a large-scale installation simulating the continuous movement of fabric blowing in the wind.

The Wind Shape
© Yong Ju Lee Architecture
The Wind Shape
© Yong Ju Lee Architecture

The installed site is at Soda Museum in Hwaseong, South Korea, renovated from abandoned public bath facility and its old exposed concrete walls are used for the outdoor gallery.

Through a computer dynamic engine in real time, overall shape with 300 different triangles are manipulated to find the optimized form for site condition, structure and cost as well as intuitive design of wind itself.

The Wind Shape
© Yong Ju Lee Architecture
The Wind Shape
© Yong Ju Lee Architecture

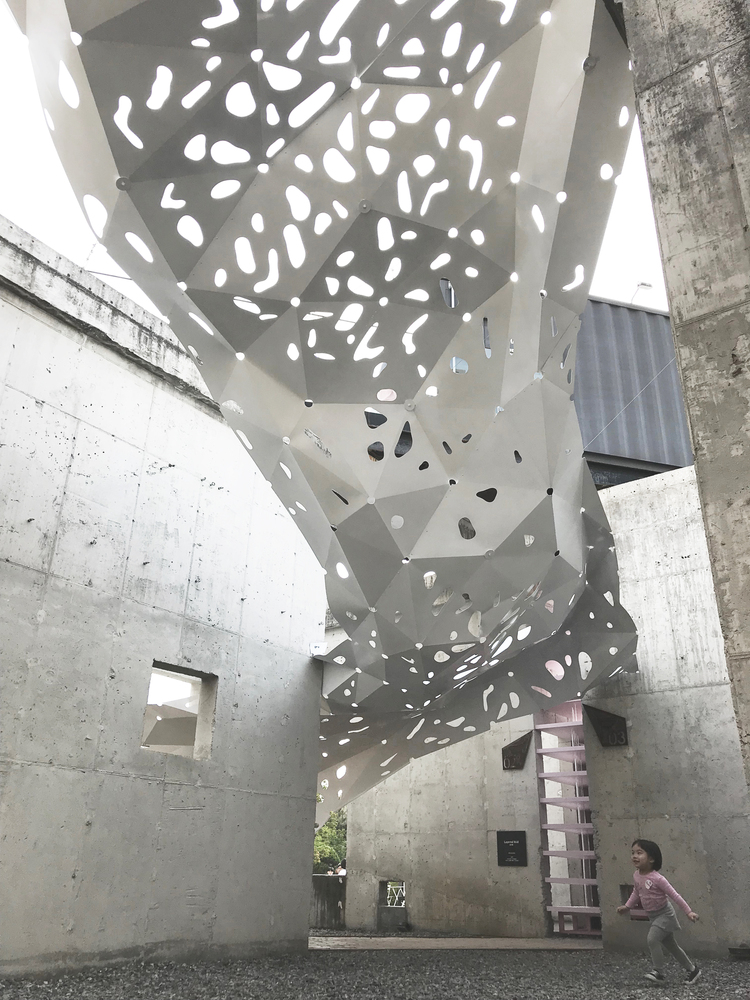

Wind blowing canopy occupies the site and leads visitors’ route in bending form.

It moves up and down, touching ground and sticking out over the wall.

Perforated pattern on the surface emphasizes the flow and wrinkle on the metal fabric and creates the shade under to rest and play with.

The Wind Shape
© Yong Ju Lee Architecture
The Wind Shape
© Yong Ju Lee Architecture
The Wind Shape
© Yong Ju Lee Architecture

Making visual contrast to raw concrete wall, white metal fabric attracts visitors and provides surreal atmosphere with spatial quality.

People can also perceive this three dimensional installation though various opening in existing wall.

1.2mm and 1.6mm metal plates fabricated by CNC machine are assembled by welding and bolting and attached to the existing wall by mechanical anchoring.

The Wind Shape
© Yong Ju Lee Architecture
The Wind Shape
© Yong Ju Lee Architecture

The Wind Shape is design for the exhibition “Flow Project : Building the Movement” at Soda Museum.


The Wind Shape
© Yong Ju Lee Architecture
The Wind Shape
© Yong Ju Lee Architecture
The Wind Shape
© Yong Ju Lee Architecture
The Wind Shape
© Yong Ju Lee Architecture


The Wind Shape
© Yong Ju Lee Architecture
The Wind Shape
© Studio Goo
The Wind Shape
© Yong Ju Lee Architecture


The Wind Shape
Concept process


The Wind Shape
Unrolled diagram
The Wind Shape
© Yong Ju Lee Architecture
