The Common Office

Villa Altona

VILLA ALTONA

The Common Office

Villa Altona
© Mikael Olsson

ARCHITECTS
The Common Office

AREA
180 m2

YEAR
2011

CATEGORY
Houses

LOCATION
Sollentuna, Sweden

PHOTOGRAPHS
Mikael Olsson

LANDSCAPE
Paju Architecture and Landscape

STRUCTURE
Cornelis Oskamp, Omniplan

ELECTRICITY
Jerry Andersson, El Ab

VENTILATION
Mats Åström

CONSTRUCTION
Grund- och stombyggnad i Stockholm

Villa Altona
© Mikael Olsson

Text description provided by architect.

Villa Altona is located in Törnskogen, in the municipality of Sollentuna, Sweden. The site is steep with a height difference of nine meters between the ground floor and the street level.

The contrast between the suburban landscape to the south and the untouched forest to the north, gives the site its identity. The two opposite characters of the site generated the form, placement and colors of the house.

Villa Altona
© Mikael Olsson
Villa Altona
© Mikael Olsson

The building sits on the slope, orientated in an east - west direction. The house creates a clear border between the two different site characters.

To the south a traditional villa garden faces the neighbouring houses. To the north, east and west the house faces the untouched nature.

Villa Altona
© Mikael Olsson
Villa Altona
© Mikael Olsson

The building is divided into four narrow units, each 2.85m wide. The four units are offset horisontally and vertically, following the high differences of the terrain.

The facade folds itself into the landscape, avoiding trees and boulders. The large windows connect the interior with the surrounding nature, as well as letting in light from all the directions of the compass.

A large sky light (3.0 x 2.2m) fills the center of the house with light and contributes to the transparency of the building.

The interior is one continuous space divided only by the offset building units. This creates smaller private spaces within a larger space.

Villa Altona
© Mikael Olsson
Villa Altona
© Mikael Olsson

The family member's private rooms have generous proportions and border directly to a large negotiable space.

The relation between negotiable-, and private spaces are regulated with large sliding wall partitions. The house sits on a plinth foundation, avoiding any rock blasting.

Villa Altona
© Mikael Olsson
Villa Altona
© Mikael Olsson

Both the floor-, and roof slabs are in situ cast. The outer walls are in situ cast with thin supporting steel columns. The outer facade is covered in milled wooden panels.


Villa Altona

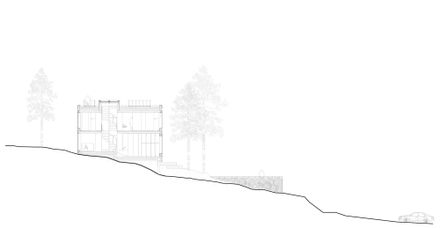

Section


Villa Altona
First Floor Plan
Villa Altona
Ground Floor Plan
Villa Altona
Roof Plan


Villa Altona
Site Plan
Villa Altona
Detail
