Avini Residential Building

Avini Residential Building
© Deed studio

AVINI RESIDENTIAL BUILDING

Heram Architects

LEAD ARCHITECTS
Morteza Alinia moghadam – Hamid Babaei

MANUFACTURERS
Grohe, Vista Best, AGT

PHOTOGRAPHS
Deed Studio

AREA
1840.0 m2

YEAR
2019

LOCATION
Qom, Qom Province, Iran

CATEGORY
Residential

CONTEXT | SITE | PLAN

The Avini residential building is located in the city of Qom, with 8 floors,6 residential units, a commercial unit and a parking floor.

Avini Residential Building
© Deed studio
Avini Residential Building
© Deed studio
Avini Residential Building
© Deed studio

The range of land placement has an uneven geometry and sides with different angles. The geometry of the site is such that designing the plan in it involves many problems and challenges.

The project site leads from one side to the main street and from the other side to an alley. Given the municipality's standards and the amount of consoles along the sides of the land, the main challenge is to create a plan with the highest efficienc.

On the other hand, considering the location of the project along a main street,the issue of project being iconic in the context is raised. A challenge was presented by taking form in a dialogue with the inner shape of the project.

Avini Residential Building
© Deed studio
Avini Residential Building
© Deed studio

THE DESIGN

Due to the project's limitations,“resolving the plan with highest possible efficiency”was first considered.

Hence, in the process of developing our plan, we arrived at lines that were created through consoles.

Avini Residential Building
© Deed studio
Avini Residential Building
© Deed studio
Avini Residential Building
© Deed studio

As a result,we achieved a plan with the highest efficiency.As a result,we achieved a plan with the highest efficiency.

In the same process,the exterior volume of the building was also formed in a two-way dialogue between the inner plan and the urban lines.

The volume became a dialogue between the inside and outside of the project,a form affected by the interior and internal events of the building,as well as being influenced by the city and site lines.

Avini Residential Building
© Deed studio
Avini Residential Building
© Deed studio

This volume,on one hand,is in the dialogue with the inner spaces and the plan, and on the other hand,it will coordinate with the city lines (kitchen section).

In this way,the project displayed itself as a sculpture in the city,with lines carved on it (openings).

Avini Residential Building
© Deed studio
Avini Residential Building
© Deed studio

On the other hand,due to the location of the project in the open context of our environment,we looked at two visually different scales, the urban scale and human scale.

To illustrate the small details of the sculpture,we formed a texture of irregular stones on the project.

In this way,the aspect of project being iconic was carried out in both urban and human scales.

Avini Residential Building
© Deed studio
Avini Residential Building
© Deed studio

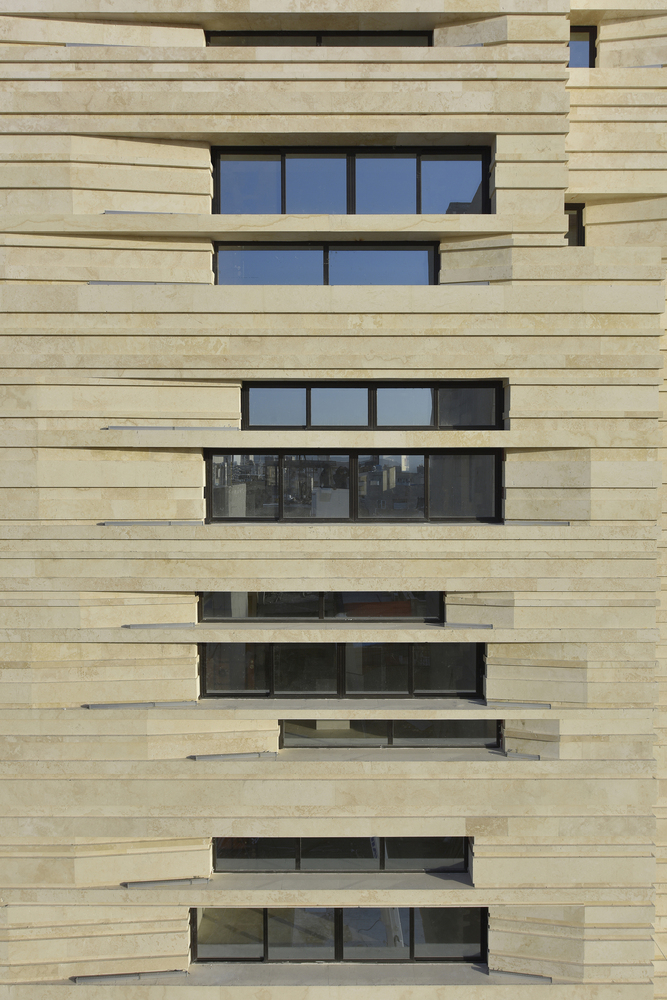

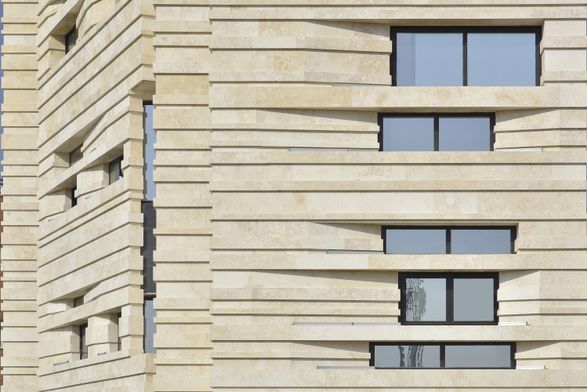

The stone texture was formed by placing rocks of different width (10,20,30 and 40cm) and also having a depth on each other.

The project was seen as a white and integrated stone, as if with hammering and engraving performed on it, a sculpture was appeared in the heart of this unified stone.

Avini Residential Building
© Deed studio
Avini Residential Building
© Deed studio

The Avini residential building is a challenge between the plan and the city, and a dialogue between the inside and the outside, between the function and the form, between the sculpture and the space.


Avini Residential Building
© Deed studio
Avini Residential Building
© Deed studio
Avini Residential Building
© Deed studio
Avini Residential Building
© Deed studio
Avini Residential Building
© Deed studio
Avini Residential Building
© Deed studio
Avini Residential Building
© Deed studio


Avini Residential Building

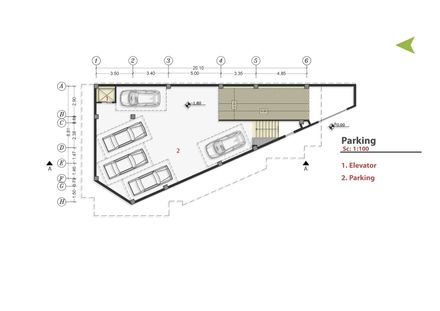

Parking Floor Plan
Avini Residential Building

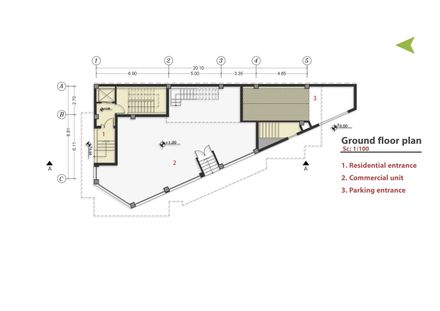

Ground Floor Plan
Avini Residential Building
First Floor Plan
Avini Residential Building

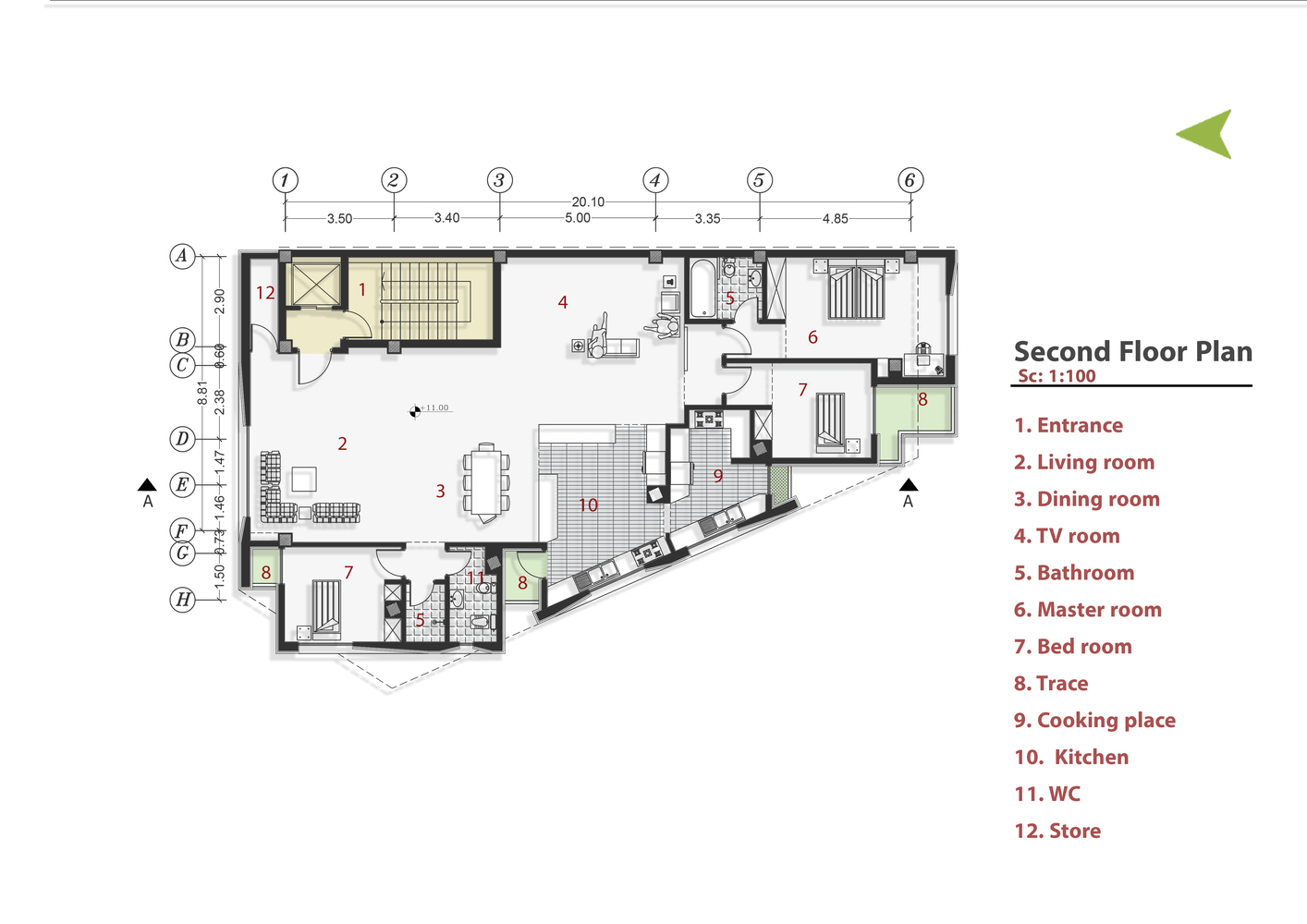

Second Floor Plan
Avini Residential Building
Third Floor Plan
Avini Residential Building
Fourth Floor Plan
Avini Residential Building
Fifth Floor Plan
Avini Residential Building
Sixth Floor Plan


Avini Residential Building
South Elevation
Avini Residential Building
West Elevation
Avini Residential Building
Section AA


Avini Residential Building
3D Section
Avini Residential Building
3D Section 2
Avini Residential Building

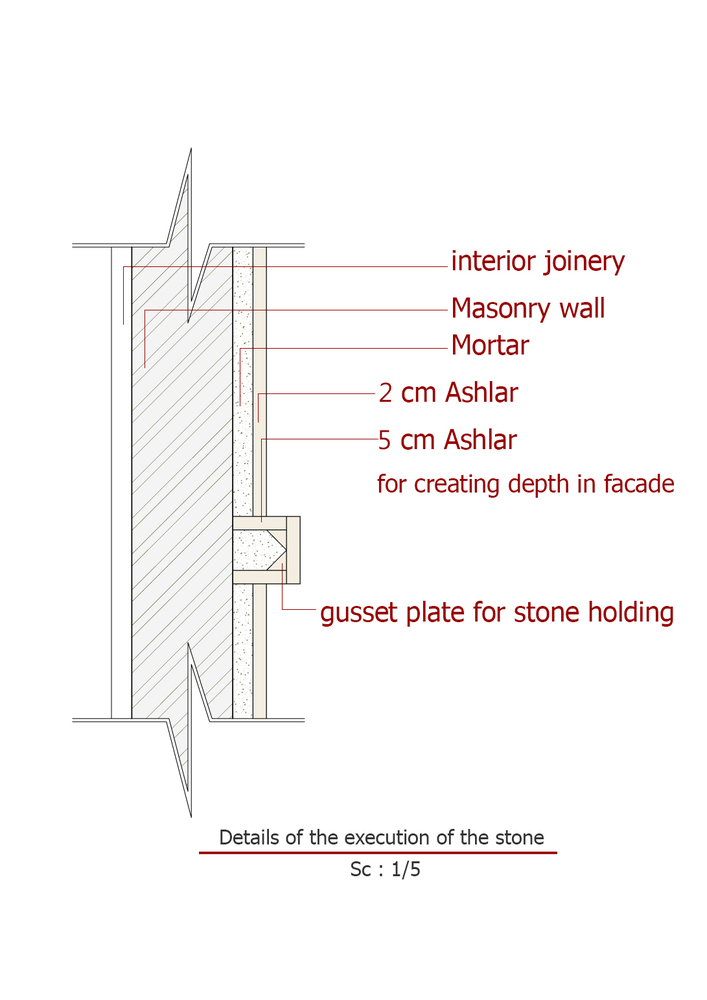

Detail Stone Avini


Avini Residential Building

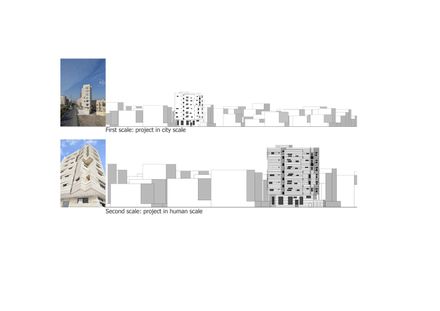

Scale
Avini Residential Building
Console Concept


Avini Residential Building
Facade Detail
Avini Residential Building
Privacy
Avini Residential Building
Light
Avini Residential Building
Concept


Avini Residential Building
Pooste
Avini Residential Building
Gostardeh
Avini Residential Building
Functional Diagram
