EL PINAR

Roldán + Berengué

ARCHITECTS
Roldán + Berengué

AREA
1 m²

YEAR
2011

LOCATION
Rubi, Spain

CATEGORY
Cultural Architecture

Text description provided by architect.

The community center “El Pinar de Rubí” is located on a 60-meter long plot, east-west oriented and having a strong cross-slope of 52%.

El Pinar
© Jordi Surroca
El Pinar
© Jordi Surroca
El Pinar
© Jordi Surroca

The lower façade, near the C-1413-A junction, is located at an elevation of +181. The opposite façade, on a plateau at +189, is the end of a forest that forms part of Rubi’s Archeological and Natural Heritage Catalogue.

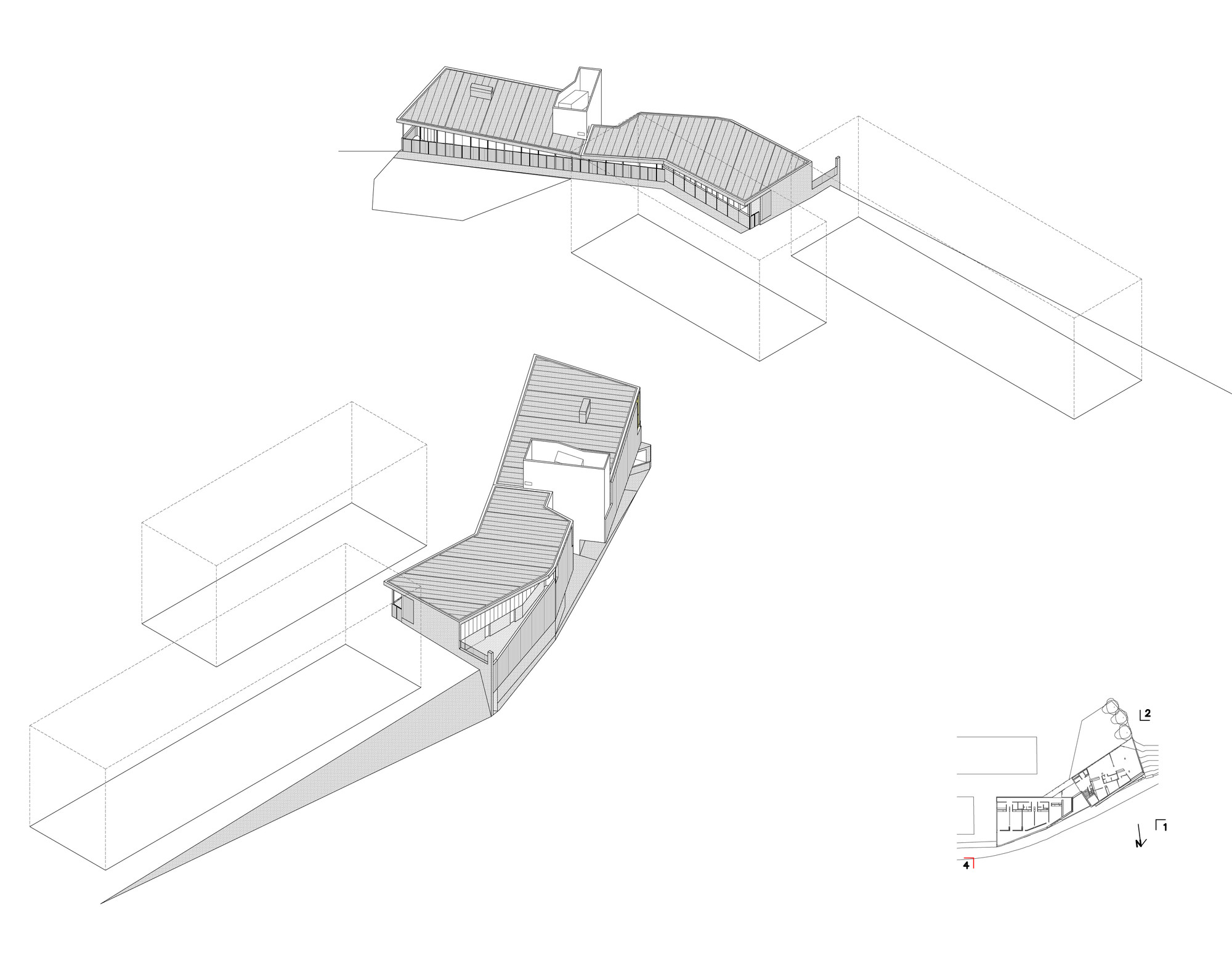

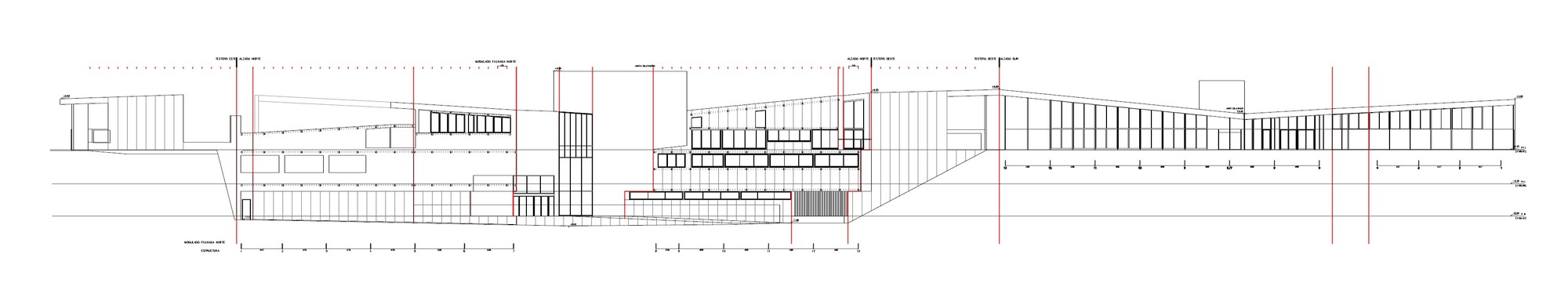

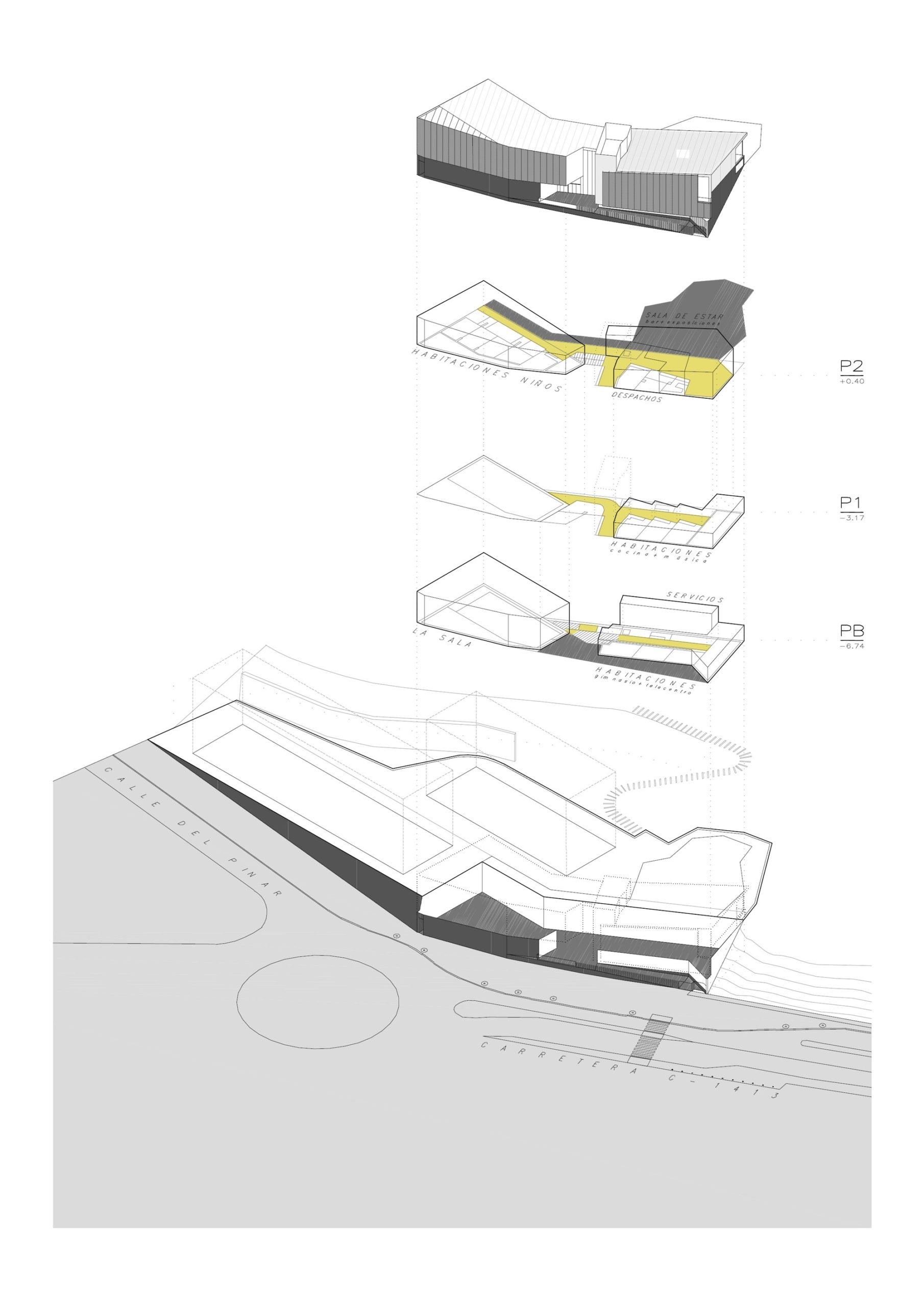

The building is 75% partially buried against a retaining wall that supports the base of the mountain. The project, which extends over the whole plot, has in plan and section the shape of a butterfly.

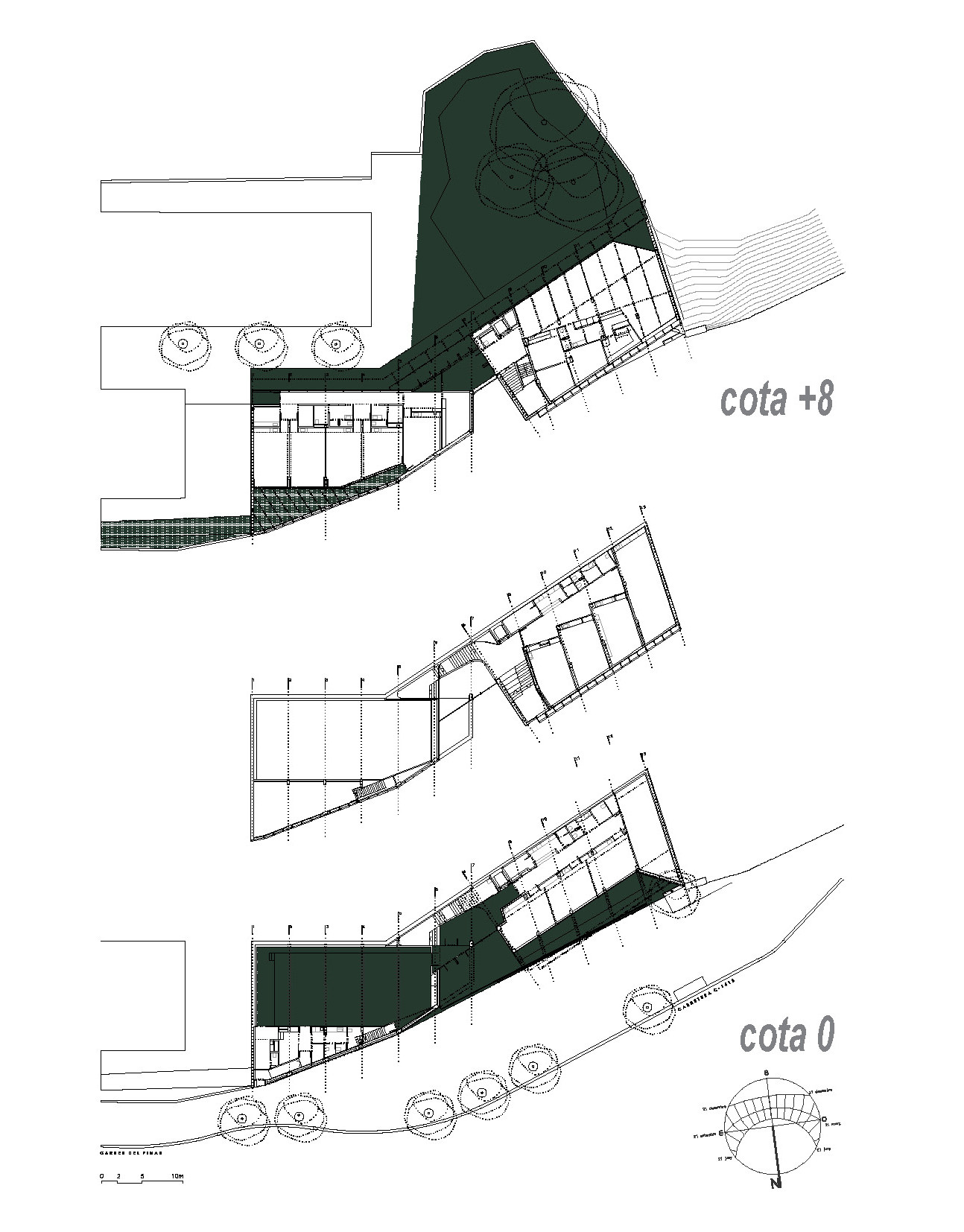

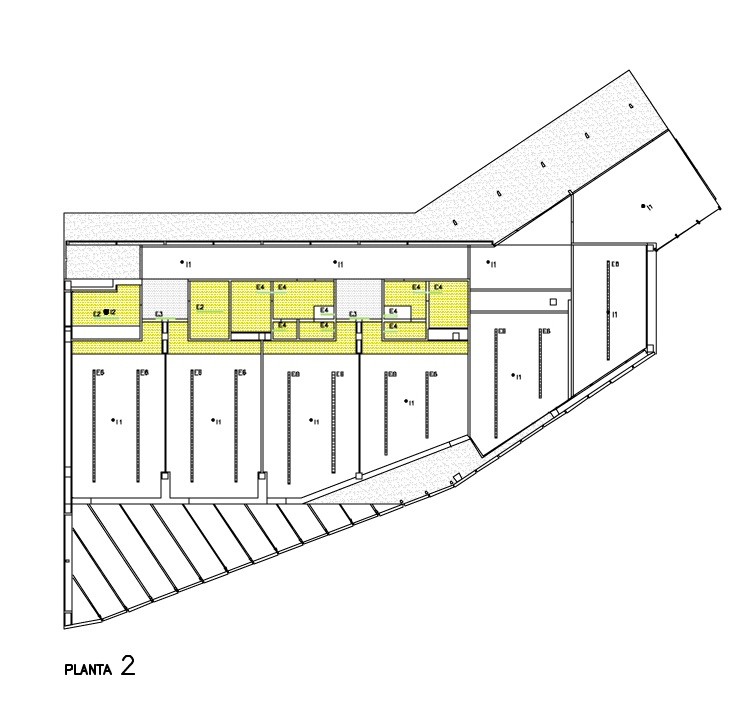

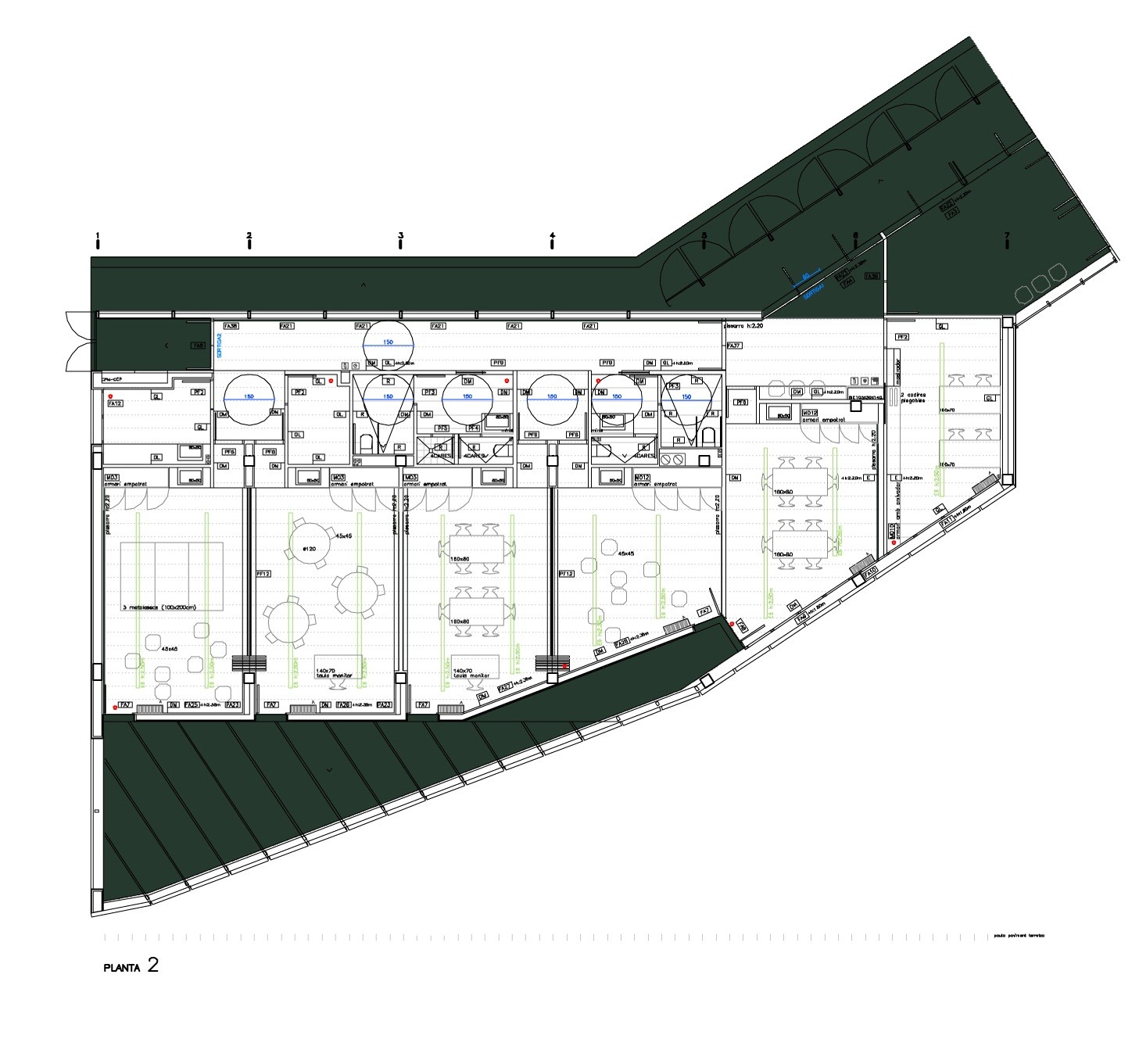

On the left wing, which has two stories, there is an auditorium and, above it, a nursery for the neighborhood children. On the right wing, distributed among three stories, there is a small gym, classrooms for adults, the exhibition area and the social premises.

El Pinar
© Jordi Surroca
El Pinar
© Jordi Surroca

From across the road, the building appears as a solid rock built from concrete with stones projecting different shades of gray along with ash colored perforated and corrugated metal sheets transparent and permeable body.

While the single story façade facing the forest is a The pillars supporting the roof in the generously spaced areas are painted in such a manner as portraying the trees outside.

El Pinar
© Jordi Surroca
El Pinar
© Jordi Surroca

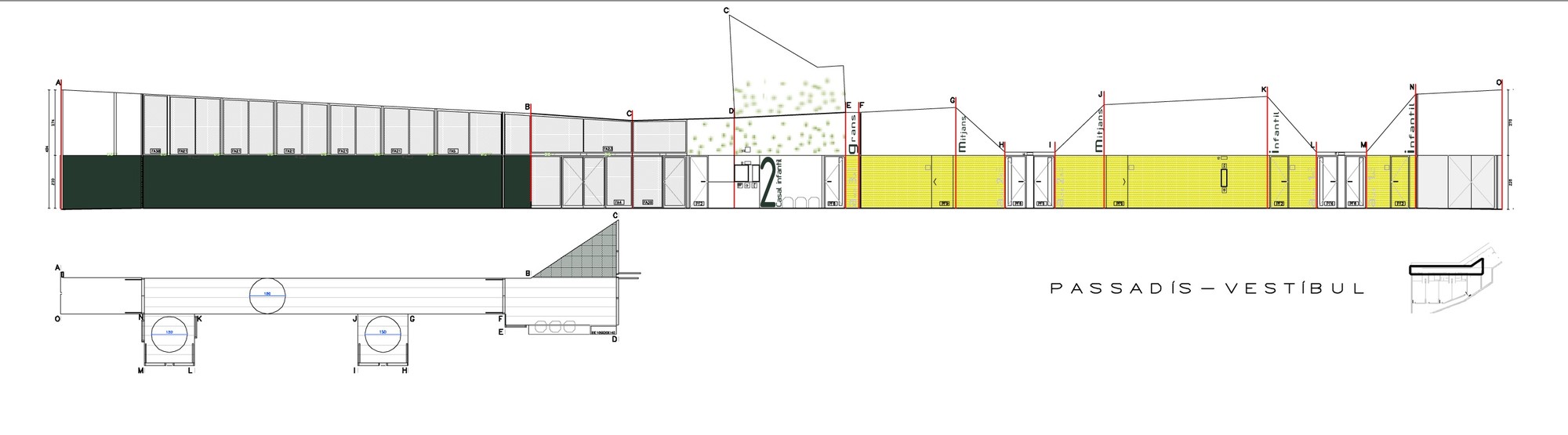

Visually, between the building’s two wings, colored in white tones and with the help of a small three story curtain wall, we find the permeability point between the lower and upper levels bound with the terrain

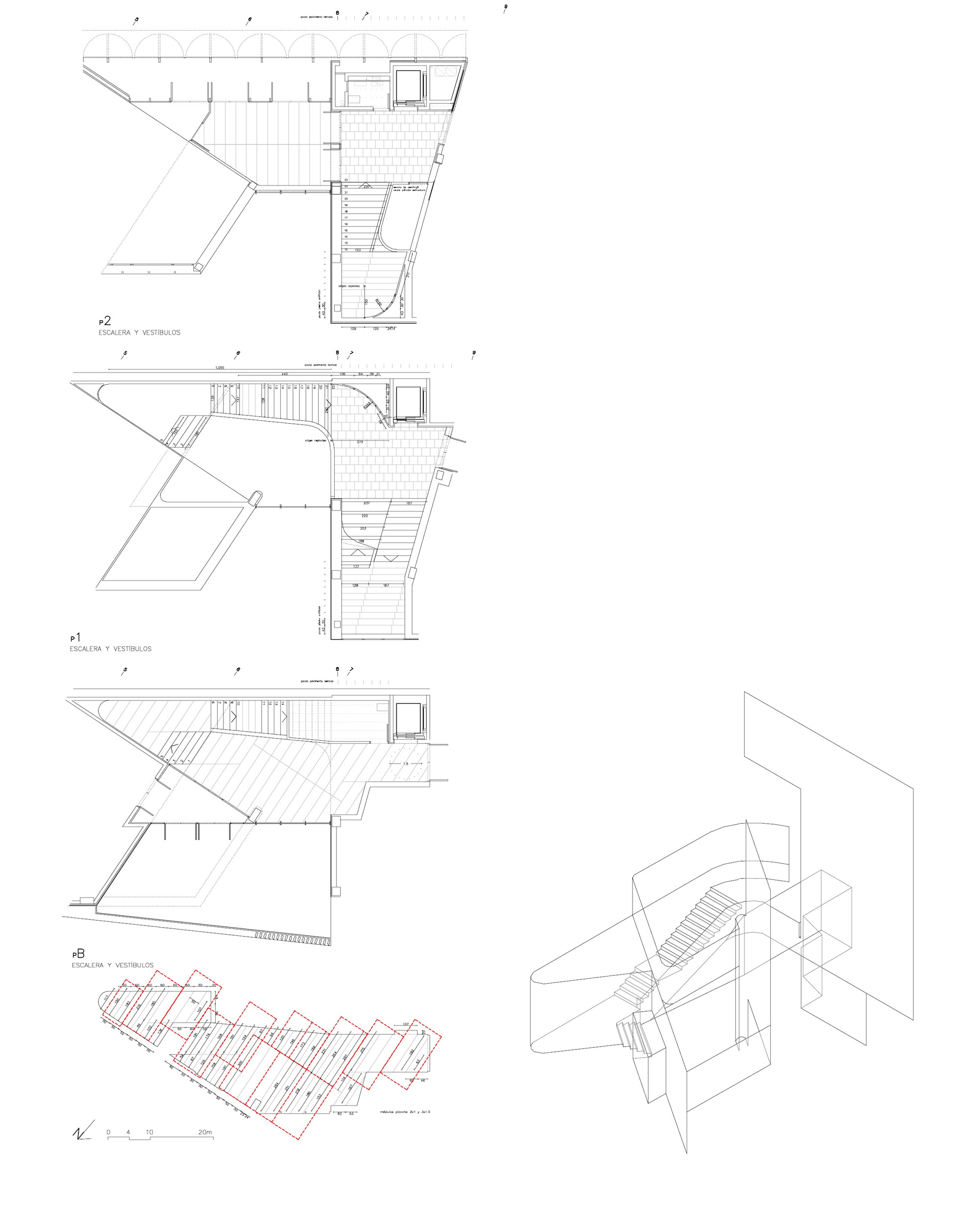

Becoming the link between the “upper” and “lower” doors. This empty, double height space is occupied by the stairs and elevators, working as a connection between the left and right blocks.

El Pinar
© Jordi Surroca
El Pinar
© Jordi Surroca

The outcome is a reproduction in image and function of the small, steep path that existed in the site prior to the construction of the new community center.

El Pinar
© Jordi Surroca


El Pinar
Courtesy of Roldán + Berengué
El Pinar
Courtesy of Roldán + Berengué


El Pinar
Courtesy of Roldán + Berengué
El Pinar
Courtesy of Roldán + Berengué


El Pinar
Courtesy of Roldán + Berengué


El Pinar
Courtesy of Roldán + Berengué
El Pinar
Courtesy of Roldán + Berengué
El Pinar
Courtesy of Roldán + Berengué


El Pinar
Courtesy of Roldán + Berengué
El Pinar
Courtesy of Roldán + Berengué
El Pinar
Courtesy of Roldán + Berengué
El Pinar
Courtesy of Roldán + Berengué


El Pinar
Courtesy of Roldán + Berengué
El Pinar
Courtesy of Roldán + Berengué


El Pinar
Courtesy of Roldán + Berengué
El Pinar
Courtesy of Roldán + Berengué
El Pinar
Courtesy of Roldán + Berengué
