Miguel Torga Space

MIGUEL TORGA SPACE

Eduardo Souto de Moura

Miguel Torga Space
© Luis Ferreira Alves
Miguel Torga Space
© Luis Ferreira Alves

ARCHITECTS
Eduardo Souto de Moura

BUILDING SERVICES
Segropol e Get (AVAC)

CLIENT
Câmara Municipal de Sabrosa

PHOTOGRAPHS
Luis Ferreira Alves

BUDGET
aprox. 3 million Euros

SITE AREA
8600 m²

YEAR
2011

LOCATION
Sabrosa, Portugal

CATEGORY
Cultural Centre

Miguel Torga Space
© Luis Ferreira Alves

Text description provided by architect.

The "Miguel Torga Space" cultural center proposes, among other activities, to study and disseminate the poetic and literary work of Miguel Torga.

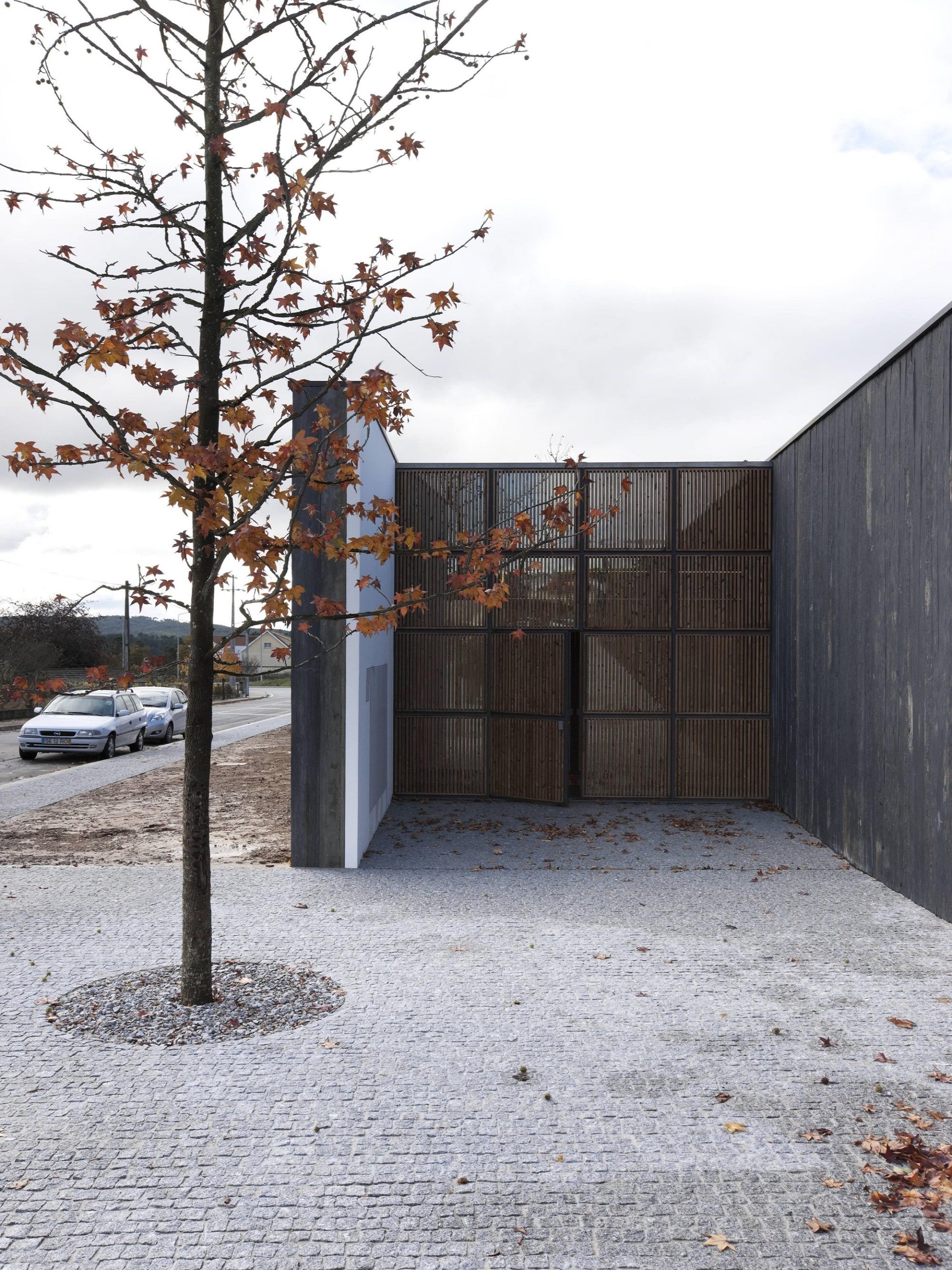

The schist walls (characteristic elements of this area), draw the boundaries of the building and define its image.

Miguel Torga Space
© Luis Ferreira Alves
Miguel Torga Space
© Luis Ferreira Alves

The building is implanted south of old fair grounds and has two entrances, public (east) and services (west), set by the mismatch of the walls.

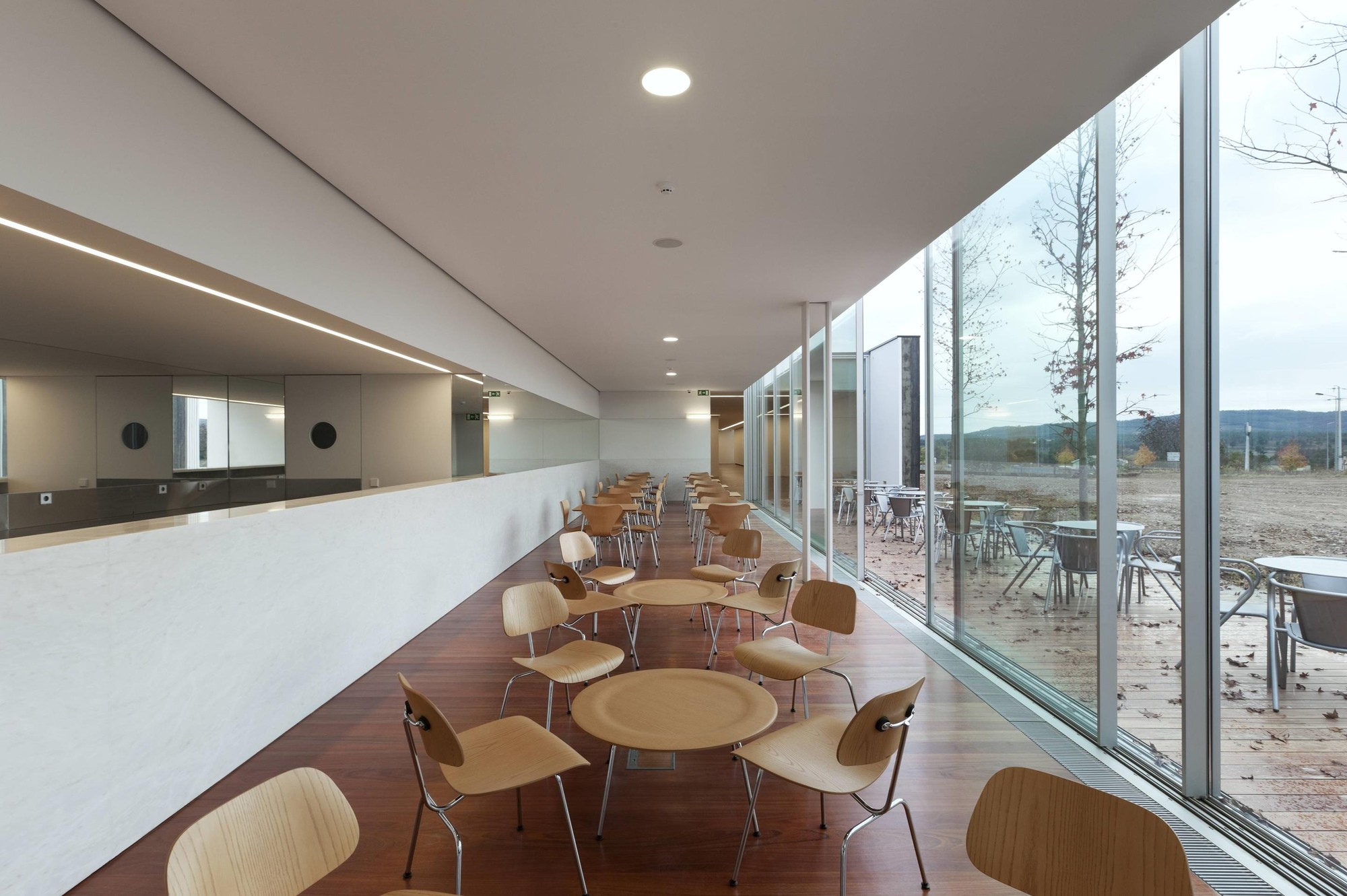

There is also a direct entrance to the cafeteria (west), through a large glass door, allowing an independent program.

Miguel Torga Space
© Luis Ferreira Alves
Miguel Torga Space
© Luis Ferreira Alves
Miguel Torga Space
© Luis Ferreira Alves

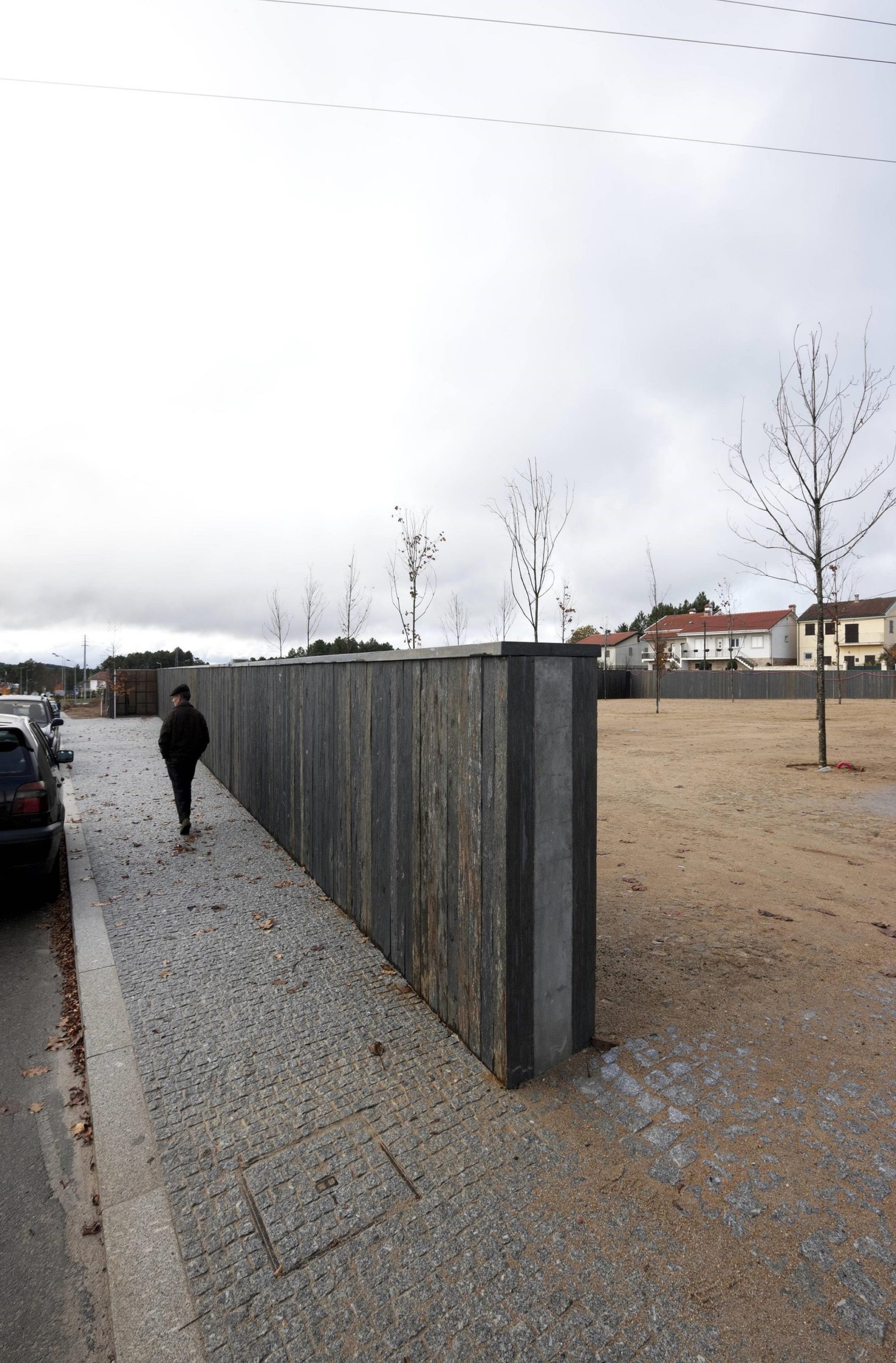

Taking advantage of the slope of the ground, the walls were extended to the northeast, framing the market area. 18 trees modulate this space that serves to as a market most days, or as a parking lot for the Cultural Center.

The building has two floors (a ground floor and one floor below ground level), a site area of approximately 1315 m2, an outdoor parking area / market of approximately 3115 m2 in a variable height, and two walls that configure it, between 1 meter (parking / fair) and 5.5 meters (building).

Constructively the building consists of a reinforced concrete structure externally clad in schist pillars of Foz-Coa. Structural interior walls are made of concrete and partitions are made of brick masonry; on this system are set up the final finishes. The roof is coated with a layer of schist cobble.

Miguel Torga Space
© Luis Ferreira Alves


Miguel Torga Space
© Luis Ferreira Alves
Miguel Torga Space
© Luis Ferreira Alves
Miguel Torga Space
© Luis Ferreira Alves
Miguel Torga Space
© Luis Ferreira Alves
Miguel Torga Space
© Luis Ferreira Alves
Miguel Torga Space
© Luis Ferreira Alves
Miguel Torga Space
© Luis Ferreira Alves
Miguel Torga Space
© Luis Ferreira Alves


Miguel Torga Space
Sketch
Miguel Torga Space
Sketch
Miguel Torga Space
Sketch


Miguel Torga Space
Section
Miguel Torga Space
Section


Miguel Torga Space
Sections
Miguel Torga Space
Sections
Miguel Torga Space
Sections
Miguel Torga Space
Sections


Miguel Torga Space
Site Plan
Miguel Torga Space
Plans


Miguel Torga Space
Facades
