VOXMAN MUSIC BUILDING

LMN Architects

ARCHITECTS
LMN Architects

GRAPHICS
Pentagram

ACOUSTIC + AV DESIGN
Jafe Holden

 THEATER PLANNING
Fisher Dachs Associates

LIGHTING DESIGN
Horton Lees Brogden

ENERGY ANALYSIS
The Weidt Group

LANDSCAPE
Confuence

CIVIL ENGINEERING
Shive-Hattery

VERTICAL TRANSPORTATION
Lerch Bates

COST ESTIMATING
Rider Levett Bucknall

LIFE SAFETY/CODE
T.A. Kinsman

STRUCTURAL ENGINEERING
Magnusson Klemencic Associates

MECHANICAL/ELECTRICAL/PLUMBING ENGINEERING
Design Engineers

MANUFACTURERS
ALPOLIC, VMZINC, Formglas, Wausau Window and Wall Systems, AVL Systems, FilzFelt, Foshan X&Y, Stonecast

PHOTOGRAPHS
Tim Griffith, Adam Hunter, Arturo Rojas

AREA
184000 ft²

YEAR
2017

LOCATION
Iowa City, United States

CATEGORY
Music Venue

Text description provided by architect.

VISION

The Voxman Music Building celebrates musical performance at every turn, embracing a collaborative and exploratory student-driven model of education that treats every space as performance space.

Voxman Music Building
© Tim Griffith
Voxman Music Building
© Tim Griffith

The building shares this sense of musical discovery with the community through a transparent expression.

The pattern of streets and open spaces in the mixed-use district of Iowa City extends directly into the building’s multi-level interior spaces, cultivating a sense of vertical urban vitality and acknowledging its place within the community.

Voxman Music Building
© Adam Hunter
Voxman Music Building
© Adam Hunter

SITE AND PROGRAM

The six-story, 186,000 square foot building is situated between campus and the downtown core of Iowa City, embracing both academic and urban experiences.

The program comprises a 700-seat concert hall, a 200-seat recital hall, an organ performance hall, a music library, rehearsal rooms, practice rooms, classrooms, and faculty studios and offices linked by a series of vertically connected community spaces.

Voxman Music Building
© Tim Griffith
Voxman Music Building
© Tim Griffith

A multi-story glass corner entry at a major downtown intersection reinforces the merger of campus and city, with the two major performance venues marking their presence on each of the main facades.

Between the performance spaces, porous, day-lit circulation volumes interlink to form the student commons, performance and rehearsal lobby, and a three-story atrium.

Voxman Music Building
© Tim Griffith
Voxman Music Building
© Tim Griffith
Voxman Music Building
© Tim Griffith

A fourth-floor exterior terrace, nestled between the wings of the rear facade, serves as gathering space that frames views to the city’s historic courthouse and countryside beyond.

DESIGN

The concert hall cantilevers over the Burlington Street sidewalk and the Student Commons below, while the recital hall, wrapped in a shingled-glass wall system, reaches out over the South Clinton Street sidewalk.

A composition of subtly textured terra cotta panels and low-iron glass with delicate shading patterns wraps the full exterior.

Voxman Music Building
© Tim Griffith
Voxman Music Building
© Tim Griffith

All spaces in the building, including performance halls, rehearsal rooms, offices, and common areas, provide natural light and connections with the outside while maintaining acoustic isolation.

Requirements of the facility’s high-profile performance spaces are met by high-performance digital design.

Voxman Music Building
© Tim Griffith
Voxman Music Building
© Arturo Rojas

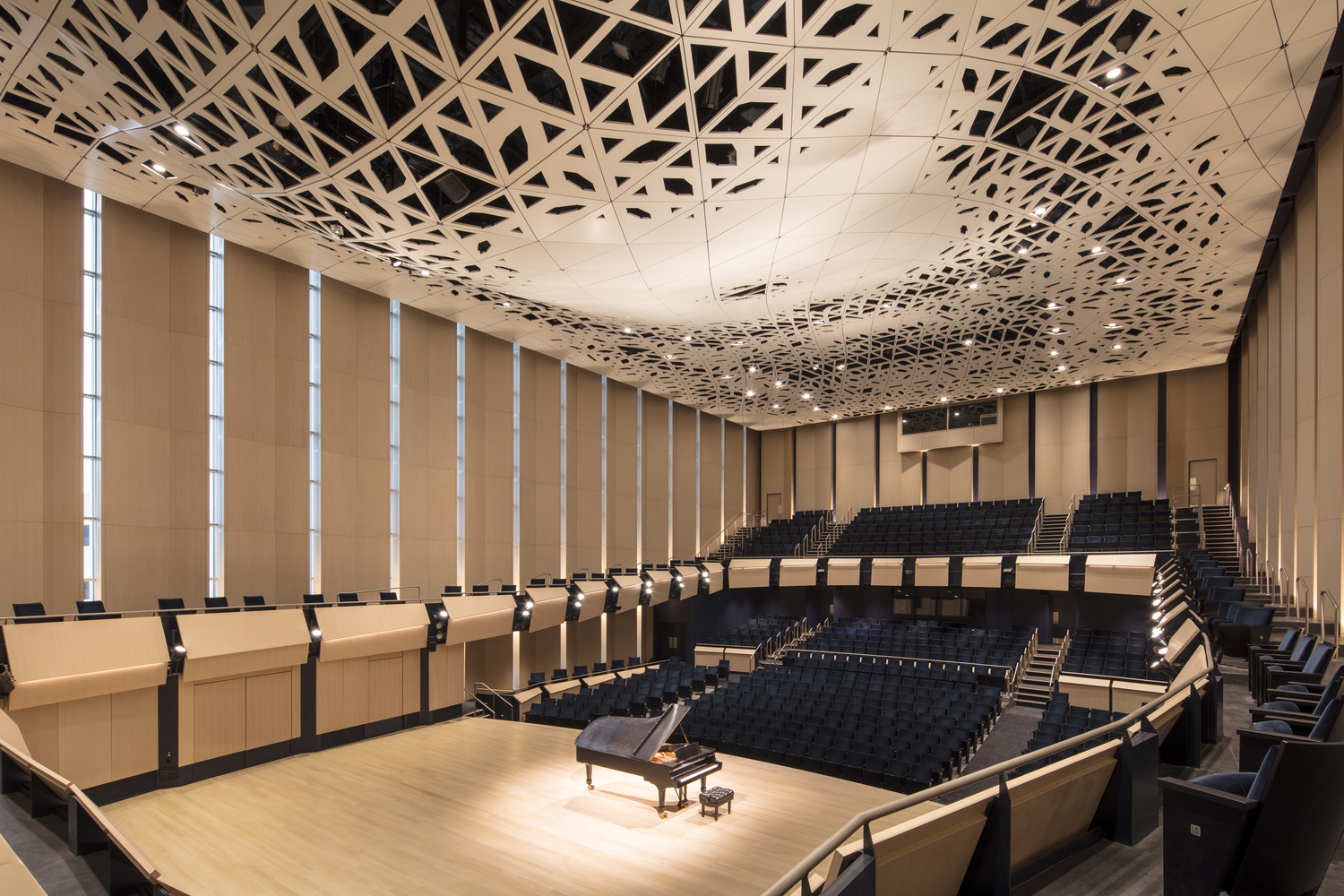

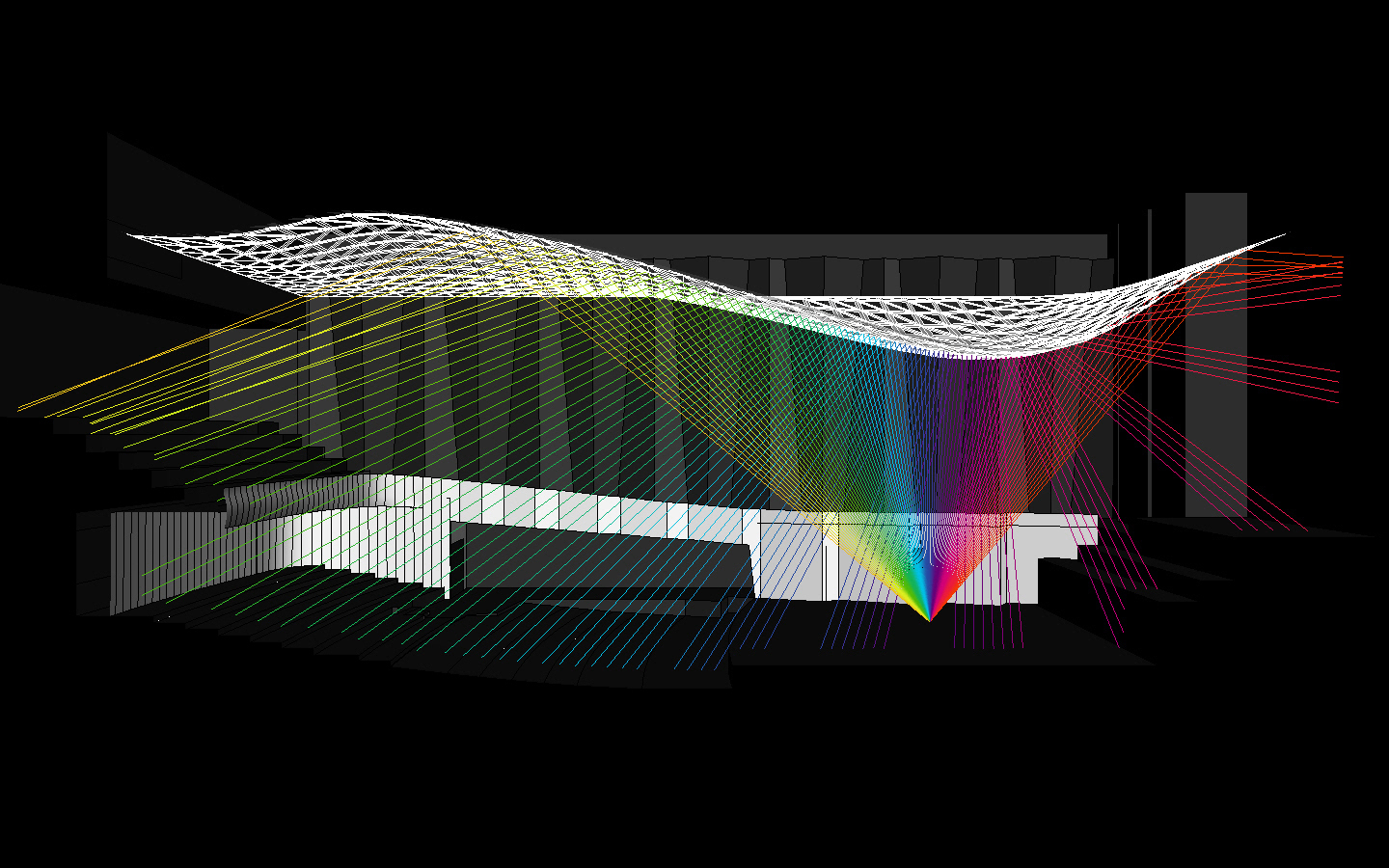

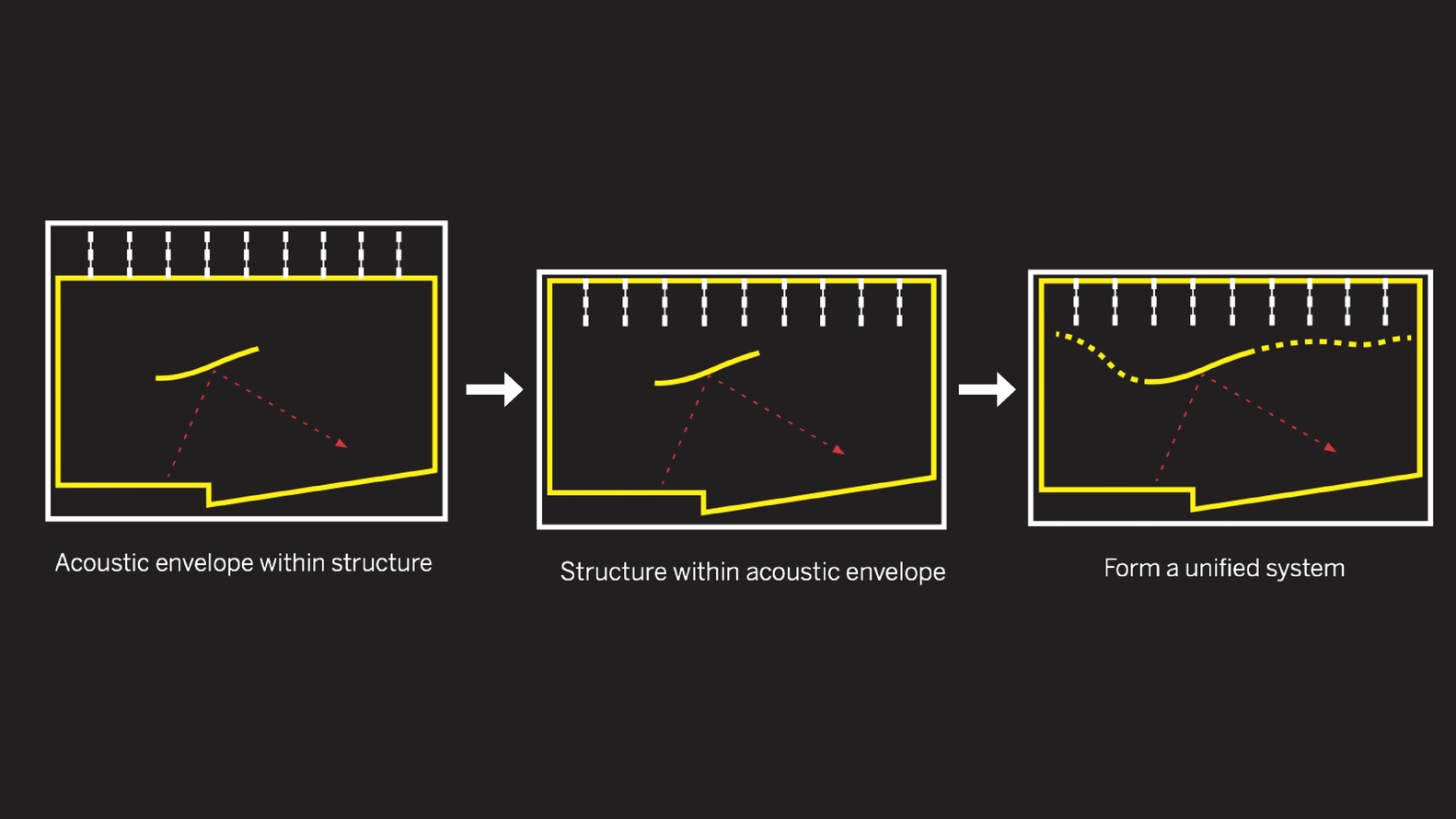

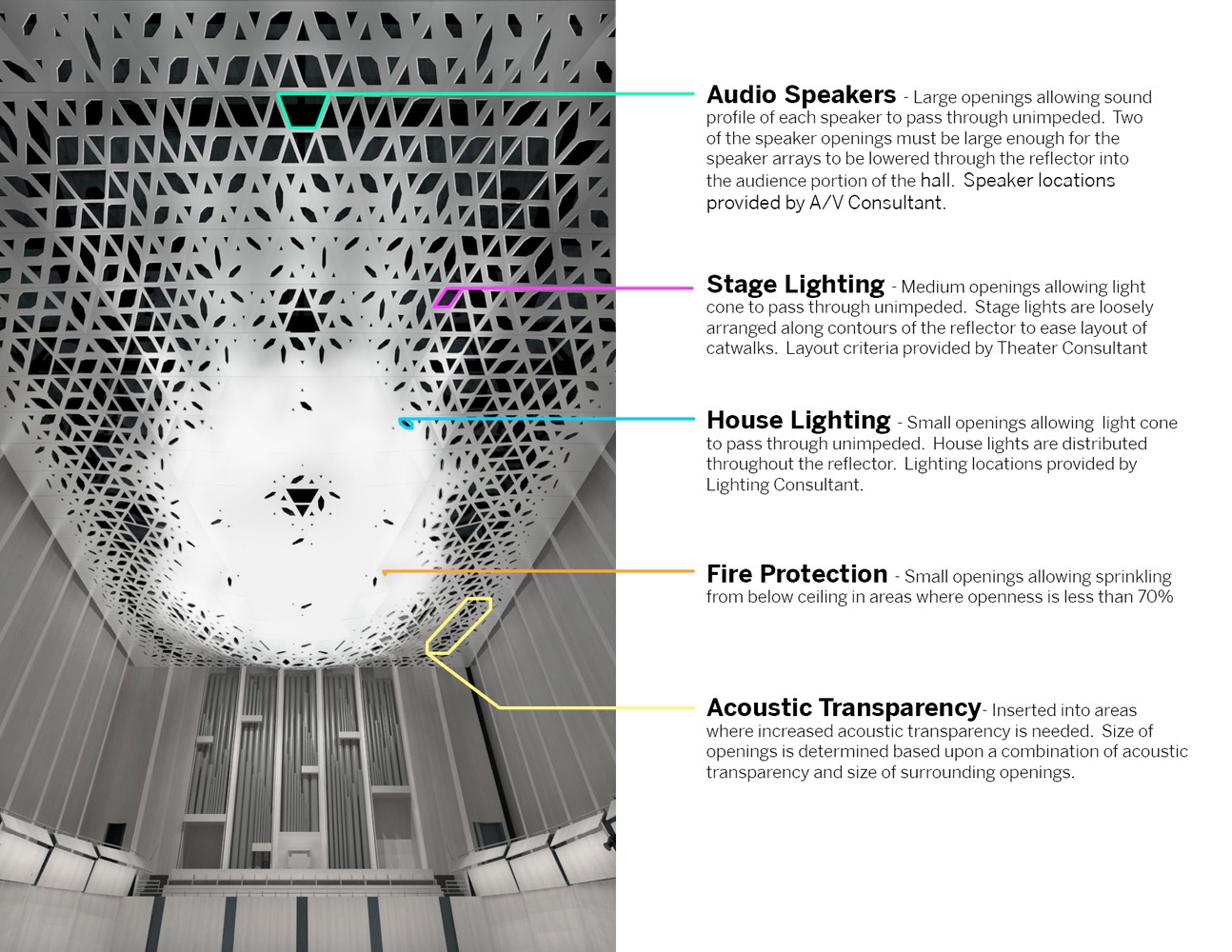

The concert hall features a suspended “theatroacoustic” system, unifying acoustics, lighting, and life-safety requirements into a dramatic, multi-functional architectural expression.

The resulting intricately sculpted element is assembled out of 946 unique, folded-aluminium composite modules digitally fabricated from modules digitally designed and fabricated from the architects’ parametric model.

Voxman Music Building
© Tim Griffith
Voxman Music Building
© Tim Griffith

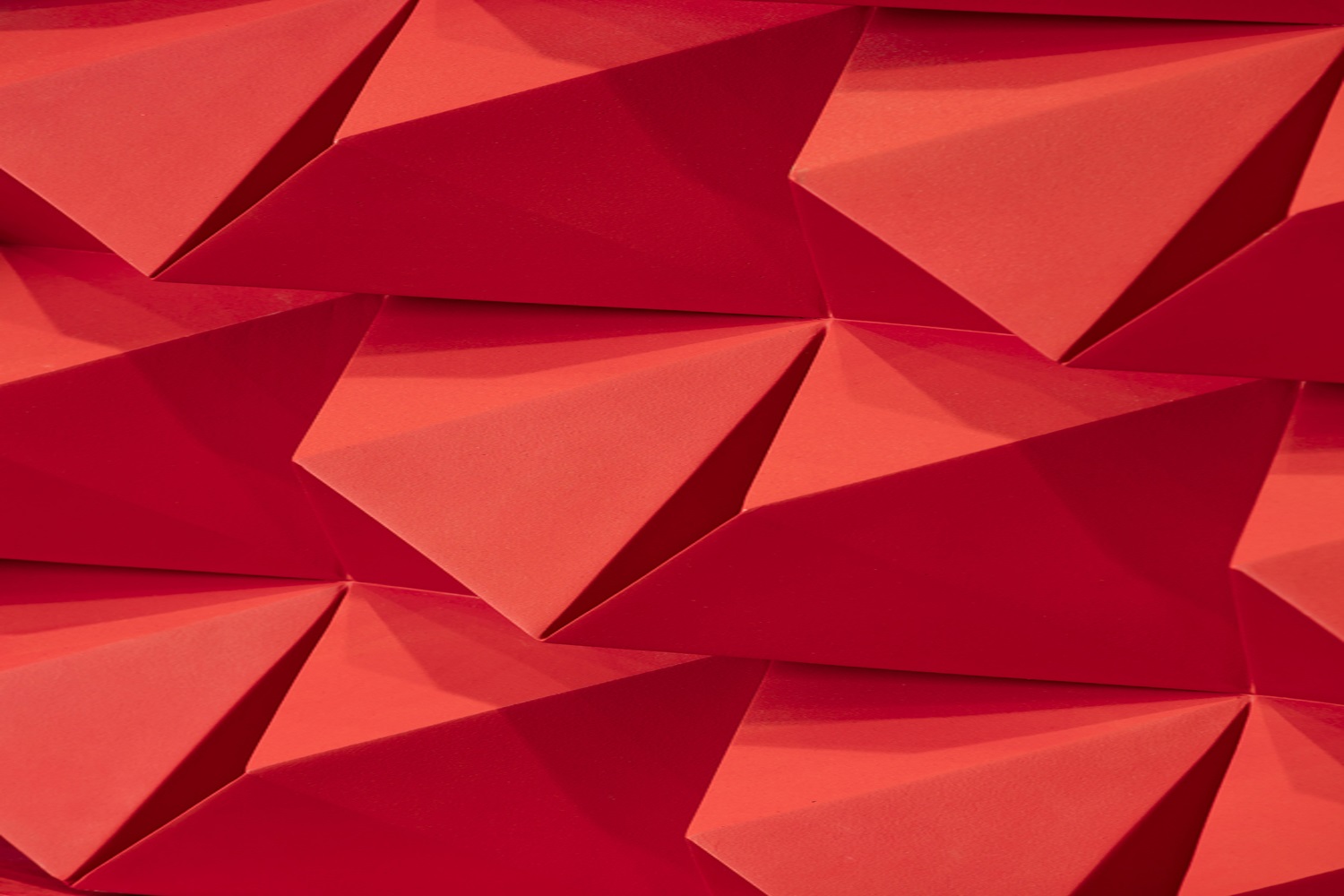

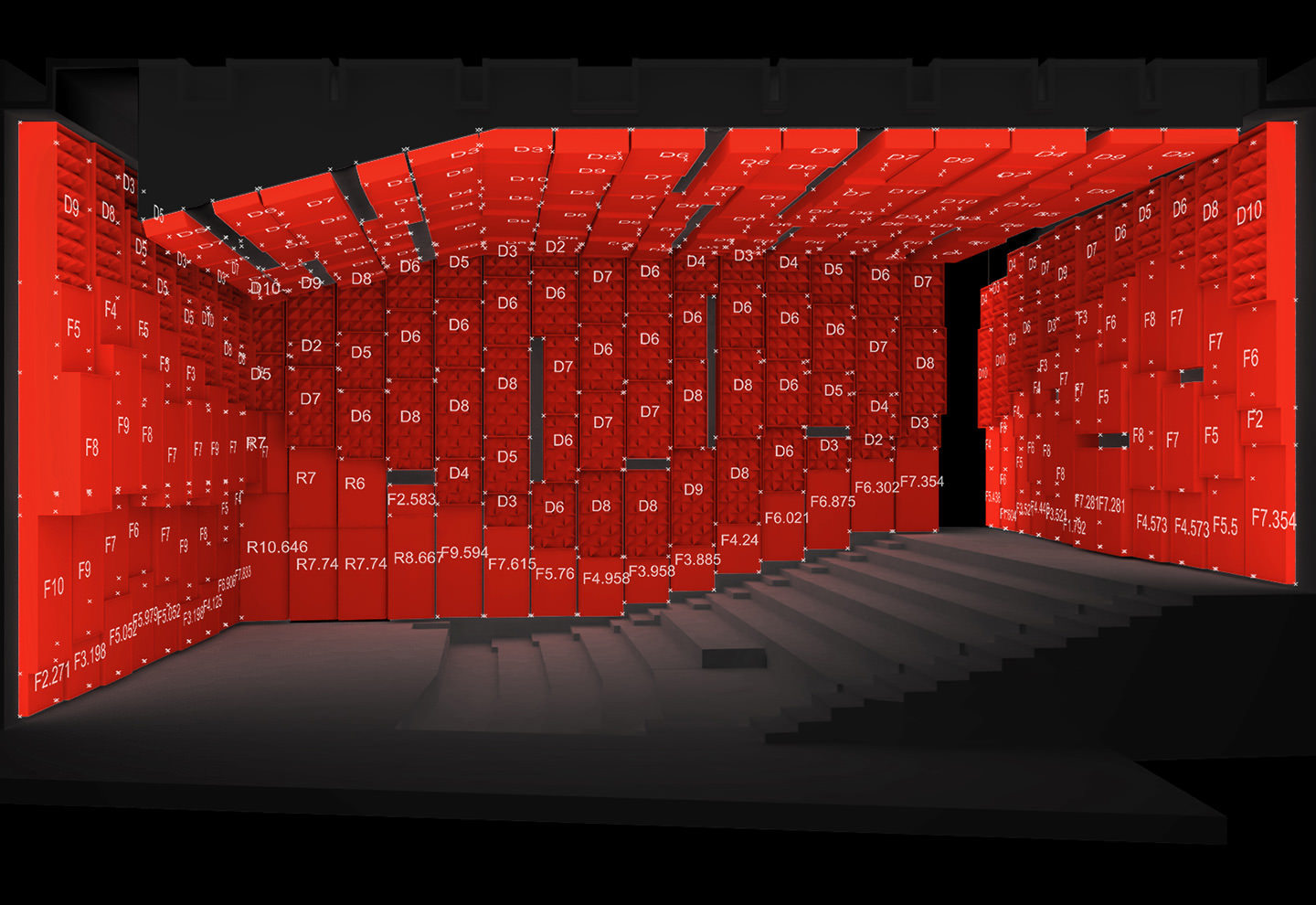

In the recital hall, red-coloured acoustical panels optimize the room’s acoustical properties while incorporating a wall-sized shingled-glass window that unites the performance event with the urban experience.

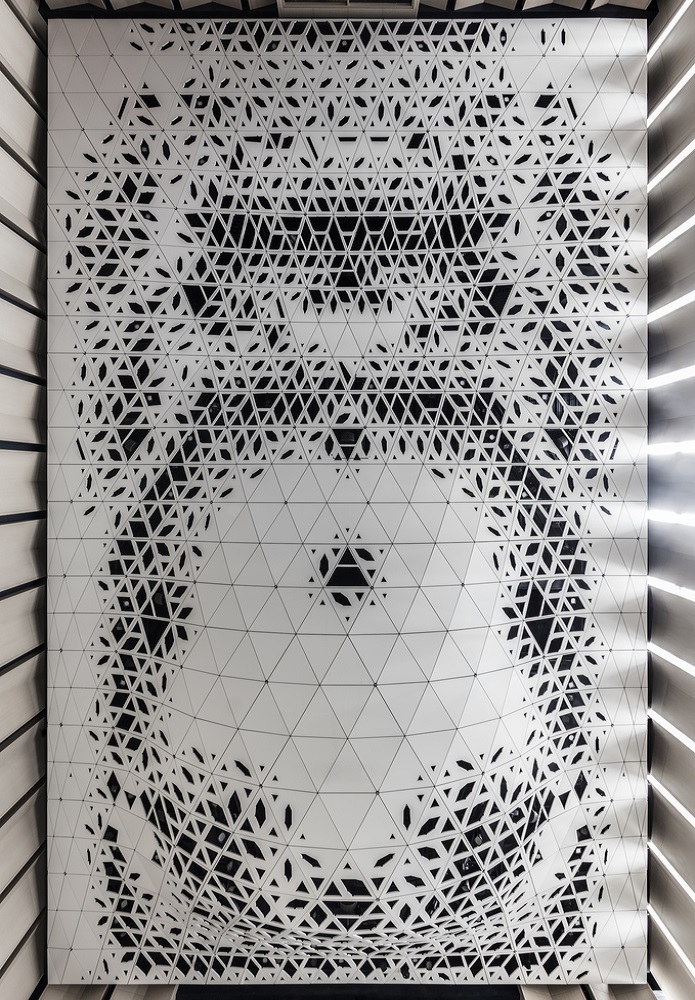

In the three major rehearsal spaces, high ceilings are filled with swarms of brightly coloured, kite-like reflectors that vary between solid and perforated to achieve dynamic acoustical and lighting effects.

Voxman Music Building
© Tim Griffith
Voxman Music Building
© Tim Griffith
Voxman Music Building
© Tim Griffith


Voxman Music Building
© Tim Griffith
Voxman Music Building
© Tim Griffith
Voxman Music Building
© Tim Griffith
Voxman Music Building
© Tim Griffith
Voxman Music Building
© Tim Griffith


Voxman Music Building
© Tim Griffith
Voxman Music Building
© Tim Griffith
Voxman Music Building
© Arturo Rojas
Voxman Music Building
© Tim Griffith
Voxman Music Building
© Tim Griffith
Voxman Music Building
© Tim Griffith
Voxman Music Building
© Arturo Rojas
Voxman Music Building
© Arturo Rojas
Voxman Music Building
© Tim Griffith
Voxman Music Building
© Tim Griffith
Voxman Music Building
© Tim Griffith
Voxman Music Building
© Tim Griffith
Voxman Music Building
© Tim Griffith
Voxman Music Building
© Tim Griffith
Voxman Music Building
© Tim Griffith
Voxman Music Building
© Tim Griffith
Voxman Music Building
© Tim Griffith
Voxman Music Building
© Tim Griffith
Voxman Music Building
© Tim Griffith
Voxman Music Building
© Tim Griffith
Voxman Music Building
© Arturo Rojas
Voxman Music Building
© Tim Griffith
Voxman Music Building
© Tim Griffith
Voxman Music Building
© Tim Griffith


Voxman Music Building

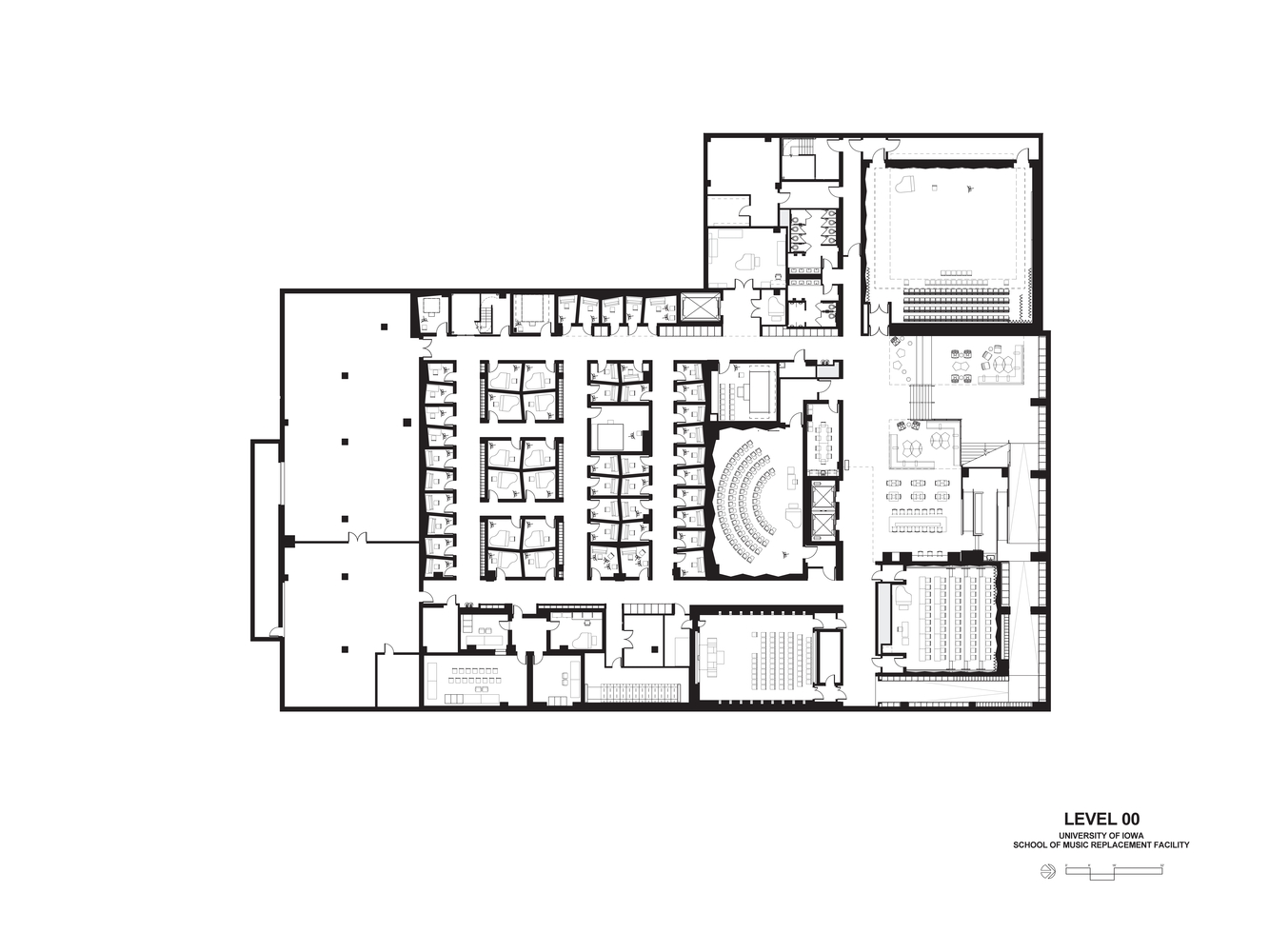

Level 0 Plan
Voxman Music Building

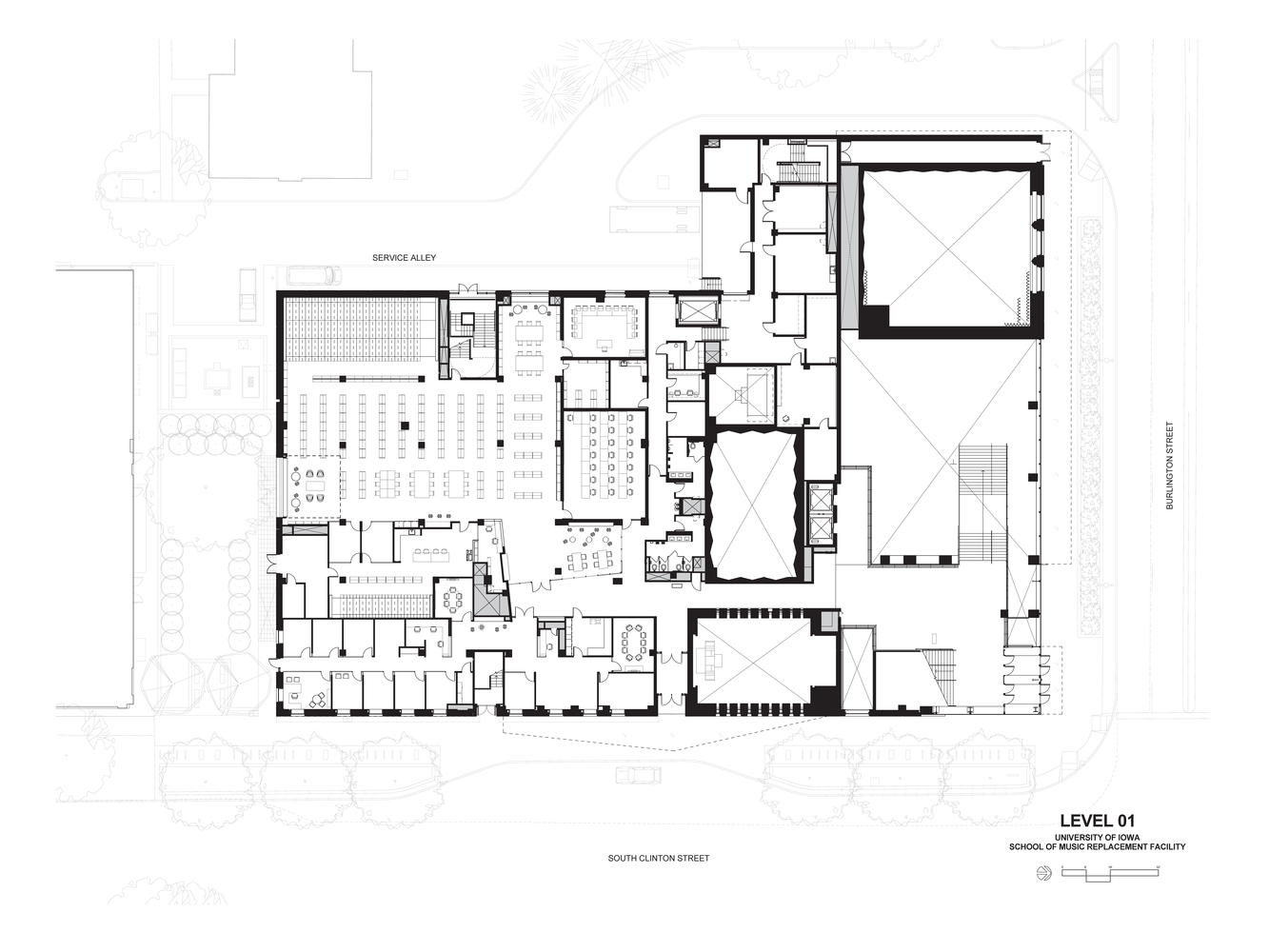

Level 1 Plan
Voxman Music Building

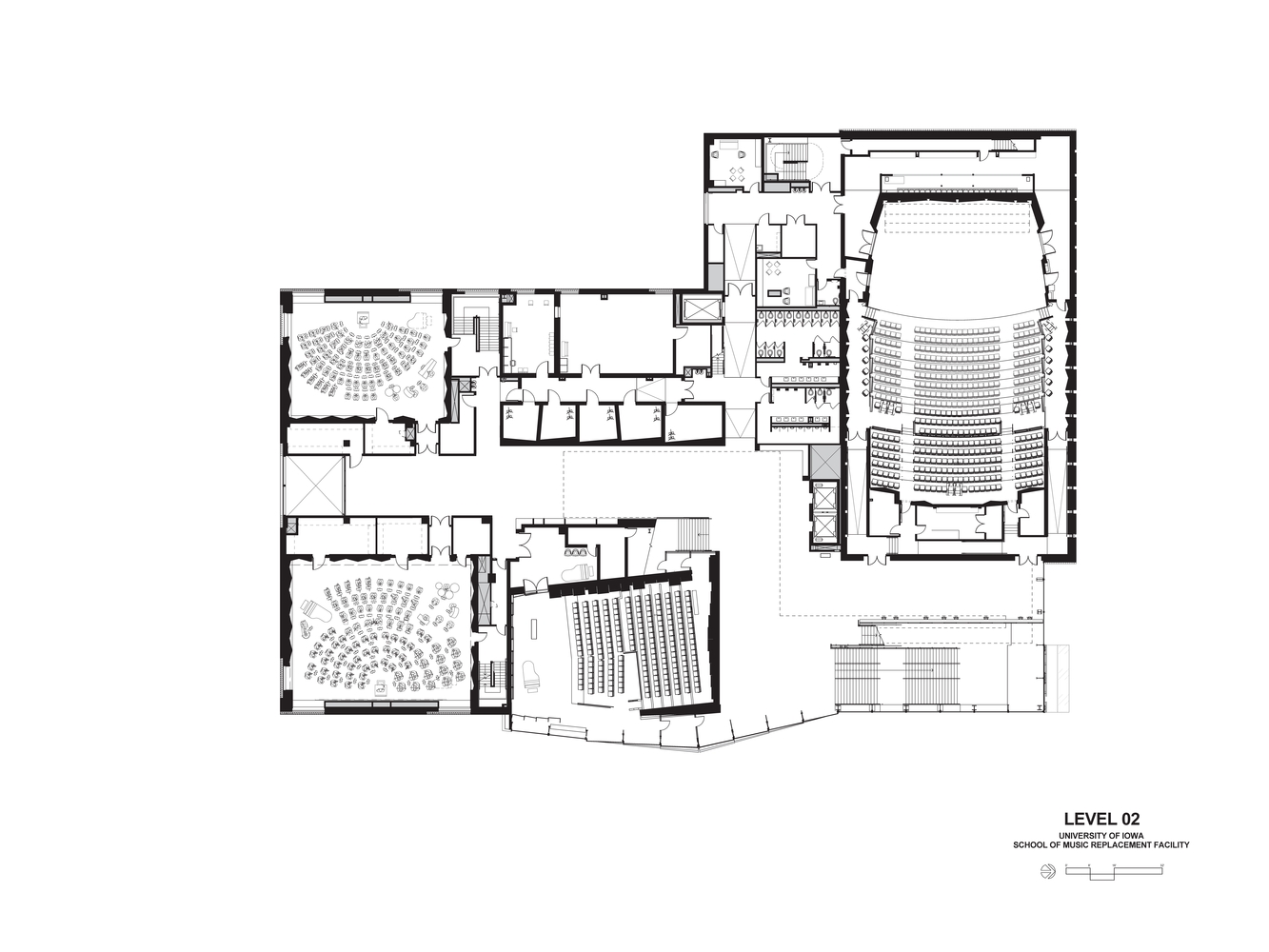

Level 2 Plan
Voxman Music Building

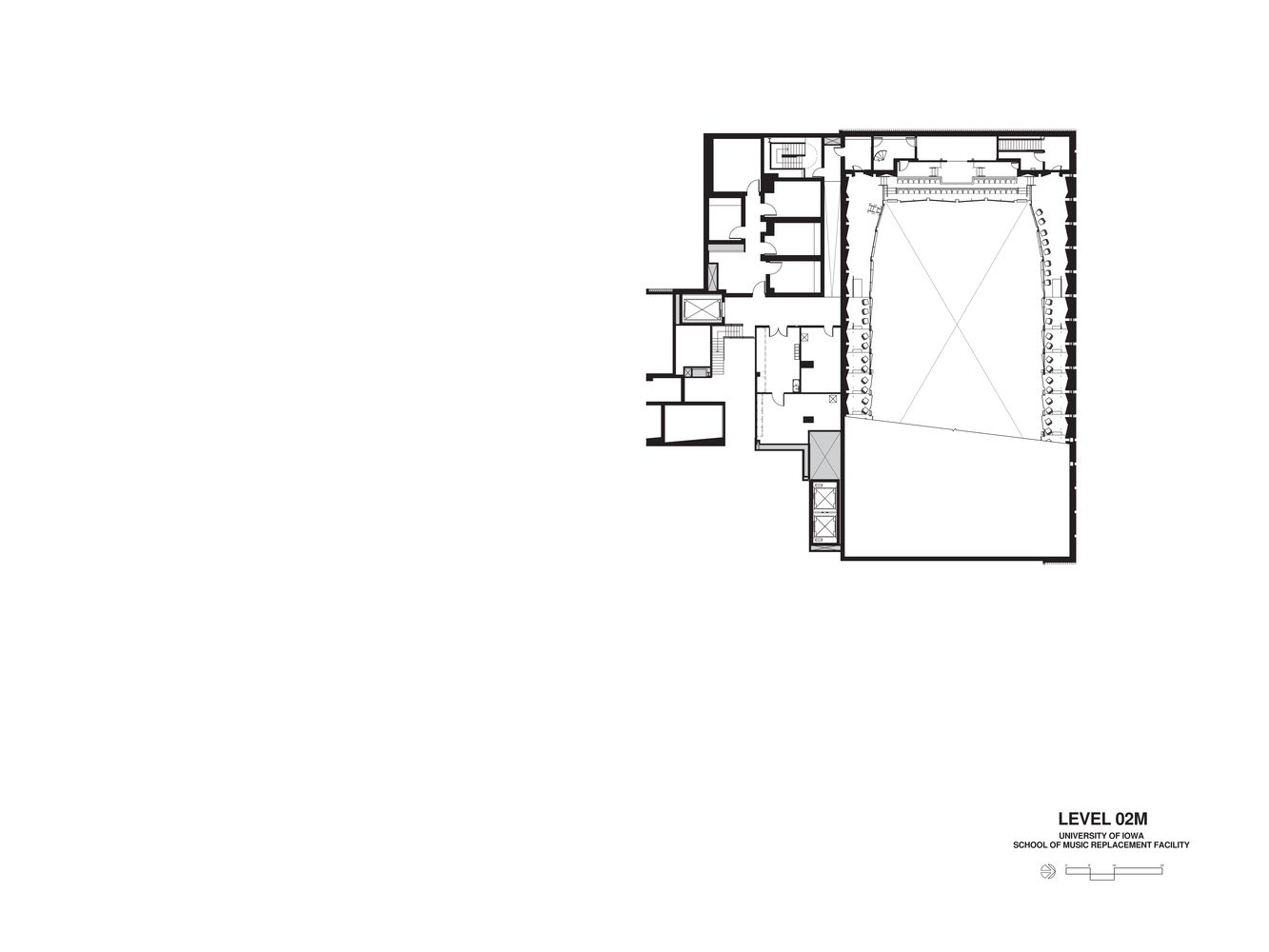

Level 2M Plan
Voxman Music Building

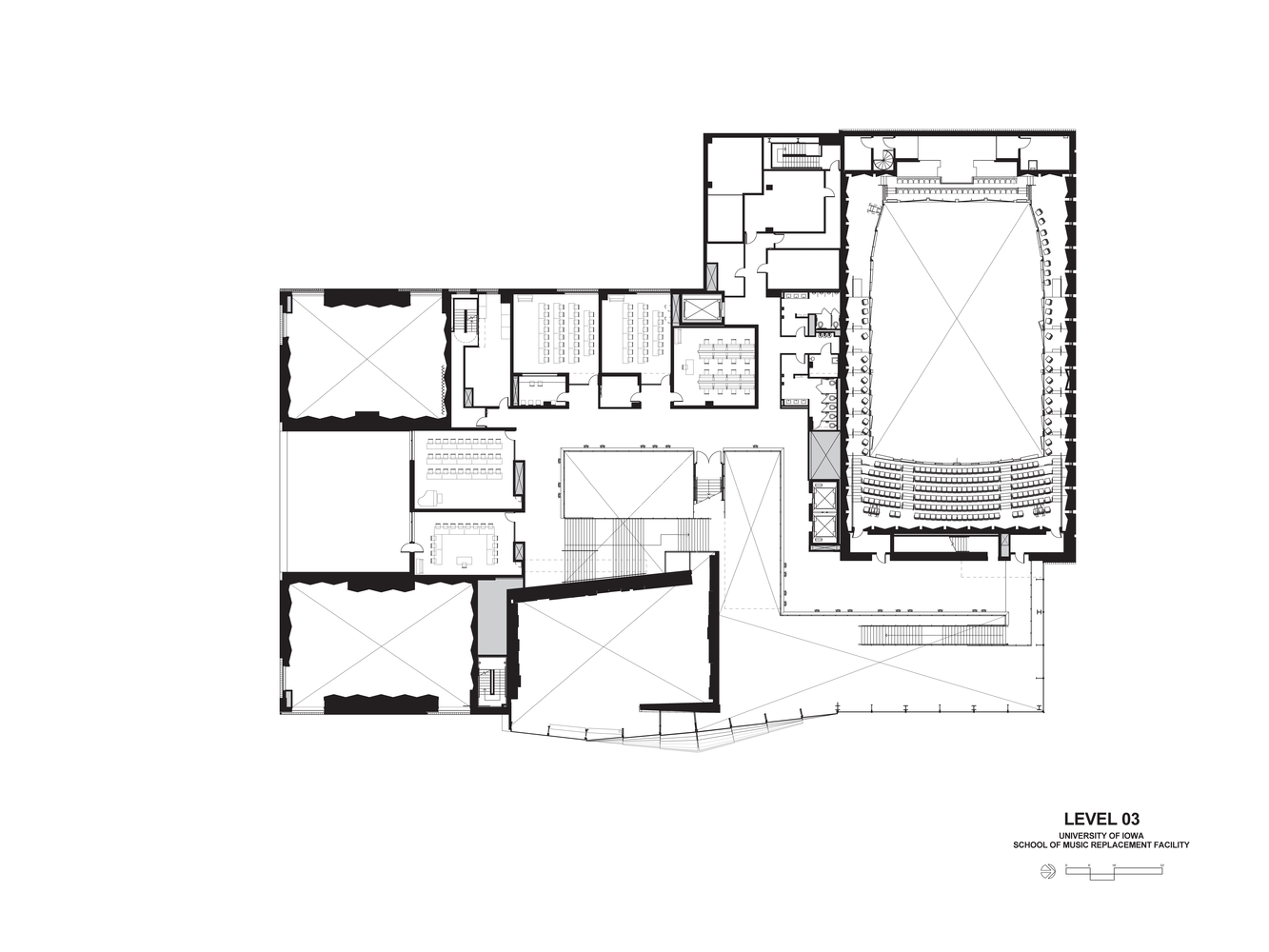

Level 3 Plan
Voxman Music Building

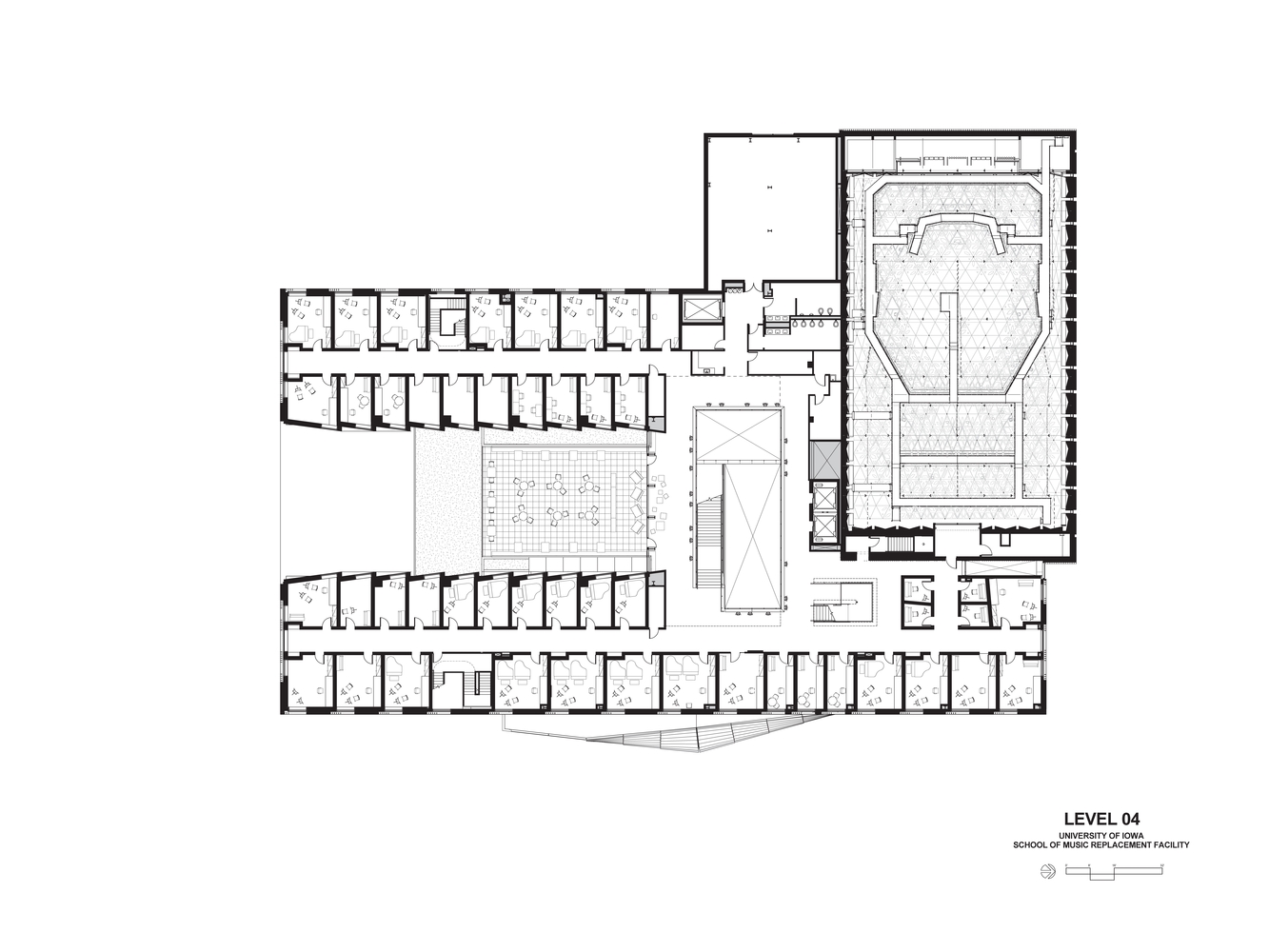

Level 4 Plan
Voxman Music Building

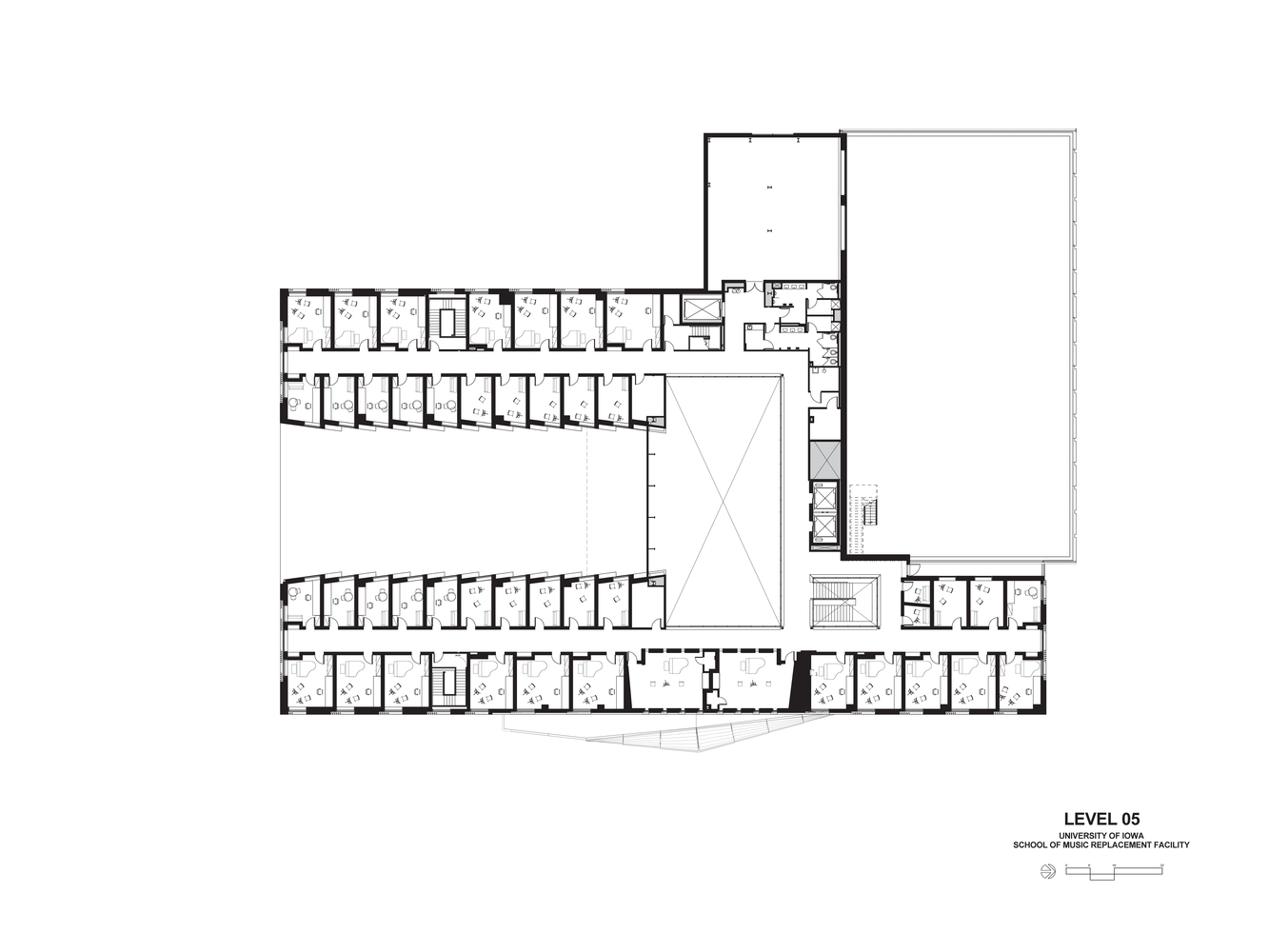

Level 5 Plan
Voxman Music Building

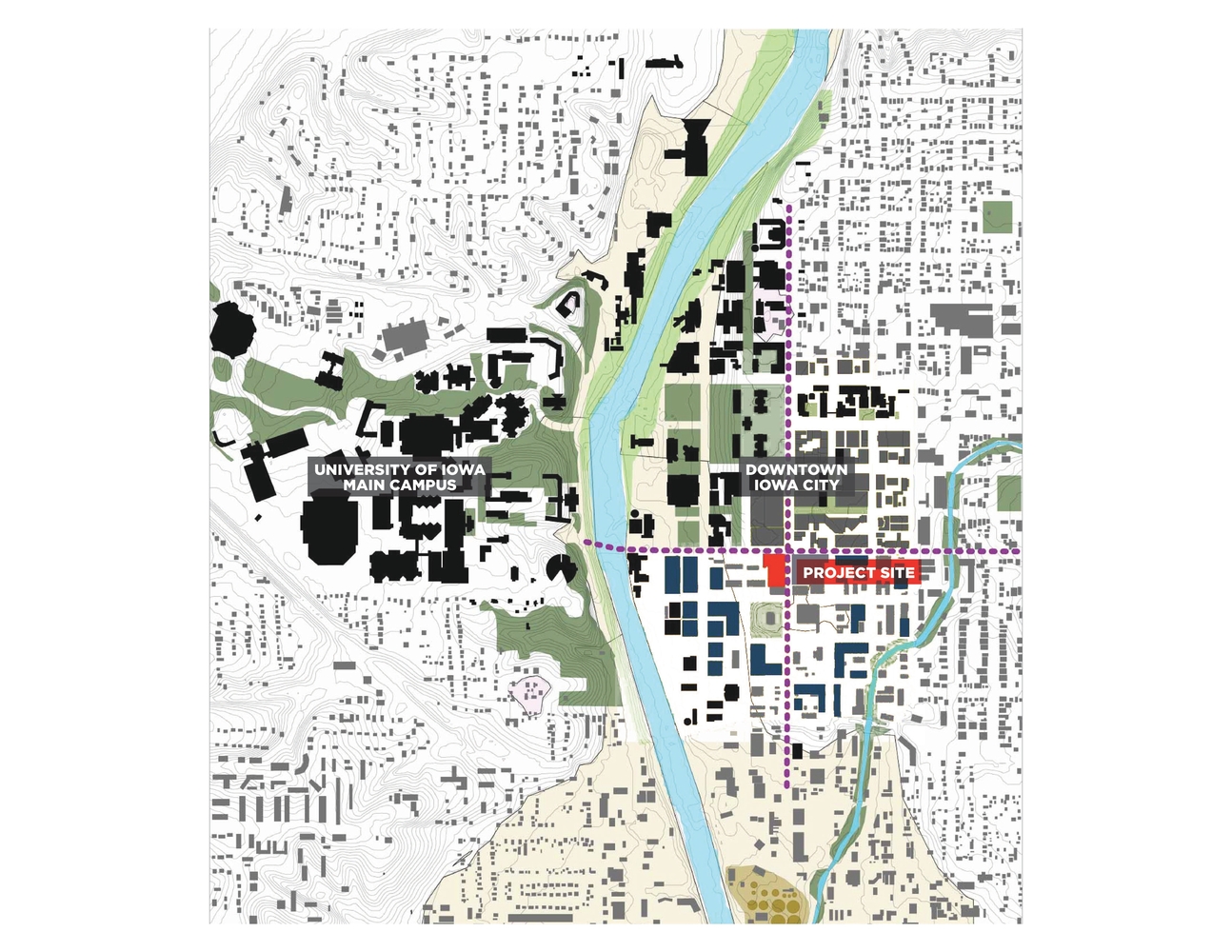

Location Plan


Voxman Music Building

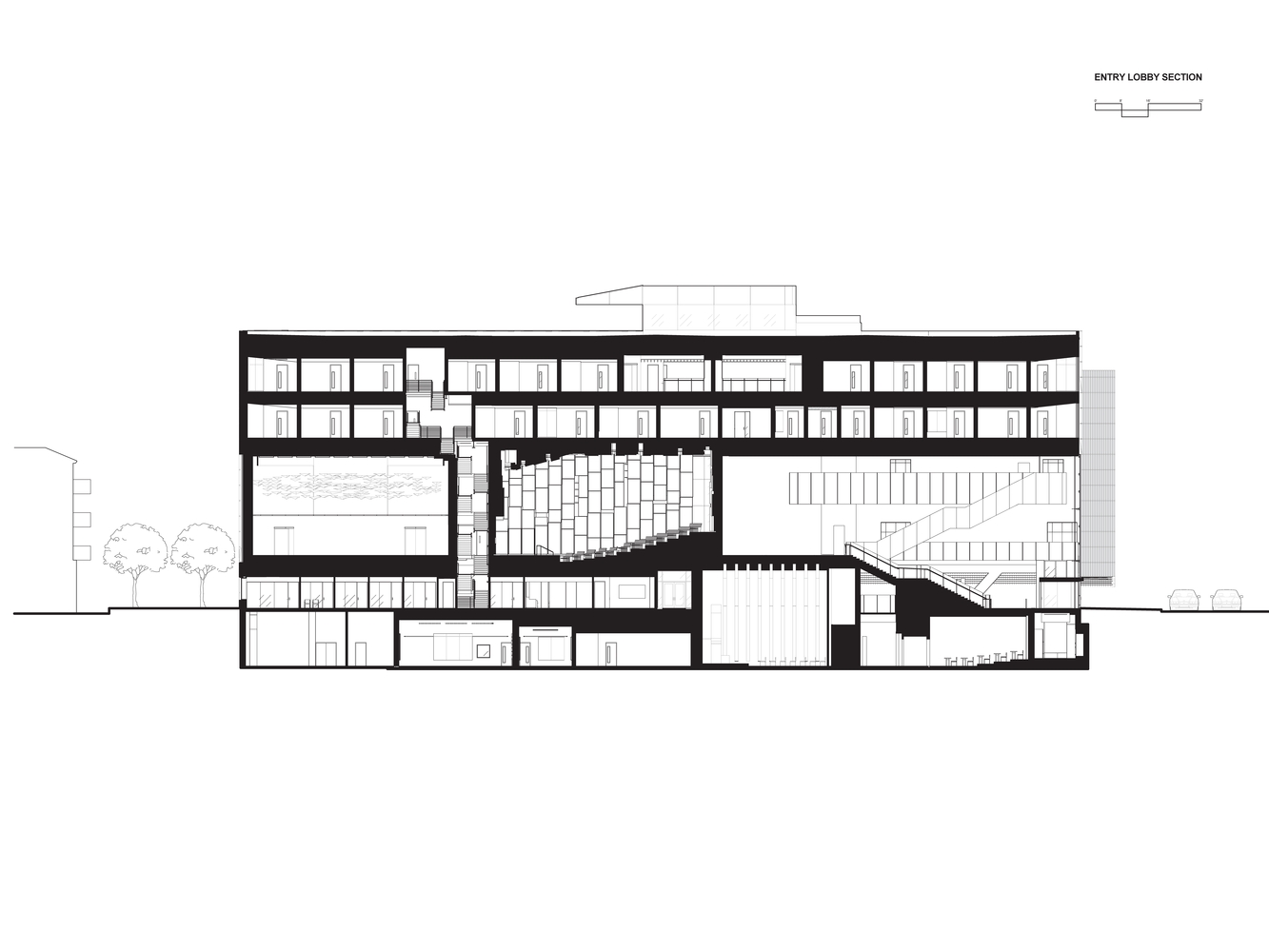

Entry Lobby Section
Voxman Music Building

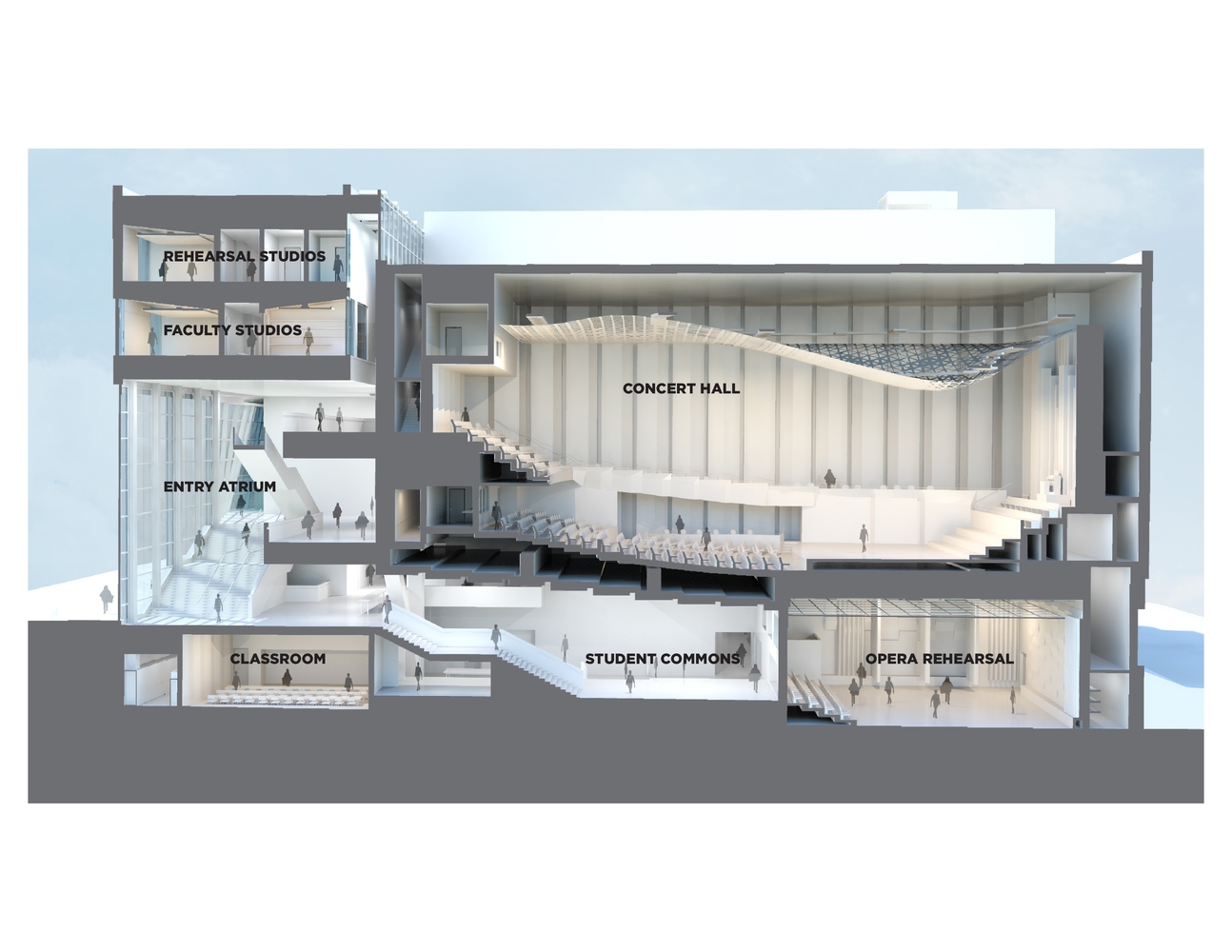

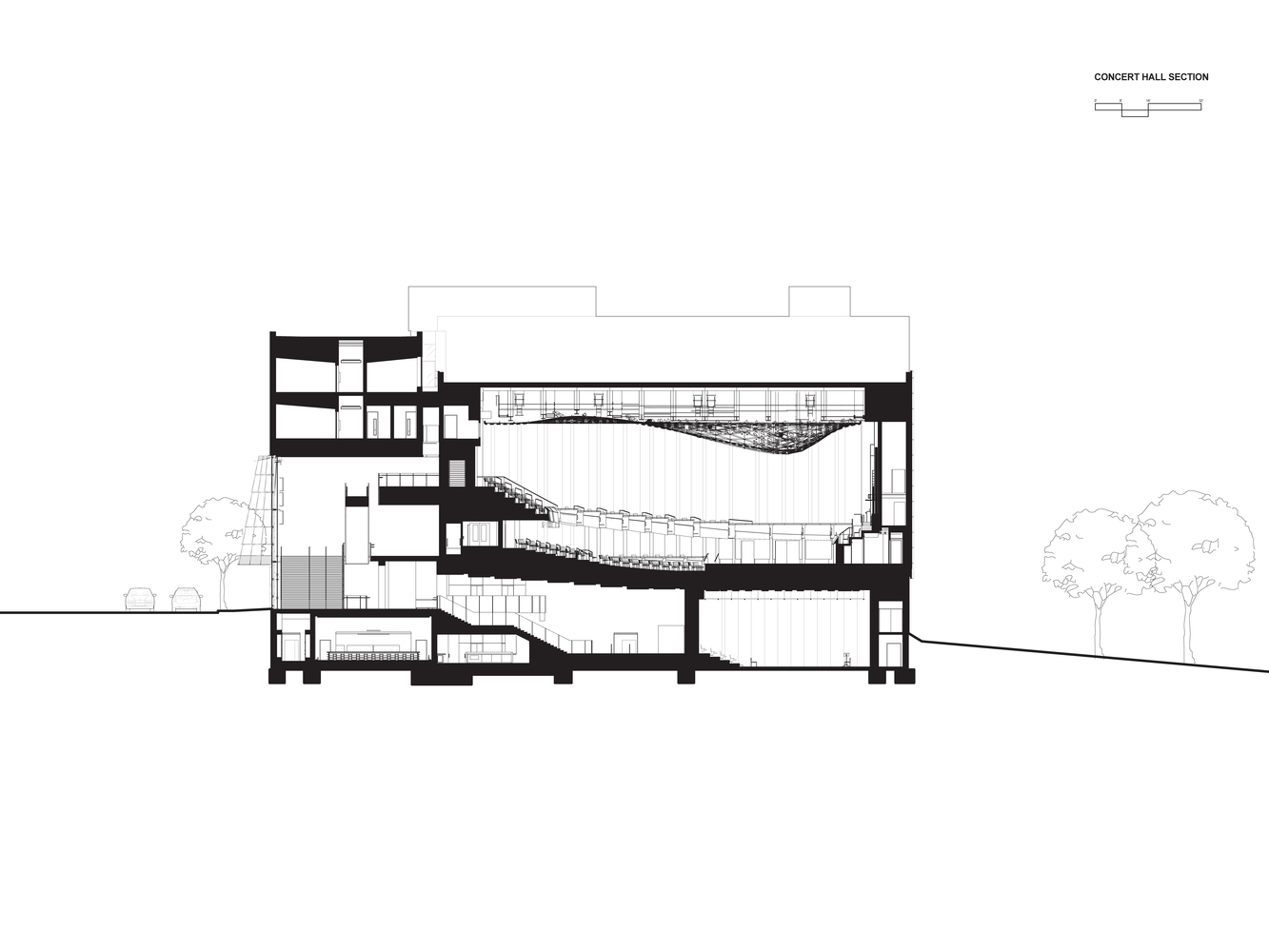

Concert Hall Section
Voxman Music Building

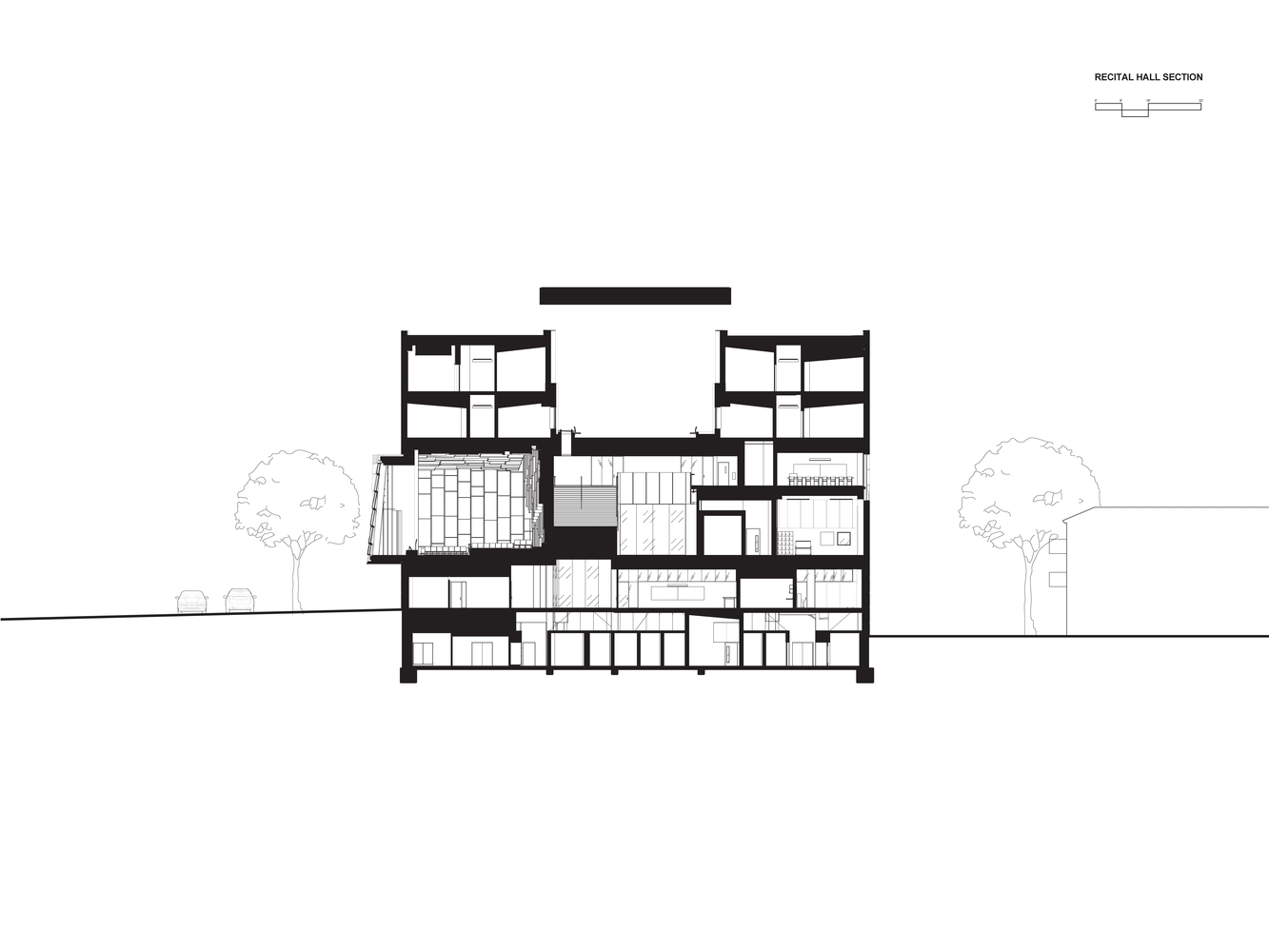

Recital Hall Section


Voxman Music Building
Scheme 2


Voxman Music Building
Scheme 1
Voxman Music Building
Diagram 1
Voxman Music Building
Diagram 2
Voxman Music Building
Diagram 3


Voxman Music Building

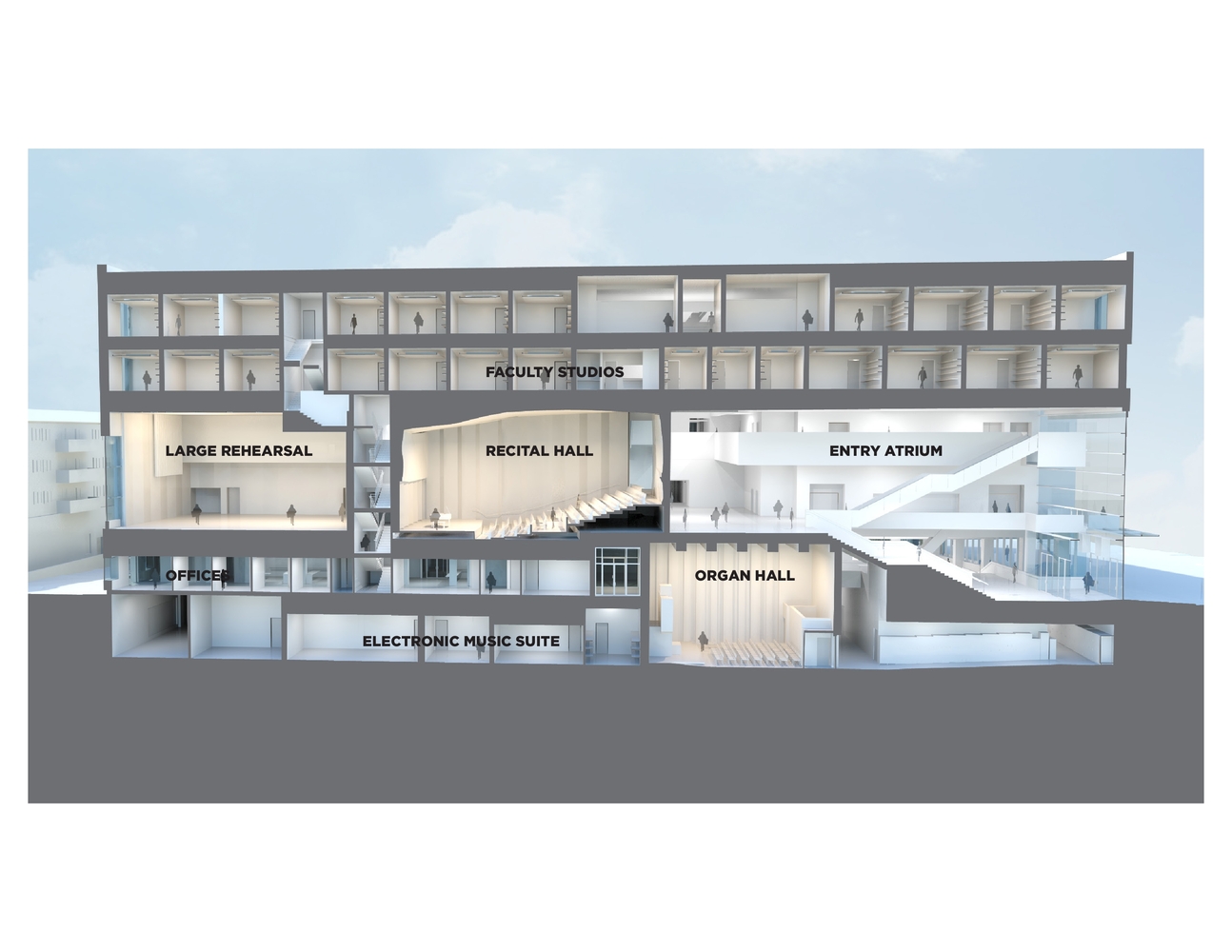

Section 1
Voxman Music Building
Section 2


Voxman Music Building

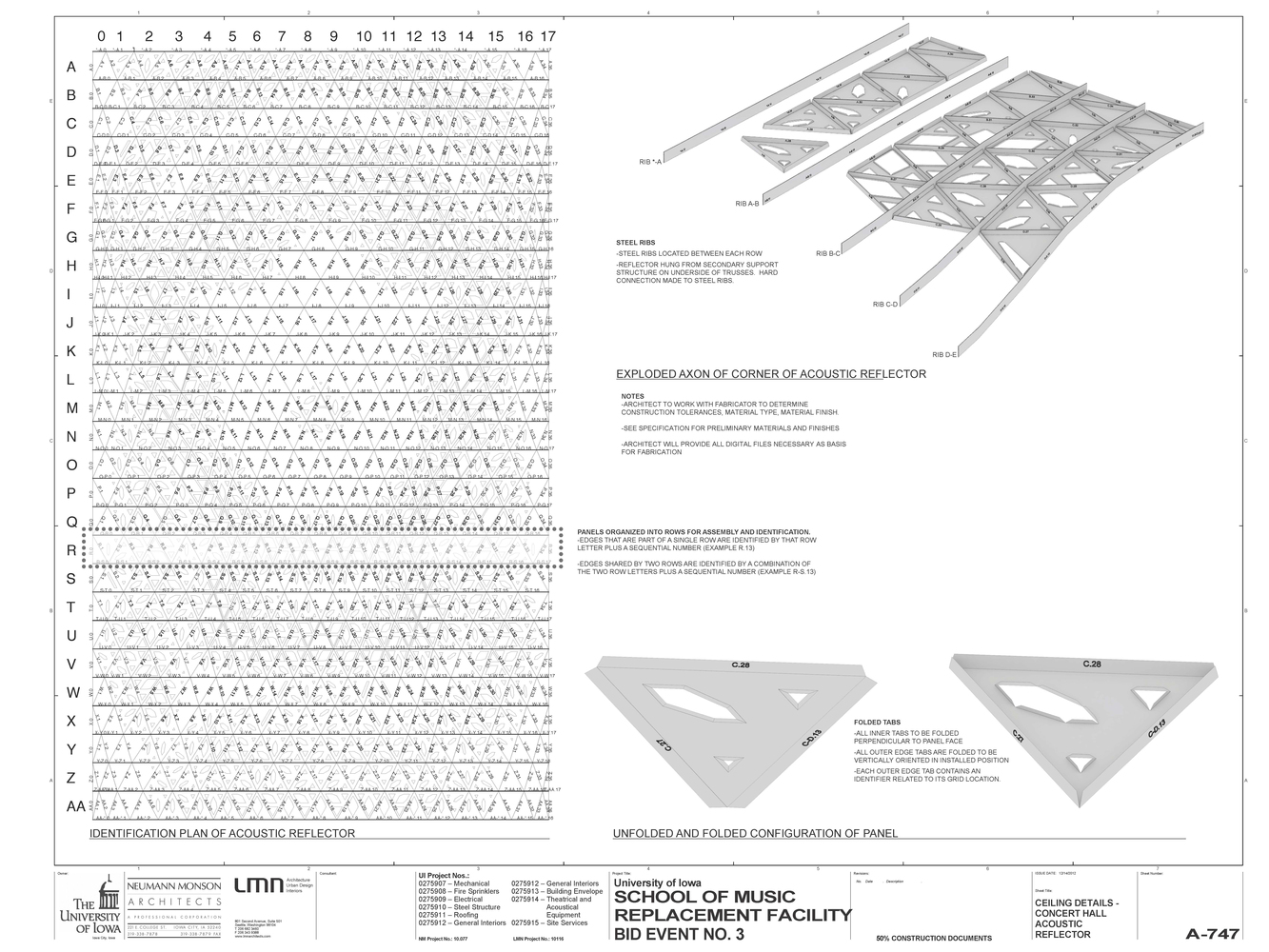

Details
Voxman Music Building
Audio Specifications
