Pharmaceutical HQ

Pharmaceutical HQ
© NakaniMamasakhlisi Photo Lab

PHARMACEUTICAL HQ

Architects of Invention

ARCHITECTS
Architects of Invention

INTERIOR (COMMON AREAS)
Architects of Invention

MOSCOW EXECUTIVE TEAM
Michael Eichner, Nikita Tsymbal, Max Malein

FINISH EXTERIOR
Schuco Glass Systems Profile UCC 65 SG

CAD SOFTWARE USED
AutoCad, Skecthup

CLIENT
Insigma Development

STRUCTURAL ENGINEER
Engenuiti, Fioravanti

M&E ENGINEER
Fioravanti

EXECUTION & SITE SUPERVISION
Architects of Invention

CONSTRUCTION COST
$20MM ($2,850/m2)

MANUFACTURERS
Boon Edam, Jura Marble Suppliers, Schüco, X-Light, Zumtobel, thyssenkrupp, Genesis, Next Level Elevators, Perco, Randola Grey

LEAD LONDON TEAM
Nikoloz Japaridze, Anton Khmelnitskiy, Carmen Gallano, Magdalini Giannakidi, Petras Isora, Ivane Ksnelashvili, Daniel Lareau, Davit Tsanava

MAIN CONTRACTOR
Glaskek

PHOTOGRAPHS
NakaniMamasakhlisi Photo Lab

AREA
7000 m²

YEAR
2017

LOCATION
Moscow, Russia

CATEGORY
Institutional Buildings

Text description provided by architect.

The building is located on a very tight site, surrounded by residential blocks, a music school and nursery in Moscow’s historic city centre, off Arbat Street, the main, pedestrianized shopping street which runs for almost one kilometre through the city.

Pharmaceutical HQ
© NakaniMamasakhlisi Photo Lab
Pharmaceutical HQ
© NakaniMamasakhlisi Photo Lab

AI’s work involved the complete demolition of an existing 4-storey office block, replacing it with a new 7-storey office building with a single level underground car park and public space at the base of the building.

The site boundary defined the shape of the building in plan, suggesting two rectilinear volumes - that are merged with an angular rotation and served by a common lift - as the most practical use of the space.

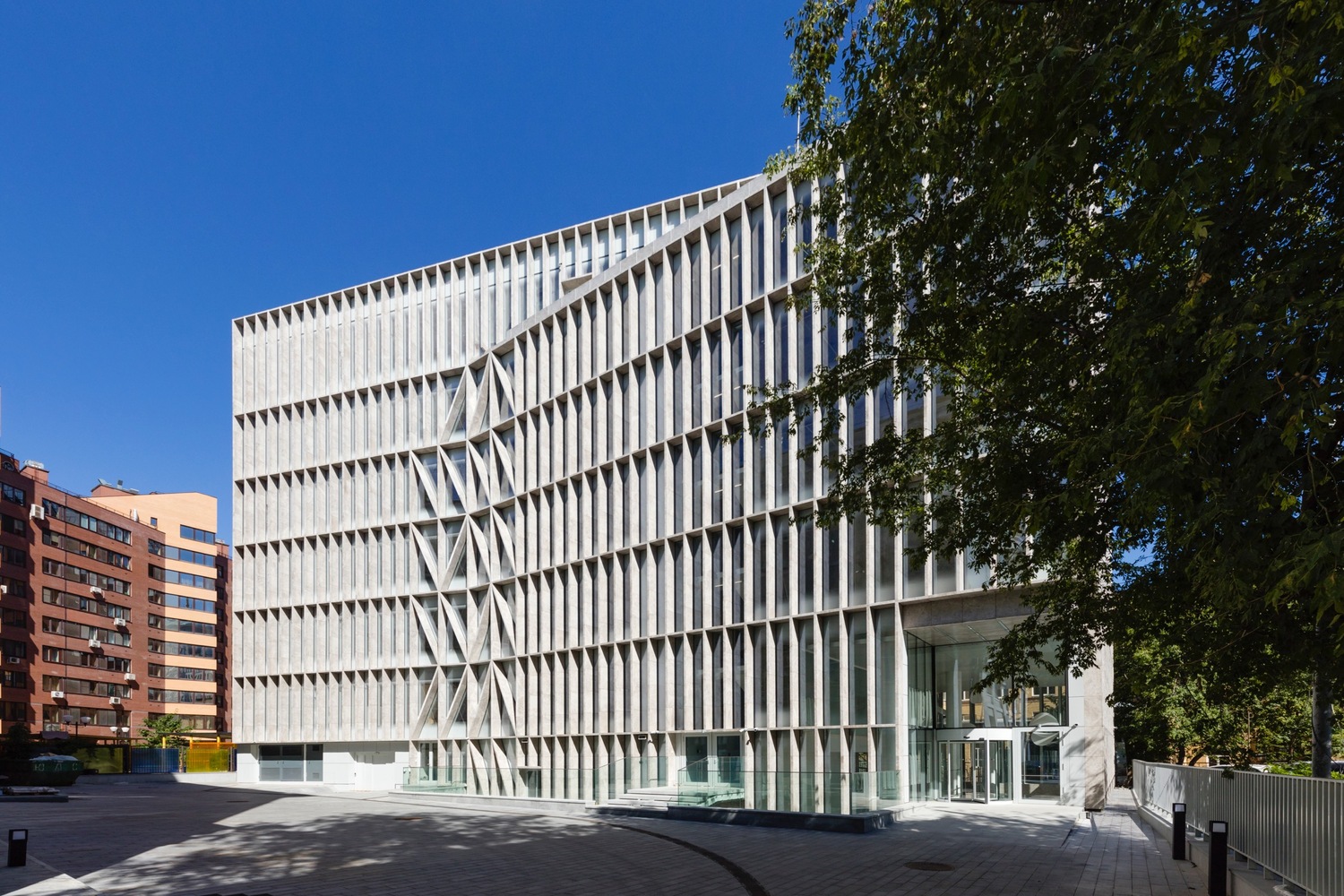

The façade responds to and emphasises the meeting point of the two blocks with an altered, diagonal rhythm of the Jura marble fins that cover the building.

Pharmaceutical HQ
© NakaniMamasakhlisi Photo Lab
Pharmaceutical HQ
© NakaniMamasakhlisi Photo Lab

The window panels are recessed from the fins by 40cm to give privacy and deflect solar glare.

The different heights of the buildings’ volumes create an interesting visual tension, as well as ensuring observation of local rights of light and showing sensitivity to local context in terms of the surrounding buildings.

Thus the 7-storey volume responds to the higher blocks behind it, while the lower invites access via the courtyard, drawing attention to the entrance as there is no direct street access.

Pharmaceutical HQ
© NakaniMamasakhlisi Photo Lab
Pharmaceutical HQ
© NakaniMamasakhlisi Photo Lab

Sunken terraces to the east and the west of the building can be accessed from the lobby.

Pharmaceutical HQ
© NakaniMamasakhlisi Photo Lab
Pharmaceutical HQ
© NakaniMamasakhlisi Photo Lab


Pharmaceutical HQ
© NakaniMamasakhlisi Photo Lab
Pharmaceutical HQ
© NakaniMamasakhlisi Photo Lab


Pharmaceutical HQ
Elevation 1
Pharmaceutical HQ
Elevation 2


Pharmaceutical HQ
Section B
Pharmaceutical HQ
Section E
Pharmaceutical HQ
East elevation
Pharmaceutical HQ
Sections Detail A


Pharmaceutical HQ
Basement Floor plan
Pharmaceutical HQ
Ground Floor plan
Pharmaceutical HQ
1st Floor plan
Pharmaceutical HQ
2nd Floor plan
Pharmaceutical HQ
3rd Floor plan
Pharmaceutical HQ
4th Floor plan
Pharmaceutical HQ
5th Floor plan
Pharmaceutical HQ
6th Floor plan
Pharmaceutical HQ
Rooftop plan
Pharmaceutical HQ
Site plan
