CIC ENERGIGUNE

IDOM

ARCHITECTS
Idiom

PHOTOGRAPHS
Aitor Ortiz

AREA
5847 m²

YEAR
2010

LOCATION
Vitoria, Spain

CATEGORY
Laboratory

CIC Energigune
© Aitor Ortiz
CIC Energigune
© Aitor Ortiz

Text description provided by architect.

The CIC EnergiGUNE is configured as a set of modular buildings connected together through a functional and communication hub that acts as the backbone of the centre’s activity.

CIC Energigune
© Aitor Ortiz
CIC Energigune
© Aitor Ortiz

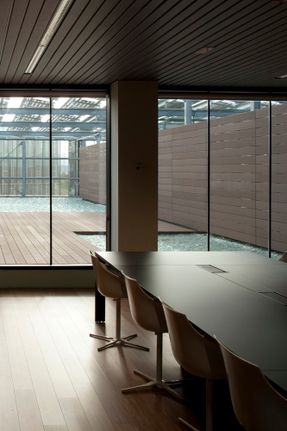

The areas within have been designed with the aim of promoting relationships, which foster informal transmission of knowledge between researchers in a relaxed atmosphere.

CIC Energigune
© Aitor Ortiz

The largest building (PB+3), facing the main road of the park, houses the reception area, the shared research equipment (microscopes, diffractometers, etc.), maintenance facilities, a group of laboratories, the boardroom, the training area, and administration offices.

CIC Energigune
© Aitor Ortiz
CIC Energigune
© Aitor Ortiz

The smallest building (PB+1) holds the other group of laboratories.

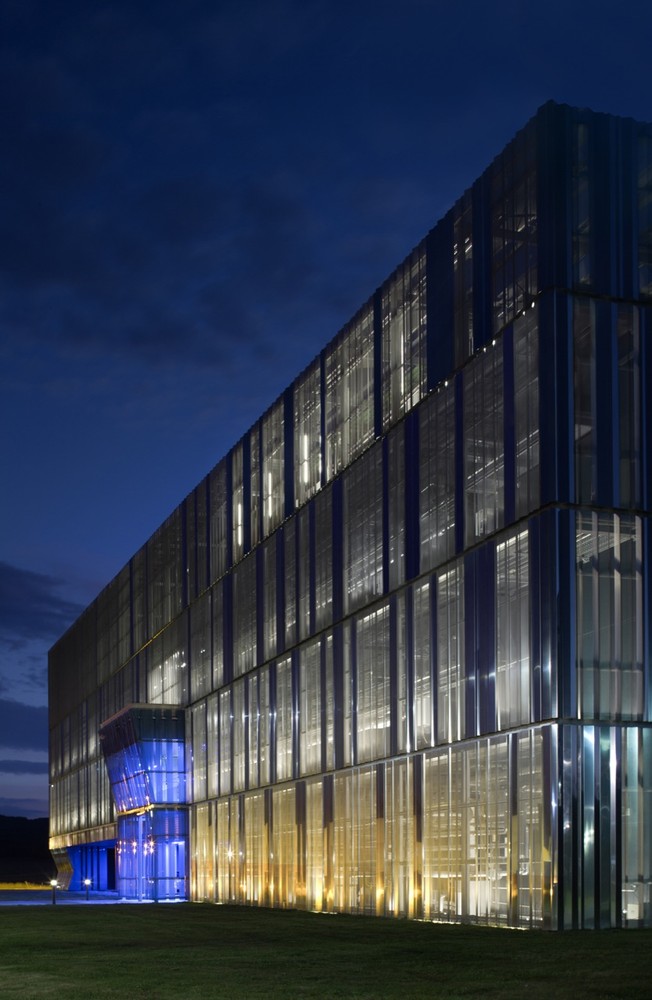

The shell of the laboratory buildings is made up of a single locking system, consisting of a folded sheet of polished stainless steel to which an opaque or perforated treatment is applied according to the orientation of the areas to be illuminated, the need for a particular view or ventilation or the need to hide these.

CIC Energigune
© Aitor Ortiz
CIC Energigune
© Aitor Ortiz

The building shell of the transversal areas consists of a large polycarbonate parasols with great solar absorption capacity.

The overall picture obtained is of a distinctly innovative technology, in which nature is reflected in buildings and merges with them.

The Centre was conceived as an energy efficient building, whose activity was to be oriented to research, and with a high capacity to adapt to the new needs that may arise in the future.

FLEXIBILITY AND ADAPTABILITY OF THE PROGRAM

The building has been designed from a laboratory module prototype, which is repeated in the different areas dedicated to research.

CIC Energigune
© Aitor Ortiz
CIC Energigune
© Aitor Ortiz

In this way, joining one, two or more modules can easily generate laboratories of the required size.

Each module consists of a laboratory area of 74 sqm and an administrative working area of 40 sqm.

This area is intended to differentiate laboratory work from the more administrative or documentary kind, which has different environmental needs.

A technical corridor on the south side links all the laboratory modules, equipping them with the specific connections required (air conditioning, ventilation, power, data, fluids and gases), while also allowing for any necessary ancillary equipment to be installed.

CIC Energigune
© Aitor Ortiz
CIC Energigune
© Aitor Ortiz


CIC Energigune
CIC Energigune
© Aitor Ortiz
CIC Energigune
© Aitor Ortiz
CIC Energigune
© Aitor Ortiz
CIC Energigune
© Aitor Ortiz
CIC Energigune
© Aitor Ortiz
CIC Energigune
© Aitor Ortiz
CIC Energigune
© Aitor Ortiz


CIC Energigune
© Aitor Ortiz
CIC Energigune
© Aitor Ortiz
CIC Energigune
© Aitor Ortiz
CIC Energigune
© Aitor Ortiz
CIC Energigune
© Aitor Ortiz
CIC Energigune
© Aitor Ortiz


CIC Energigune

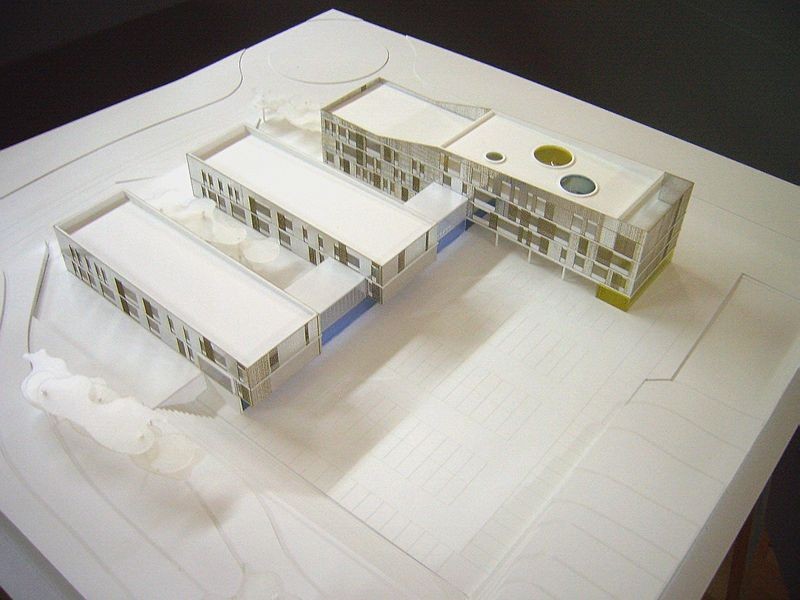

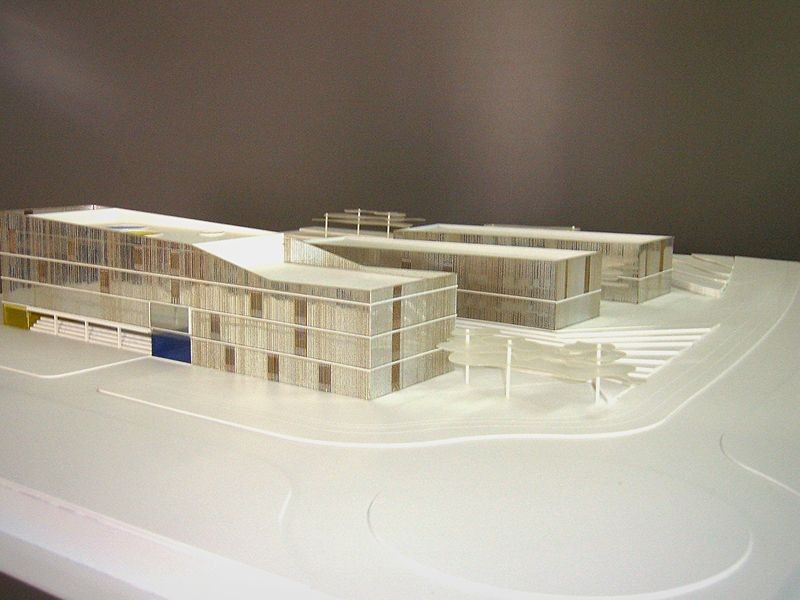

model
CIC Energigune
model
CIC Energigune
model
CIC Energigune
model


CIC Energigune

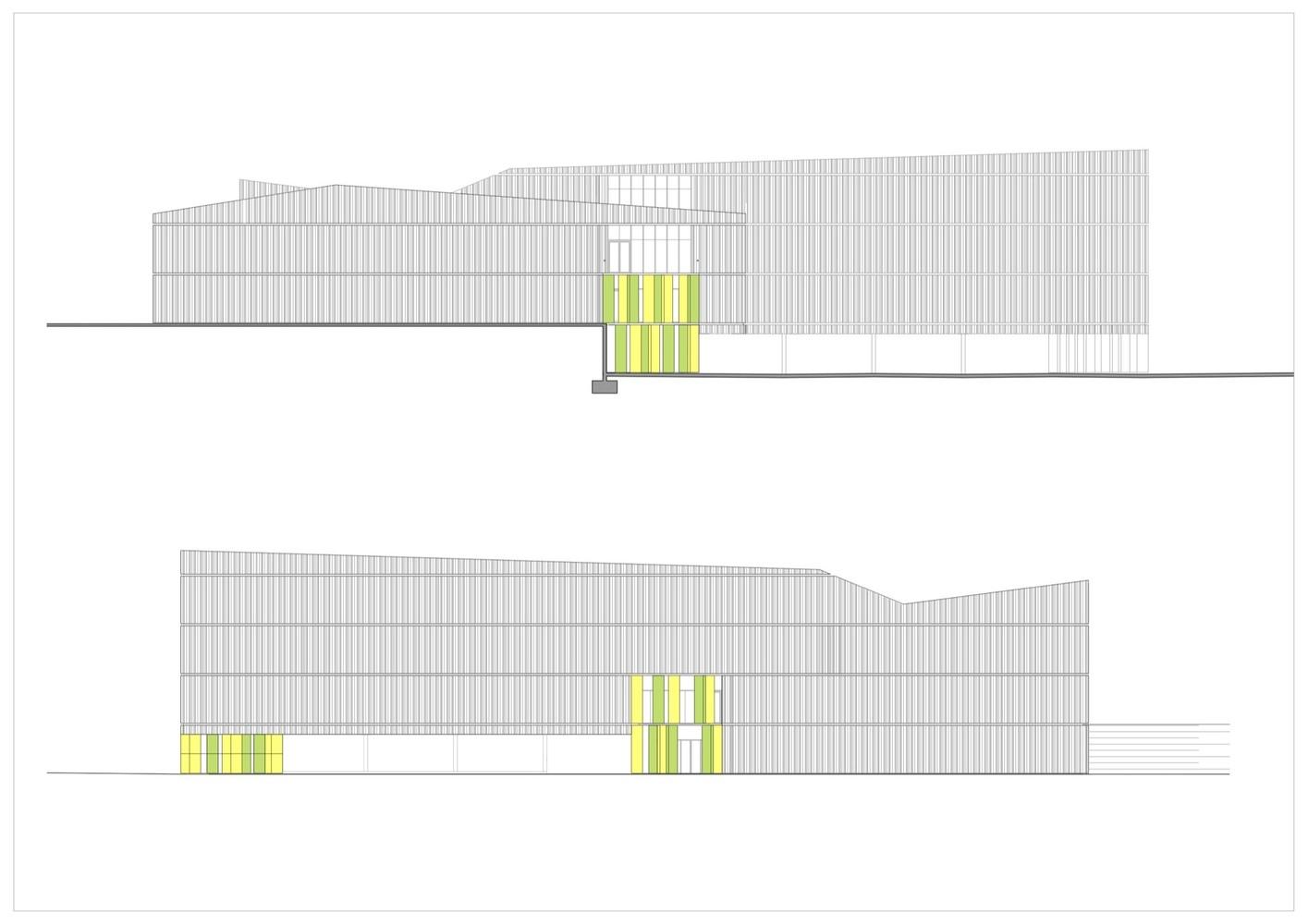

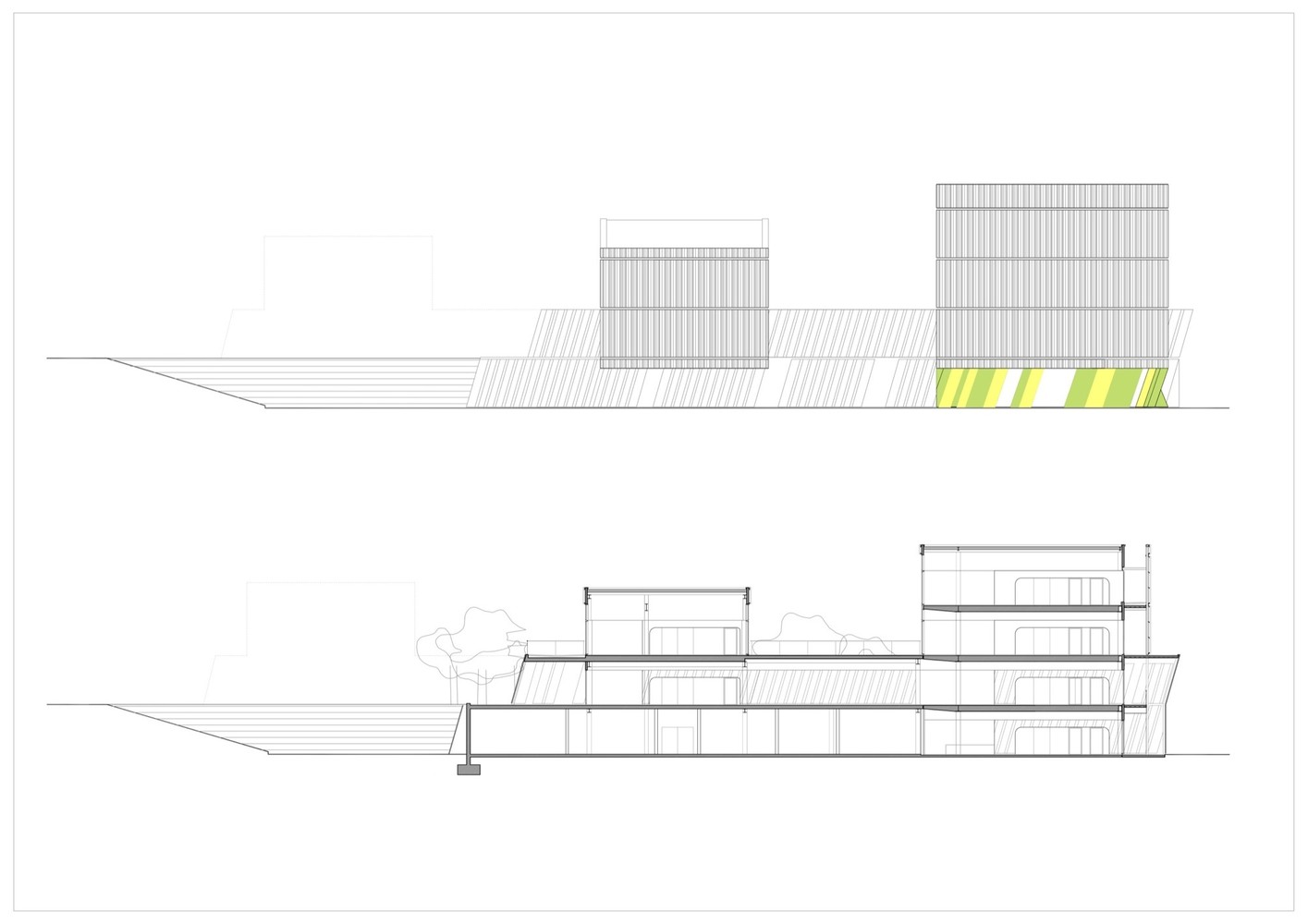

elevation 01
CIC Energigune
section 01


CIC Energigune

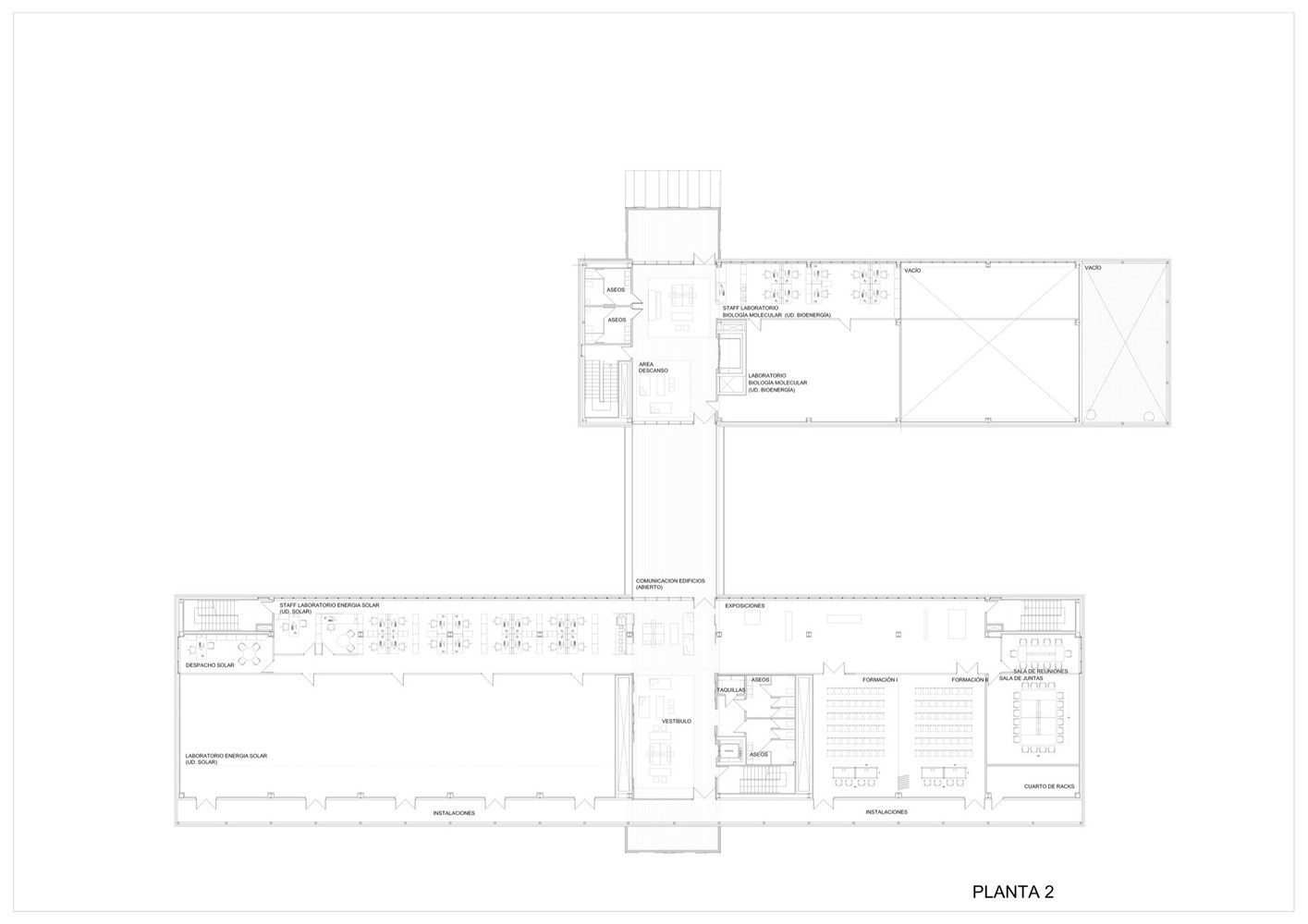

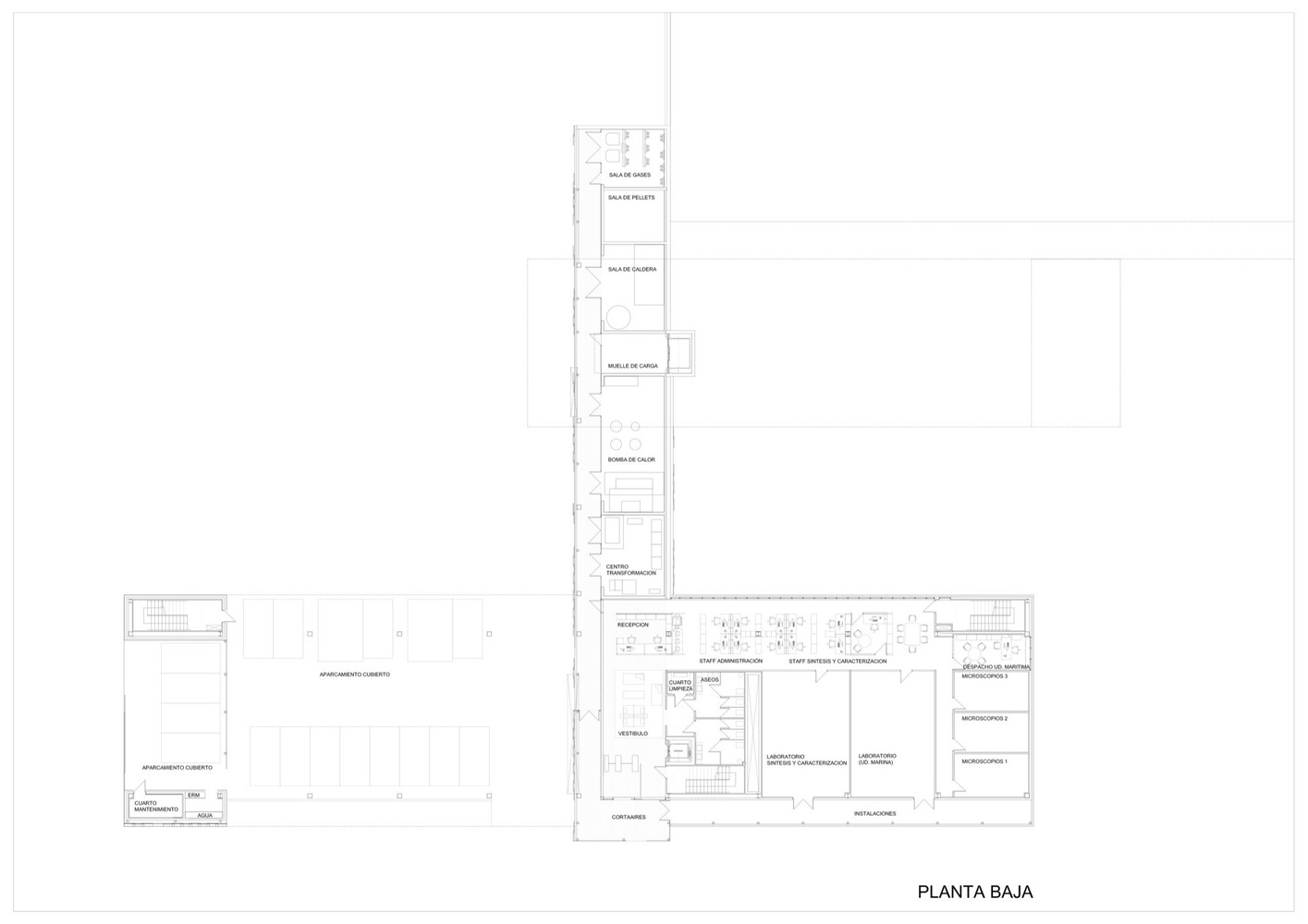

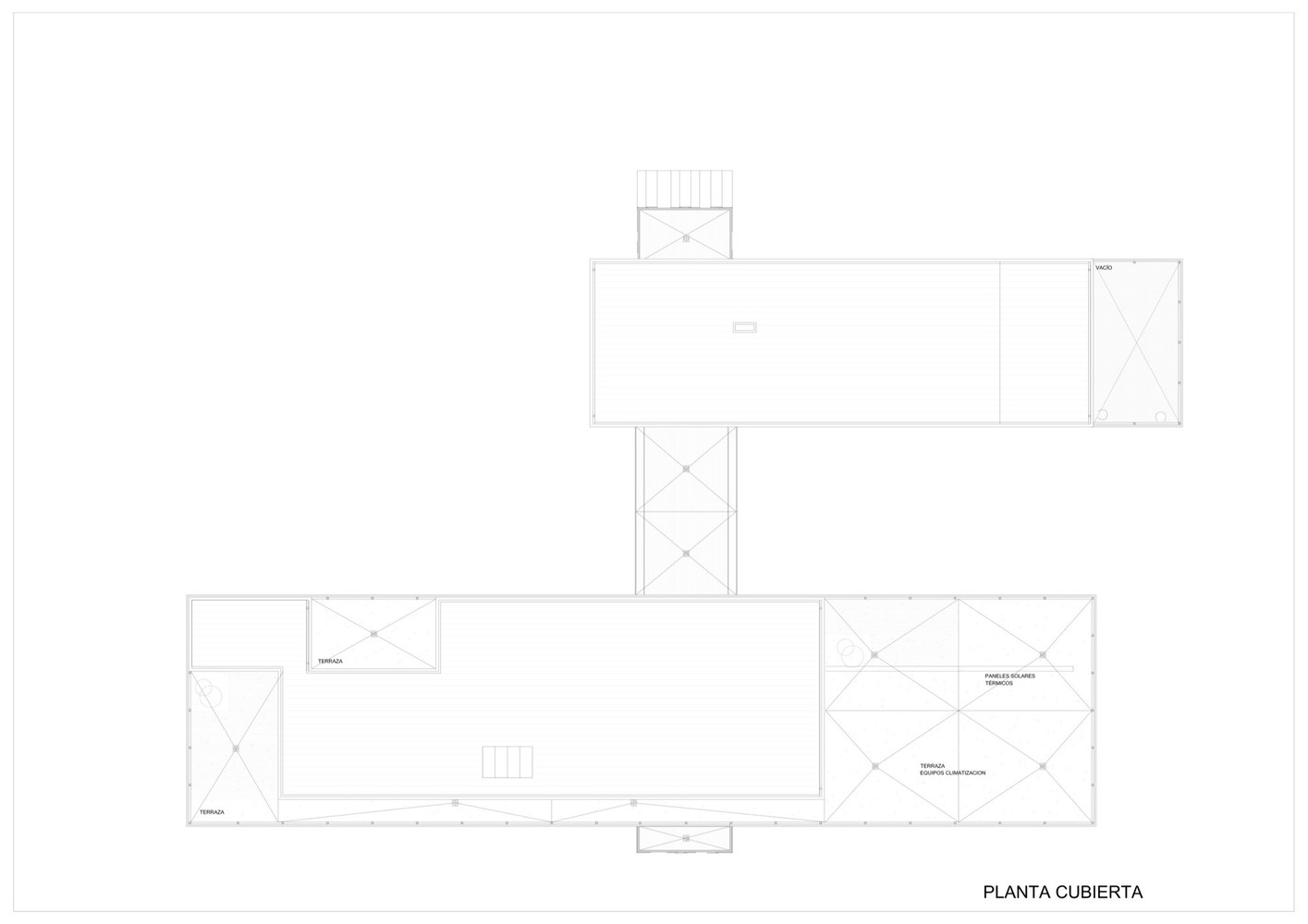

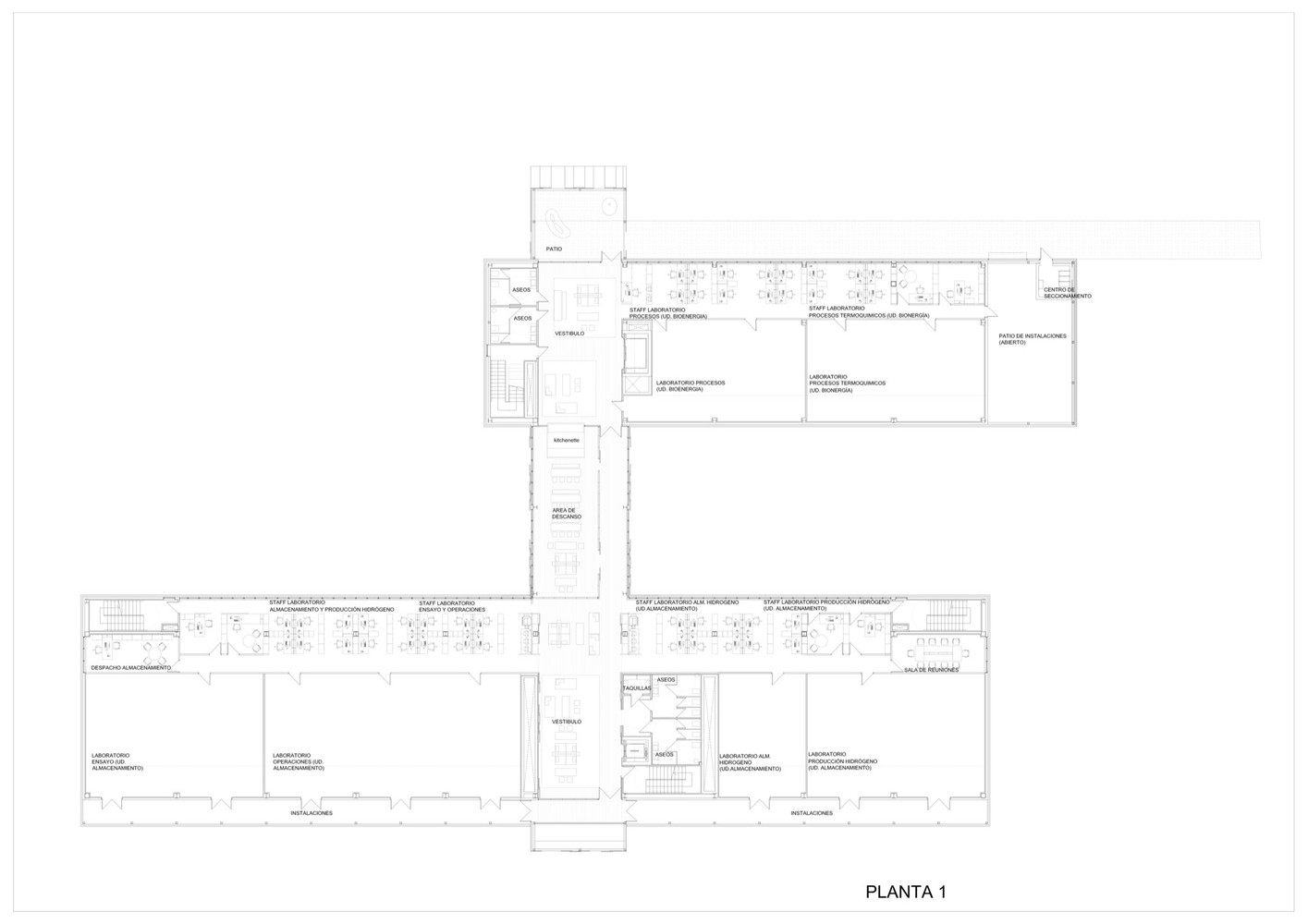

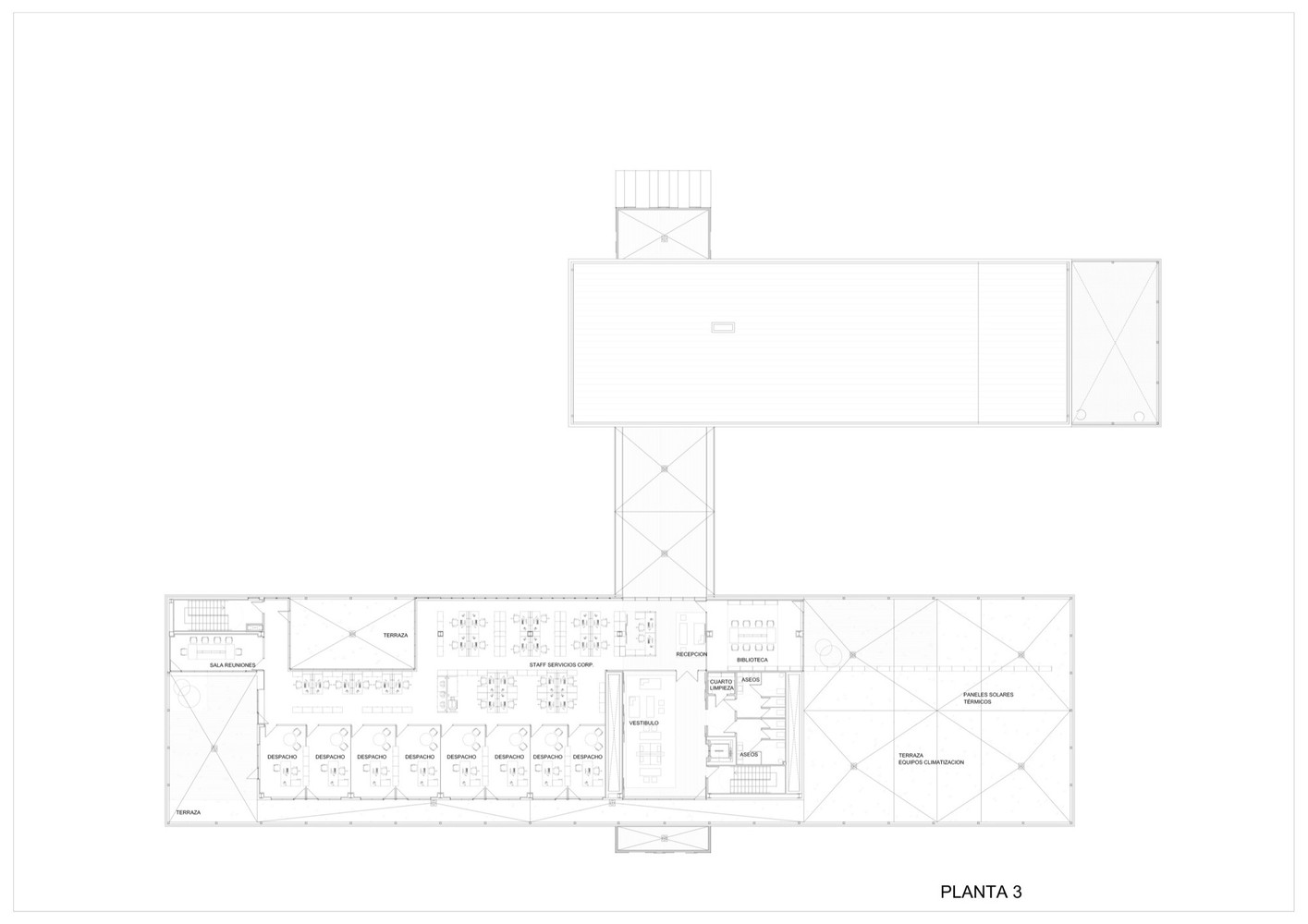

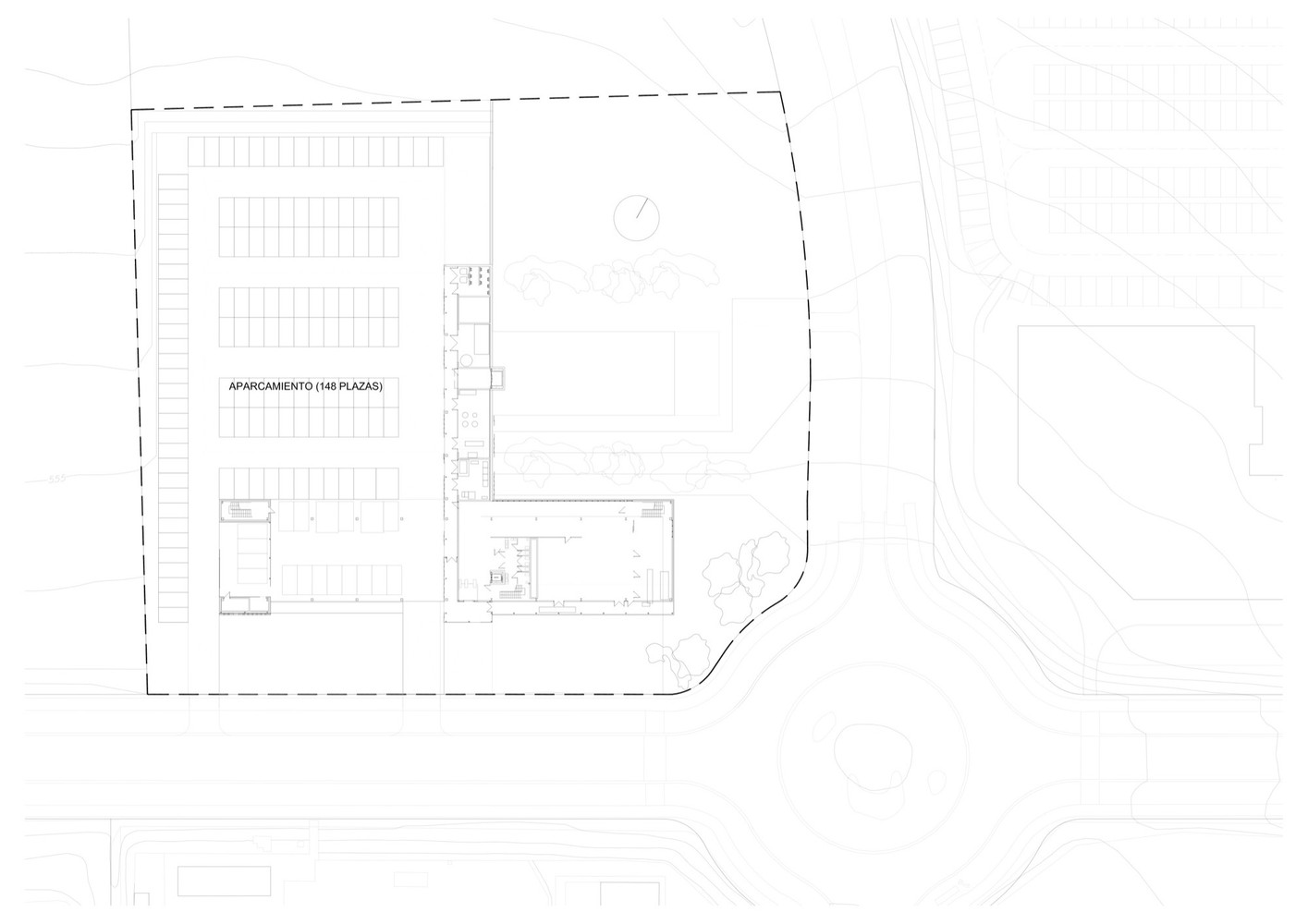

plan 01
CIC Energigune
plan 02
CIC Energigune
plan 03
CIC Energigune
plan 04
CIC Energigune
plan 05
CIC Energigune
plan 06


CIC Energigune

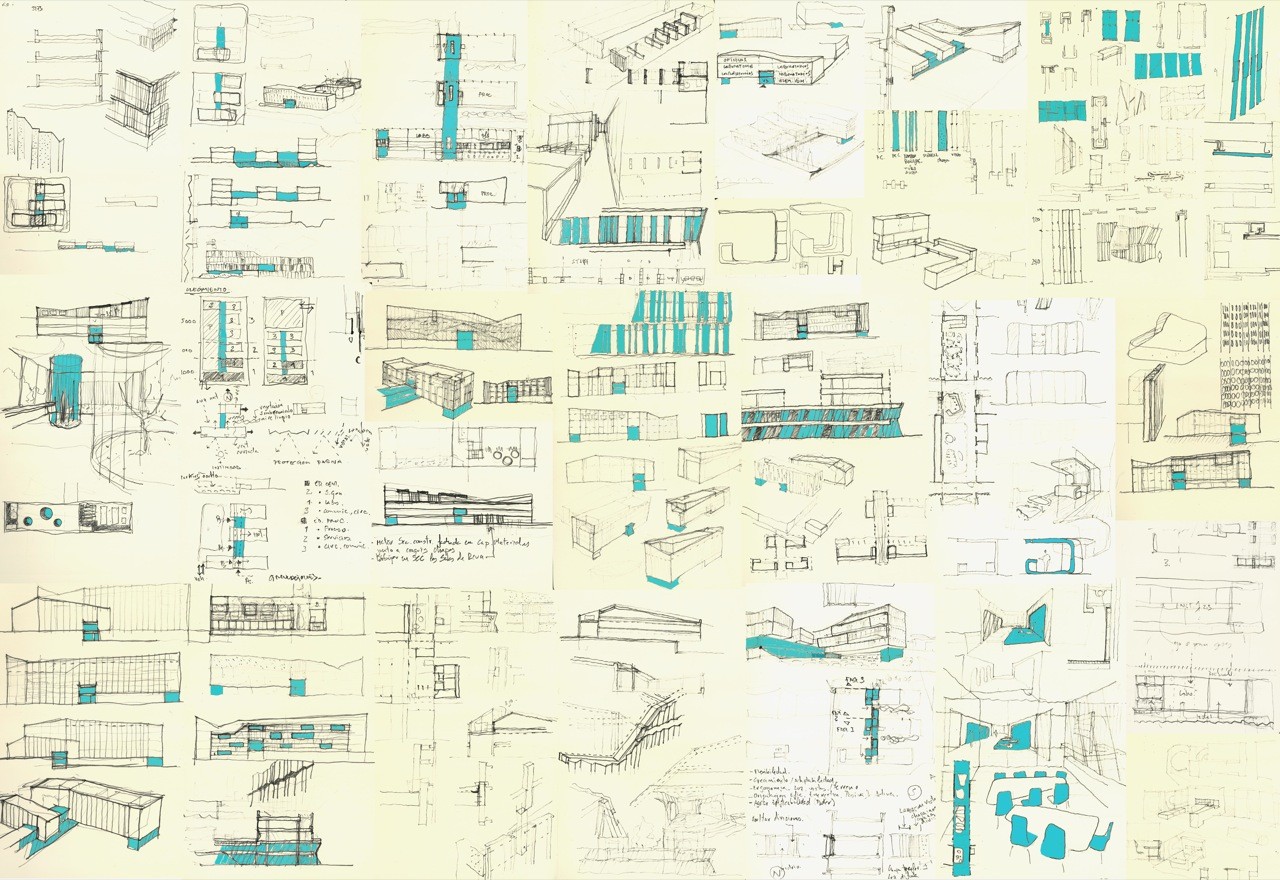

sketch
