Data Centre In Cerdanyola

DATA CENTRE IN CERDANYOLA

IDIOM

Data Centre In Cerdanyola
© Edouard Decam

ARCHITECTS
IDIOM

ARCHITECTURE IN CHARGE
Tono Fernández Usón

PROJECT MANAGEMENT
Enrique Bolón

STRUCTURES
Gustavo Melón, Nuno Souza, Iván Florencia

FACILITIES
Oriol Passola, Marc Fandós

CONSTRUCTION MANAGEMENT
Enrique Bolón, Gabriel Kososwski, Xavier Talló

SITE SUPERVISION
Tono Fernández, Magdalena Ostornol, Jonathan García, Oriol Passola, Marc Fandos

AREA
25000 m²

YEAR
2011

LOCATION
Cerdanyola Del Vallès, Spain

CATEGORY
Institutional Buildings

TEAM
Magdlena Ostornol, Fernando Rial, Elida Mosquera, Manuel Lópes Periquito

Data Centre In Cerdanyola
© Edouard Decam

Text description provided by architect.

The Data Centre program includes more than 6.000 m2 of processors distributed into 18 IT rooms as well as parking places, contingency offices, operation, coupling facilities, testing rooms, suppliers and workshops.

Data Centre In Cerdanyola
© Edouard Decam

The building typology requires the highest technological functionality, prioritizing:
 flexibility, scalability and energy efficiency in the three floors of computer rooms as well as in the two technical floors for the facilities of cooling and electric ones.

The special location of the Technology Park, located in the middle of nature, invites to propose a performance based on the sensibility for the impact on nature, minimizing the excavation volume and the landmark.

Data Centre In Cerdanyola
© Edouard Decam
Data Centre In Cerdanyola
© Edouard Decam
Data Centre In Cerdanyola
© Edouard Decam

Both formally and functionally, the main difficulty is to enclose a 100x43 meters rectangle in a triangular site, including six IT rooms (12x29m) per floor.

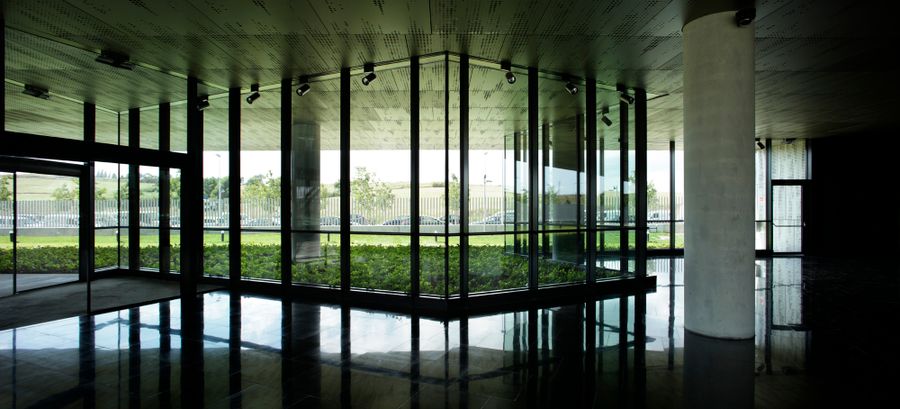

The offices area raises itself to create a garden-space in the ground floor that becomes the access to the Data Center.

Data Centre In Cerdanyola
© Edouard Decam

Located perpendicular to the technical area solves the main street needs.

Technically, the facilities design gets a Tier III level of security and an energy efficiency by a PUE that does not exceed 1.8.

Data Centre In Cerdanyola
© Edouard Decam
Data Centre In Cerdanyola
© Edouard Decam
Data Centre In Cerdanyola
© Edouard Decam

The electric facilities project has been designed for 16MW total power and a security level of TIER IV (Uptime Institute).

Data Centre In Cerdanyola
© Edouard Decam

The implementation of the Data Centre will be developed in phases, with a IT initial capacity of 2.5 MW. In terms of physical Layout and room's topology the Data Centre based on the structure: aisle cold - aisle hot. The high density racks have liquid cooling systems in-row type.

Reconciling these two wills -maximum functionality and minimal environmental impact- is the essential challenge of the project. The application of criteria and good practices of sustainable design have allowed the project is LEED certified.

Data Centre In Cerdanyola
© Edouard Decam


Data Centre In Cerdanyola

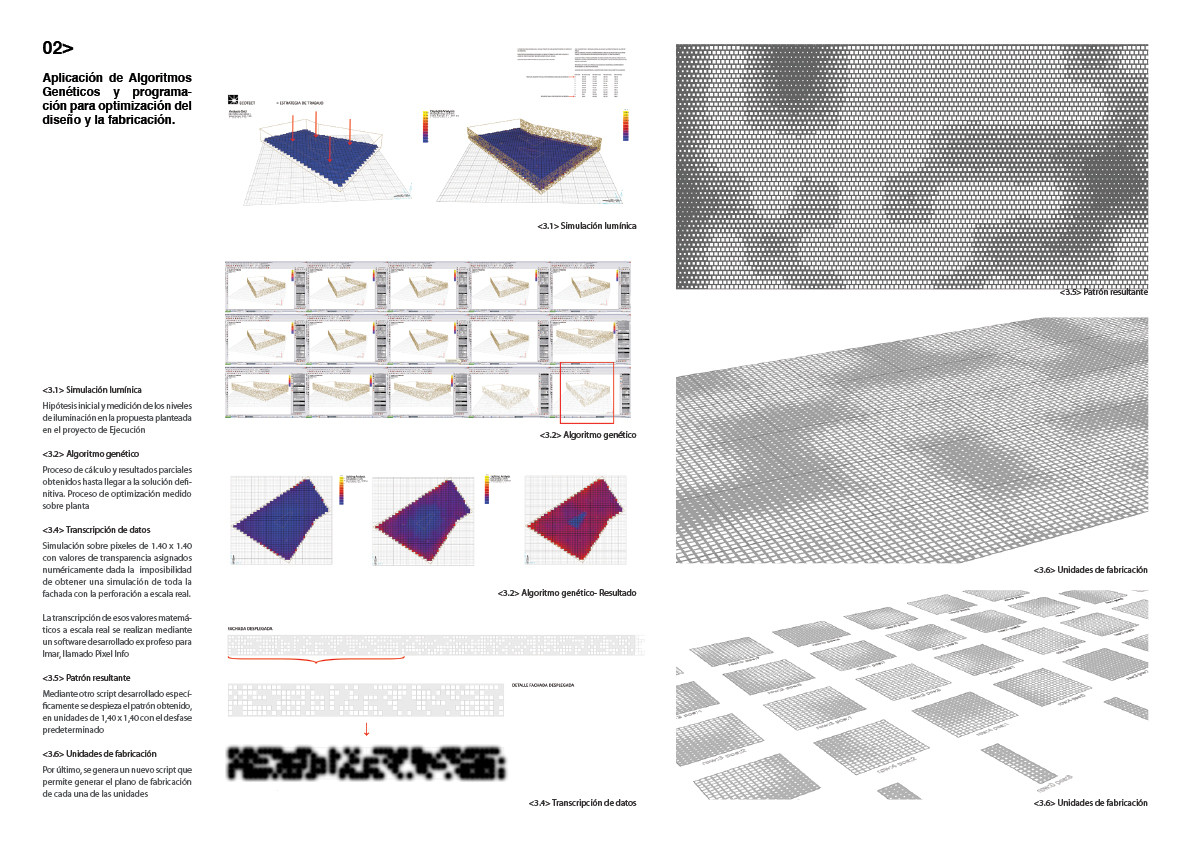

Facade
Data Centre In Cerdanyola
Facade
Data Centre In Cerdanyola
Facade
Data Centre In Cerdanyola
Structure


Data Centre In Cerdanyola
Facade Detail
