KNOKKE FOOTBRIDGE

Ney & Partners

ARCHITECTS
Ney & Partners

ENGINEER
Ney & Partners

CLIENT
Flemish Community

PHOTOGRAPHS
Daylight

AREA
110.0 m2

PROJECT LENGTH
110 m

BUDGET
$1,700,000 euro

PROJECT YEAR
2007

LOCATION
Knokke, Flanders, Belgium

CATEGORY
Pedestrian Bridge

Text description provided by architect.

Situated on the Queen Elisabeth Avenue, connecting Knokke with Ostende, this pedestrian bridge full fills two functions.

Knokke Footbridge
© Daylight
Knokke Footbridge
© Daylight

On the one hand, the bridge connects the sea dike with a green zone in the “Polders”, creating tourism possibilities for cyclists and pedestrians.

On the other hand the bridge symbolizes the entrance into the marine city of Knokke Heist.

Knokke Footbridge
© Daylight
Knokke Footbridge
© Daylight

The static model is a continuous beam with 102m length that rests on 4 supports.This creates an ideal span division of 28m/46m/28m.

The structural form was first hand sketched, then digitally processed.

Knokke Footbridge
© Daylight
Knokke Footbridge

A software program computed the minimum amount of material required and thus the shapes of the openings.

The result is an optimized shape. From a conceptual point of view, the bridge consists of welded bent steel plates of 12mm thickness, forming a structural steel “hammock” to which a concrete deck is tied.

Knokke Footbridge
© Daylight
Knokke Footbridge
© Daylight

To resist shear forces, caused by the bent shape in plan, the sides of the plates are inclined at 45°, with respect to the central axis.


Knokke Footbridge
© Daylight
Knokke Footbridge
© Daylight
Knokke Footbridge
© Daylight
Knokke Footbridge
© Daylight
Knokke Footbridge
© Daylight
Knokke Footbridge
© Daylight


Knokke Footbridge
Sketch
Knokke Footbridge
Sketch
Knokke Footbridge
Section
Knokke Footbridge
Sketch
Knokke Footbridge
Sketch
Knokke Footbridge
Sketch


Knokke Footbridge
Sketch
Knokke Footbridge
Sketch
Knokke Footbridge
Sketch
Knokke Footbridge
Plan
Knokke Footbridge

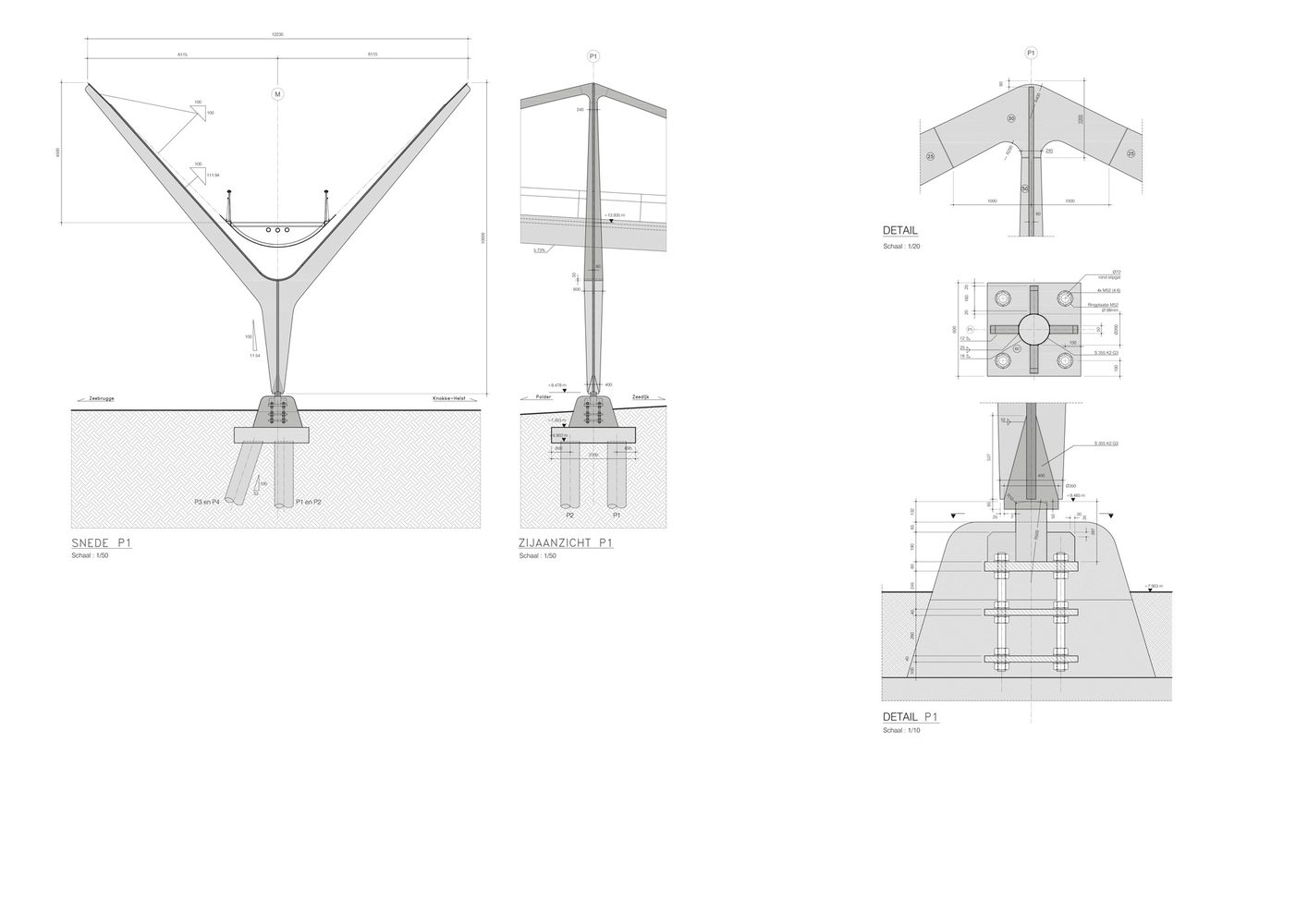

Detail
Knokke Footbridge
Detail
